Recliner Spring 180mm
Recliner Spring 180mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
How To Measure
How To Measure
All recliner parts are universal. Makes of recliners, brand names or manufactures part numbers don’t mean much.
93mm Spring Measure the total length of the spring including the hooks. Please note the offset of the hooks. One hook is shorter then the other. Break down of the measurements are – hook = 13mm, coil = 42mm, hook = 38mm TOTAL = 93mm. Wire diameter is 2.1mm.
Choose “93mm – Lockdown” from the drop down menu above, add the quantity required then “Add To Cart”
112mm Spring Measure the total length of the spring including the hooks. The hooks are symmetrical.
Break down of the measurements; hook = 22mm, coil = 68mm, hook = 22mm TOTAL = 112mm. Wire diameter is 2.1mm.
Choose “112mm – Footrest Release” from the drop down menu above, add the quantity required then “Add To Cart”
117mm Spring Measure the total length of the spring including the hooks. Please note the offset of the hooks. One hook is shorter then the other. Break down of the measurements are – hook = 16mm, coil = 61mm, hook = 40mm TOTAL = 117mm. Wire diameter is 2.1mm.
Choose “117mm – Lockdown” from the drop down menu above, add the quantity required then “Add To Cart”
TIP: To remove and fit a recliner spring, have the recliner footrest in the open position. There is no load on the spring then!
160mm Spring Measure the total length of the spring including the hooks. Please note the offset of the hooks. One hook is shorter then the other. Break down of the measurements; hook = 26mm, coil = 89mm, hook = 45mm TOTAL = 160mm. Wire diameter is 2.1mm.
Choose “160mm – Footrest Release” from the drop down menu above, add the quantity required then “Add To Cart”

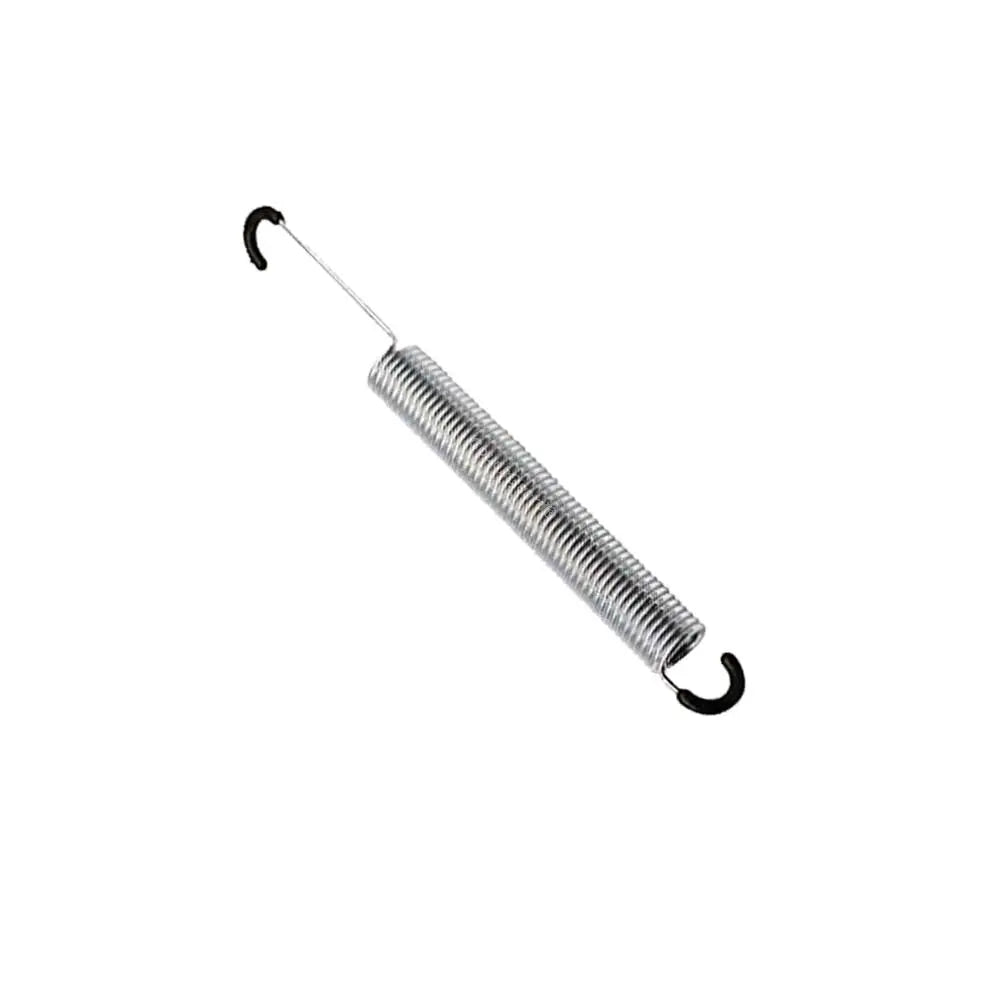

180mm Spring Measure the total length of the spring including the hooks. Please note the offset of the hooks. One hook is shorter then the other. Break down of the measurements; hook = 16mm, coil = 104mm, hook = 60mm TOTAL = 180mm. Wire thickness is 2.1mm
Choose “180mm – Footrest Release” from the drop down menu above, add the quantity required then “Add To Cart”
Please choose / measure carefully as returns / reorders will incur a return fee or new postage and handling fee of $9.90
How To Remove and Fit
How To Remove and Fit
Removing & Fitting A Recliner Spring
- Gently turn the recliner over remember correct lifting methods.
- Open the recliner footrest.
- Locate the spring you are replacing. You may want to mark where it come from.
- Using a pair of pointy noise pliers, remove the recliner spring by un-attaching the hook ends from the recliner action.
- With the new recliner spring in hand, hook the one hook end in first then using the pliers pull and hook the other end into the the recliner action. You may need to use your figers to help locate it into the hole. Be careful, they can bite!
- Turn the recliner back over and test the the footrest now stays close in the closed position.
- Sit in the recliner and open the foot rest using the trigger release and check that it locks closed when returned to the closed position.
