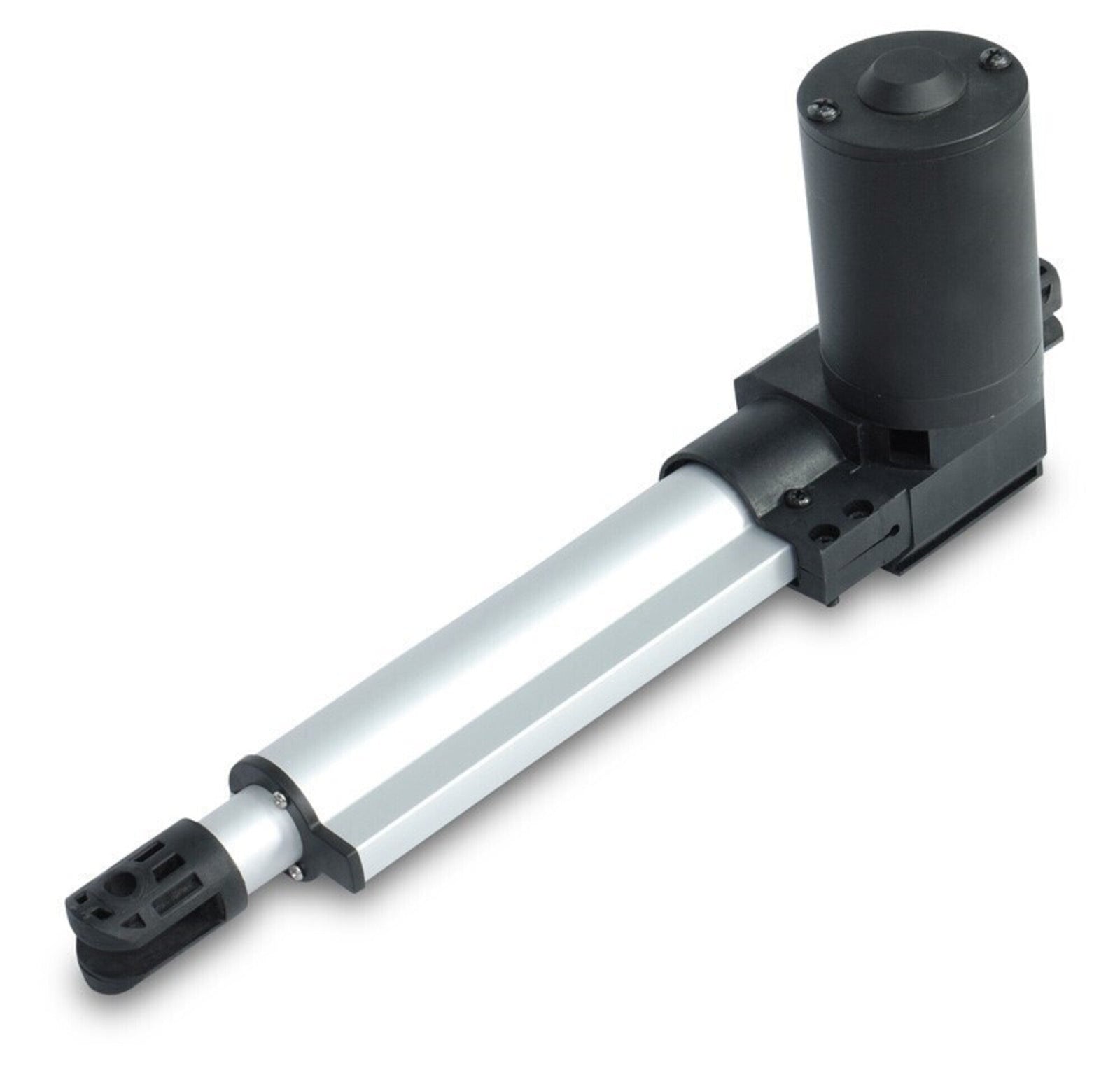

Is Your Linak Actuator Not Working?
Linak is one of the most trusted actuator brands used in electric recliners and lift chairs worldwide. When a Linak actuator stops working, it can leave your chair stuck in one position — frustrating and potentially unsafe for mobility-dependent users. The good news is that Linak faults are usually diagnosable at home, and CouchGuard stocks genuine Linak replacement parts with fast Australia-wide delivery.
Common Symptoms of a Faulty Linak Actuator
- Chair won't move up or down at all
- Chair moves in one direction only
- Actuator makes a clicking or grinding noise but chair doesn't move
- Chair moves very slowly or stops mid-cycle
- Handset buttons feel unresponsive
- Error light flashing on the control box
Step-by-Step: How to Diagnose a Linak Actuator Fault
Step 1 — Check the Power Supply
Before assuming the actuator is faulty, verify the power supply is working. Plug a known working device into the same outlet. Check the Linak power supply unit for indicator lights — a solid green light means power is good. If the light is off or red, replace the power supply first.
Step 2 — Check the Handset Connection
Unplug and re-plug the handset connector at the control box. Try a different handset if available. If the chair works with a different handset, the original handset is the fault — not the actuator.
Step 3 — Inspect the Wiring
Check all cables between the handset, control box, and actuator for visible damage, kinks, or loose connectors. Linak uses push-tab connectors that can work loose over time. Reseat all connections firmly.
Step 4 — Test the Control Box
The Linak control box (also called the controller or CBD unit) manages signals between the handset and actuator. If power and handset are fine but the actuator still won't move, the control box may be faulty. Swap with a known working unit to confirm.
Step 5 — Test the Actuator Directly
If all other components check out, the actuator itself is likely the fault. A Linak actuator that hums but doesn't extend has a mechanical failure internally. An actuator that is completely silent when commanded may have an electrical fault. In both cases, replacement is the most reliable fix.
How to Replace a Linak Actuator
- Disconnect power completely before starting
- Photograph all wiring connections for reference
- Disconnect the actuator wiring harness from the control box
- Remove the mounting pins or bolts securing the actuator to the chair frame
- Slide the old actuator free and install the replacement in the same orientation
- Reconnect wiring, restore power, and test full range of motion
Which Linak Actuator Do I Need?
Linak actuators vary by stroke length, force rating, and connector type. Check the label on your existing actuator for the model number (e.g. LA31, LA36, LA27). If the label is worn or missing, contact CouchGuard with your chair's brand and model and we'll identify the correct replacement.
Shop Genuine Linak Parts
CouchGuard stocks a full range of genuine Linak replacement parts including actuators, control boxes, handsets, and power supplies. All parts are in stock and dispatched daily with 1–3 day delivery Australia-wide.
Also see our full range of electric recliner parts and lift chair parts for compatible components across all major brands.
Frequently Asked Questions — Linak Actuator
How do I know if my Linak actuator is faulty?
If the actuator hums but doesn't move, or is completely unresponsive after ruling out power supply and handset faults, the actuator itself needs replacing.
Can I replace a Linak actuator myself?
Yes. Linak actuators use standard push-tab connectors and bolt or pin mounting. Most replacements can be done at home with basic tools in under 30 minutes.
Are Linak actuators compatible with other brands?
Linak actuators are used across many recliner and lift chair brands. Compatibility depends on stroke length, force, and connector type — contact CouchGuard to confirm compatibility before ordering.
How fast can I get a replacement Linak actuator?
CouchGuard dispatches daily. Most Australian orders arrive within 1–3 business days. Express post is available at checkout.
