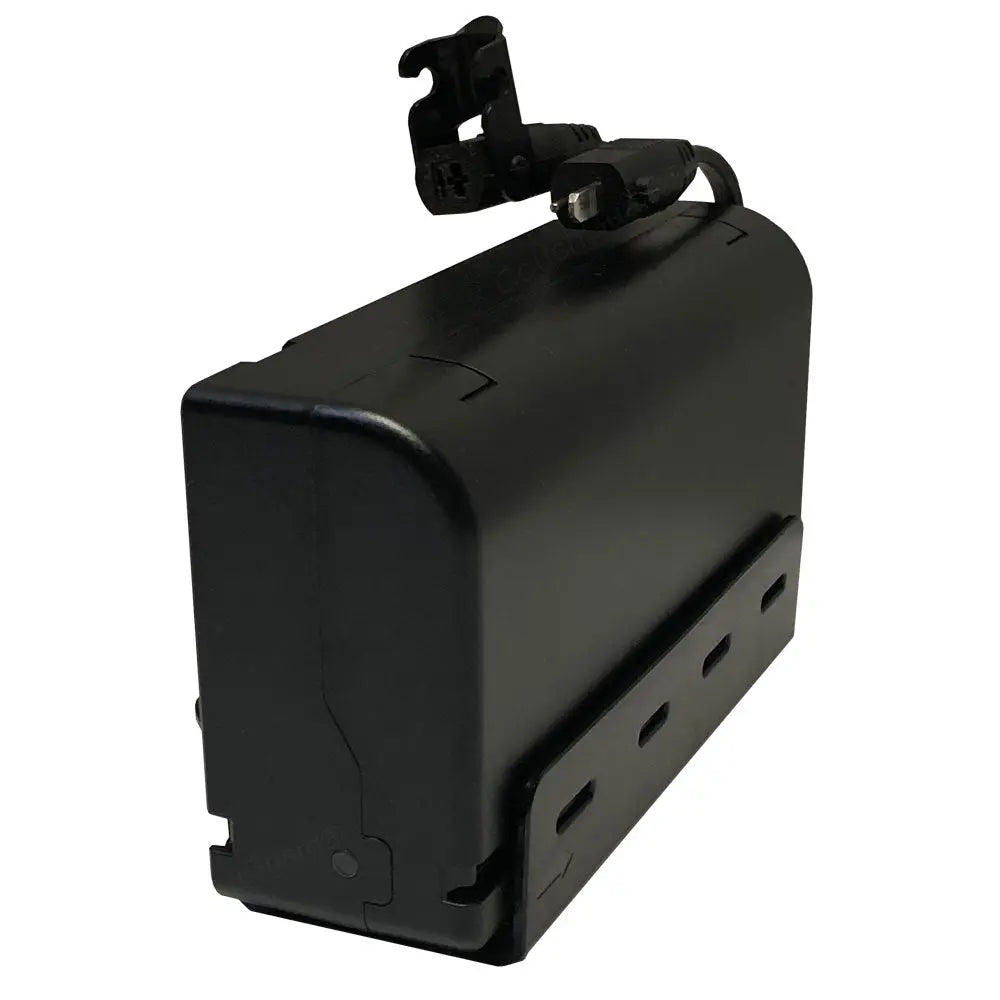

Okin Battery Pack 2550mAh

Okin Battery Pack 2550mAh

Please Note: If you have a New Plush or NickScali lounge suite you will need the 4000mAh at a minimum.

Due to new lounge suits having bigger USB connections, consoles and typically drawing more power we recommend our Couchguard 4000mAh & 6000mAh battery packs to ensure there is a longer period between charge cycles.

See Below in the description for the links to the Couchguard 4000mAh & 6000mAh battery packs or type them in the search bar.

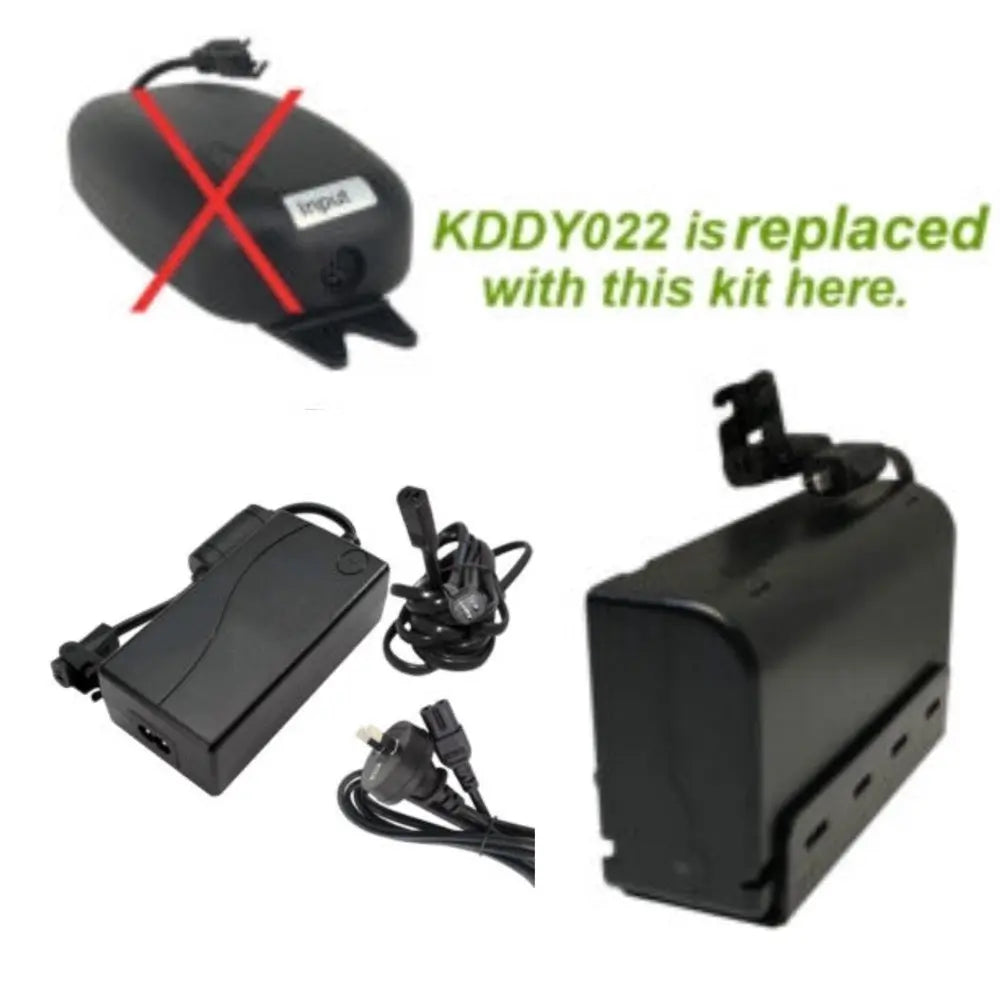

If you are replacing an old Kaidi, Limoss  or Okin battery this 2550mAh is suitable especially if you do not have USB ports or lights in your switches.

The Okin Battery Pack 2550mAh has protection measures built in such as LED charge status indicator and an audible warning signal when there is a low residual charge. Several safety functions are also on board, including electronic overload cut-off, a short-circuit and deep discharge protection. Over Charge Power pack shutoff automatically, when the charging voltage of the integrated power pack is higher than 29.7V±0.3V, or the charging voltage of battery cell is higher than 4.25V,LED turns green. Power pack stops charging.  Over Discharge   When the discharging voltage of integrated power pack is lower than 18V±0.5V,or when the voltage of any one of battery cell is lower than 2.5V, power pack will shut down automatically.  Over Current  The max output instant current of power pack is between 14A and 20A, if over this range, power pack will cut off immediately. When return to normal loading, Power pack can recover after cool down and recharge.  Short Circuit Power Pack will cut off at once, when Power Pack short circuit. It will protect the electrical equipment and itself not to be damaged by over current. Power pack can recover once faulty released and charge in advance.  LED LIGHTS - USB - TOUCH SENSOR BUTTONS? No battery is going to last long when the LED is glowing 24/7. Same as leaving your car lights on! You’d be charging it daily. This includes backlit switches. They have LEDS too. 1 x battery is required per electrical recliner to maintain the warranty. Touch sensor buttons draw an continuous current. A very small amount but enough to drain the battery quicker then a standard switch.

Dimensions Are (L=140mm × W = 50mm × H = 80mm inc. mounting bracket)

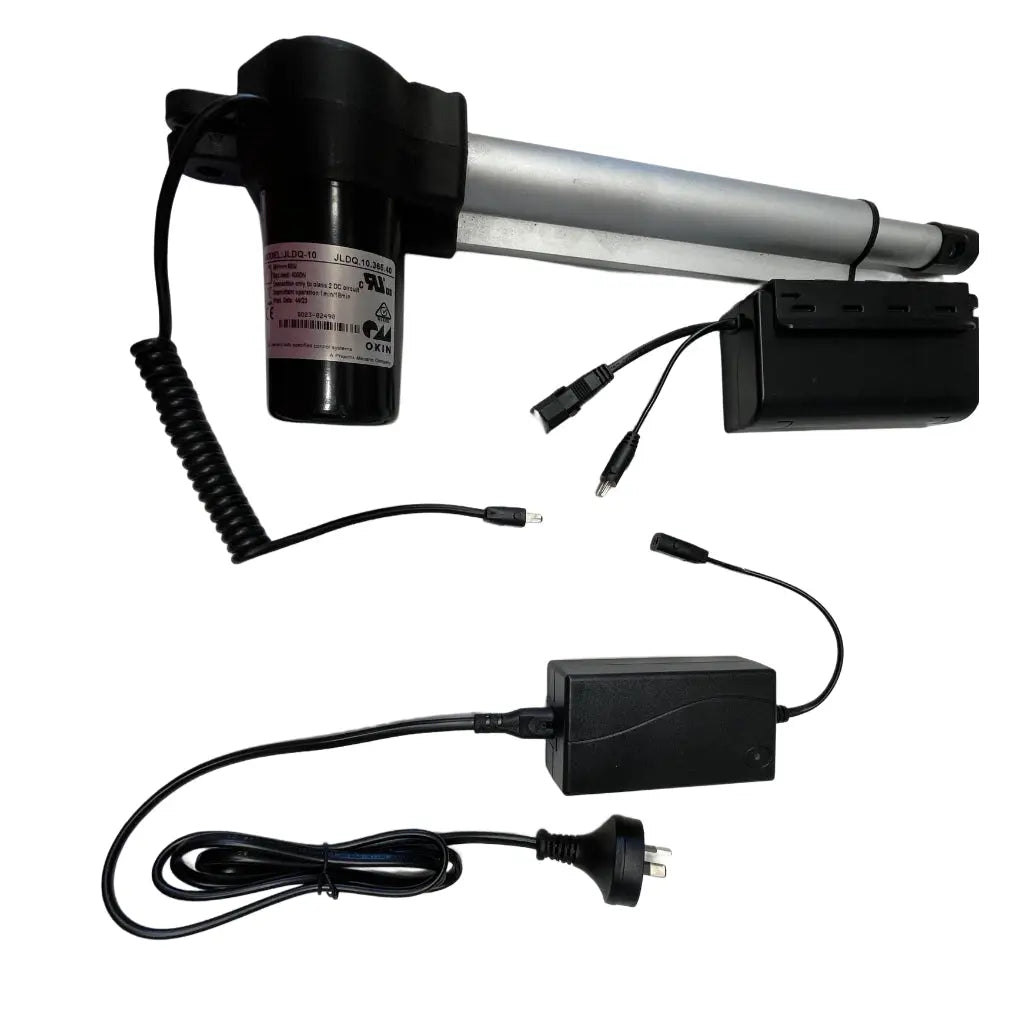

We recommend charging and topping up the battery every 3 to 4 weeks depending on usage.

Buy Genuine Okin Replacement Parts On Line Today with Fast Shipping from CouchGuard

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Reach out to our team today by calling 1300 268 244 or emailing info@couchguard.com.au
