Couch Guard Aus | SKU: CG-BP-6000mah

Couchguard Battery Pack 6000mAh

Name: Couchguard Battery Pack 6000mAh
Brand: Couch Guard Aus
SKU: CG-BP-6000mah
Price: 395.00 AUD
Availability: InStock

$395⁰⁰

Orders $175+ Ship Free.

or $8.90 Flat Rate

Established in 2011

AfterPay Available

Secure Payments

CouchGuard Battery Pack. The 6000mAh Battery Pack is the biggest and best solution to run you lift or reclining chairs. They have protection measures built in such as LED charge status indicator and an audible warning signal when there is a low residual charge. There is also a convenient USB-C charging port for the battery if it is removed from the charging plate. Several safety functions are also on board, including electronic overload cut-off, a short-circuit and deep discharge protection. Important Information: If you have purchased a new lounge suite with a console that uses a 2-pin connection, this 6000mAh battery pack is required for operation. This battery pack is also recommended for lift chair applications. Please Note: that consoles remain continuously powered and draws a constant supply of energy. Because of this, more frequent charging cycles are recommended to maintain performance. While this battery pack is suitable for most compatible consoles, compatibility cannot be guaranteed in every case. When charging 4 LED lights will flash in turn, this indicates a 25% 50% 75% 100% capacity. If all 4 LED light are on but no flashing the battery is fully charged; How to check the capacity when is not in charging status: press the button above the 4 LED: 1 LED on:25%capacity left 2 LED on:50%capacity left 3 LED on:75%capacity left 4 LED on:100%capacity Over Charge Power pack shutoff automatically, when the charging voltage of the integrated power pack is higher than 29.4V±0.3V, or the charging voltage of battery cell is higher than 4.25V, until the charging display shows full bars and the Power Pack stops charging. To charge fully from flat the time is approx. 24hrs. We recommend charging and topping up the battery every 2 months depending on usage. Over Discharge When the discharging voltage of integrated power pack is lower than 16.8V - 21.0V,or when the voltage of any one of battery cell is lower than 2.5V, power pack will shut down automatically. Over Current The max output instant current of power pack is between 14A and 20A, if over this range, power pack will cut off immediately. When return to normal loading, Power pack can recover after cool down and recharge. Short Circuit Power Pack will cut off at once, when Power Pack short circuit. It will protect the electrical equipment and itself not to be damaged by over current. Power pack can recover once faulty released and charge in advance. LED LIGHTS - USB - TOUCH SENSOR BUTTONS? No battery is going to last long when the LED is glowing 24/7. Same as leaving your car lights on! You’d be charging it daily. This includes backlit switches. They have LEDS too. Touch sensor buttons draw a continuous current. A very small amount but enough to drain the battery quicker then a standard switch. Dimensions: 160mm L x 75mm W x 60mm H including charging plate.

Description

CouchGuard 6000mAh Battery Pack — Maximum Power for Lift Chairs & Recliners

The CouchGuard 6000mAh Battery Pack is the largest and most powerful battery pack we offer — ideal for lift chairs, recliners with 2-pin console connections, and any recliner with USB ports, LED lighting or touch sensor switches that draws high continuous power.

Important: If your lounge suite console uses a 2-pin connection, the 6000mAh battery pack is required for operation. Consoles remain continuously powered and draw constant energy, so more frequent charging is recommended.

Key Specifications

Capacity: 6000mAh
Dimensions: 160mm (L) × 75mm (W) × 60mm (H) including charging plate
USB-C charging port (when removed from charging plate)
4-LED charge status indicator + audible low-charge warning
Charge time from flat: approximately 24 hours
Built-in overcharge, over-discharge, over-current and short-circuit protection

How to Check Battery Capacity

Press the button above the 4 LEDs when not charging: 1 LED = 25%, 2 LEDs = 50%, 3 LEDs = 75%, 4 LEDs = 100%. When charging, LEDs flash in sequence. All 4 LEDs solid = fully charged.

Compatibility — Which Recliners Does This Battery Fit?

Lift chairs (single and dual motor)

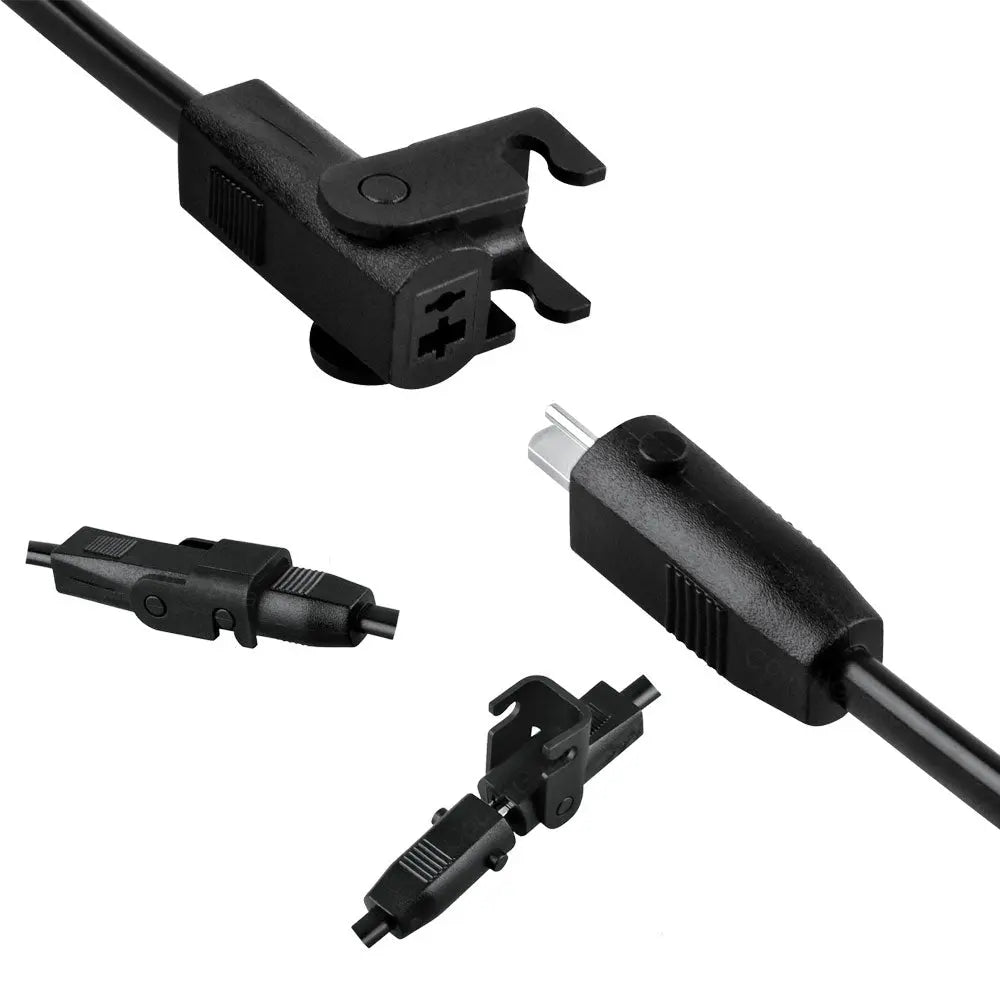

Recliners with 2-pin console connections
Plush and Nick Scali recliners with USB consoles or LED lighting
Any recliner with touch sensor switches or always-on LED features
Compatible with Okin, Kaidi, Limoss, Dewert and eMoMo actuator systems

Frequently Asked Questions

What is the difference between the 4000mAh and 6000mAh battery?
The 6000mAh has 50% more capacity, making it better suited for lift chairs, recliners with 2-pin consoles, or any recliner with high continuous power draw from LEDs, USB or touch sensors.

What battery does a lift chair need?
We recommend the 6000mAh battery pack for all lift chair applications due to the higher power demands of the lift mechanism.

What battery fits a Nick Scali recliner with a 2-pin console?
Nick Scali recliners with a 2-pin console connection require the CouchGuard 6000mAh battery pack.

Why does my recliner battery drain quickly?
LED lights, USB ports, backlit switches and touch sensor buttons all draw continuous current. The 6000mAh pack provides the longest time between charges for power-hungry recliners.

How many batteries do I need?
One battery per electrical recliner seat is required to maintain warranty.

Buy genuine recliner battery packs online with fast Australia-wide shipping from CouchGuard.

FAQ

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout
