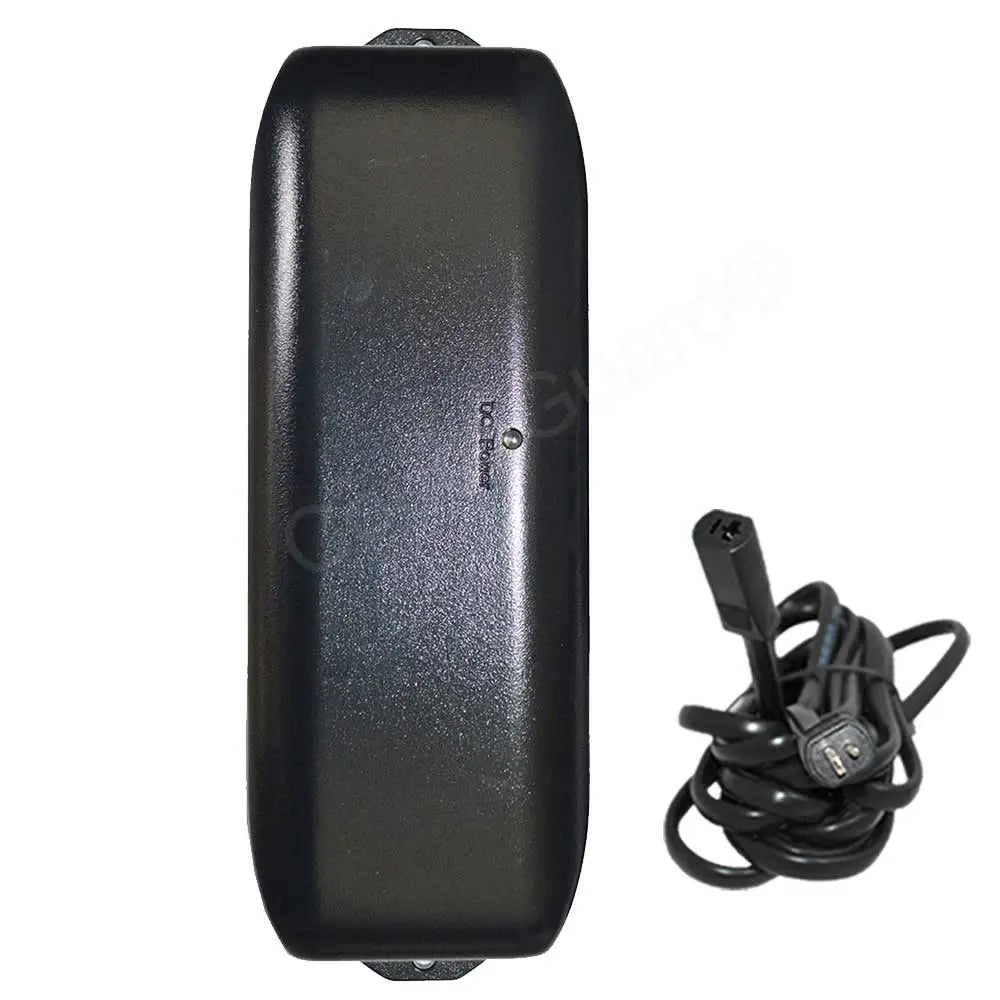

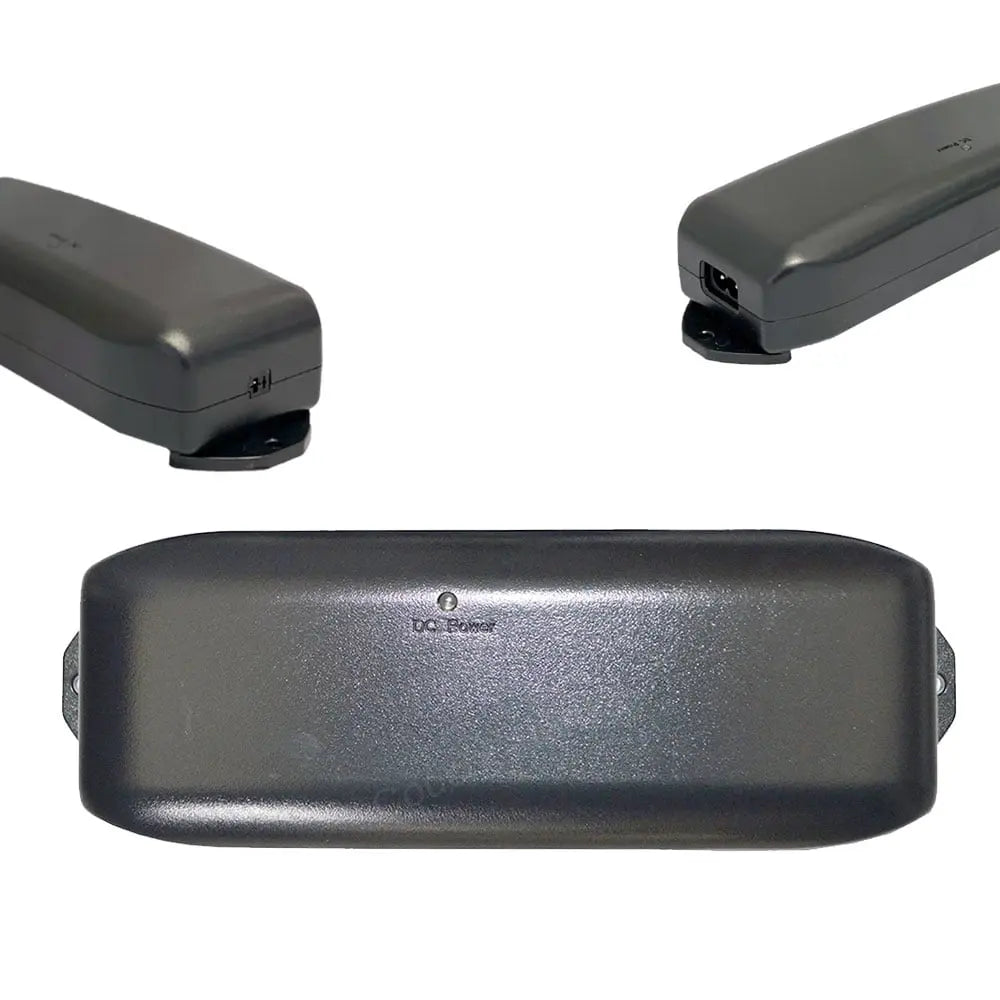

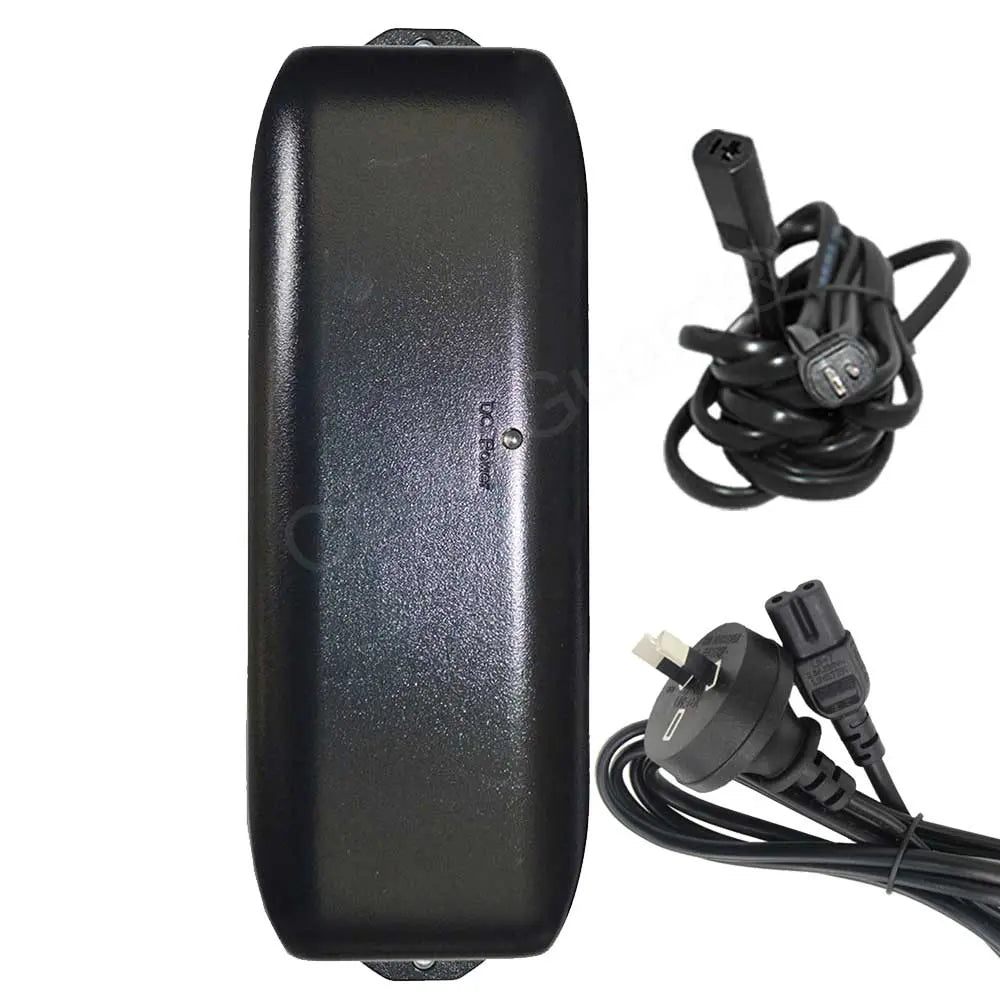

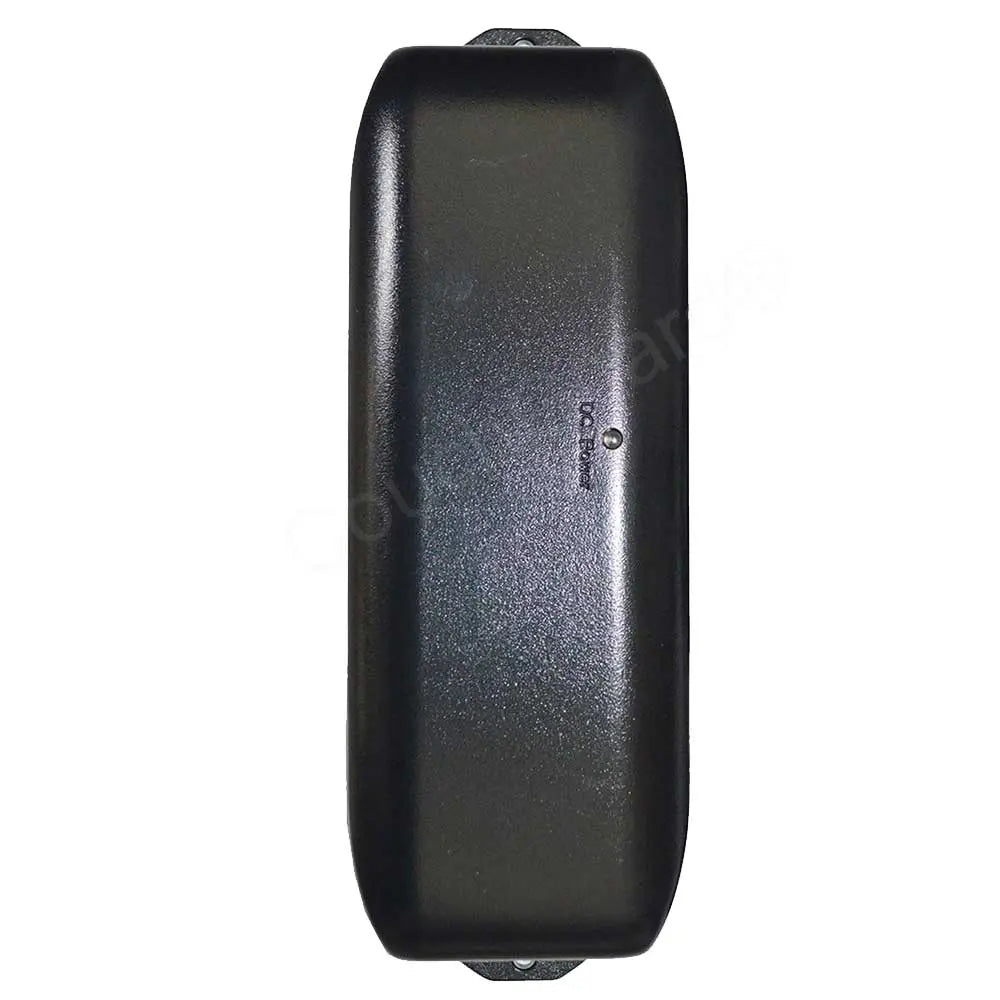

Comprehensive Overview of the Okin SP2-B Power Supply

Okin SP2-B Power Supply has an input voltage is 100-240VAC 50/60HZ and the output is 29v DC 2.0 amp and the two pin plug is the industry standard and fit 99.9% of the recliners on the market. The 9v battery back up option is generally good for one use only then the batteries need replacing.

Key Features of the Okin SP2-B Power Supply

The Okin SP2-B Power Supply is engineered to deliver consistent and reliable power across a wide range of applications. This power supply boasts durable construction, ensuring longevity and stable output voltage. Equipped with advanced safety features, it prevents overloads and short-circuits, providing peace of mind during operation. Its compact design allows for easy integration into various devices, making it an ideal choice for both industrial and consumer electronics. The Okin SP2-B Power Supply is renowned for its efficiency, minimizing energy loss and heat generation.

Performance and Compatibility

Designed to support a variety of equipment, the Okin SP2-B Power Supply offers excellent compatibility with multiple systems. It maintains consistent voltage and current output, which is crucial for delicate electronics that require stability to operate correctly. This power supply's versatility allows it to be used in applications ranging from medical devices to automation systems. Users benefit from its plug-and-play design and straightforward installation process, reducing downtime and technical complexity. Plus, its low electromagnetic interference ensures smooth operation in sensitive environments.

Durability and Maintenance

Built with high-quality materials, the Okin SP2-B Power Supply provides long-term durability even in demanding environments. Its robust casing protects internal components from dust, moisture, and mechanical shocks. This power supply requires minimal maintenance due to its reliable design and tested components, which reduces the need for frequent replacements. Regular inspection and cleaning are sufficient to maintain optimal performance. Additionally, the Okin SP2-B is backed by manufacturer support, offering users technical assistance and warranty coverage for added confidence.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Output: DC 29V = 2.0amp

Power Supply Specifications

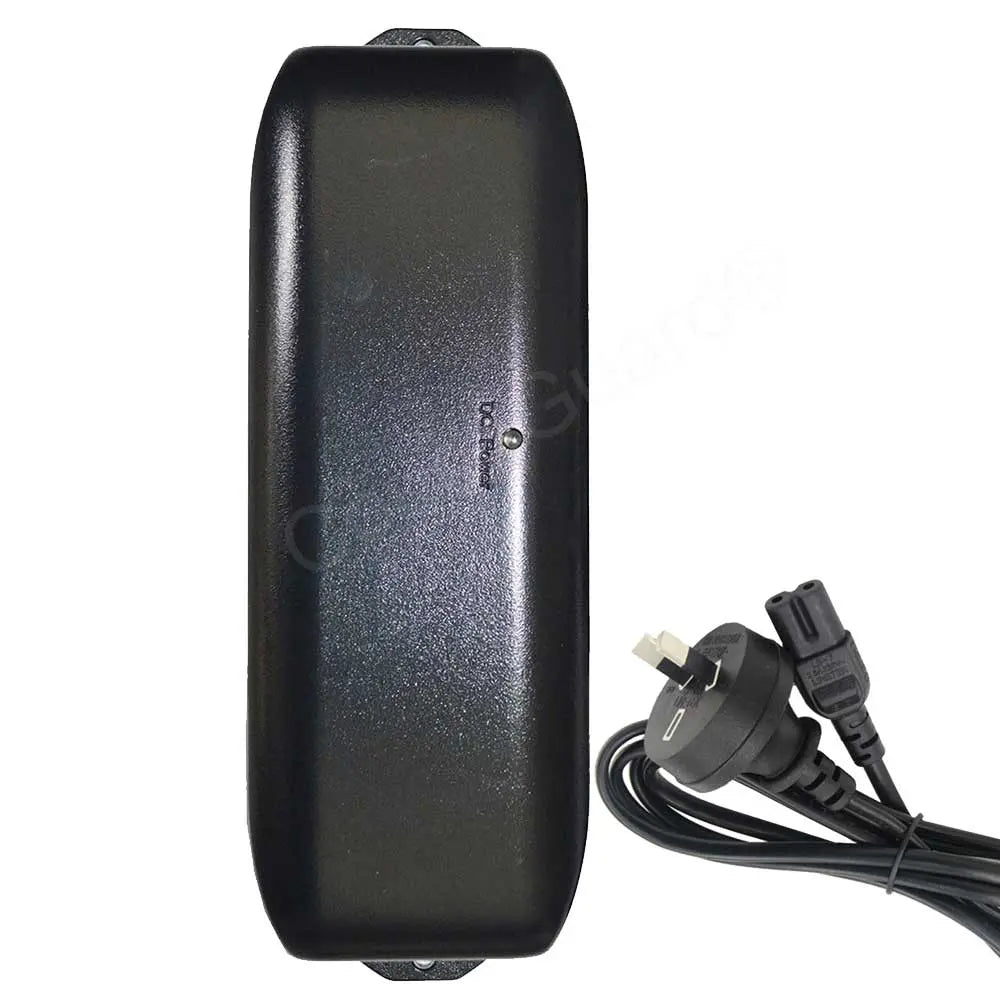

• Input: 100 – 240V, 50/60Hz, 1.5amp (Australian figure 8 mains power cord)

• Output: DC 29V = 2.0amp

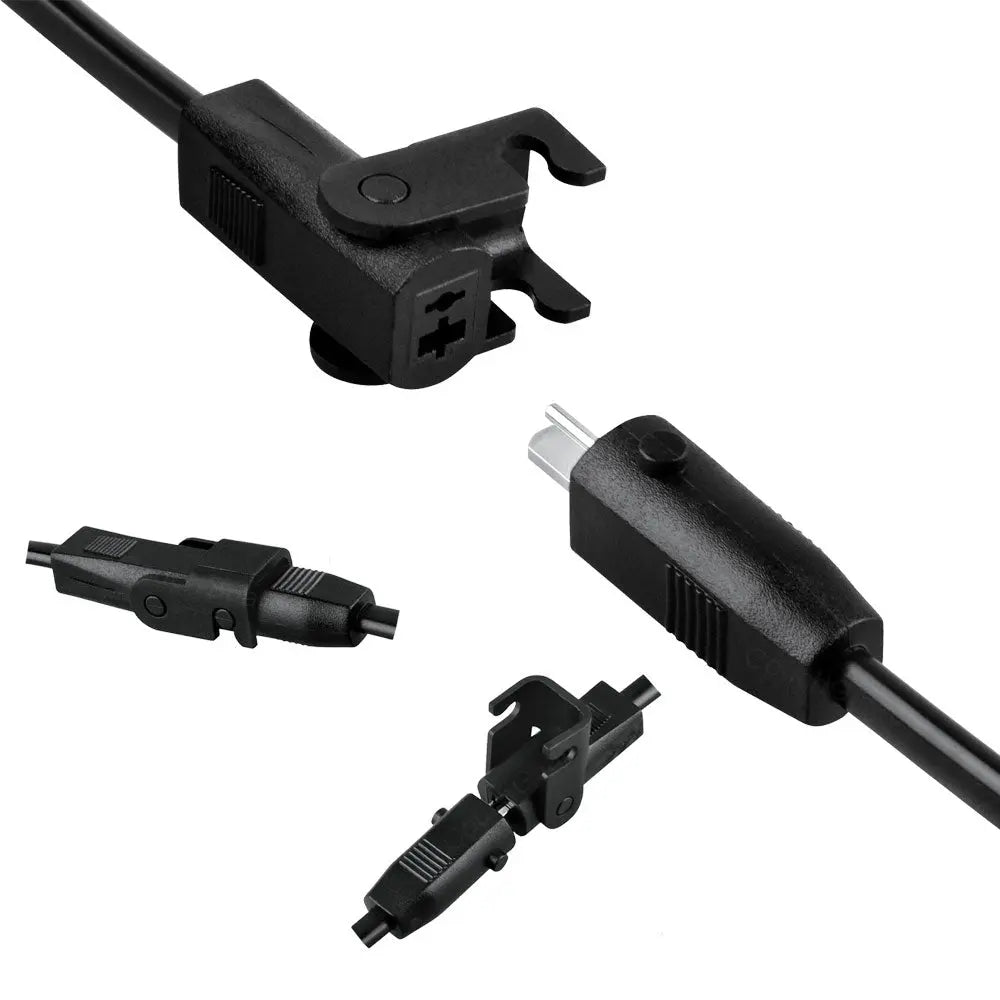

• Plug: STD 01 female ( O l Plug)

• Duty cycle: Max 10%; Max Time on: 2 min

This is the industry standard power supply for power recliner chairs including lift chairs.
