Buy Okin SP2-B Recliner & Lift Chair Power Supply

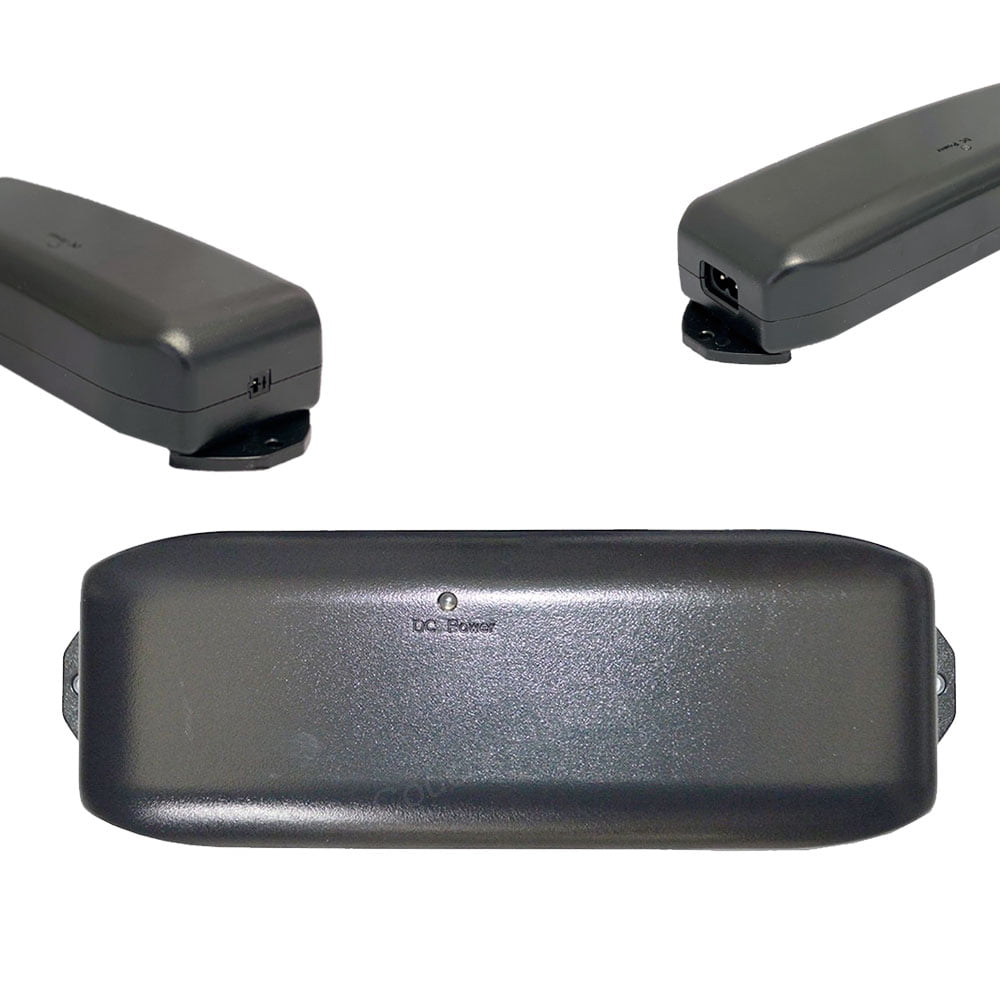

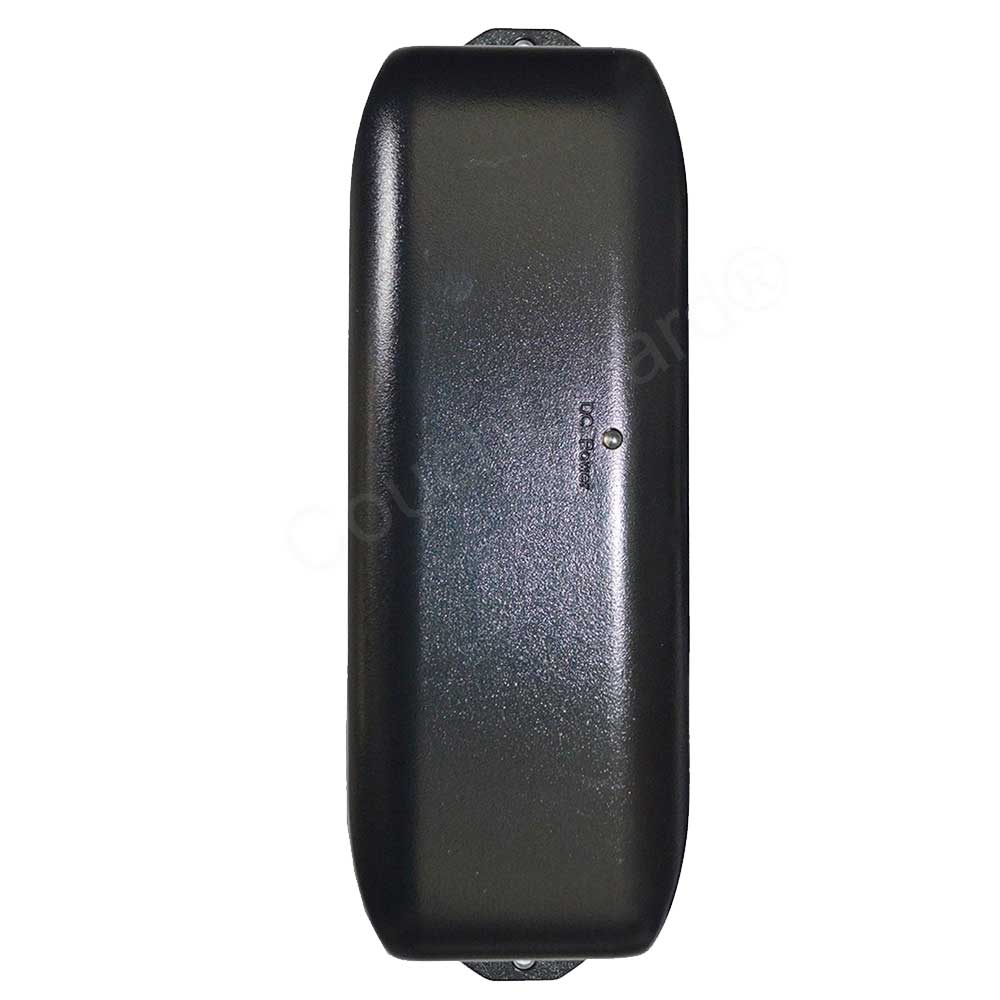

Okin SP2-B recliner and lift-chair power supply

This genuine Okin SP2-B power supply provides 29V DC, 2A for electric recliners and compatible lift chairs. Its industry-standard two-pin connection fits 99.9% of recliners on the market. Compare the original output, connector and polarity before ordering. Choose the supply on its own or the option with the leads you need.

Okin SP2-B Power Supply Specifications

• Brand: Okin.
• Model: SP2-B.
• Input: 100–240V AC, 50/60Hz.
• Output: 29V DC, 2A.

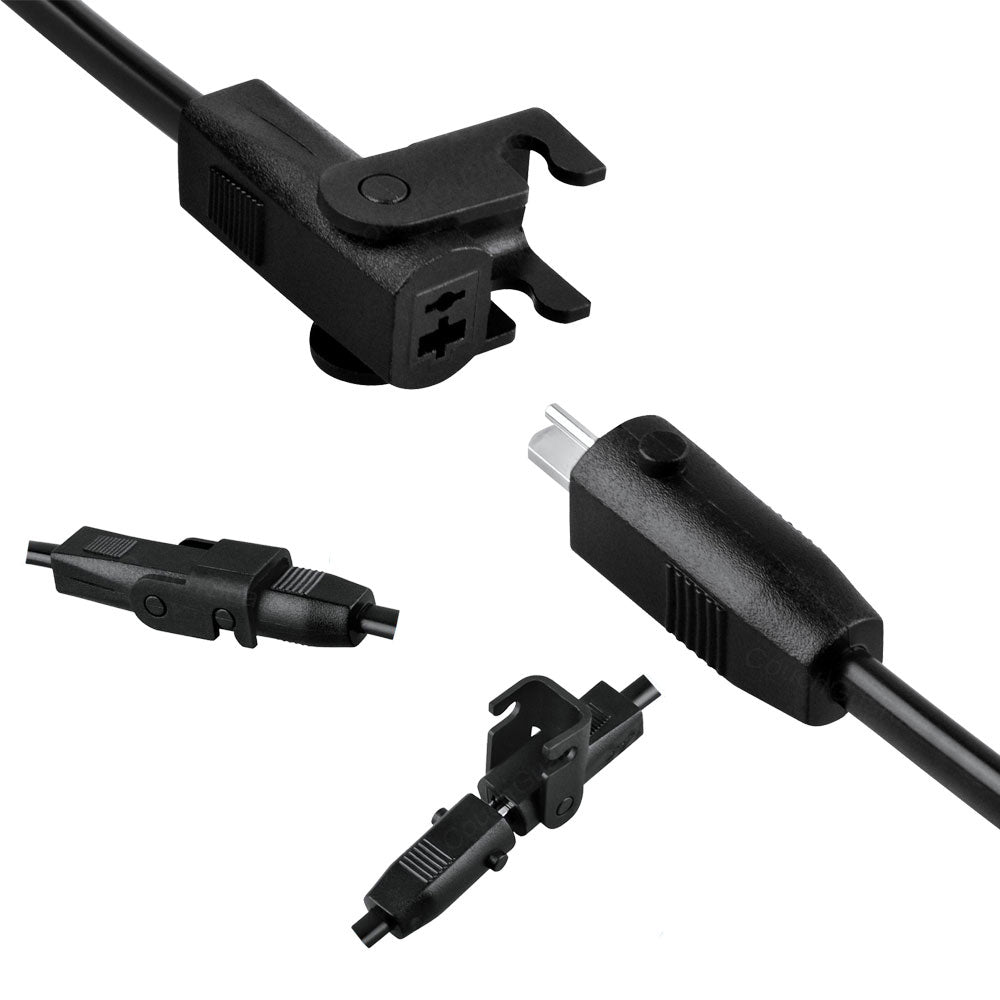

• DC Connection: Two-pin I/O, one flat blade and one round pin.
• Mains Inlet: Figure-eight.
• Backup Provision: Two 9V batteries, not included.
• Applications: Electric recliners and compatible lift chairs.

Choose your option

• Power Supply Only: Supply without additional leads.

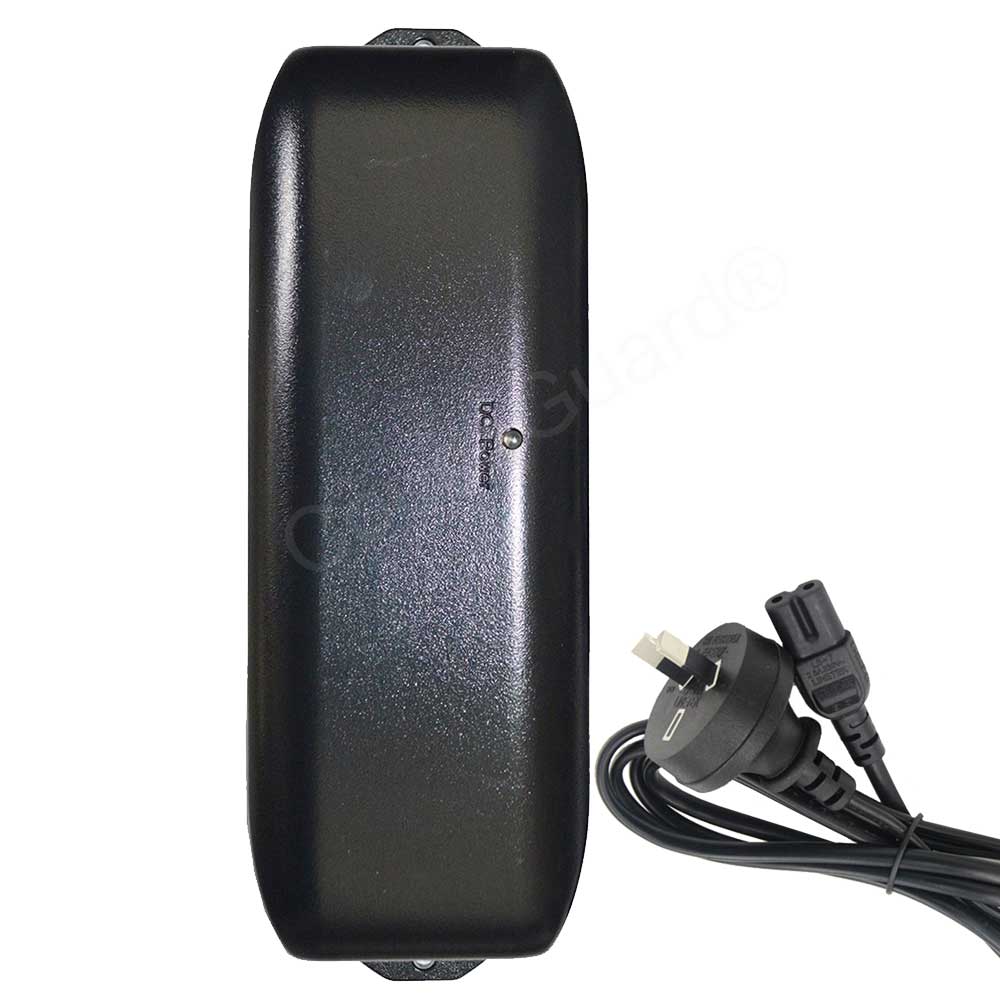

• Power Supply - with AU Power Lead: Supply and Australian mains lead.

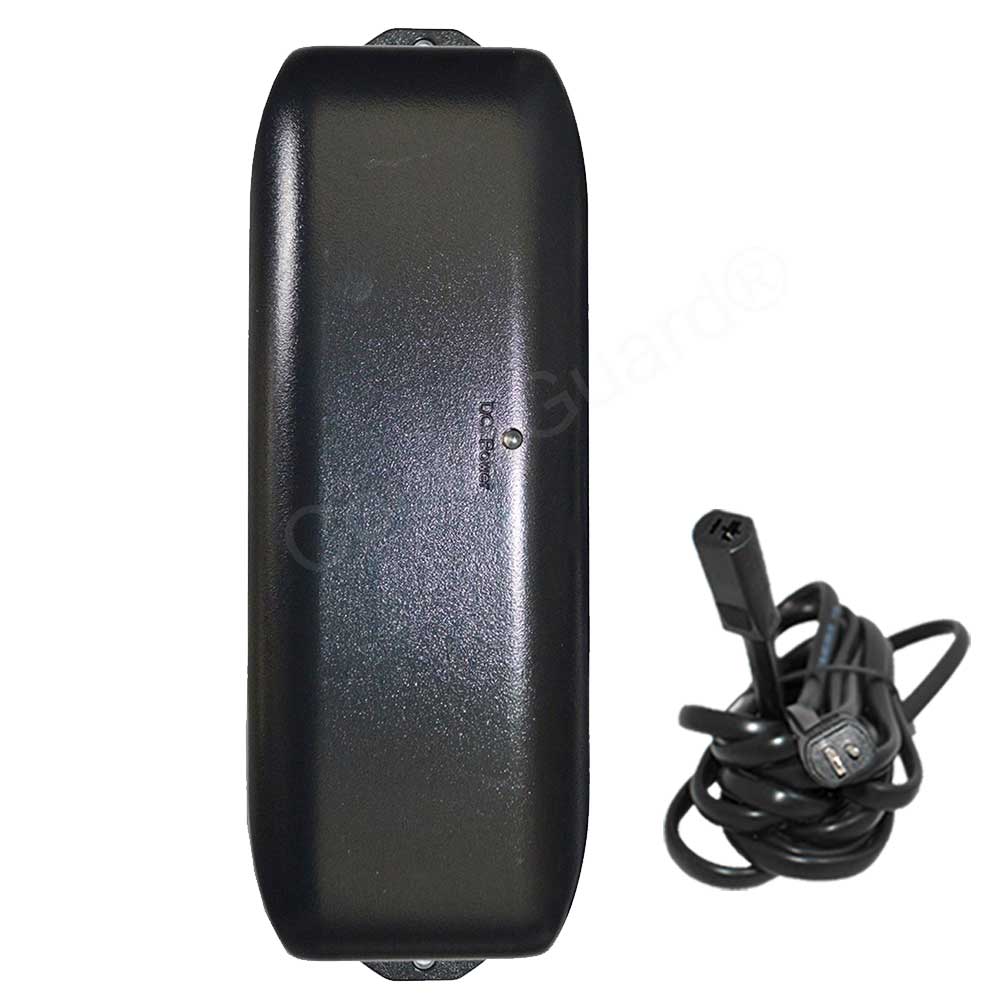

• Power Supply - with 0I Extension Lead: Supply and two-pin I/O extension lead.

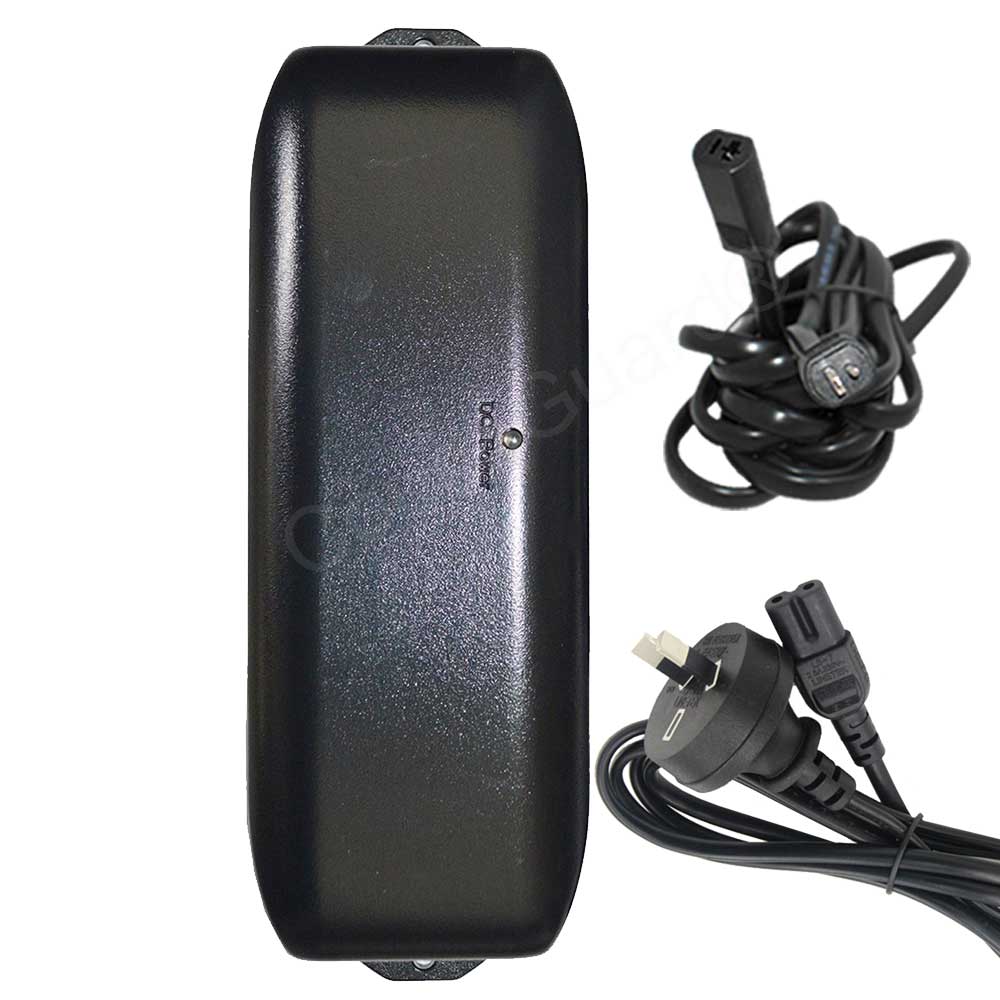

• Complete - Power Supply Kit Form: Supply, Australian mains lead and two-pin I/O extension lead.

Replacement and compatibility

SP2-B and SP2-B1 have the same specifications. Match output, connections, polarity and the lead option you require. It is also a replacement option for the Kaidi KDDYOO1B where those requirements match. Send CouchGuard photos of the original label and plugs if unsure.

Backup and connection

The two 9V batteries provide limited emergency backup, not ongoing cordless operation. Backup is generally good for one emergency use, after which the batteries need replacing. Available movement depends on the connected system and battery condition. Disconnect mains and backup power before changing connections and never force mismatched plugs.

Frequently asked questions

What output does the SP2-B provide?

29V DC, 2A. Match the original supply and system requirements.

Can it power a lift chair?

Yes, where output, connections and polarity match the lift-chair requirements.

Are SP2-B and SP2-B1 equivalent?

They have the same specifications. Compare connections and selected lead inclusions.

Does it fit most recliners?

The industry-standard two-pin connection fits 99.9% of recliners on the market. Still confirm the required voltage, current and polarity.

Which leads are included?

Choose your option. The complete kit includes the Australian mains lead and I/O extension; supply-only has no additional leads.

Are backup batteries included?

No. The supply has provision for two 9V batteries.

Can the backup batteries run the chair normally?

No. They are for limited emergency use, not regular cordless operation.

How can I check the replacement?

Send CouchGuard photos of the original label, output plug and mains connection.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Output DC 29V - 3amp

Power Supply Specifications 29V - 3.0amp

• Input: 100 – 240V, 50/60Hz, 1.8amp (Australian figure 8 mains power cord)

• Output: DC 29V = 3.0amp

• Plug: STD 01 female ( O l Plug)

• Duty cycle: Max 10%; Max Time on: 2 min

This is the industry standard power supply for power recliner chairs including lift chairs.
