Why Is My Electric Recliner Moving Slowly or Stopping Mid-Cycle?
An electric recliner that moves slowly, hesitates or stops before completing its full range of movement is usually experiencing a power, actuator or overload issue. This guide explains the most common causes and how to check each one. If you are unsure which system is fitted to your chair, start with our guide to identifying Okin, Kaidi, Limoss and Dewert recliner systems.

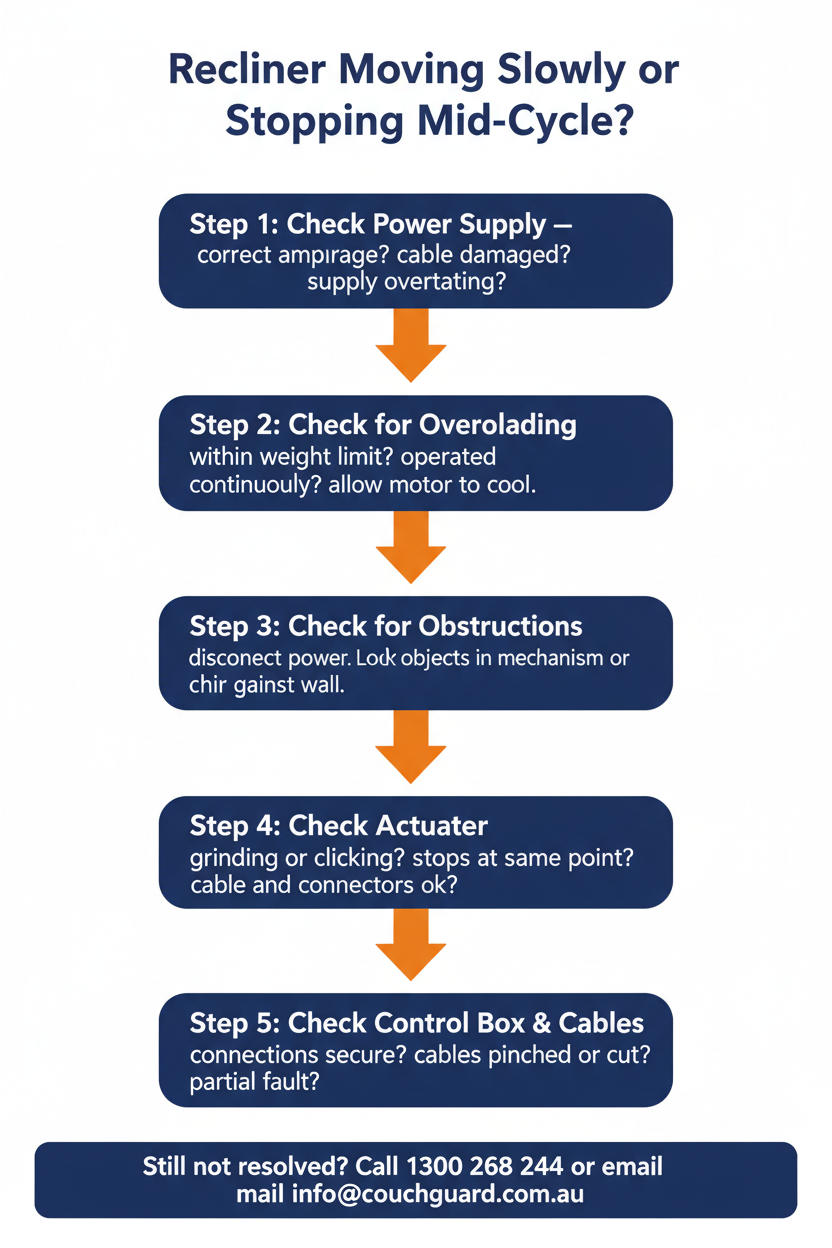

Step 1: Check the Power Supply
An undersized or failing power supply is one of the most common causes of slow or interrupted recliner movement.
- Confirm the power supply is rated correctly for your chair. A 2AMP supply may be insufficient for a dual-motor recliner or a chair with LED lighting and USB accessories drawing additional current.
- Check the power supply cable for damage, kinks or partial cuts that could restrict current flow.
- A power supply that becomes very hot during operation may be working beyond its rated capacity and should be replaced with a higher-amperage unit.
- Try a known working power supply if one is available to confirm or rule out the supply as the cause.
If the supply is faulty, follow our recliner power-supply replacement guide.
Step 2: Check for Overloading
Operating a recliner beyond its rated weight capacity causes the motor to work harder, which can result in slow movement, overheating and automatic shutdown.
- Check the weight rating on the chair label or documentation.
- Ensure the chair is not being used to support weight beyond its rated capacity.
- Allow the chair to rest for several minutes if it has been operated continuously — some motors have a thermal protection circuit that shuts down the motor when it overheats and resets after cooling.
Step 3: Check for Mechanical Obstructions
An obstruction in the recliner mechanism increases the load on the motor and can cause slow movement or a mid-cycle stop. See our stuck recliner troubleshooting guide for safe obstruction checks.
- Disconnect the power supply and check under and around the chair for objects caught in the mechanism.
- Check that the chair is not pressed against a wall or piece of furniture that restricts movement.
- Inspect the mechanical linkages for bent brackets, misaligned components or debris.
Step 4: Check the Actuator
A worn or failing actuator will often move slowly before failing completely. Read our recliner motor-label guide before ordering a replacement.
- Listen for grinding, clicking or straining sounds during movement — these indicate internal wear.
- A chair that moves normally when lightly loaded but slows under normal use may have an actuator with increased internal friction.
- Check the actuator cable and connectors for damage or loose connections.
- An actuator that stops at the same point in the cycle each time may have a damaged section of lead screw or a bent inner tube.
If the actuator is confirmed faulty, use our step-by-step actuator replacement guide.
Step 5: Check the Control Box and Cables
A loose connection or partial cable fault can restrict the current reaching the motor, causing slow or intermittent movement. Use our connector and plug identification guide if you are unsure which connection is fitted.
- Check all cable connections at the control box, motor and handset socket.
- Look for cables that have been pinched or partially cut by the chair mechanism.
- A control box with a partial internal fault may deliver reduced power to the motor. If all other components check out, the control box may need replacement.
Step 6: Contact CouchGuard
If the chair continues to move slowly or stop mid-cycle after these checks, call 1300 268 244 or email info@couchguard.com.au to discuss replacement-part availability.
Common Symptoms and Likely Causes
- Slow movement under normal load: Undersized power supply, worn actuator or partial cable fault.
- Stops at the same point every time: Damaged actuator lead screw, bent inner tube or mechanical obstruction at that position.
- Stops after extended use and restarts after a rest: Motor thermal protection activating — overload, overuse or worn actuator causing excess friction.
- Slow with grinding or clicking: Worn actuator.
- Slow only when fully loaded: Power supply amperage insufficient or actuator nearing end of life.
Frequently Asked Questions
My recliner stops after a few minutes and then works again. What is wrong?
This is usually the motor’s thermal protection circuit activating. The motor overheats — due to overloading, continuous use or a worn actuator creating excess friction — and shuts down until it cools. Allow the chair to rest, then check the weight load and actuator condition.
Can a low-amperage power supply cause slow recliner movement?
Yes. A 2AMP power supply may be insufficient for a dual-motor recliner or a chair with additional accessories drawing current. Replacing the supply with a 3AMP unit of the same voltage and connector type is a straightforward fix.
My recliner moves slowly only when someone is sitting in it. Is this normal?
Some slowing under load is normal. However, if the movement is noticeably slow or the motor sounds like it is straining, check the power supply amperage and the actuator condition. A worn actuator will show increased friction under load before failing completely.
The recliner stops at exactly the same point every time. What does this mean?
A consistent stop point usually indicates a damaged section of the actuator lead screw, a bent inner tube or a mechanical obstruction at that position in the mechanism. Inspect the actuator and mechanism at the point where movement stops.
