Actuator Alloy Mount

Actuator Alloy Mount — Rear Clevis Mount for Electric Recliners

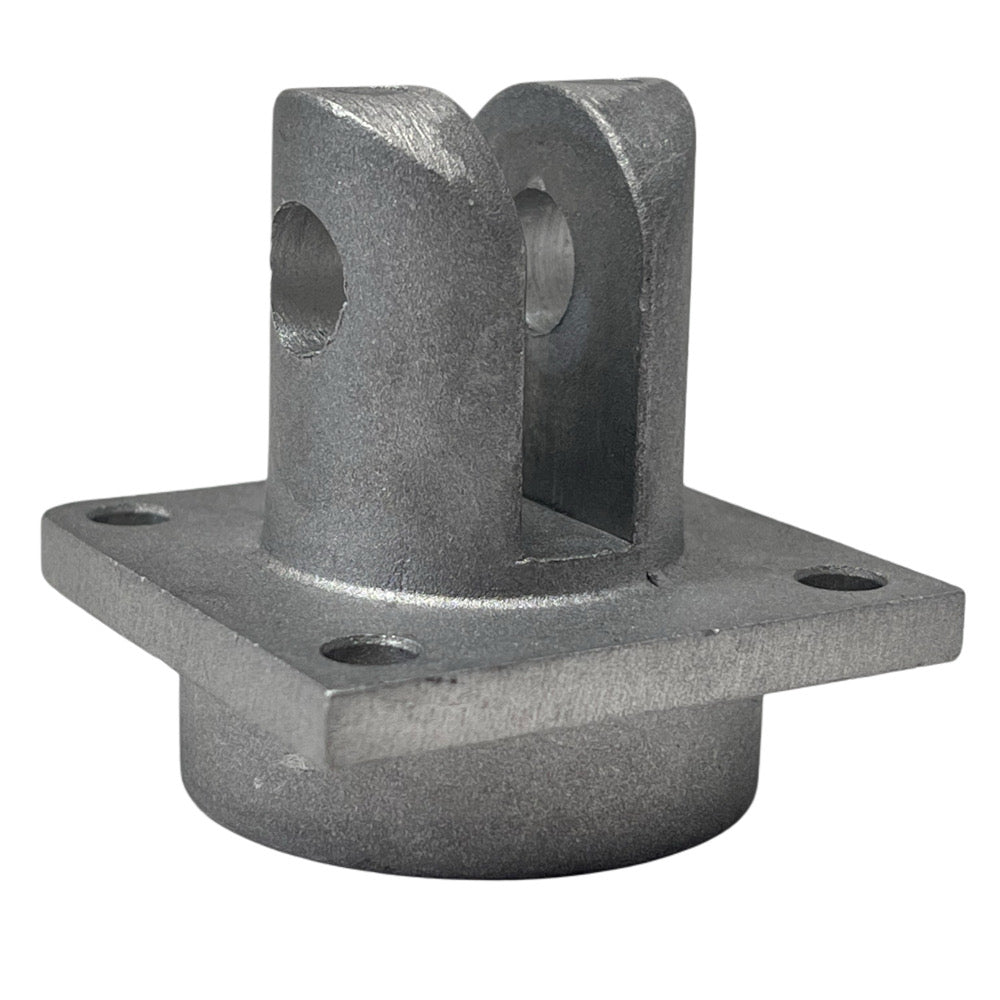

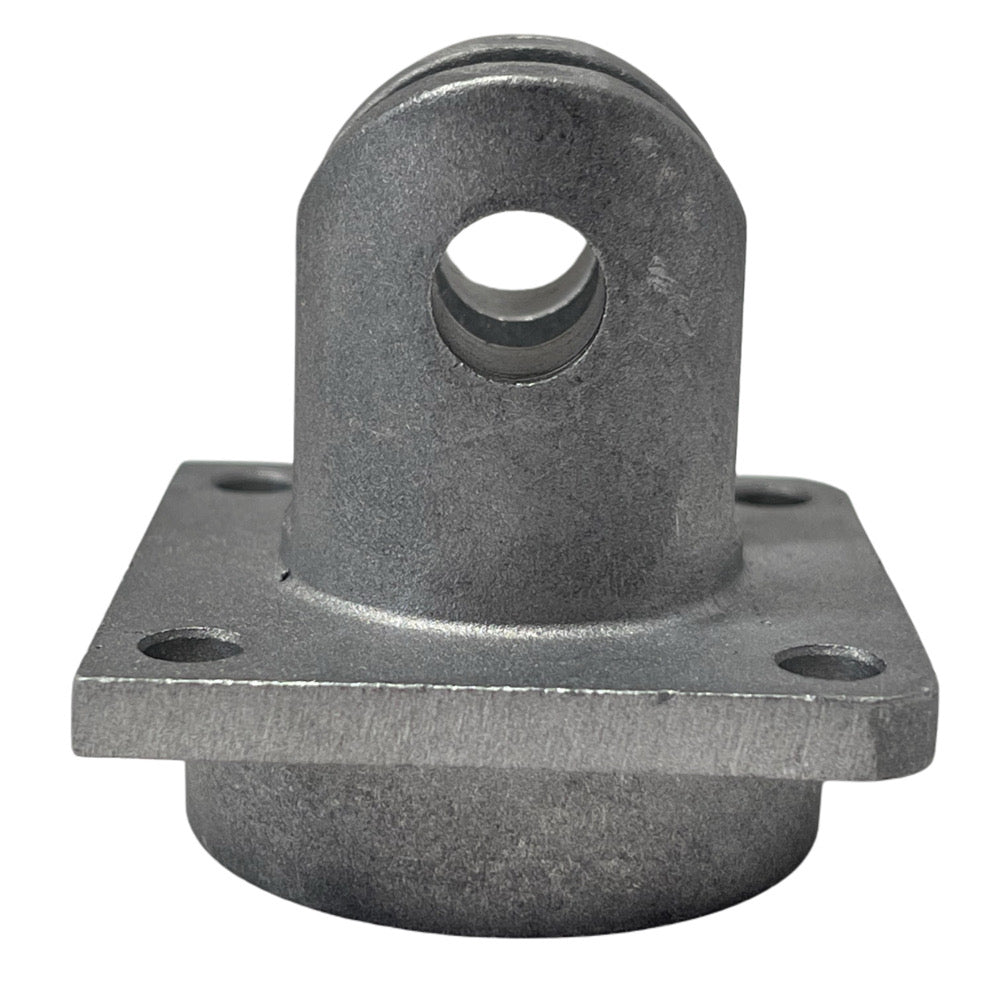

The Actuator Alloy Mount (also known as the rear clevis mount) is found on the motor end of the actuator in electric recliners and lift chairs. Measures 50mm × 50mm × 51mm overall height and takes a 10mm clevis pin. Screw holes are 55.5mm on the diagonal.

Key Specifications

• Type: Rear clevis mount (motor end)
• Material: Alloy
• Dimensions: 50mm × 50mm × 51mm overall height
• Clevis pin size: 10mm
• Screw hole spacing: 55.5mm diagonal

Frequently Asked Questions

What is a rear clevis mount on a recliner actuator?
The rear clevis mount attaches the motor end of the actuator to the recliner frame. It allows the actuator to pivot as the chair moves. When cracked or broken, the actuator cannot push or pull the recliner mechanism correctly.

How do I know if my actuator mount is broken?
If the actuator motor runs but the recliner doesn’t move, or if you can see a cracked or loose fitting at the rear of the actuator, the clevis mount likely needs replacing.

What is the difference between the rear clevis mount and the front fork head?
The rear clevis mount (this product) attaches at the motor end of the actuator. The front fork head attaches at the opposite end where the actuator connects to the recliner mechanism.

Is this compatible with all actuators?
This mount suits most standard recliner actuators using a 10mm clevis pin and 55.5mm diagonal screw hole spacing. Check your existing mount dimensions before ordering.
