Buy 4318-2 Electric Recliner Replacement Action Mechanism

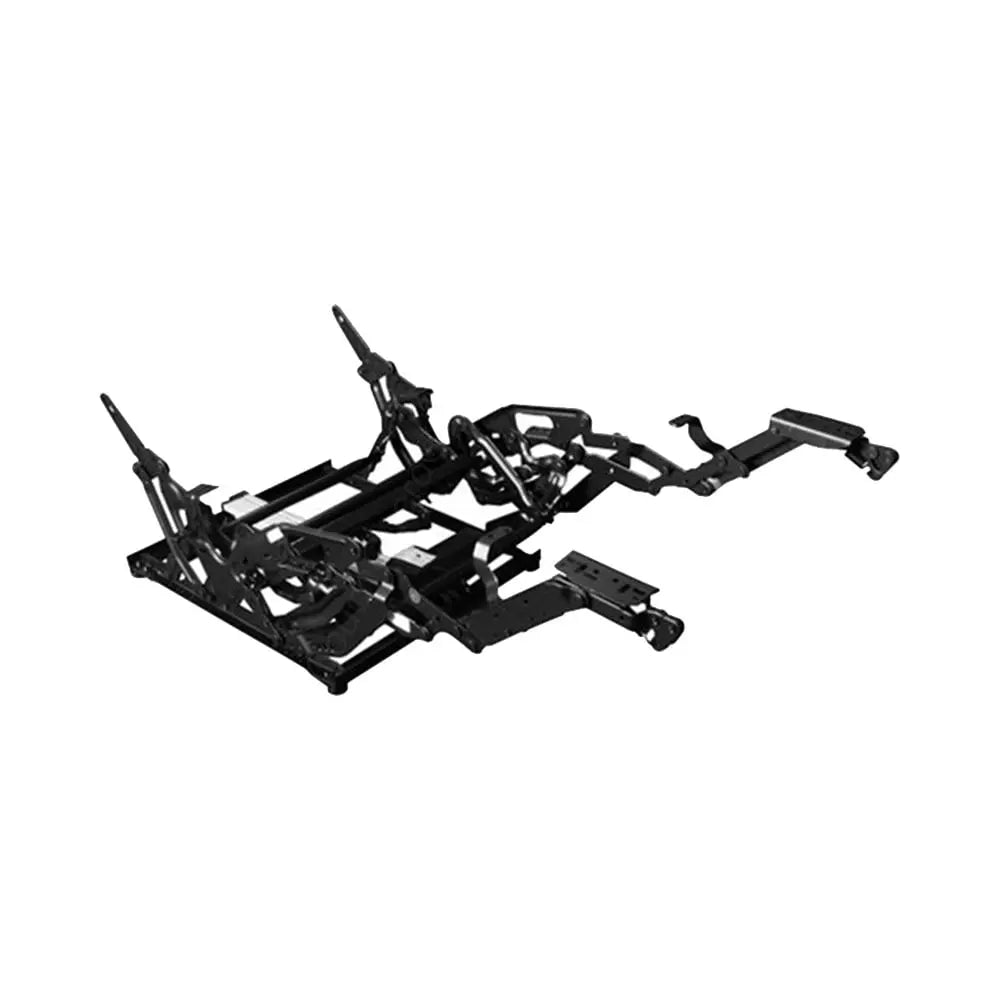

4318-2 electric recliner replacement action mechanism

The 4318-2 action mechanism is a replacement framework for matching electric recliner chairs and sofas. Heavy-gauge steel, nylon bushes between moving parts and high-tensile machine-pressed rivets support the reclining movement. Match your original mechanism before ordering.

4318-2 Recliner Mechanism Specifications

• Device Type: Electric Recliner Action Mechanism.
• Model: 4318-2.
• Construction: Heavy-gauge steel with nylon bushes and machine-pressed rivets.
• Finish: Enamel coating.
• Listed Feature: Close-to-wall operation, subject to chair design and required clearance.
• Options: Action Only or Action With Electrics.
• Assembly: Mechanism kit requires assembly.

Choose the correct option

• Action Only: Replacement mechanical action kit. Assembly required. Do not assume a motor, power supply or handset is included.
• Action With Electrics: Mechanism with electrics option. Confirm the exact motor, supply, handset and cable inclusions, and assembly requirements, with CouchGuard before ordering.

Compatibility checks

Compare the original model, frame dimensions, mounting-hole positions, footrest brackets and actuator attachment arrangement. A similar appearance does not establish interchangeability. This is not a universal replacement or a manual-to-electric conversion kit.

Send CouchGuard photos of the complete mechanism, model markings, mounts and existing electrics for help checking suitability. Images are illustrative and may differ from the supplied mechanism.

Assembly and installation guidance

Disconnect mains and backup power before work. Safely support the chair, keep hands clear of pinch points and align the kit correctly before operation. Use an experienced recliner repairer if assembly or safe fitment is uncertain. Do not force mismatched parts into the frame.

Frequently asked questions

What model is this?

The 4318-2 electric recliner action mechanism.

Which options are available?

Action Only and Action With Electrics.

Does the mechanism kit require assembly?

Yes. Assembly and correct alignment are required. Confirm the supplied state of the electrics option before ordering.

Does Action Only include a motor?

Do not assume electrical parts are included in the mechanism-only kit.

What comes with Action With Electrics?

Contact CouchGuard to confirm the exact electrical components included before ordering.

Will it fit every electric recliner?

No. Match the model, frame mounts, footrest brackets and actuator arrangement.

Does close-to-wall mean zero clearance?

No. Clearance depends on the complete chair design and installation.

Can I reuse my existing electrics?

Only when the actuator, mounting arrangement and electrical system are compatible. Send model and connection photos for help checking suitability.
