Buy 5311 Electric Recliner Replacement Action Mechanism

5311 electric recliner replacement action mechanism

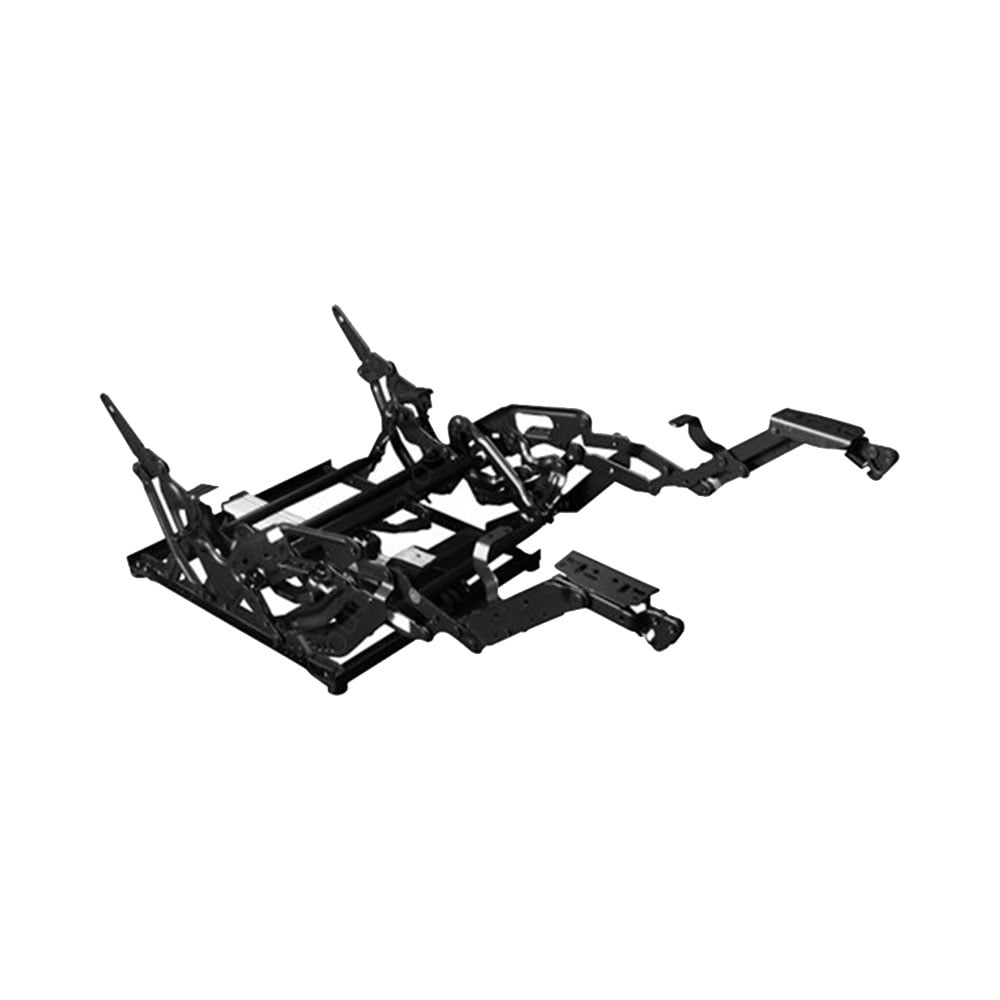

The 5311 action mechanism is a replacement framework for matching electric recliner chairs and sofas. Heavy-gauge steel construction, nylon bushes between moving parts and high-tensile machine-pressed rivets support the reclining movement. Compare the original mechanism and mounting arrangement before choosing a replacement.

5311 Recliner Mechanism Specifications

• Device Type: Electric Recliner Action Mechanism.
• Model: 5311.
• Construction: Heavy-gauge steel with nylon bushes and machine-pressed rivets.
• Finish: Enamel coating.
• Listed Feature: Close-to-wall operation, subject to chair design and required clearance.
• Options: Action Only; Action With Electrics; Action With Electrics Assembled.
• Assembly: Required for kit-form options; an assembled electrics option is available.

Choose your mechanism option

• Action Only: Mechanical action kit without electrics. Assembly required.
• Action With Electrics: Mechanism with electrics in kit form. Confirm the exact electrical components included before ordering.
• Action With Electrics Assembled: Assembled mechanism with electrics. Confirm electrical inclusions and delivery or collection arrangements with CouchGuard before ordering.

Mechanism-only supply does not include an electrical kit. Do not assume a particular motor, power supply, handset or cable is included unless confirmed for the selected electrics option.

Compatibility checks

Match the original model, mounting-hole positions, chair-frame dimensions, footrest brackets and actuator attachment arrangement. Similar appearance does not establish interchangeability. This is not a universal mechanism or a manual-to-electric conversion kit.

Send CouchGuard clear photos of the complete mechanism, model markings, frame mounts and existing electrics for help checking suitability. Product images are illustrative and may differ from the supplied mechanism.

Assembly and installation guidance

Disconnect mains and backup power before work. Safely support the chair and keep hands clear of moving linkages and pinch points. Kit-form mechanisms require correct assembly and alignment before installation. Even an assembled mechanism requires compatible fitment to the chair. Use an experienced recliner repairer if safe handling or compatibility is uncertain.

Frequently asked questions

What model is this?

The 5311 electric recliner action mechanism.

Which options are available?

Action Only, Action With Electrics and Action With Electrics Assembled.

Does Action Only include a motor or controls?

No. It is the mechanical action kit without electrics.

Does the mechanism require assembly?

The kit-form options require assembly. The Action With Electrics Assembled option is supplied assembled, but still requires installation into the compatible chair.

What comes with the electrics options?

Confirm the exact motor, power supply, handset and cable inclusions with CouchGuard before ordering.

Will it fit every electric recliner?

No. Match the original mechanism model, frame mounts, footrest brackets and actuator arrangement.

Does close-to-wall operation mean zero clearance?

No. Required clearance depends on the complete chair design and installation.

How do I check suitability before ordering?

Send clear photos of the original mechanism, model markings, mounting points and existing electrics. Confirm delivery or collection arrangements for the assembled option.
