Buy Chendi ST03-29-380.195-4 Lift Chair Actuator Motor

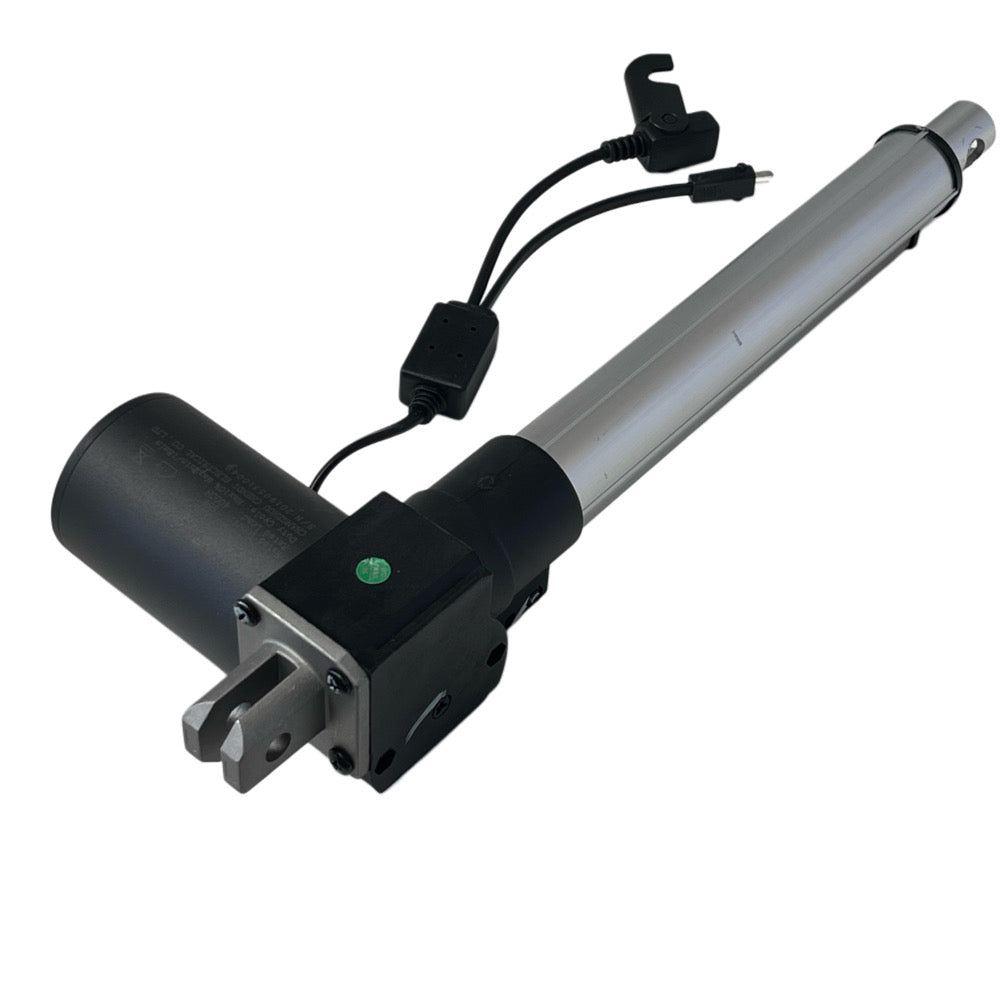

Chendi ST03-29-380.195-4 lift chair actuator

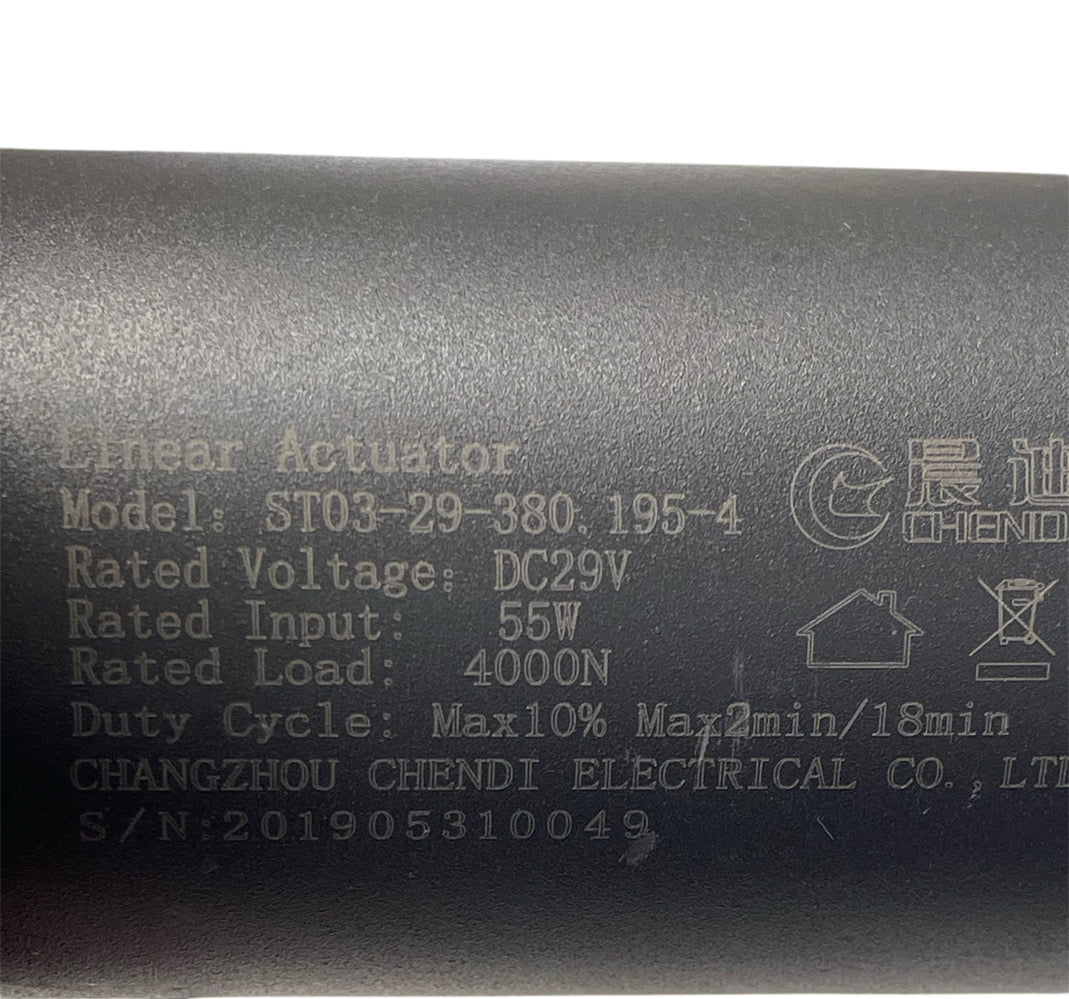

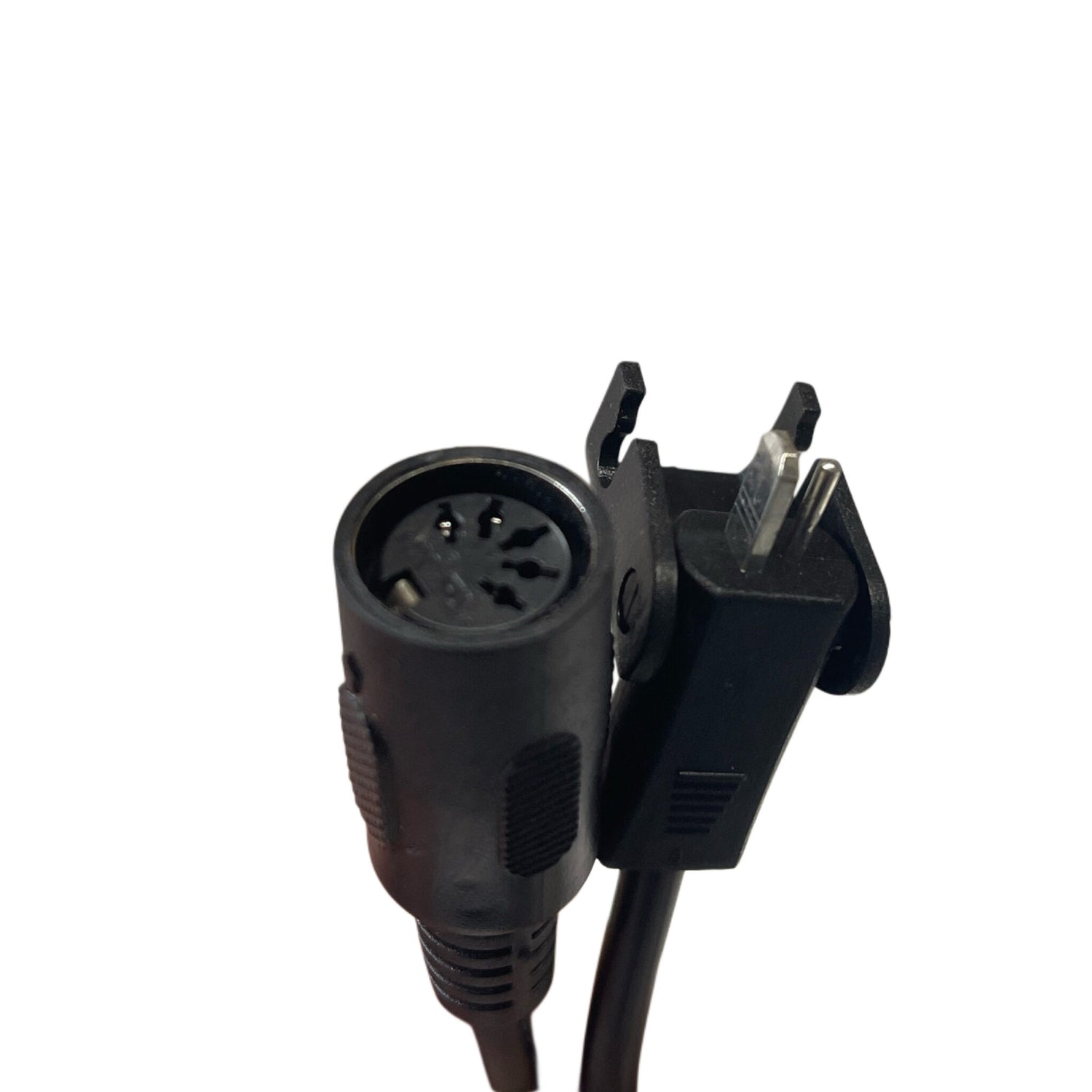

Genuine Chendi ST03-29-380.195-4 linear actuator for a matching lift chair. The supplied manufacturer-label photo confirms DC 29 V, 55 W and a 4000 N rated load. Its duty cycle is marked maximum 10%, with a maximum of 2 minutes on and 18 minutes off. The existing listing describes a round five-pin connection and two-pin OI male cable; check the actual part and your original before ordering.

Label-backed specifications

• Exact model: ST03-29-380.195-4.
• Rated voltage: DC 29 V; rated input: 55 W.
• Rated load: 4000 N.
• Duty cycle: maximum 10%, maximum 2 minutes on / 18 minutes off.

Before replacing an actuator

1. Disconnect the chair from mains power and follow the chair maker's service instructions.
2. Photograph the original label, plugs, cable routing and mounting arrangement before removing anything.
3. Match the complete ST03-29-380.195-4 reference, electrical ratings, connections and mounting arrangement with your original. Pin count or a similar ST03 name alone does not establish fit.
4. If the mechanism is under load, access is unsafe or any wiring or mounting detail differs, stop and use a qualified repairer. Never force a plug or operate an unsupported mechanism.

Frequently asked questions

Is this the same as ST03-29-380.195 without the -4 suffix? Interchangeability has not been established. Match the complete original model.

What is the rated load? The supplied label for ST03-29-380.195-4 shows 4000 N, not 1000 N.

What photos help confirm fit? Send clear photos of the original label, connectors, both ends and mounting arrangement.
