Buy Chendi YT01-29-433.250-36 Lift Chair Actuator Motor

Chendi YT01-29-433.250-36 lift-chair actuator motor

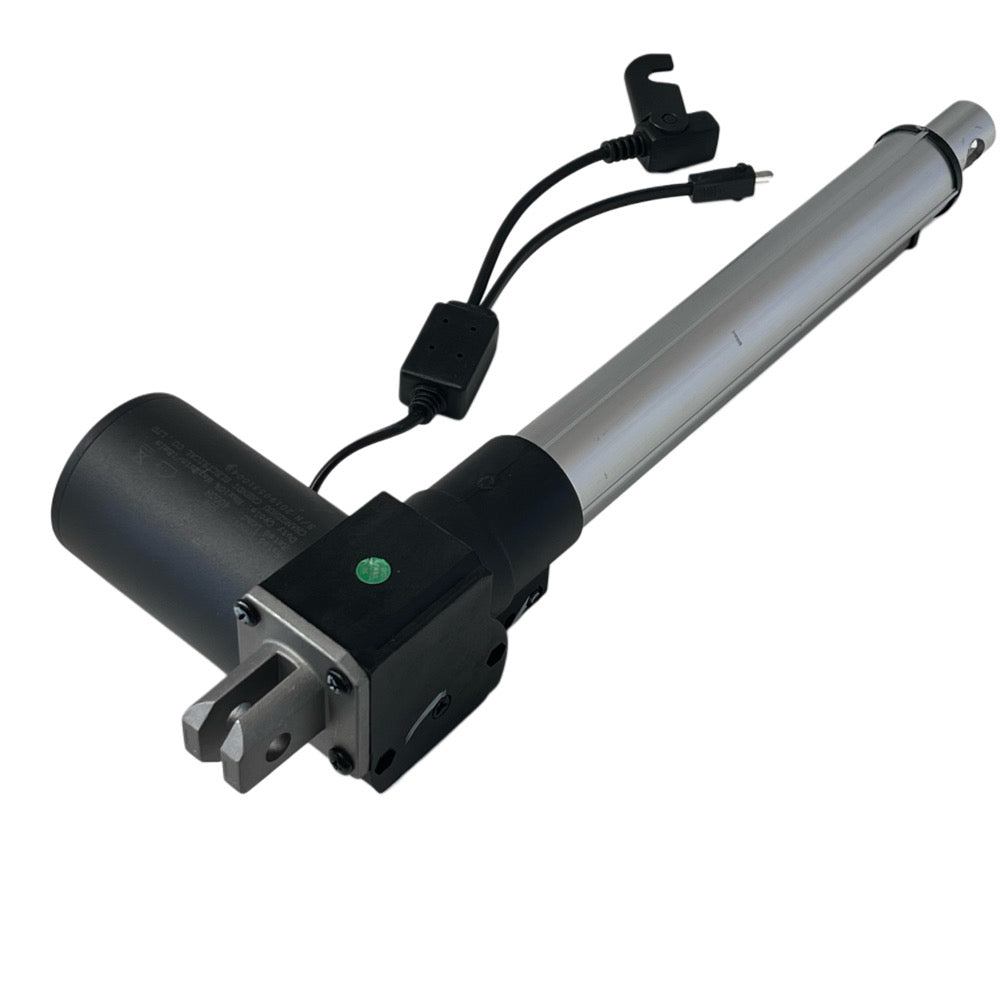

Replacement linear actuator for a compatible lift-chair mechanism. The photographed label identifies model YT01-29-433.250-36, with rated voltage DC 29 V, rated input 55 W, maximum load 600 N and IP28 marking. The photos show the actuator body, metal mounting ends and attached electrical connections.

Specifications from the photographed label

• Model: YT01-29-433.250-36.
• Rated voltage: DC 29 V.
• Rated input: 55 W.
• Maximum load: 600 N.
• Marking: IP28.

Check before ordering

• Match the full model number on your existing actuator's label, not just the YT01 prefix.
• Compare retracted and extended installation dimensions, travel, mounting ends and pin holes against your existing assembly. Dimensions and stroke are not confirmed here.

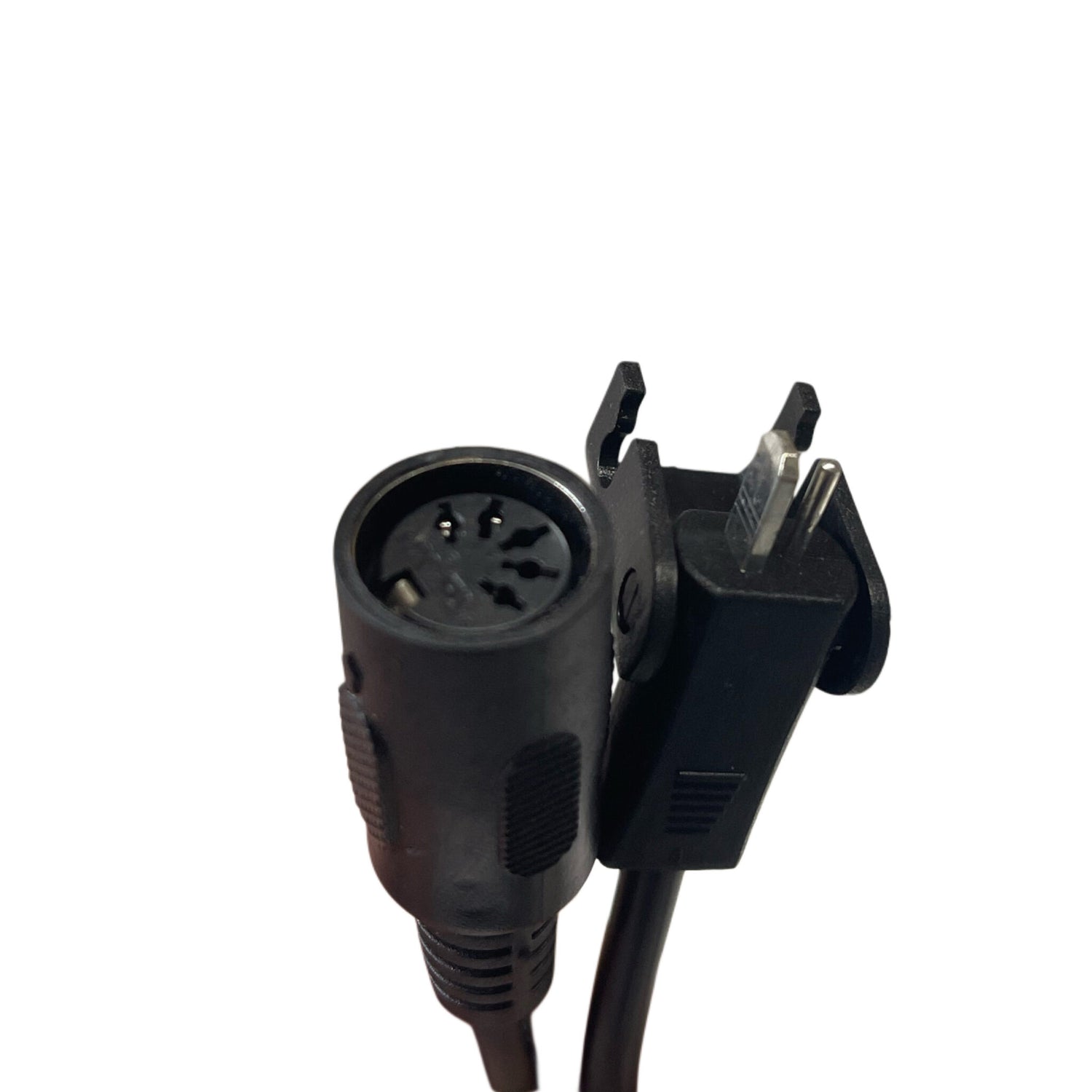

• Compare the photographed round multi-pin and separate two-pin connections, their orientation and wiring with your chair. Similar-looking plugs do not guarantee compatibility.

Actuator only. Disconnect power before replacement and do not force the connections. If unsure, send CouchGuard clear photos of your original label, mounting ends and connectors. The duty-cycle text in the available photo is not clear enough to transcribe reliably.

Frequently asked questions

What load rating is shown on this actuator? The photographed label states maximum load 600 N.

Will any 29 V YT01 actuator fit? No. Verify the complete model, mounting geometry, travel and connections.

Can I use the model code as a dimension measurement? No. Measure your original actuator before ordering.

Does this include a control box? No. The listing is for the actuator shown.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.
