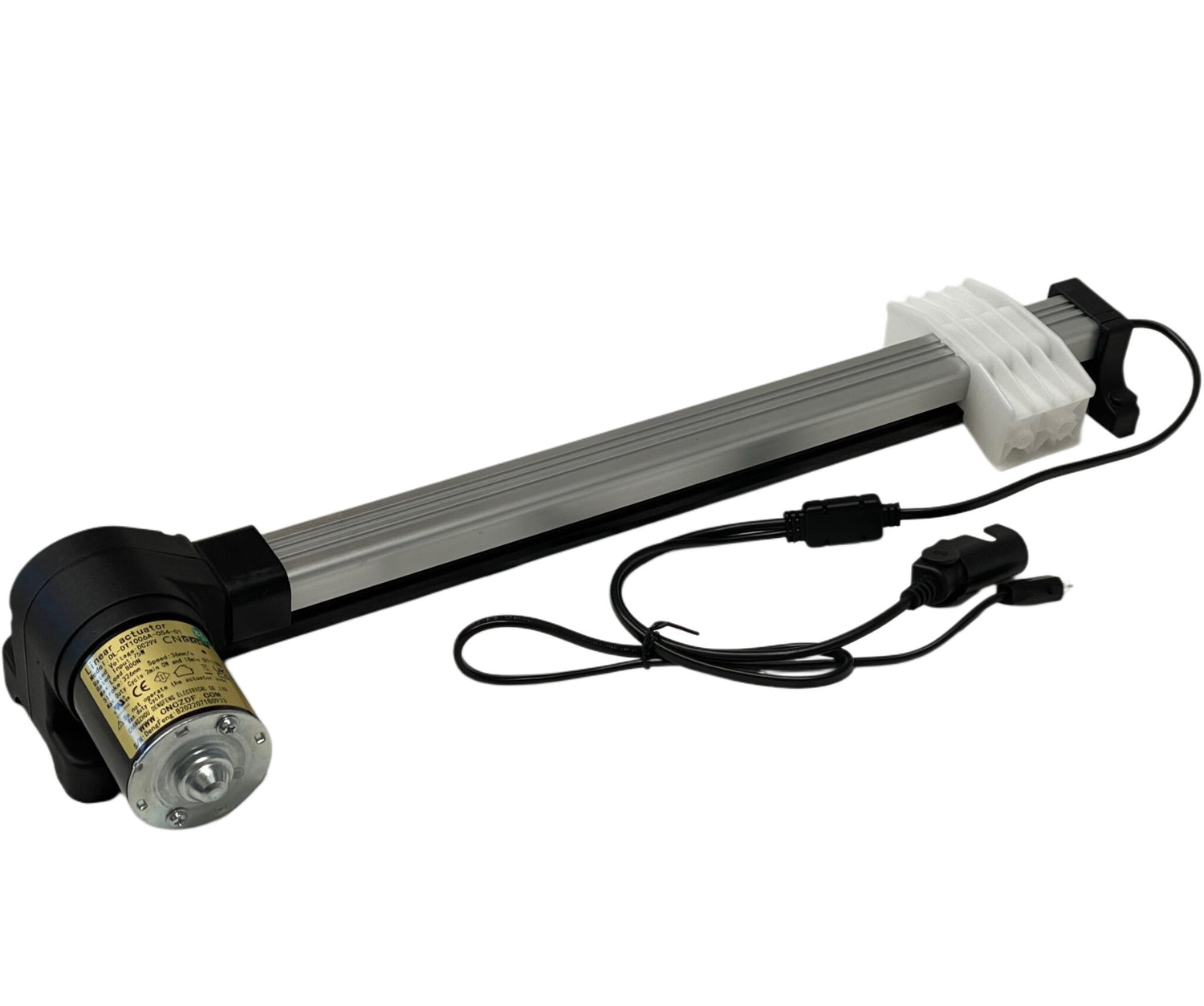

CNDOER DL-DT1006-016 recliner actuator motor

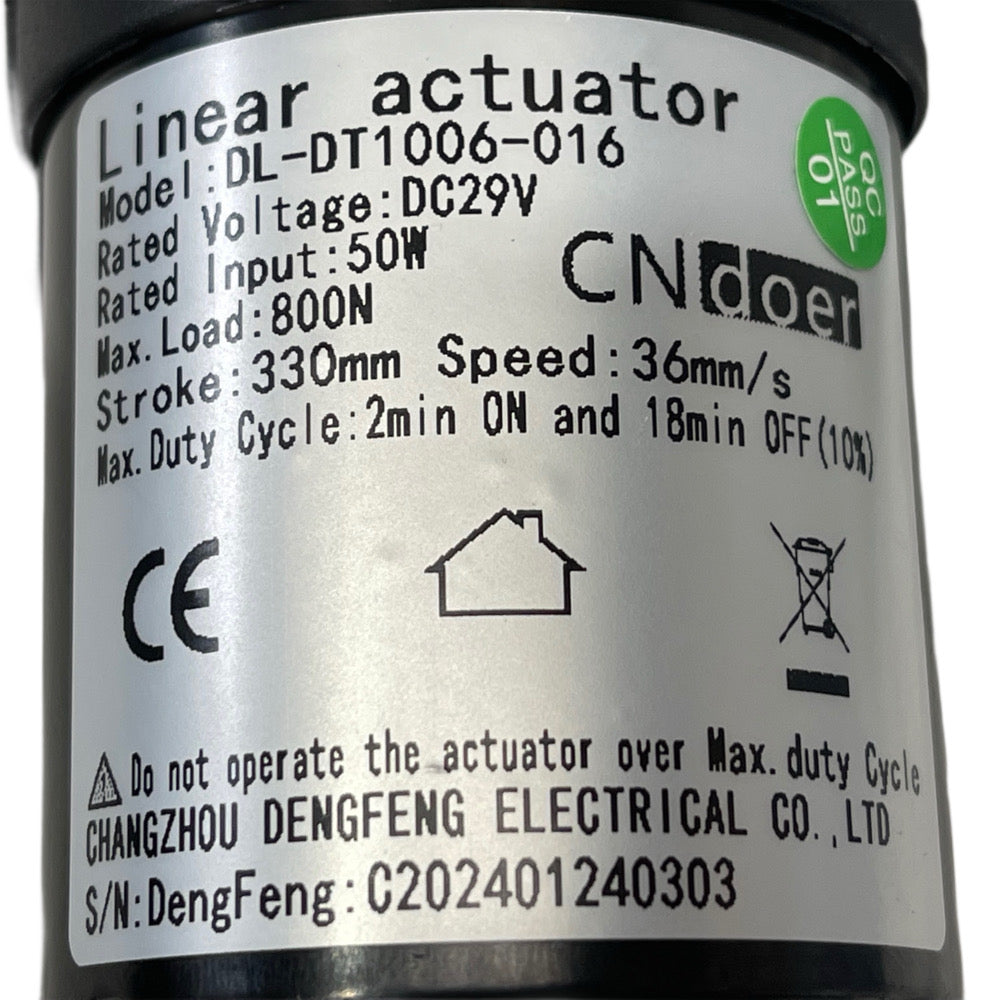

The label on this CNDOER linear actuator identifies DL-DT1006-016 and specifies DC 29V, 50W rated input, maximum load 800N, 330 mm stroke and 36 mm/s speed. Its maximum duty cycle is 2 minutes on and 18 minutes off. Do not run the actuator beyond this limit.

Compare before ordering

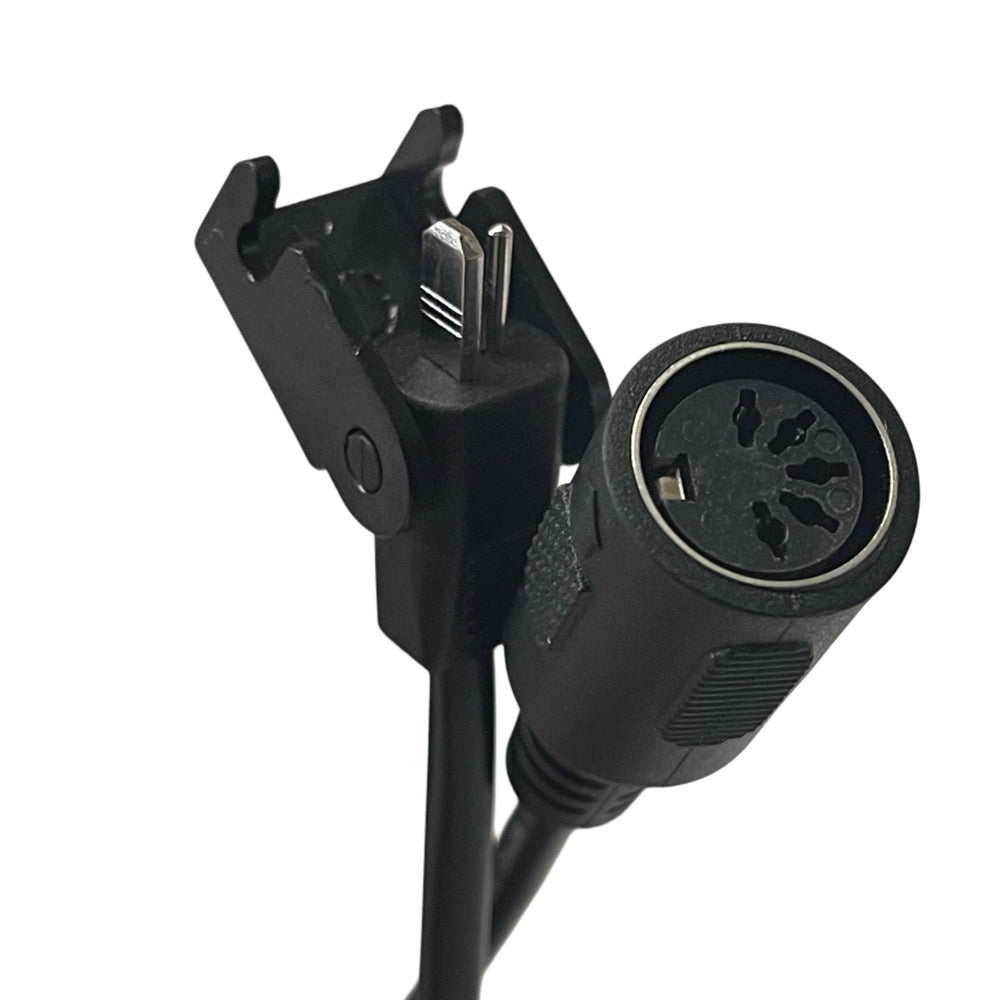

For a matching recliner repair, compare the complete model reference, travel, retracted and extended dimensions, mounting arrangement, cable and connectors with your original actuator. Photos show a round multi-pin connector and a two-pin connection on the lead. Connector shape alone does not confirm the wiring, control-box compatibility or fit. The 330 mm stroke is the distance of travel, not the overall or installed length.

Replacement guidance

Disconnect the recliner from power before work and support moving sections so they cannot shift unexpectedly. Follow the furniture maker's service instructions; ask a qualified repairer to confirm fit and wiring if uncertain.

Frequently asked questions

What are the specifications on the label? DC 29V, 50W, maximum 800N load, 330 mm stroke, 36 mm/s speed and a maximum 2-minutes-on / 18-minutes-off duty cycle.

Is 330 mm the overall length? No. It is the labelled travel. Match your existing actuator's installed and retracted dimensions separately.

Will any matching-looking plug work? Not necessarily. Check the complete model, mounting and wiring with the chair's control system before ordering.
