Buy CNDOER DL-DT2008-016-02 Recliner Actuator Motor

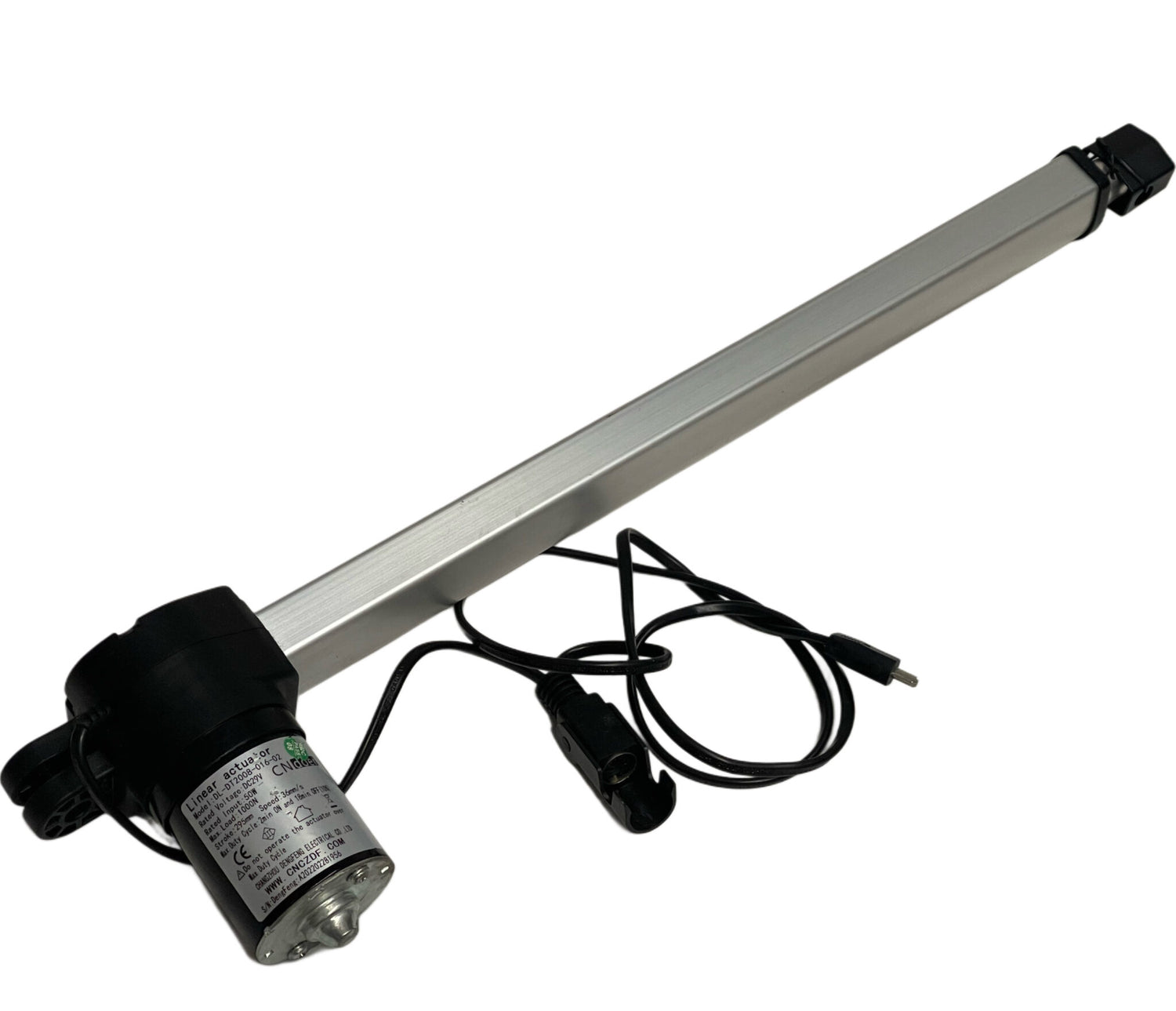

CNDOER DL-DT2008-016-02 recliner actuator motor

Looking for a replacement recliner motor? Compare the complete model reference on your original actuator with CNDOER DL-DT2008-016-02 before ordering. A similar-looking tube or plug does not establish compatibility with your recliner mechanism.

Specifications

• Brand: CNDOER
• Model: DL-DT2008-016-02
• Minimum installation dimension: 535 mm, supplied by CouchGuard; compare the same measurement on your original unit
• Stroke: 295 mm, as stated in the existing listing; compare with your original actuator

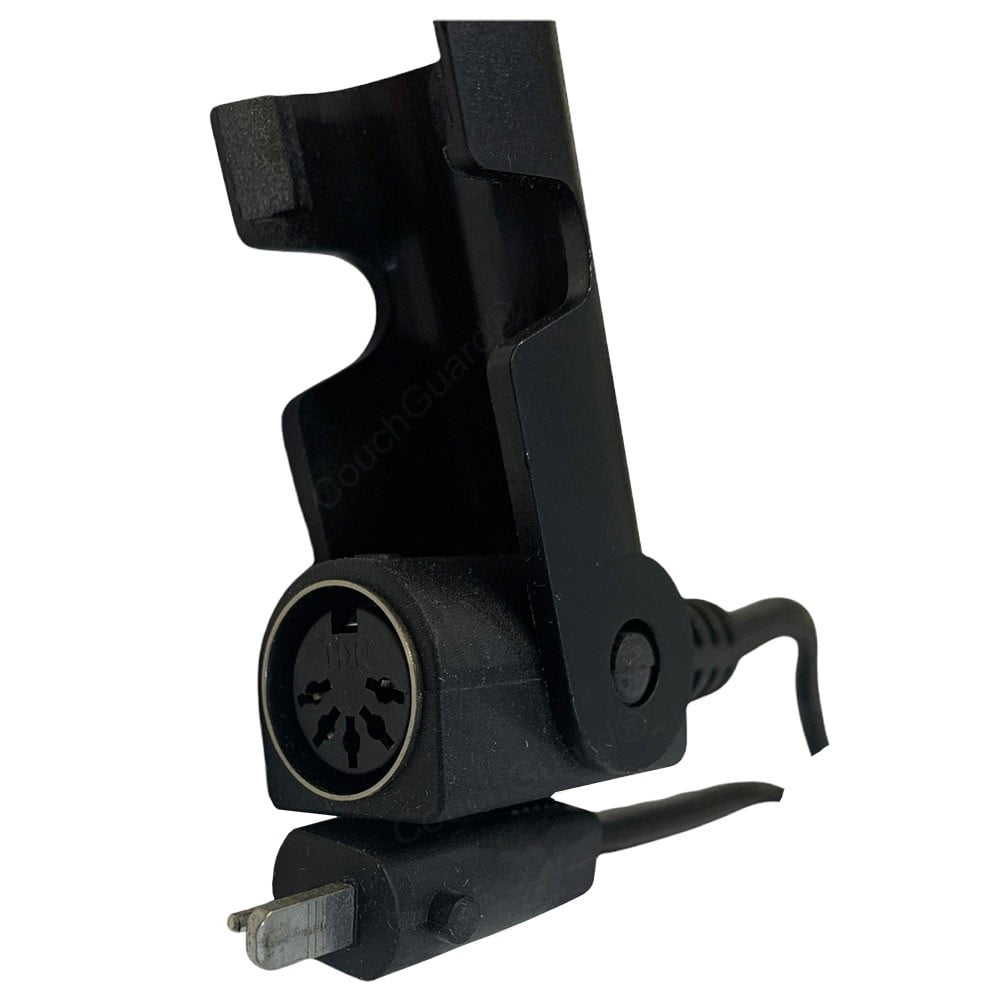

• Connection arrangement: the listing describes a two-plug cable and a round five-pin connection; compare each original plug and lead

The minimum installation dimension and stroke are different measurements. Do not infer an overall extended length by adding them without checking the original actuator's measurement points. Confirm the original label's force, electrical rating and speed, along with the exact mounting and connector layout, before fitting. The previously listed “1000Nm” is not a valid force specification, and the speed figure is not verified from the available label photo.

Check fit before buying

Match the full model, the 535 mm minimum installation dimension, stroke, both mounting ends and every connection to your existing motor and control box. If any detail differs, send CouchGuard clear photos of the old label, mounting ends and plugs. Disconnect power and support moving recliner sections before inspecting or removing an actuator.

Frequently asked questions

What model is this? CNDOER DL-DT2008-016-02; check every character of your original model reference.

What is the minimum installation dimension? 535 mm, as supplied by CouchGuard. Measure your original using corresponding mounting reference points.

What stroke is listed? The existing listing states 295 mm. Confirm the original actuator's travel before buying.

Is this a plug-and-play replacement for any five-pin recliner? No. Similar plugs can have different wiring, and mounting and travel must also match.

Can I replace another DL-DT2008 model with this one? Not automatically; compare the complete reference and all mechanical and electrical details.

What helps with a fit check? Photos of the original label, both mounting ends, cable arrangement and every connector.
