Buy CNDOER DL-DT1006A-054-01 Lift Chair Actuator Motor

CNDOER DL-DT1006A-054-01 lift chair actuator motor

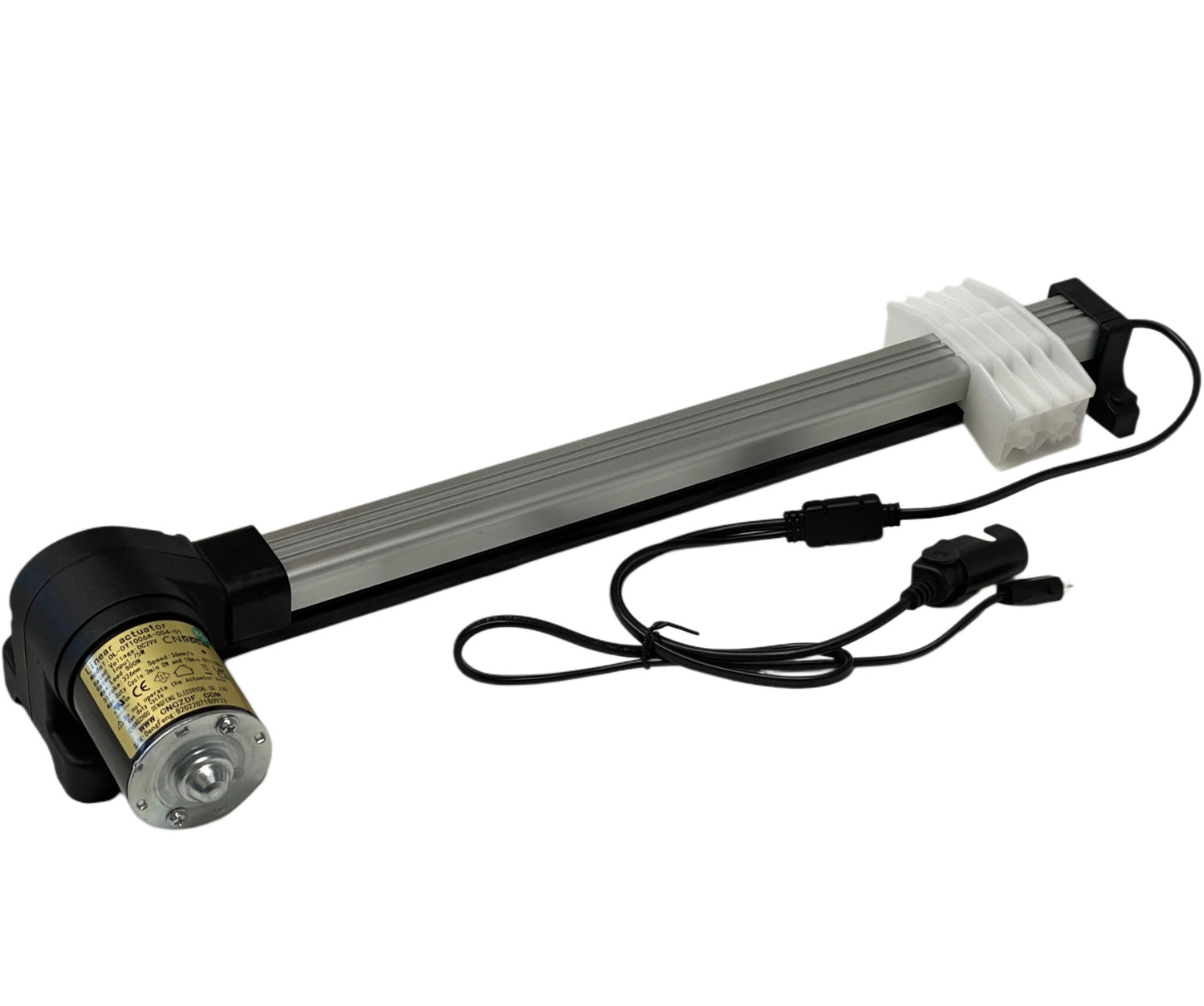

This CNDOER linear actuator is for a lift-chair mechanism using the matching DL-DT1006A-054-01 configuration. Compare the full model label, mounting ends and cable on your old actuator before ordering. A similar-looking motor or connector alone does not establish fit.

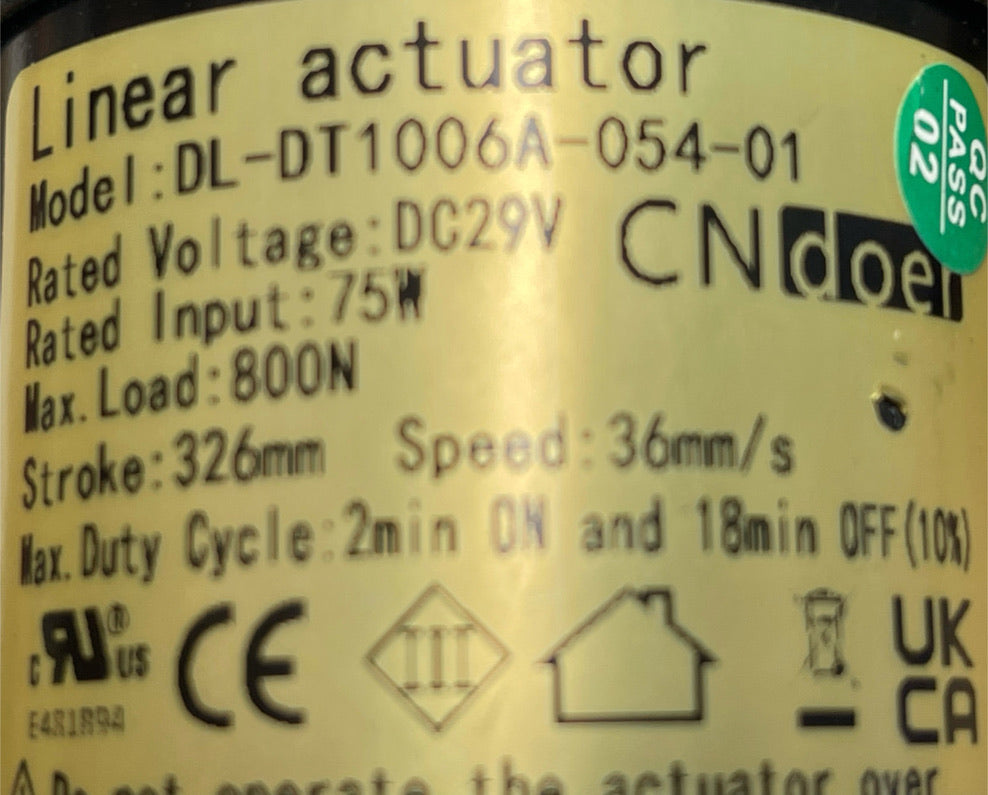

Photographed label specifications

• Brand: CNDOER
• Model: DL-DT1006A-054-01
• Rated voltage: DC 29V
• Rated input: 75W
• Maximum load: 800N
• Stroke: 326 mm
• Speed: 36 mm/s
• Maximum duty cycle: 2 minutes on, then 18 minutes off

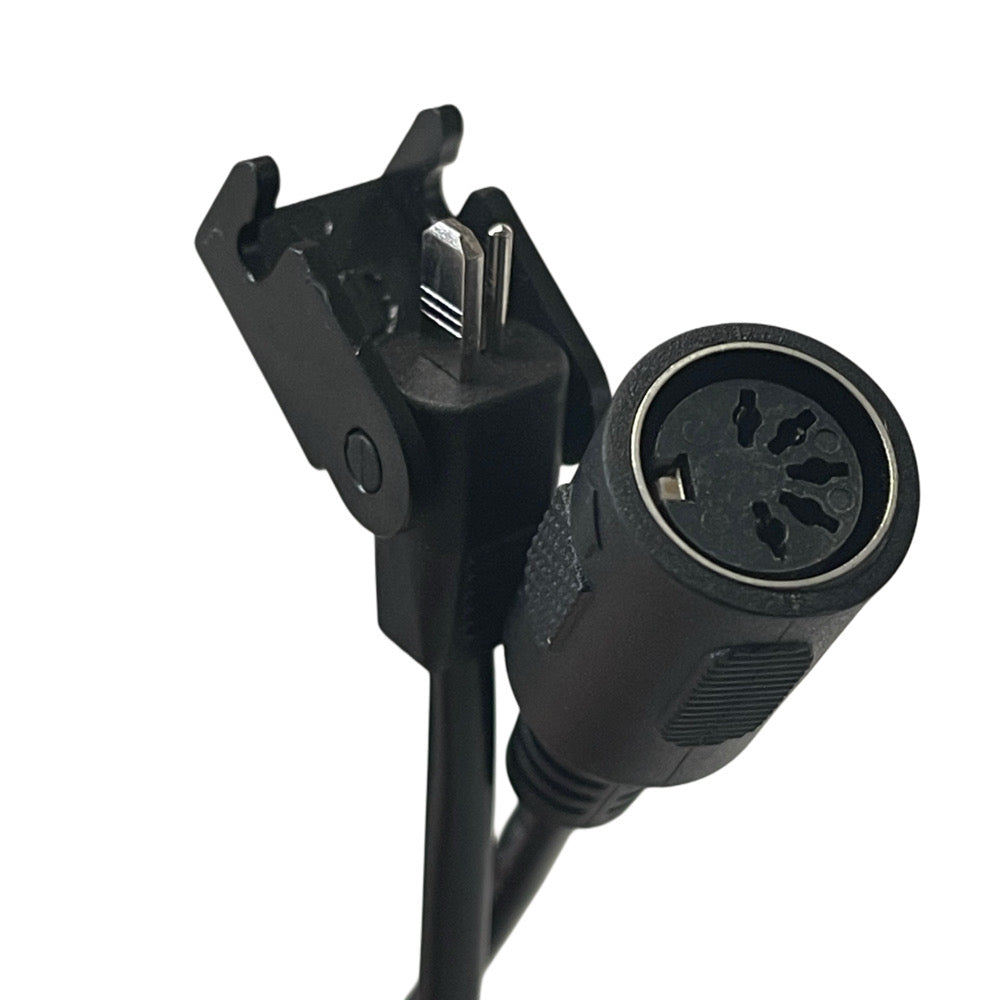

The exact-model label says 36 mm/s, correcting an older search description that said 35 mm/s. The existing listing describes a Y cable with a round five-pin connection and an O/I two-pin male plug. Check the actual original cable and both connections; connector shape does not confirm pin wiring or control-box compatibility. Installation dimensions are not established by the label.

Check fit before buying

Match the complete model reference, 326 mm travel, retracted installation length, both mounting ends, cable routing and every plug with the original lift-chair actuator. If unsure, send CouchGuard clear photos of the old label, mounting points and plugs. Disconnect power and support moving chair sections before inspecting or removing a motor.

Frequently asked questions

What are the voltage and input ratings? The photographed label states DC 29V and 75W.

What are the load, stroke and speed? The label states 800N maximum load, 326 mm stroke and 36 mm/s speed.

What is the duty cycle? The label states a maximum of 2 minutes on followed by 18 minutes off.

Will it replace another DL-DT1006A actuator? Not automatically. Compare the full suffix, mounts, travel, cables and control system.

Does a matching five-pin plug guarantee fit? No. Check all connectors and the mechanical installation before ordering.
