Buy CNDOER DL-DT2008A-054-02 Lift Chair Actuator Motor

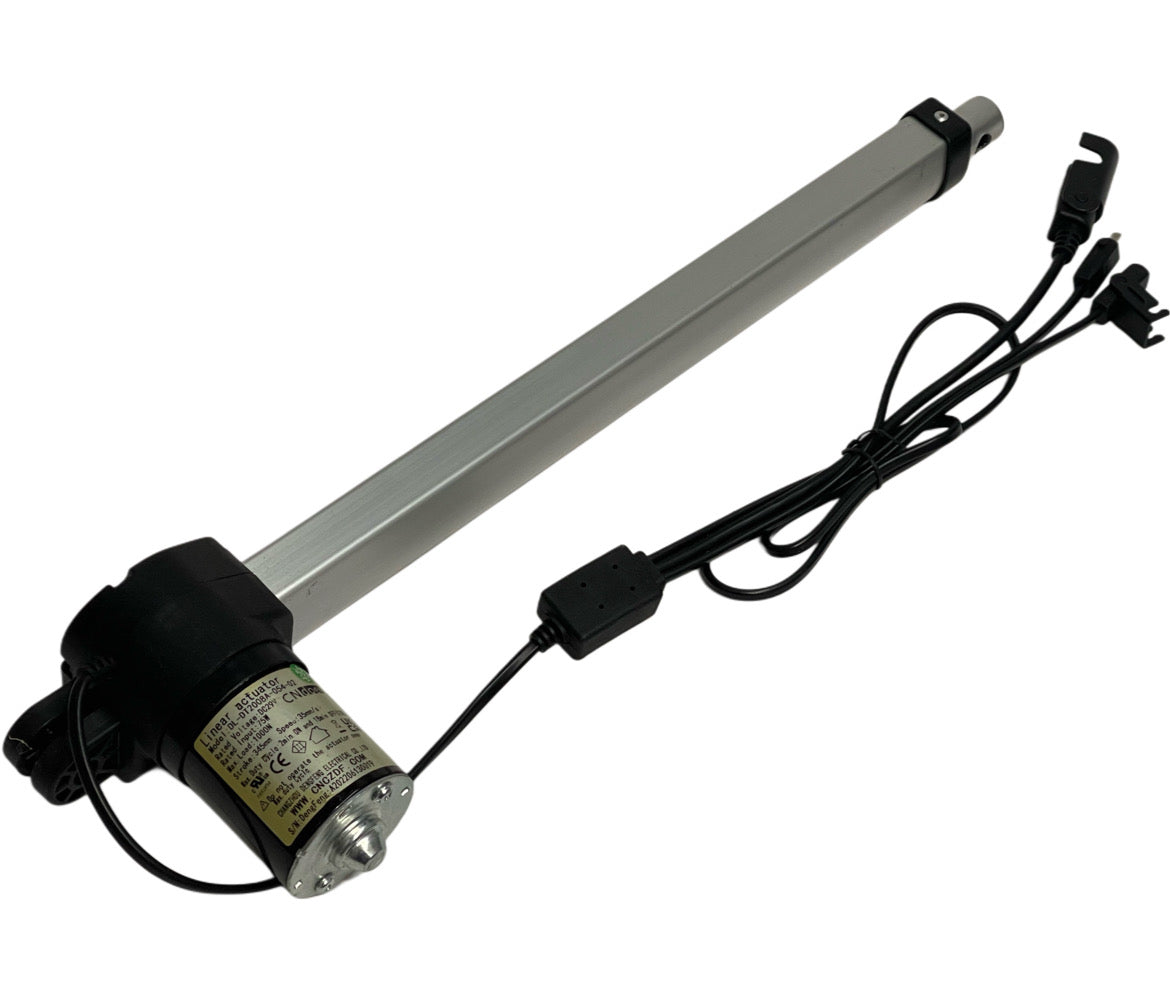

CNDOER DL-DT2008A-054-02 lift chair actuator motor

For a lift-chair mechanism using the matching CNDOER DL-DT2008A-054-02 configuration. Check the full model reference on your original motor and compare the mounting ends and cable assembly before ordering. Similar-looking CNDOER motors are not automatically interchangeable.

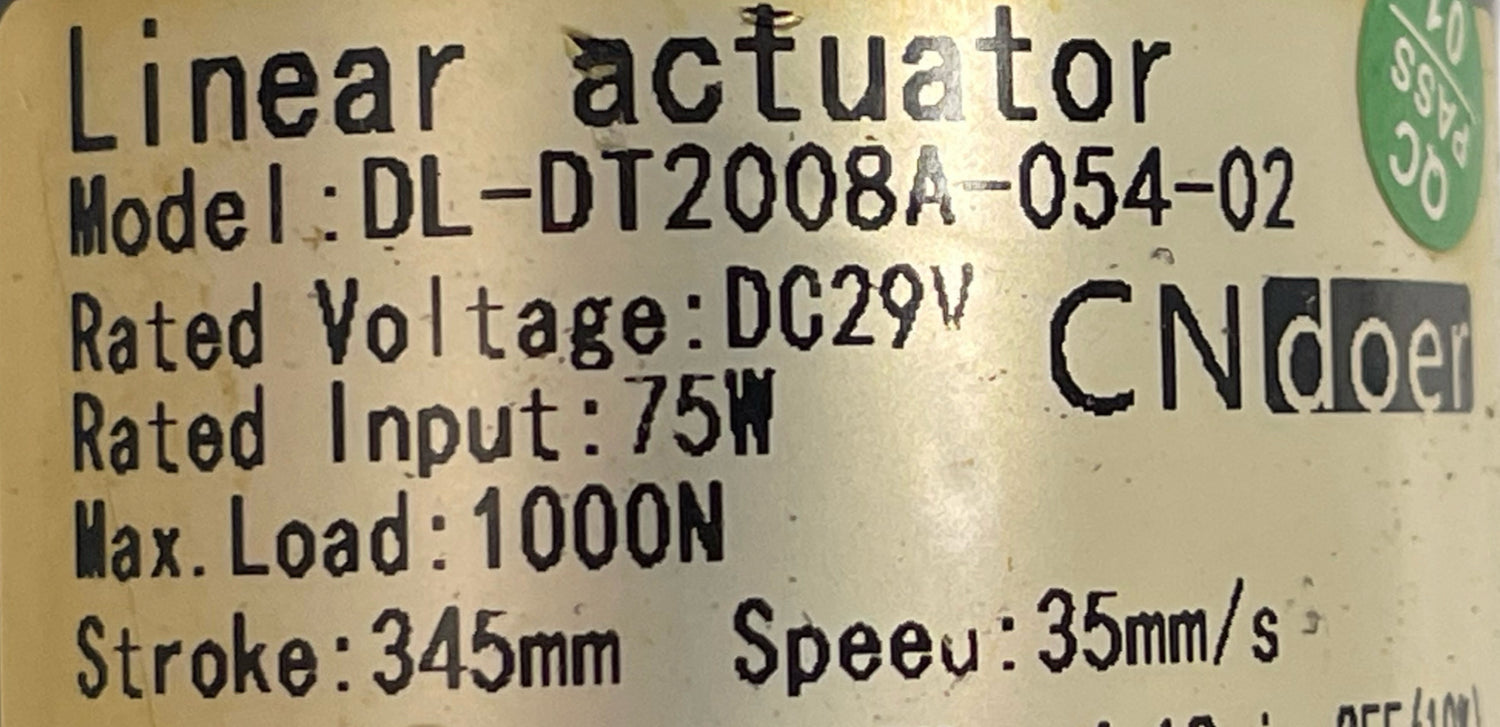

Photographed label specifications

• Brand: CNDOER
• Model: DL-DT2008A-054-02
• Rated voltage: DC 29V
• Rated input: 75W
• Maximum load: 1000N
• Stroke: 345 mm
• Speed: 35 mm/s

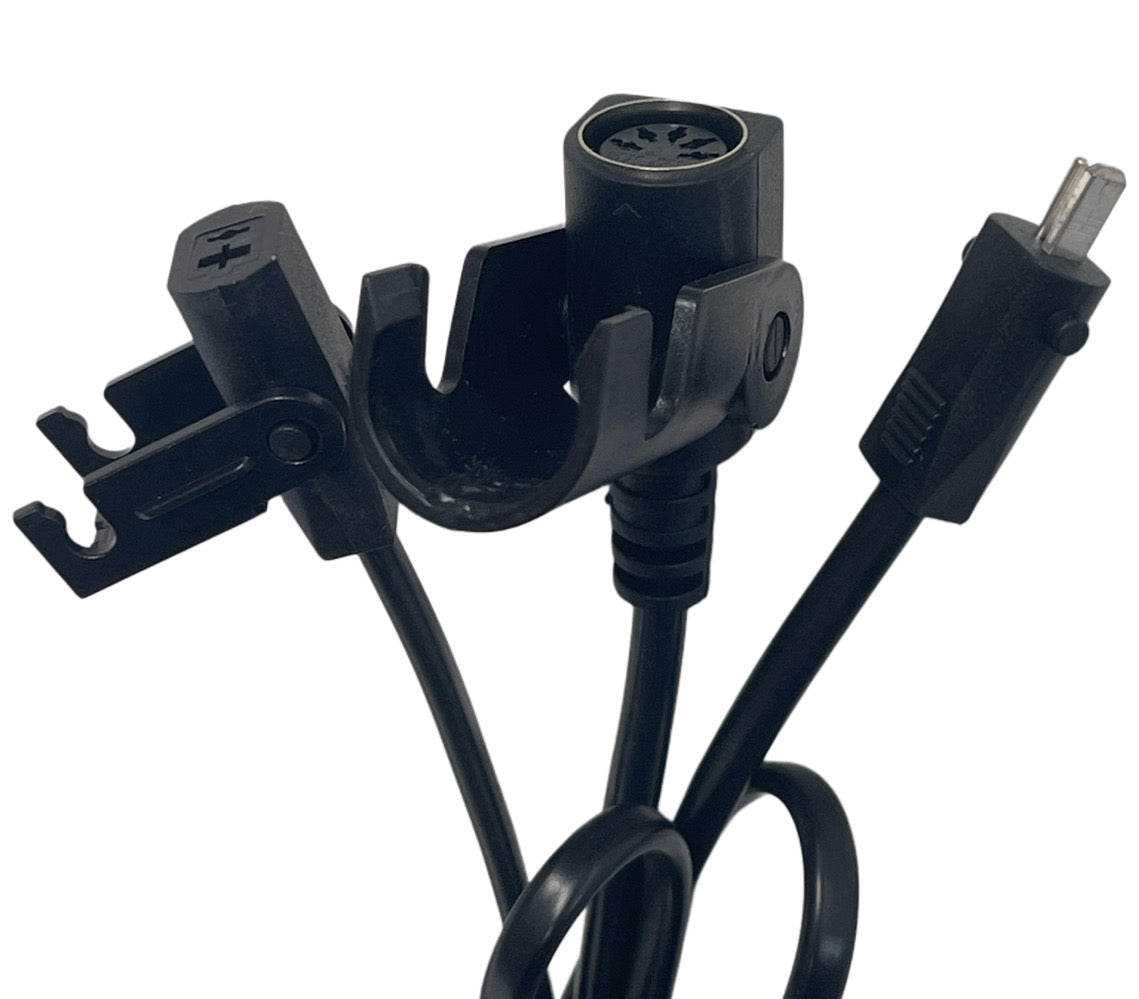

The existing listing describes a W-shaped cable assembly with a round five-pin plug and two O/I two-pin connections. Compare the actual original plugs, orientation and cable routing; the connector close-up is also used on another product and does not establish exact pin wiring for this model. The available close-up does not show the complete duty-cycle line or mounting dimensions, so do not assume those values.

Check fit before buying

Match the exact model, 345 mm stroke, retracted installation length, both mounting ends and every connector with the original actuator and control system. Send CouchGuard photos of the old label, both mounting ends and the whole cable assembly if unsure. Disconnect power and support moving sections before removal.

Frequently asked questions

What does the label say about voltage and power? DC 29V rated voltage and 75W rated input.

What are the maximum load, stroke and speed? The photographed label states 1000N, 345 mm and 35 mm/s respectively.

Is DL-DT2008A-054-02 the same as another DL-DT2008A suffix? Not necessarily. Compare the entire model number and physical and electrical configuration.

Does a round five-pin plug guarantee fit? No. The mounting, travel, other connectors and wiring must also match.

What photos help confirm fit? Clear views of the original label, both ends and every plug.
