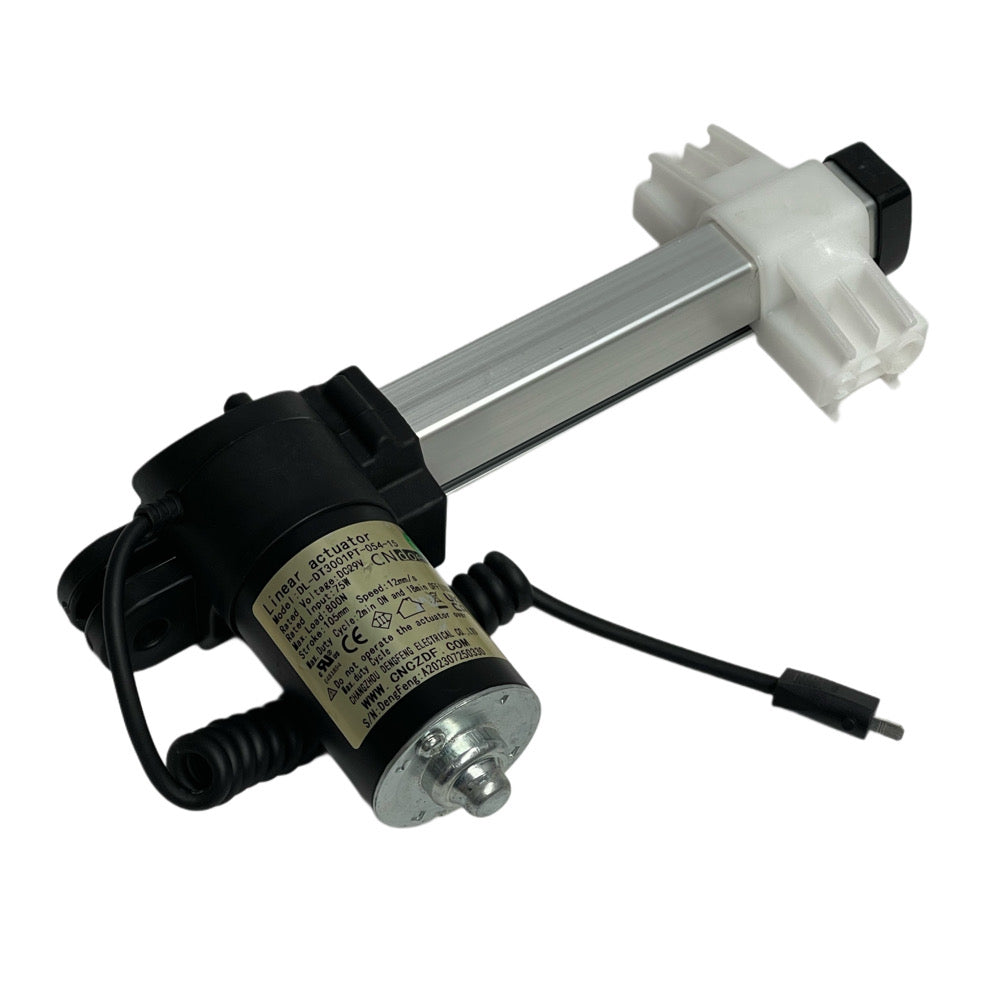

CNDOER DL-DT3001PT-054-15 headrest actuator motor

For a recliner headrest mechanism using the matching CNDOER DL-DT3001PT-054-15 actuator. The photographed motor label identifies the full model as DL-DT3001PT-054-15, not DL-DT3001PT-054-01. Compare the old motor's label, mounting points and cable before ordering.

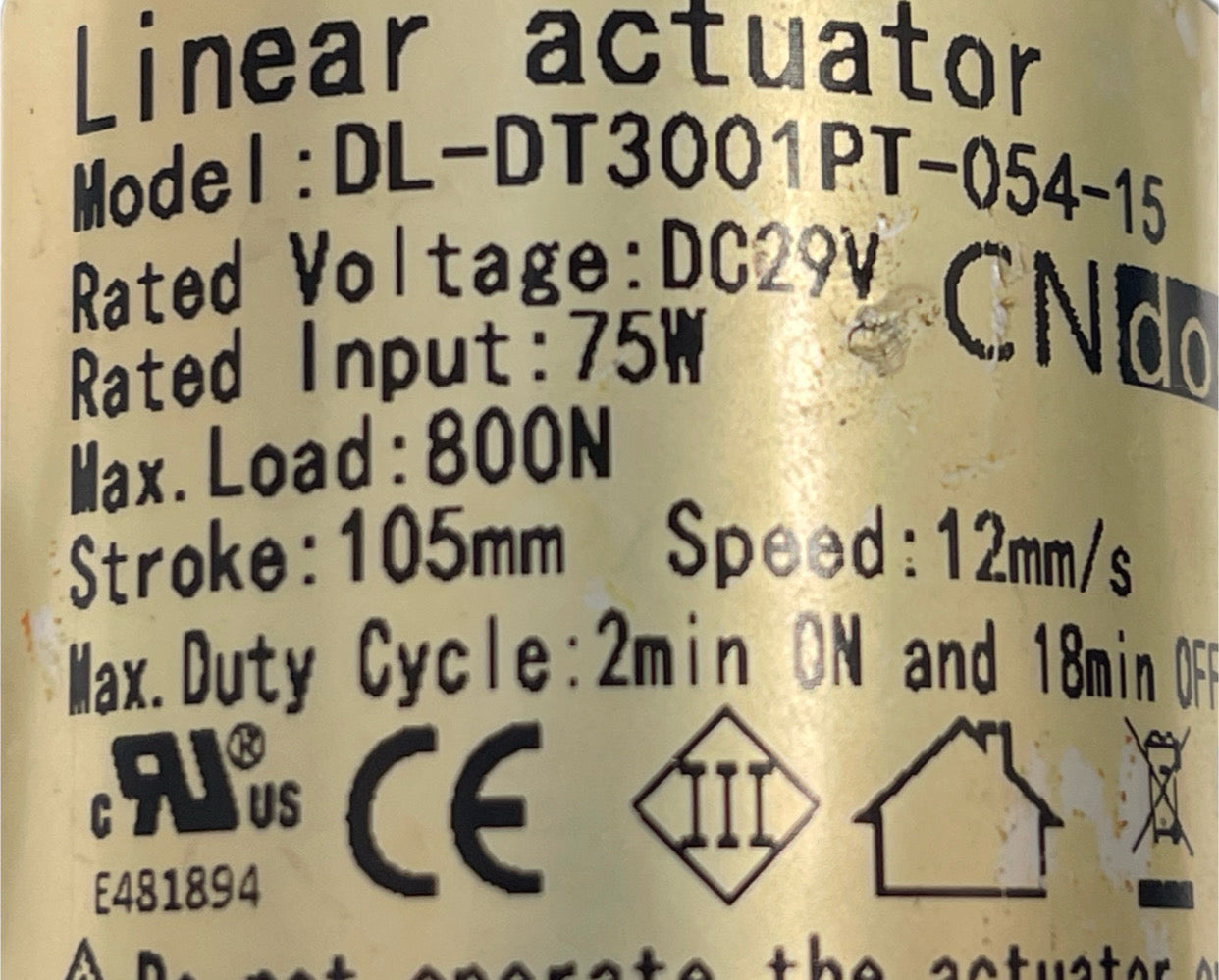

Label specifications

• Manufacturer/brand: CNDOER
• Model: DL-DT3001PT-054-15
• Rated voltage: DC 29V
• Rated input: 75W
• Maximum load: 800N
• Stroke: 105 mm
• Speed: 12 mm/s
• Maximum duty cycle: 2 minutes on, then 18 minutes off

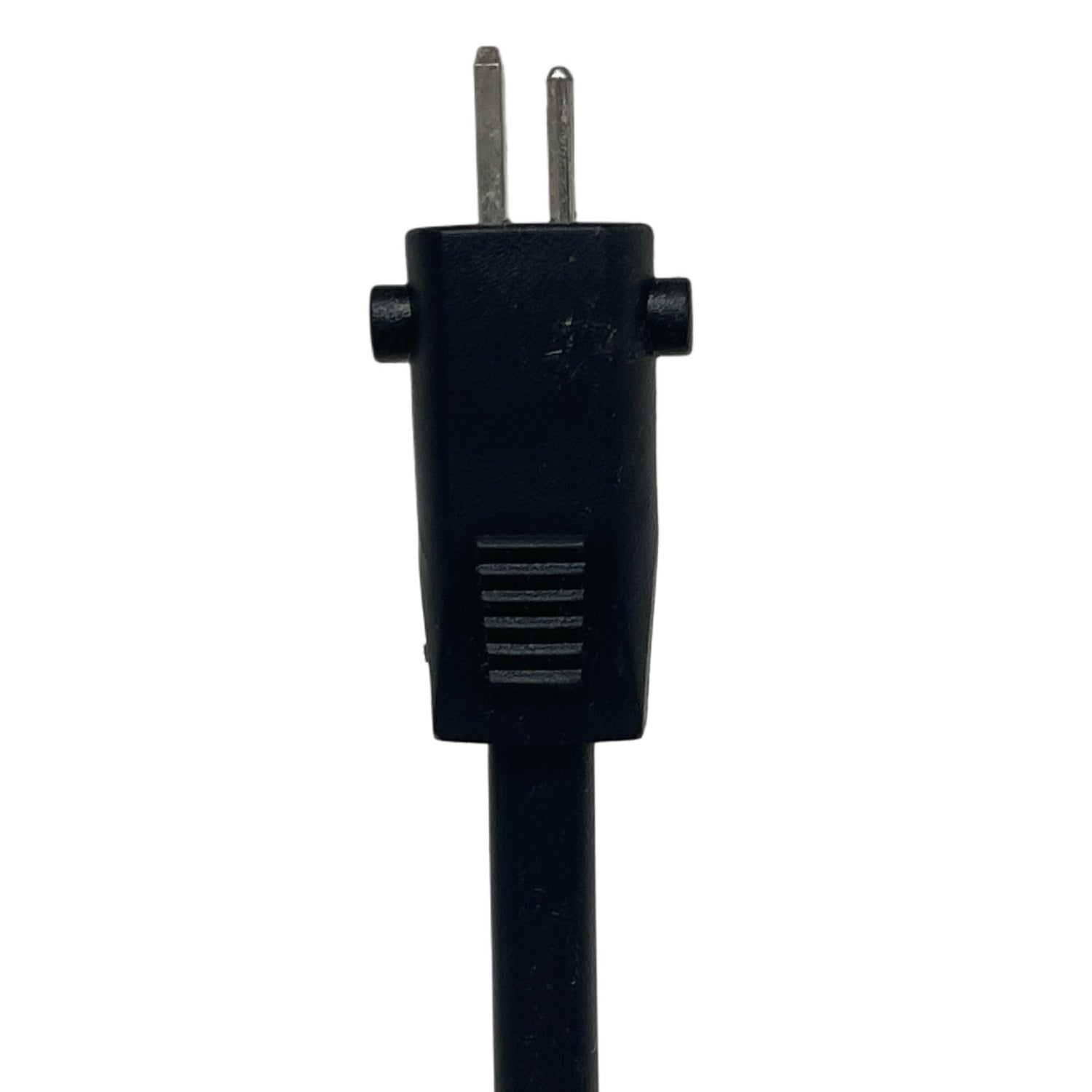

The product photo shows a two-pin male connector. Check the exact connector arrangement, pin orientation, installation length and both mounting ends against the original; a matching voltage or similar plug alone does not establish fit.

Check before buying

Match the complete model, 105 mm stroke, mounting geometry, installation dimensions and connection with the original headrest actuator and recliner control system. If unsure, send CouchGuard clear photos of the old label, both mounting ends and connector. Disconnect power and support moving parts before removal.

Frequently asked questions

Is this the DL-DT3001PT-054-01? No. The photographed label identifies DL-DT3001PT-054-15. Do not treat the two suffixes as interchangeable without checking the full configuration.

What are the label's electrical ratings? DC 29V rated voltage and 75W rated input.

What are the load, stroke and speed? The label states 800N maximum load, 105 mm stroke and 12 mm/s speed.

What is the duty cycle? The label states a maximum of 2 minutes on followed by 18 minutes off.

Will a two-pin plug guarantee compatibility? No. Compare mounting, length, stroke, connection and control-system requirements as well.
