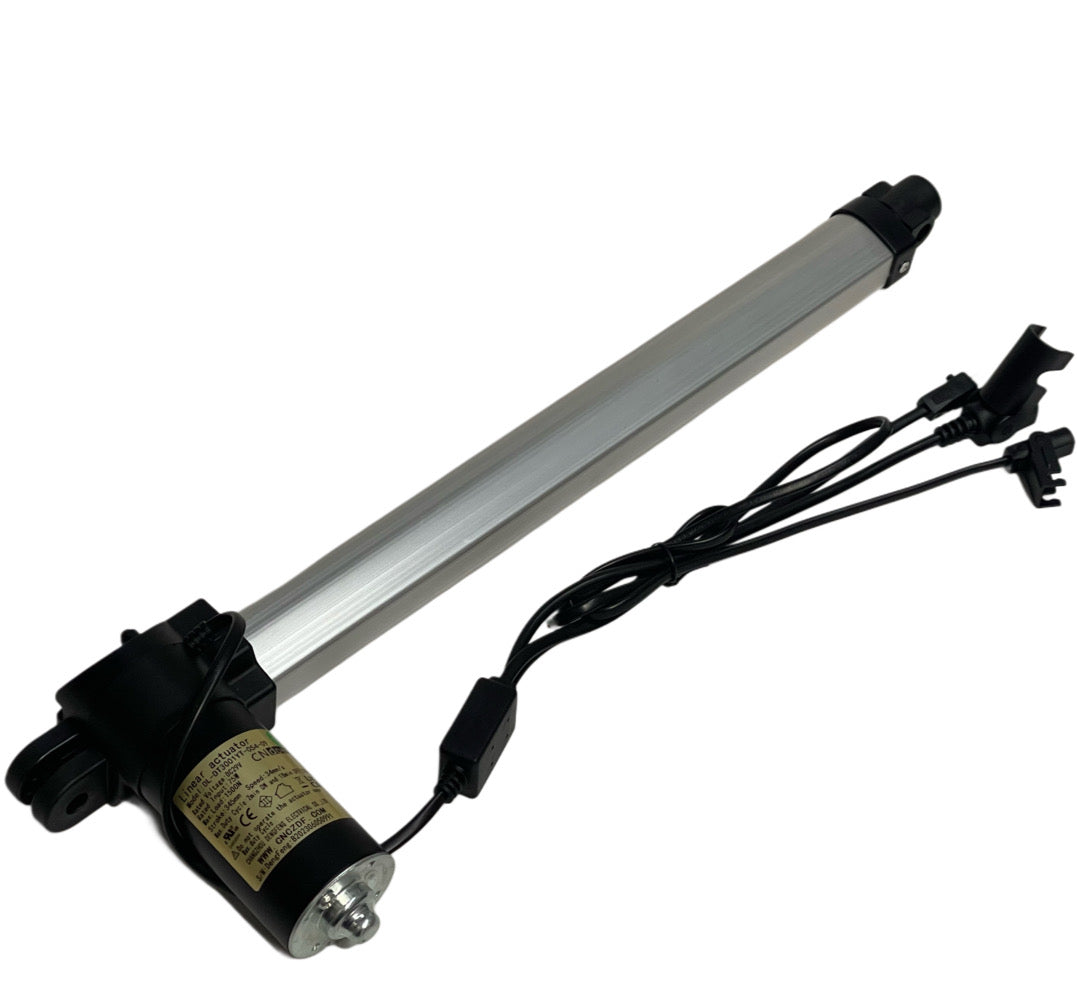

CNDOER DL-DT3001YT-054-09 lift chair actuator motor

Replace a matching lift-chair actuator with the exact CNDOER DL-DT3001YT-054-09 configuration. Compare the label, full cable assembly and both mounting points on your old motor before ordering; a similar-looking DL-DT3001YT model is not automatically interchangeable.

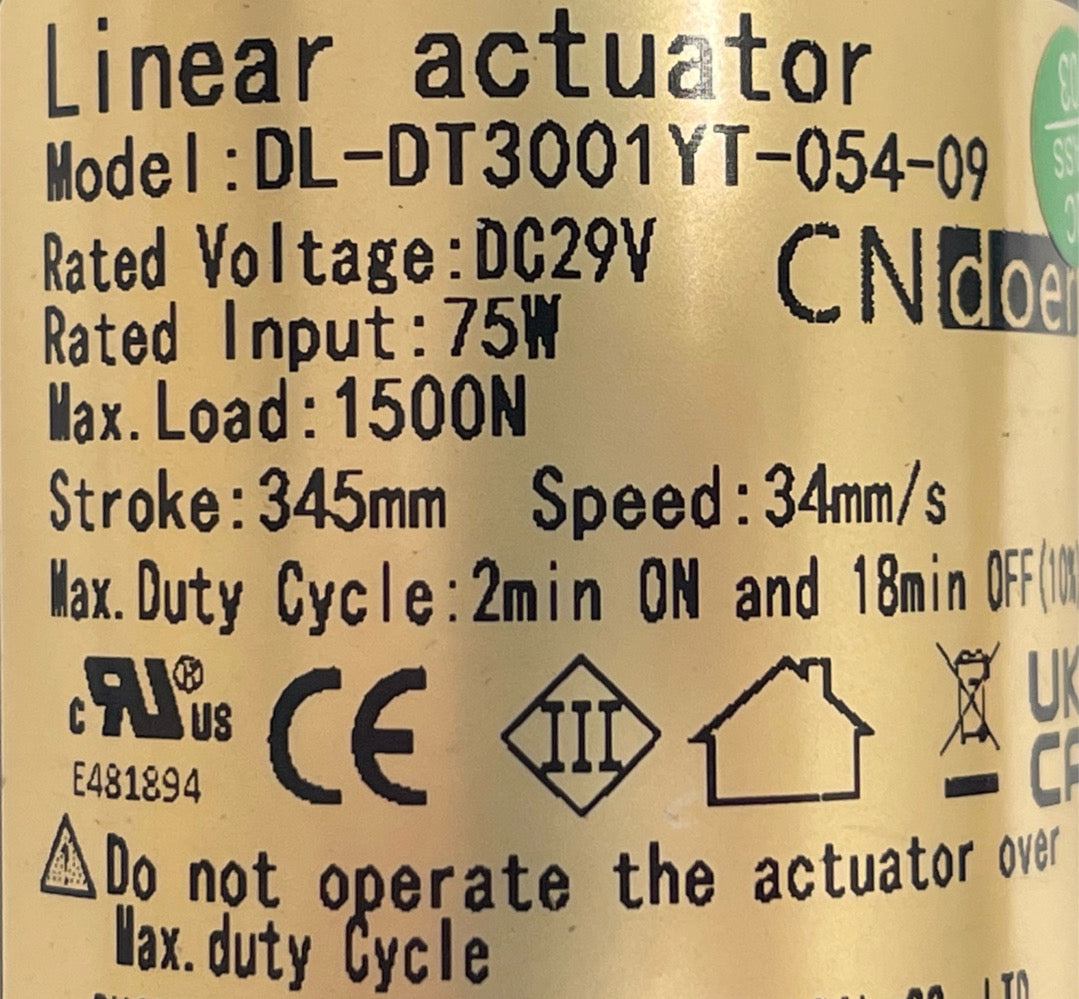

Photographed label specifications

• Brand: CNDOER
• Model: DL-DT3001YT-054-09
• Rated voltage: DC 29V
• Rated input: 75W
• Maximum load: 1500N
• Stroke: 345 mm
• Speed: 34 mm/s
• Maximum duty cycle: 2 minutes on, then 18 minutes off

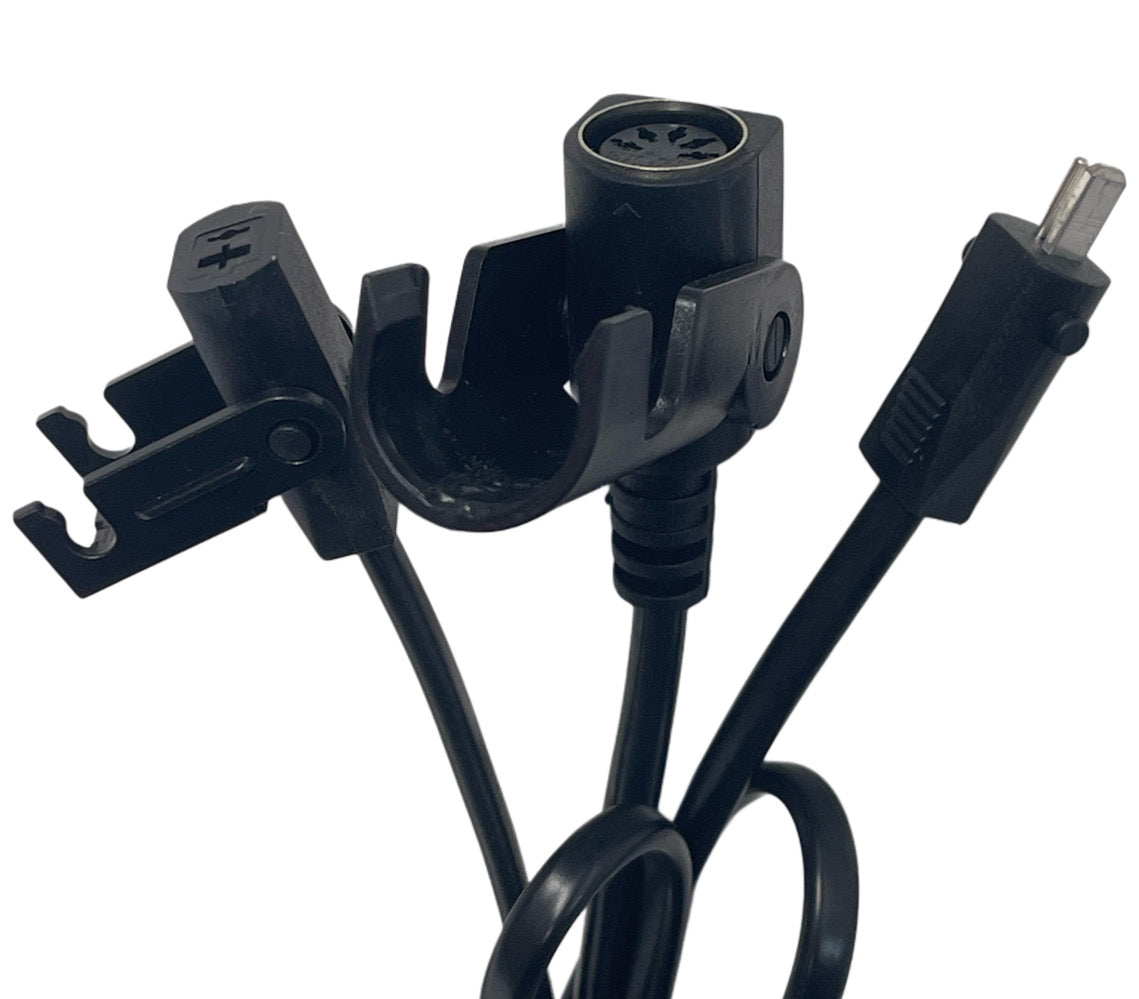

The existing listing describes a W-shaped cable assembly with a round five-pin plug and two O/I two-pin connections. Compare the actual original plugs and cable routing, including connector orientation and control-box requirements. Do not infer mounting dimensions or pin wiring from plug appearance.

Check fit before buying

Match the exact full model, 345 mm travel, retracted installation length, both mounting ends and every lead with your old lift-chair actuator. Send CouchGuard clear photographs of the original label, mounts and all plugs if unsure. Disconnect power and securely support moving chair sections before removing an actuator.

Frequently asked questions

What does the label say about voltage and power? DC 29V rated voltage and 75W rated input.

What are the force, stroke and speed? The photographed label states 1500N maximum load, 345 mm stroke and 34 mm/s speed.

What is the duty cycle? Maximum 2 minutes on followed by 18 minutes off, as printed on the label.

Will any five-pin lift-chair motor work in its place? No. Match the complete model, mounting, travel, wiring and every connection.

What should I photograph for a fit check? The original label, both mounting ends, entire cable assembly and each plug.
