CNDOER DL-DT3001YT-054-13 recliner actuator motor

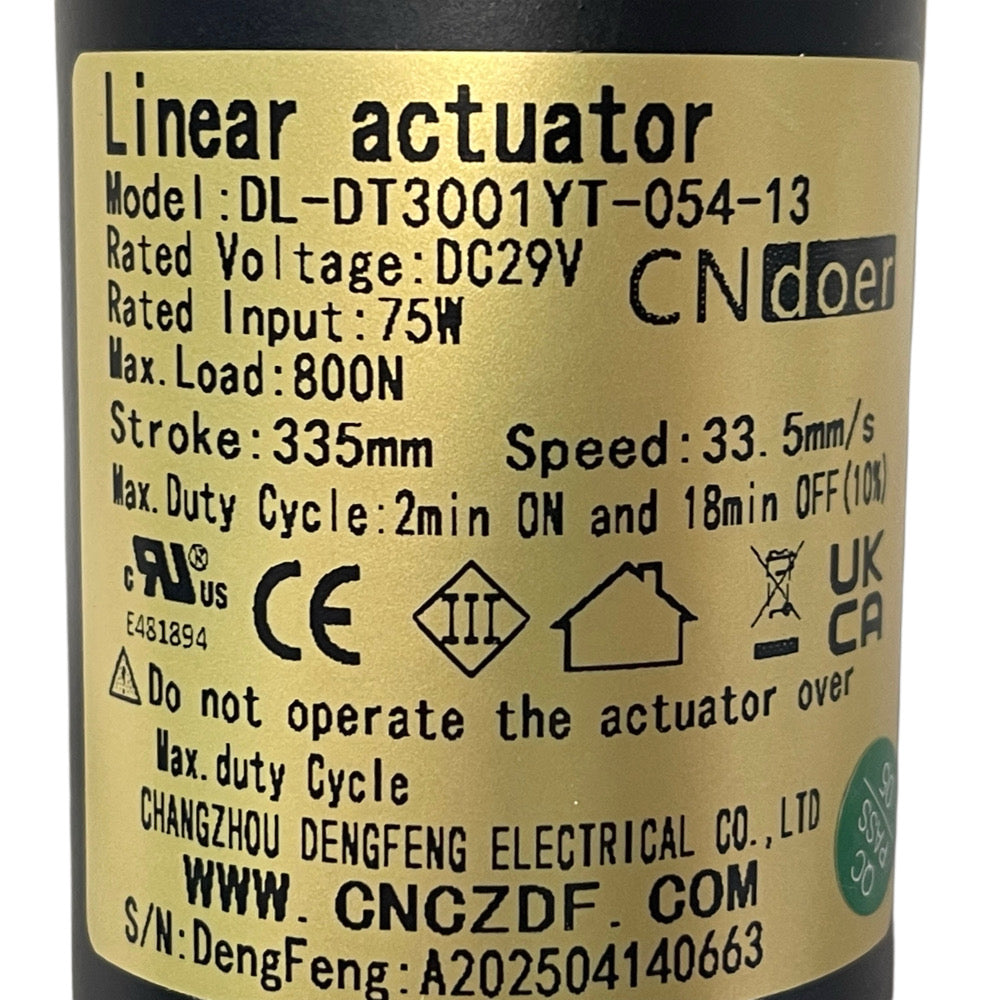

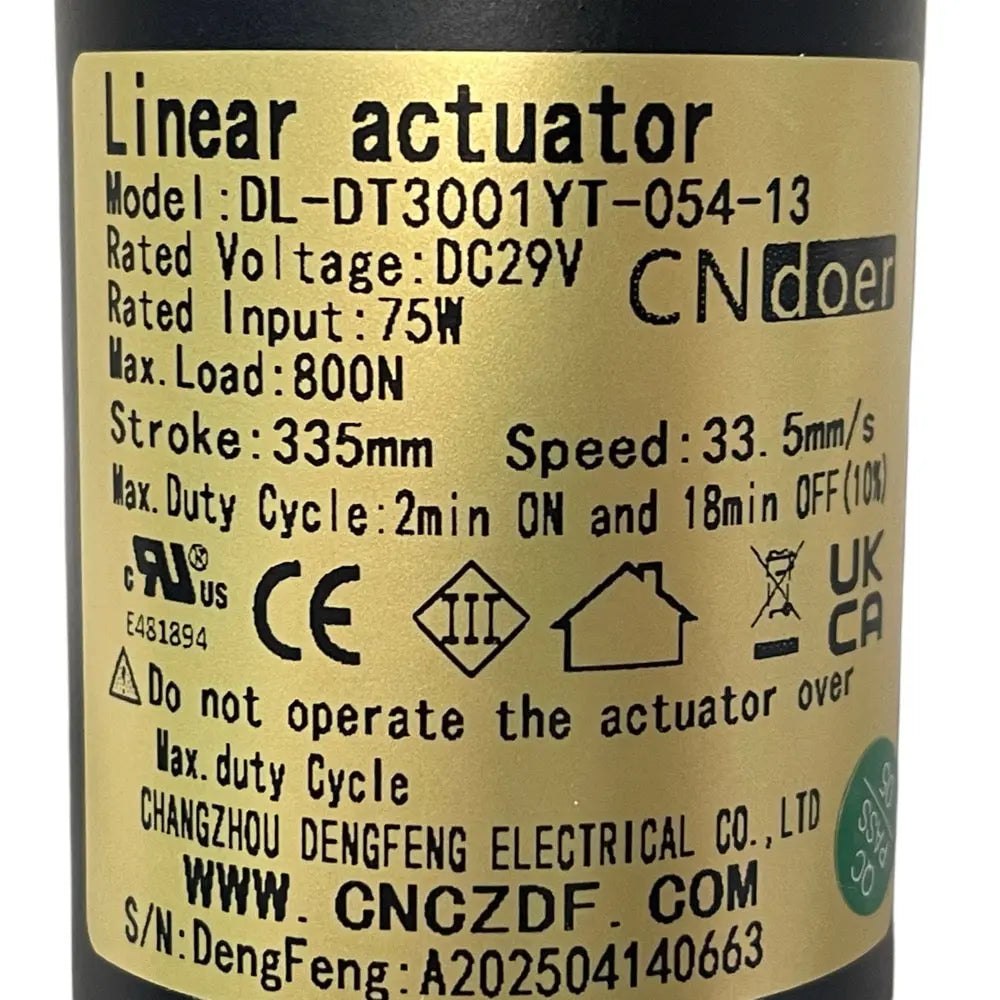

This CNDOER linear actuator is labelled DL-DT3001YT-054-13. Its label gives DC 29V, 75W, maximum load 800N, 335 mm stroke and 33.5 mm/s speed. The stated maximum duty cycle is 2 minutes on, 18 minutes off; do not run it beyond that limit.

Choose by the complete original model

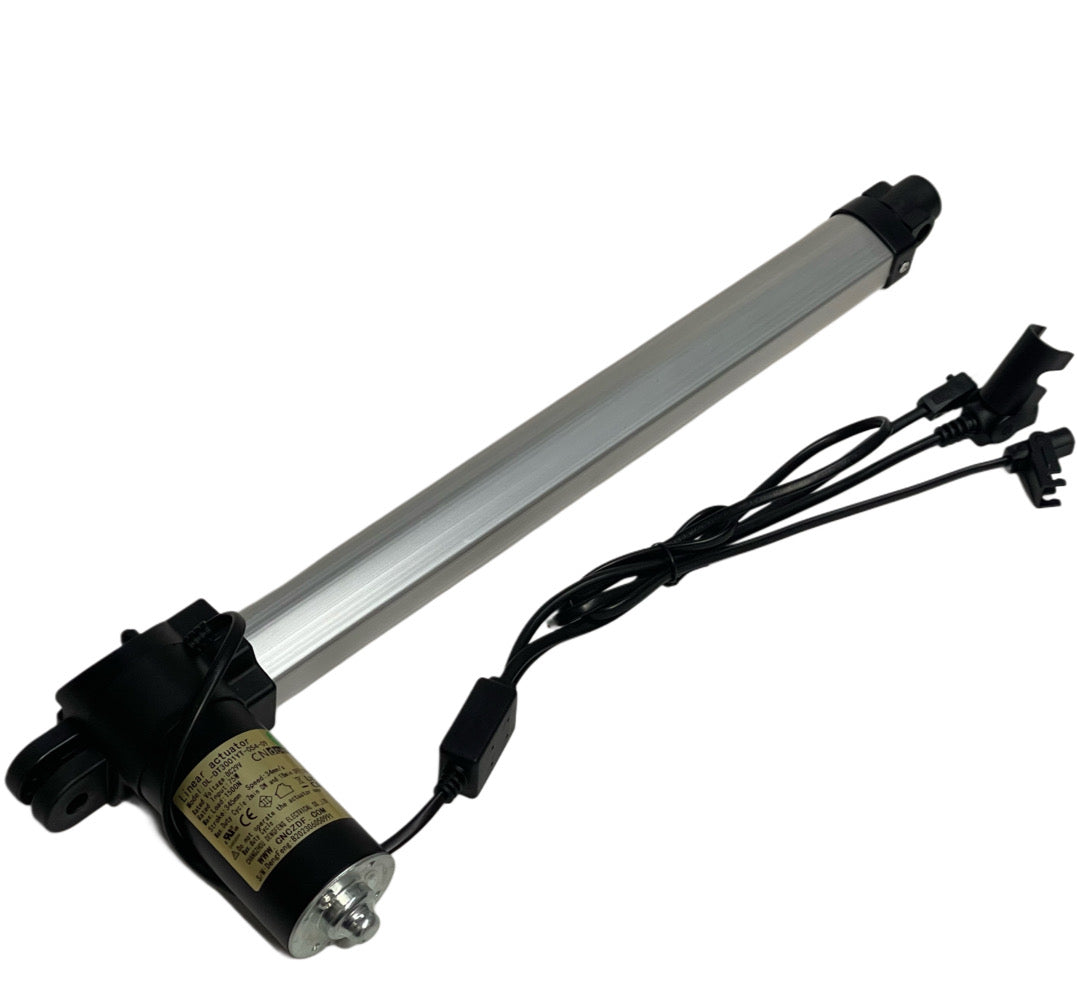

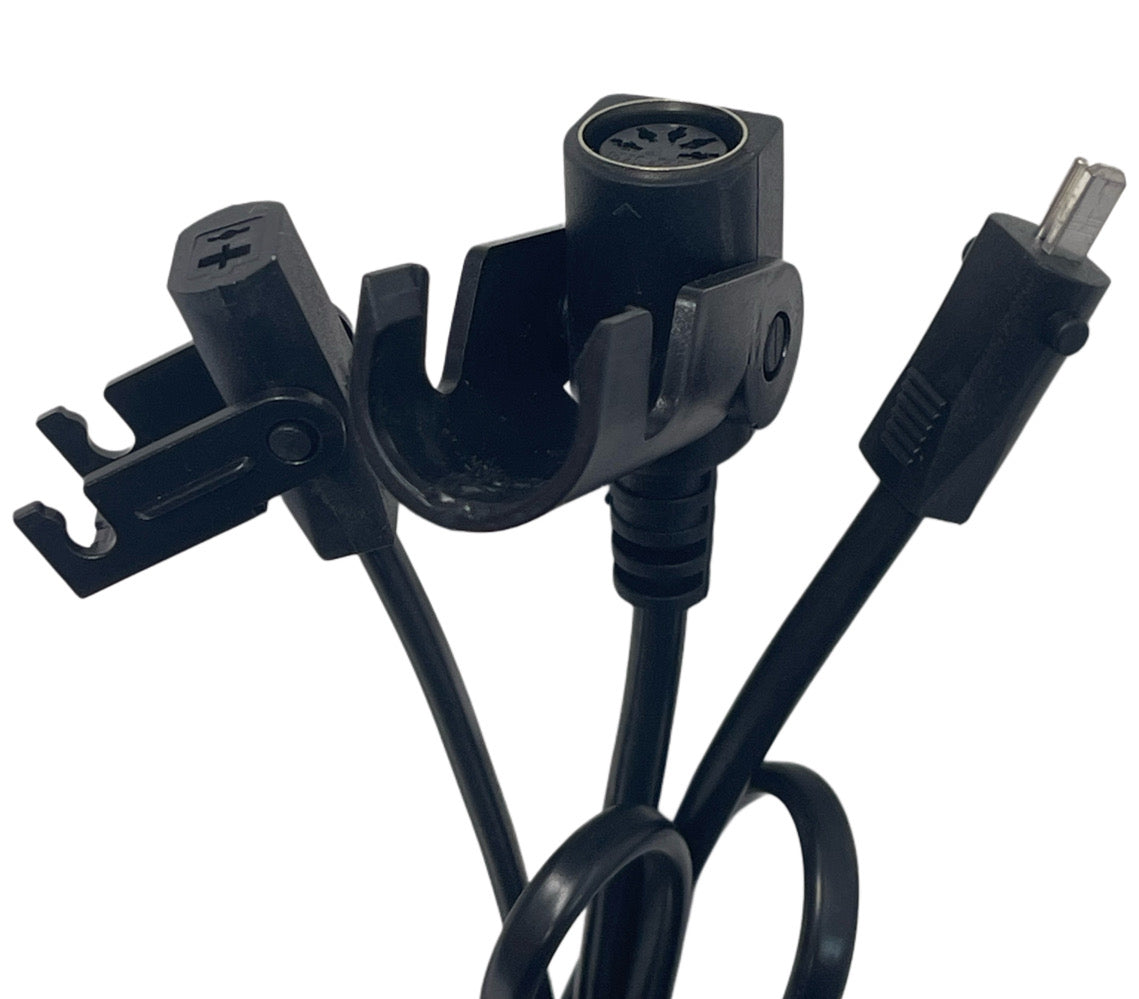

For a matching recliner repair, compare the complete model suffix, 335 mm travel, overall and retracted dimensions, mountings, cable and connectors with your existing actuator. Product photos show a branched cable arrangement with a round multi-pin connector and two-pin connections; plug appearance alone does not establish pinout or chair compatibility. A 335 mm stroke is travel, not the actuator's installed length. The separately listed DL-DT3001YT-054-09 has different specifications and is not assumed interchangeable.

Replacement guidance

Disconnect the recliner from power before inspecting or changing its actuator. Support moving sections so they cannot shift unexpectedly. Follow the furniture maker's service instructions and have a qualified repairer check fit, electrical connections and safe operation if unsure.

Frequently asked questions

What does the 054-13 label specify? DC 29V, 75W, 800N maximum load, 335 mm stroke, 33.5 mm/s speed and at most 2 minutes on followed by 18 minutes off.

Is the 335 mm figure its overall length? No. It is the labelled stroke (travel). Verify installed and retracted dimensions from your original part.

Can I replace a 054-09 actuator with this one? Do not assume so. The model suffix and specifications differ; match your original part and recliner control system before ordering.
