Buy CNDOER DL-SK-199-2-003 DL-3378-LHF Recliner Switch with USB

CNDOER DL-SK-199-2-003 DL-3378-LHF recliner switch

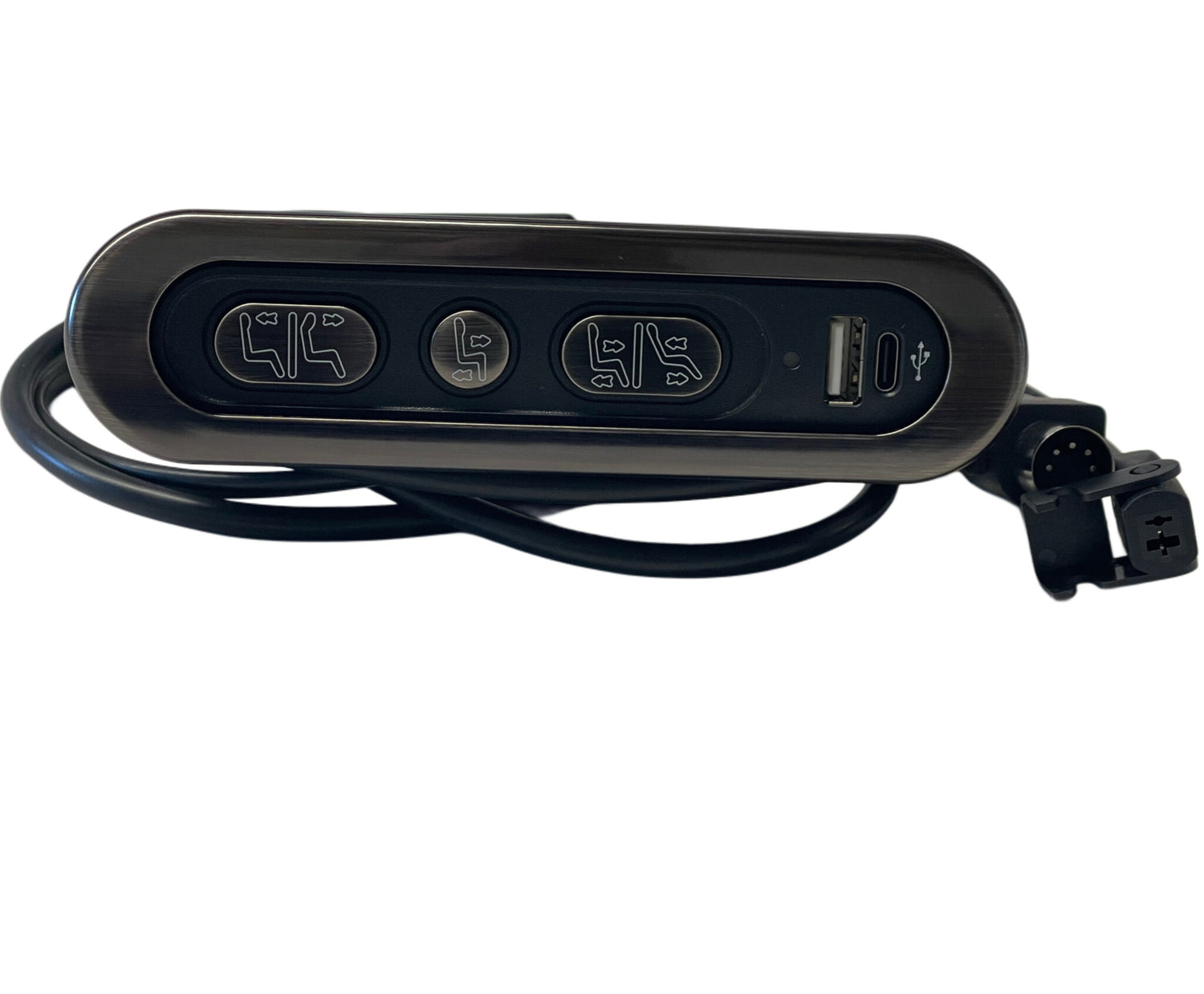

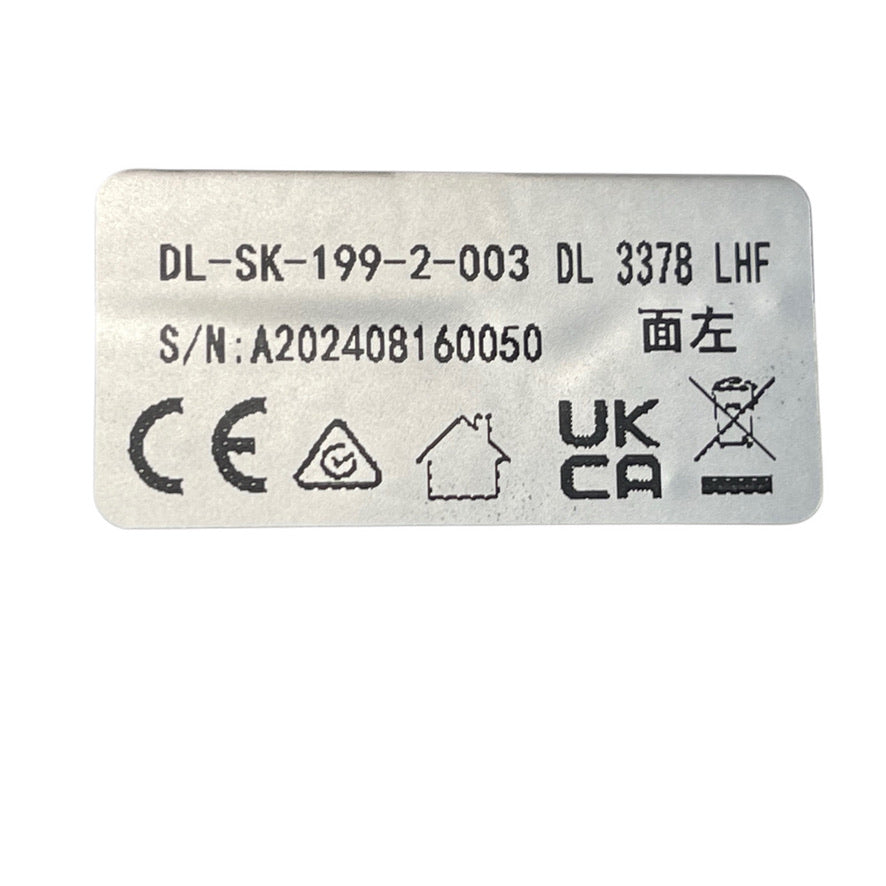

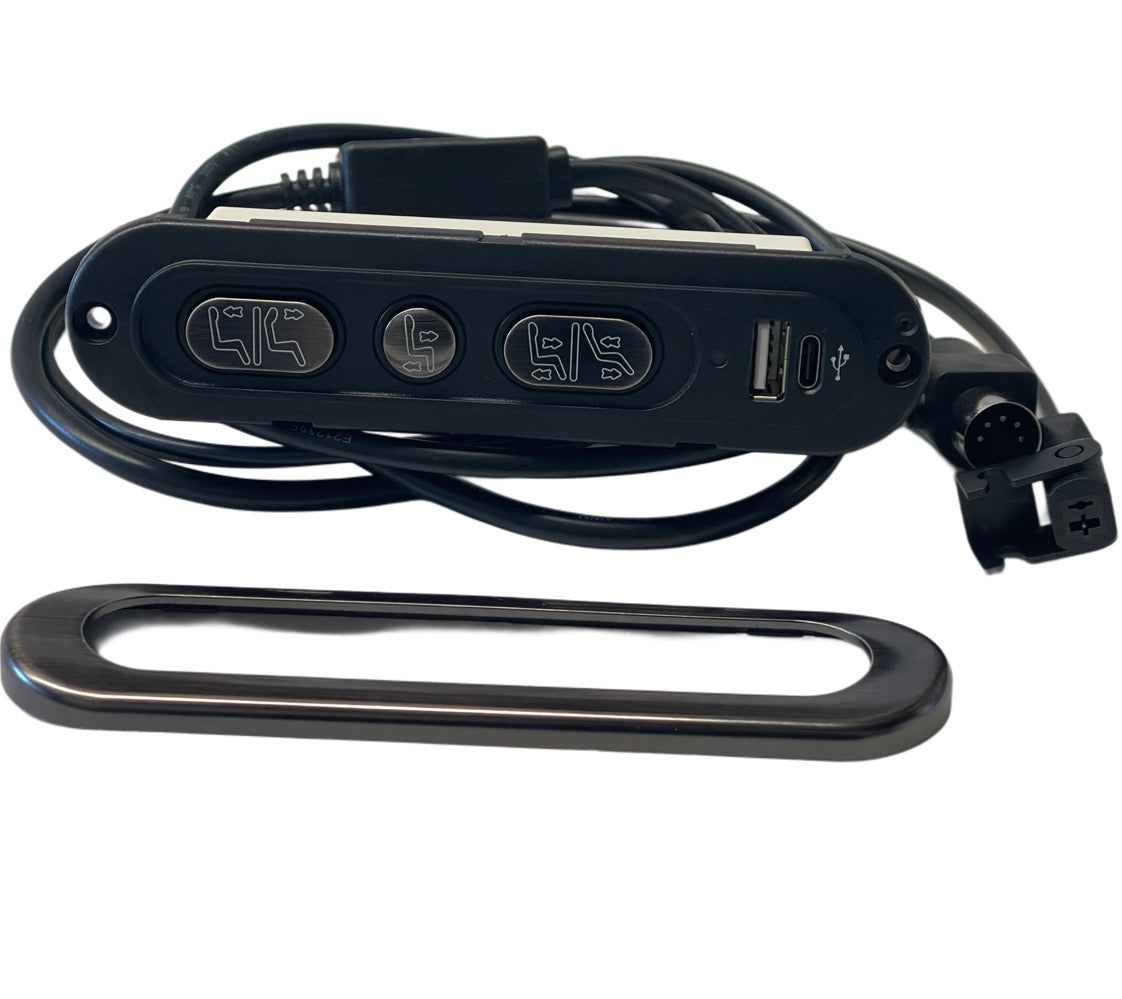

This CNDOER chair-side control has two rocker-style controls with four directional chair icons, a separate centre function button, and USB-A and USB-C charging sockets. The photo of the rear marking identifies DL-SK-199-2-003 DL 3378 LHF and marks the face as left. The photographed lead has a round five-pin connector and a separate two-pin connection.

Check the original switch before ordering

• Compare the complete DL-SK-199-2-003 / DL-3378-LHF reference, faceplate shape, button icons and mounting opening with your original switch.
• Compare both connectors and the chair's wiring. Plug shape alone cannot confirm electrical compatibility or which chair function each lead serves.
• The LHF and face-left marking does not by itself establish left-side placement from a seated person's viewpoint. Confirm your chair's mounting position and original control before ordering.

The distinct DL-SK-199-2-004 DL-3378-RHF switch is a comparison model, not a guaranteed interchangeable substitute.

How to replace a matching switch

1. Switch off and unplug the recliner from the wall. Wait for the chair to stop moving and support any moving sections before reaching beneath or behind it.
2. Record the original switch model, its faceplate orientation and how its cables are routed. Photograph each connection before disconnecting anything.
3. Follow the chair maker's service instructions to access and release the original switch without pulling on its wires. Do not force the faceplate or connectors.
4. Compare the new switch with the original, then reconnect only the matching, correctly oriented connections and secure the control as instructed by the chair maker. Do not rely on pin count alone to identify a socket.
5. Keep wiring clear of moving parts and pinch points. Restore power and test each control and USB port from a safe position. Stop and seek a qualified repairer if operation differs, a connector will not fit or any wiring is uncertain.

Frequently asked questions

How many controls are visible? Two rocker-style controls showing four directional actions, plus one separate centre button. USB-A and USB-C sockets are alongside them.

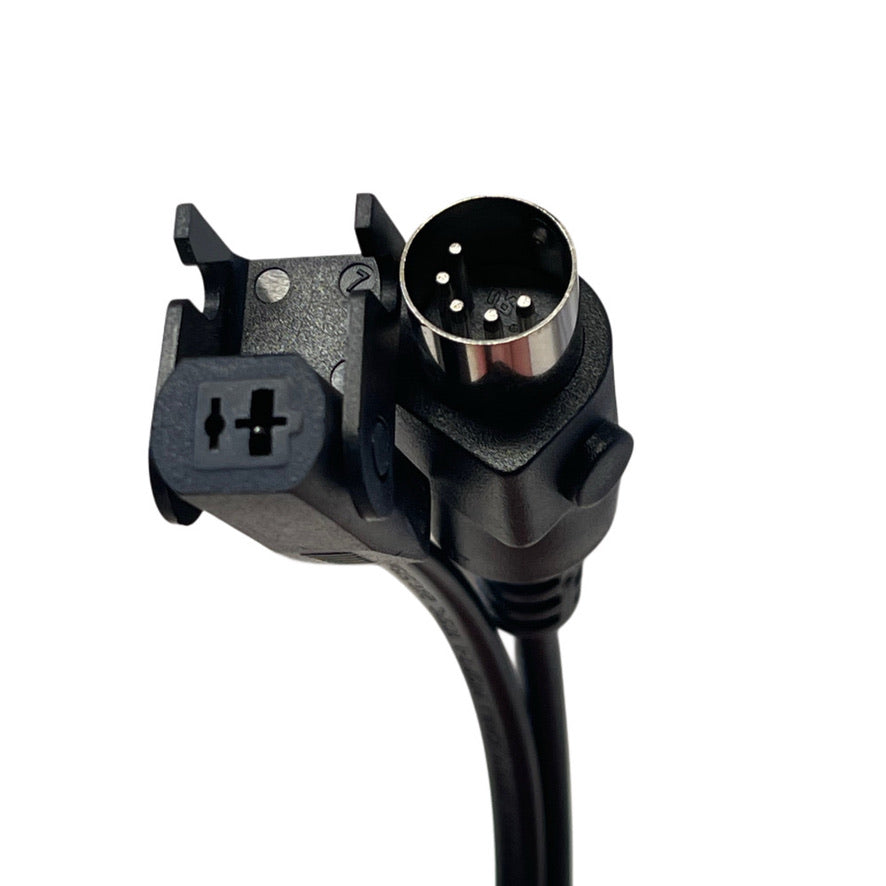

Does it have both five-pin and two-pin connections? The product photos show a round five-pin plug and a separate two-pin connection. Verify both against your original.

Does LHF guarantee a particular side when seated? No seated-view position is established by the label photo. Match the original model and mount orientation.

Will the RHF version fit instead? Do not assume interchangeability. Match the complete reference and chair control system.
