Buy CNDOER DL-SK-199-2-004 DL-3378-RHF Recliner Switch with USB

CNDOER DL-SK-199-2-004 DL-3378-RHF recliner switch

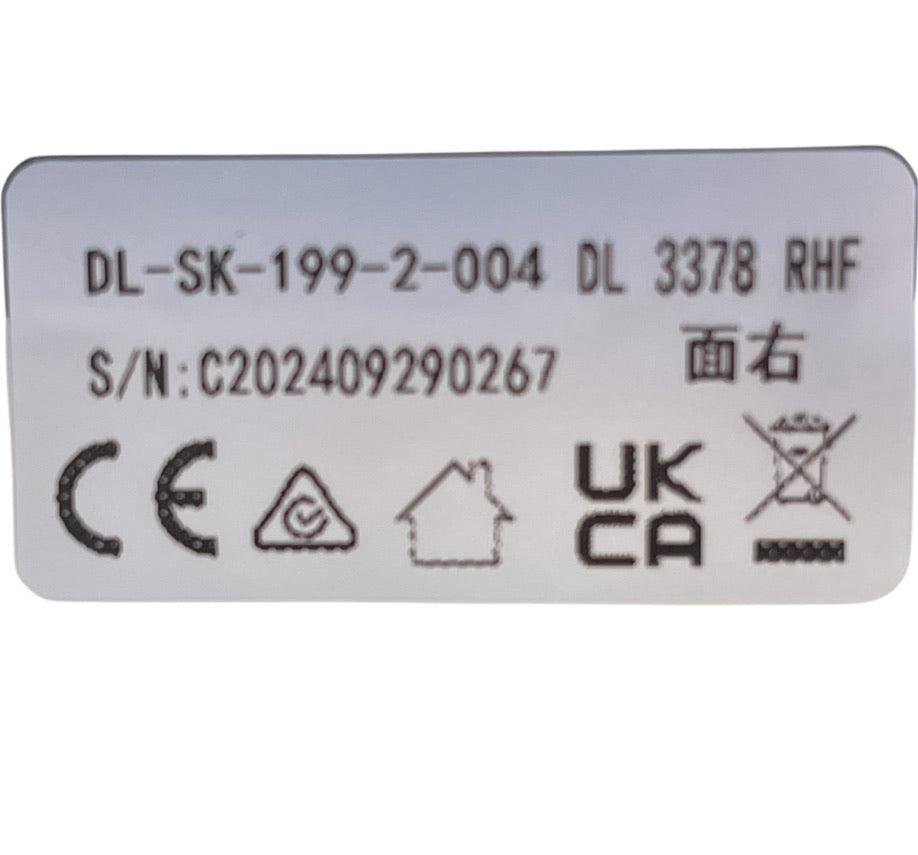

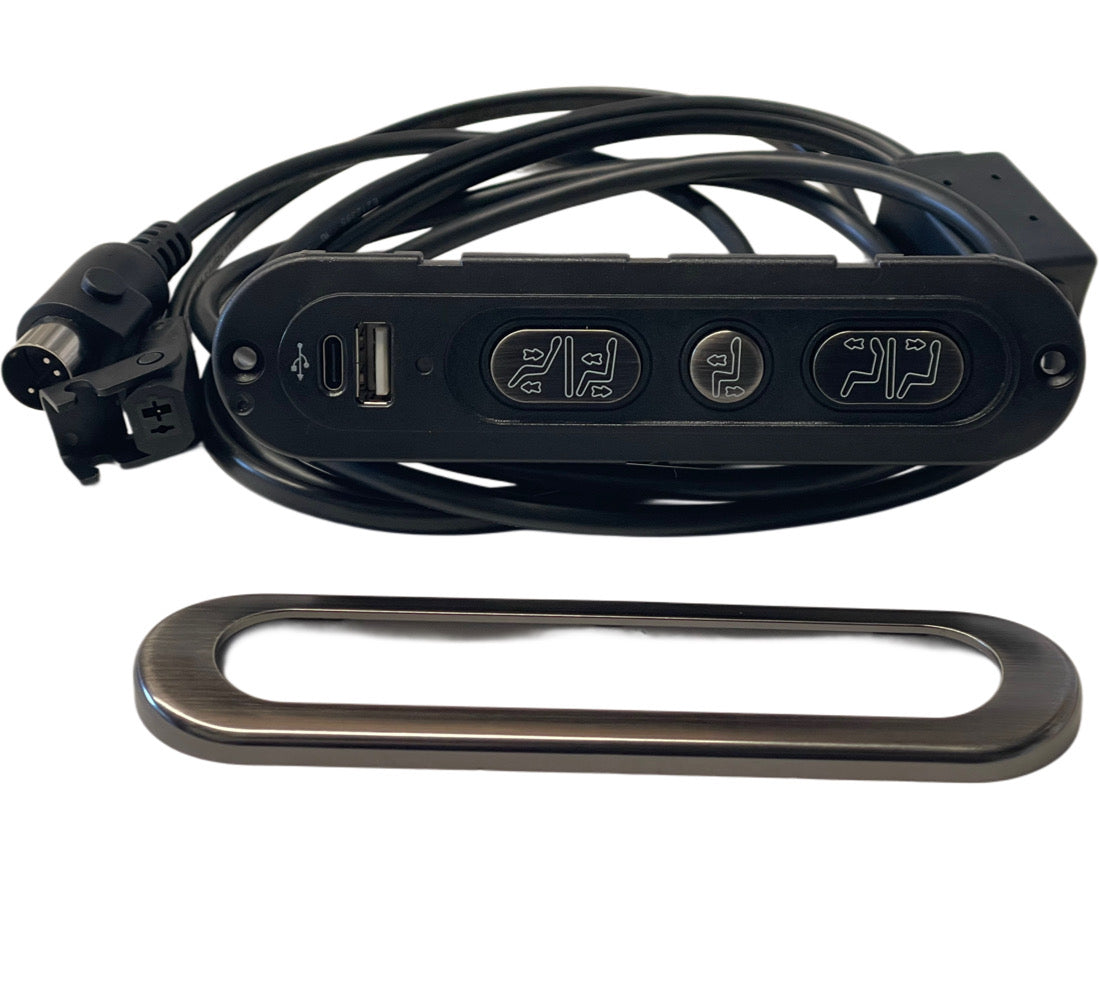

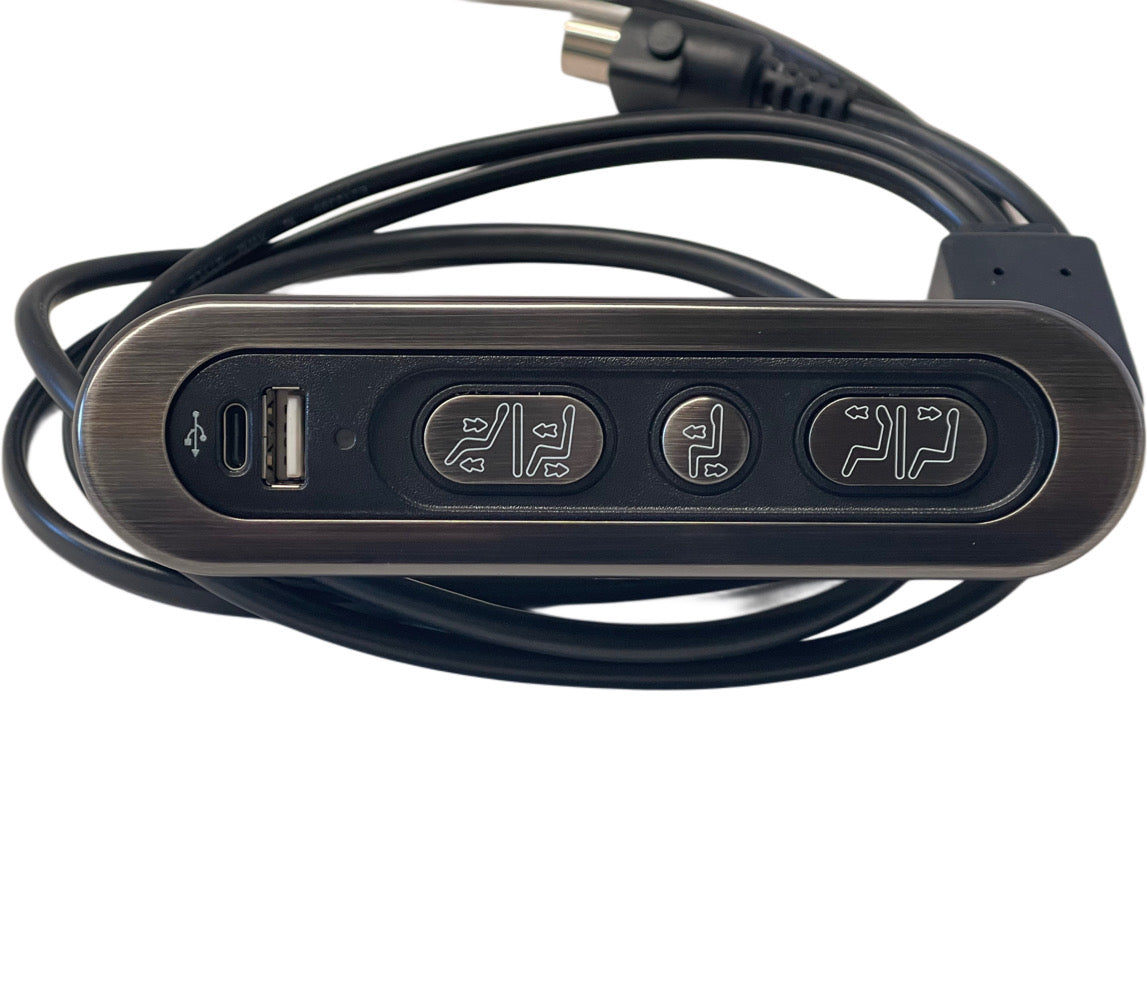

This CNDOER recliner control is photographed with two rocker-style controls showing four directional chair actions, a separate centre function button, and USB-A and USB-C sockets. Its rear marking reads DL-SK-199-2-004 DL 3378 RHF and marks the face as right. The photographed lead has a round five-pin connector and a separate two-pin connection.

Match your original control

• Compare the full DL-SK-199-2-004 / DL-3378-RHF model reference, faceplate, buttons and mounting opening.
• Compare both connectors and confirm chair wiring. Plug appearance does not prove electrical compatibility or identify which connection serves which function.
• The RHF and face-right marking does not on its own prove right-side placement when seated. Verify the chair's mounting orientation against your existing control.

The distinct DL-SK-199-2-003 DL-3378-LHF switch is a comparison model, not a guaranteed interchangeable substitute.

How to replace a matching switch

1. Switch off and unplug the recliner from the wall. Wait for the chair to stop moving and support any moving sections before reaching beneath or behind it.
2. Record the original switch model, its faceplate orientation and how its cables are routed. Photograph each connection before disconnecting anything.
3. Follow the chair maker's service instructions to access and release the original switch without pulling on its wires. Do not force the faceplate or connectors.
4. Compare the new switch with the original, then reconnect only the matching, correctly oriented connections and secure the control as instructed by the chair maker. Do not rely on pin count alone to identify a socket.
5. Keep wiring clear of moving parts and pinch points. Restore power and test each control and USB port from a safe position. Stop and seek a qualified repairer if operation differs, a connector will not fit or any wiring is uncertain.

Frequently asked questions

How many controls are visible? Two rocker-style controls with four directional actions and one separate centre button. USB-A and USB-C sockets are also pictured.

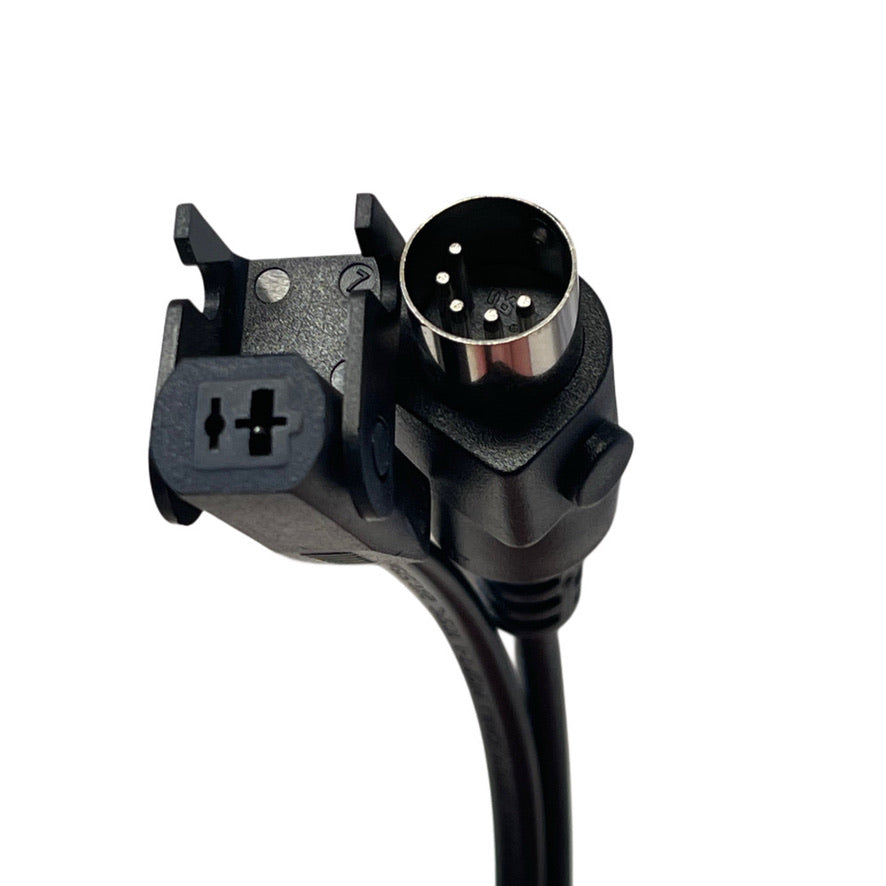

What connections are shown? A round five-pin plug and a separate two-pin connection. Compare both with your original chair control.

Does RHF mean it fits the seated right side? The label identifies a face-right version, but seated-view placement is not confirmed by that alone. Match the original model and mounting.

Can I substitute the LHF version? Do not assume so; check the full reference and wiring first.
