Buy Okin JLDQ.1.156.307

Okin JLDQ.1.156.307 lift chair motor: 72070 replacement

This listing supplies genuine Okin 72070 as the replacement actuator for matching JLDQ.1.156.307 electric lift-chair installations. The original model reference remains in the title to help identify the replacement. Choose the motor alone or the complete kit.

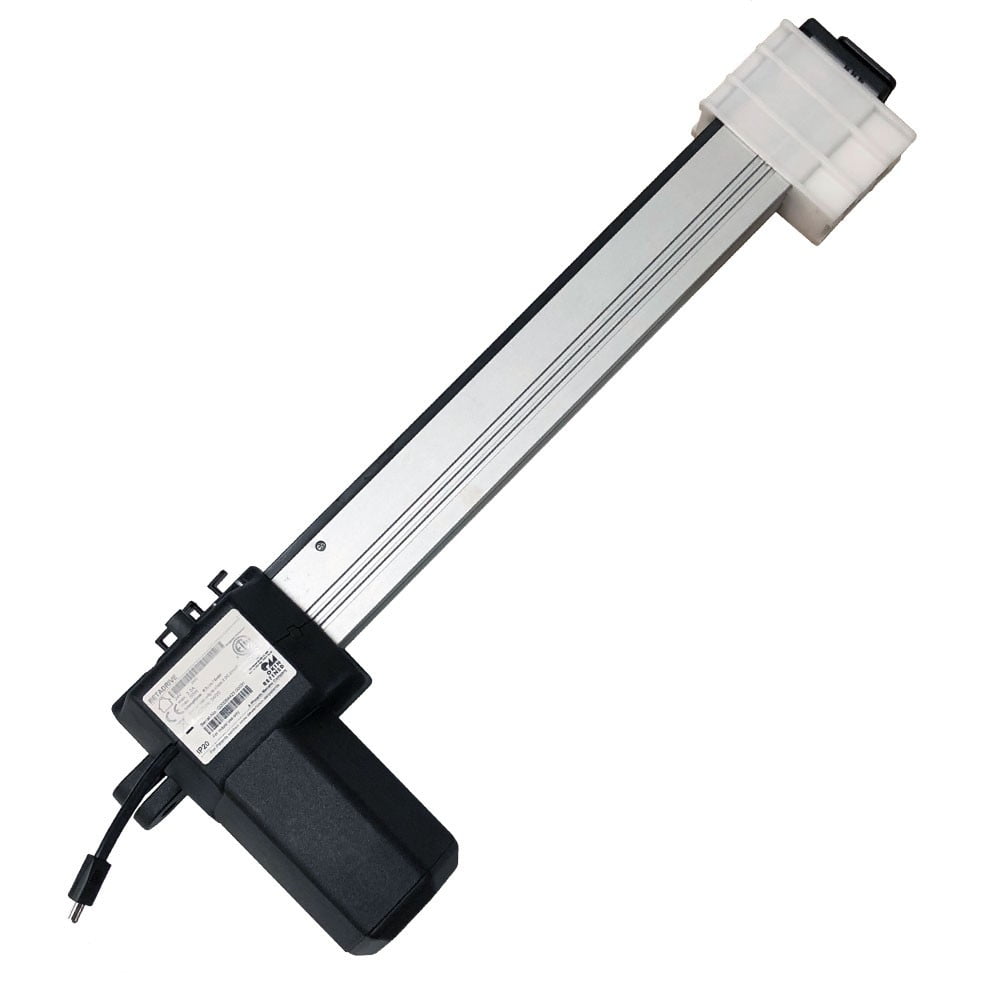

Okin 72070 Lift Chair Actuator Specifications

• Device Type: Electric Lift Chair Actuator Motor.
• Replacement Model / Part Number: 72070.
• Original Model Reference: JLDQ.1.156.307.

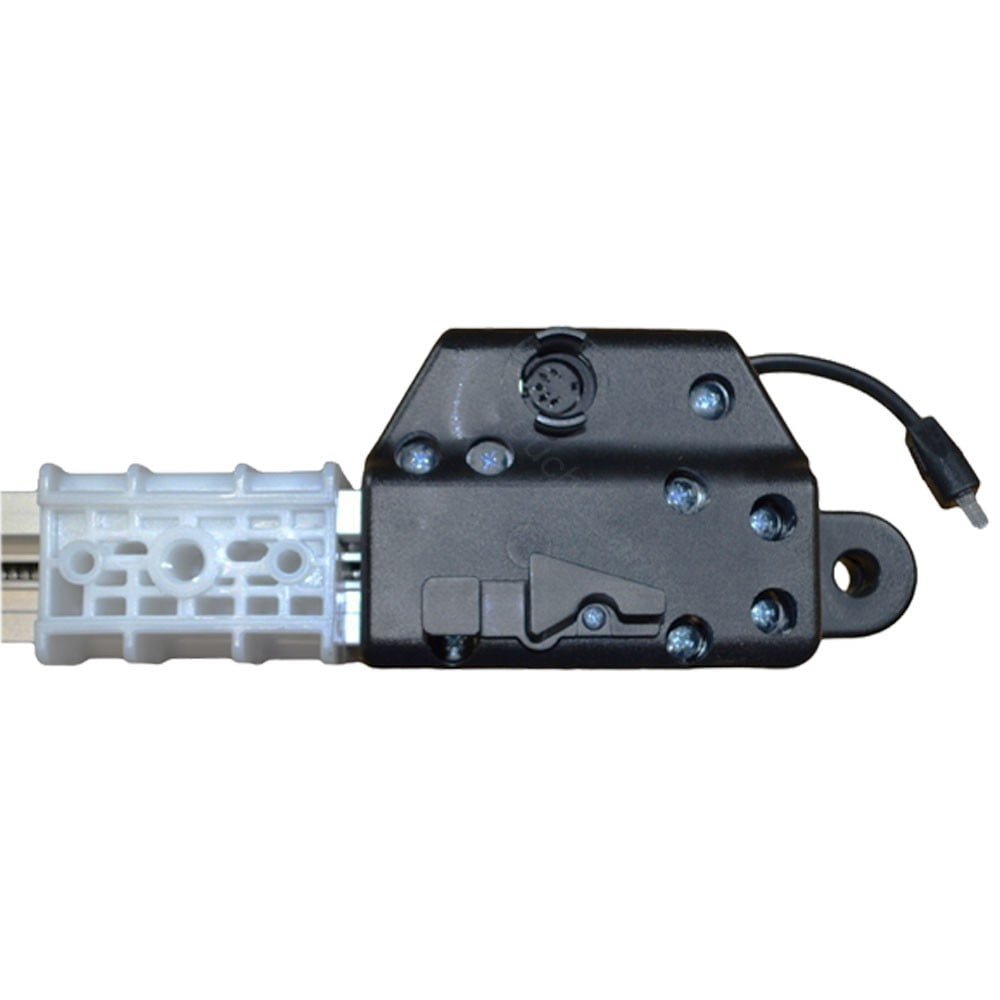

• Handset Connection: Five-pin female socket built into the motor body.
• Power Connection: Two-pin I/O plug.
• Power Lead Length: 500mm.
• Actuator Only SKU: OKIN-AC-72070-.
• Complete Kit SKU: OKIN-AC-72070-KIT.

Choose your replacement option

Actuator Only: Replacement actuator for a compatible existing lift-chair system.

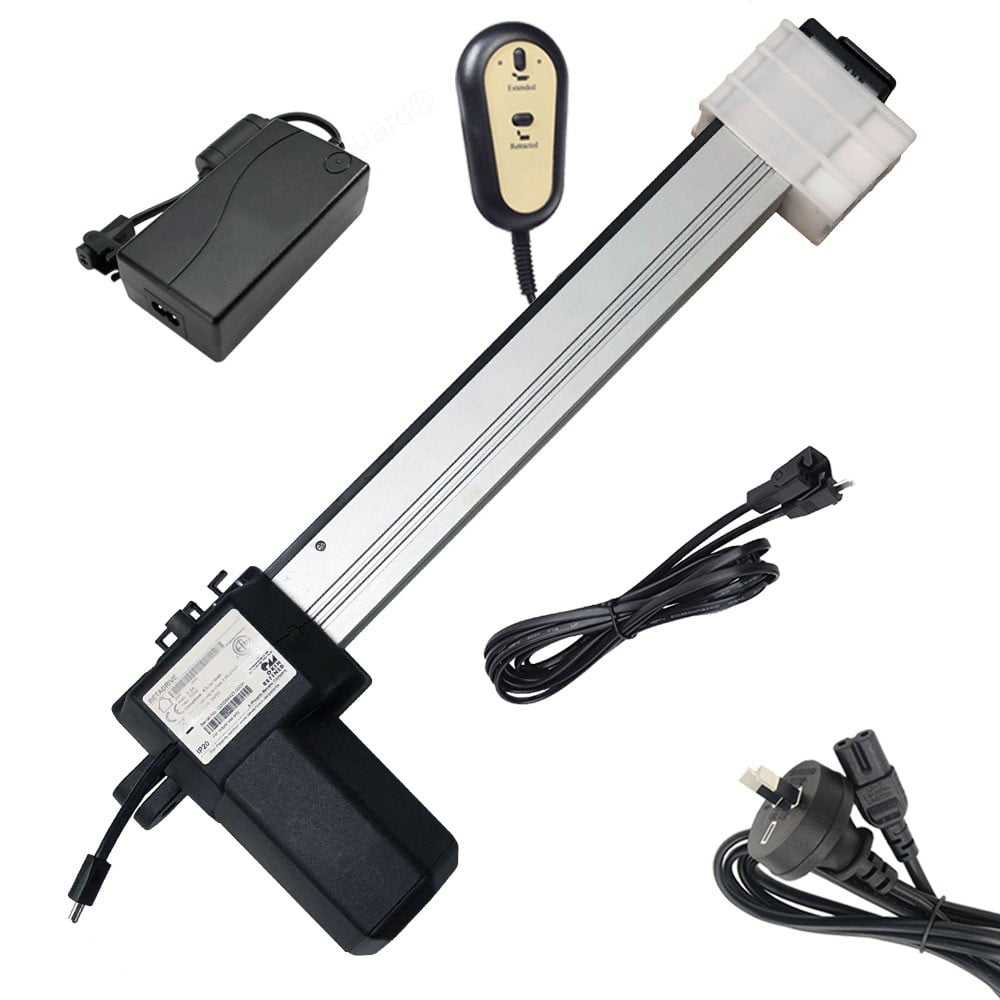

Actuator - Kit Form: Actuator, power supply with AU lead and large lift-chair hand control.

Compatibility and replacement checks

This motor is for matching lift-chair installations, not a general-purpose standard recliner replacement. Compare the original actuator label, mounts, dimensions, travel, electrical requirements, handset wiring and connector keying. Similar plugs alone do not establish compatibility.

The earlier JLDQ.1.185.279 and JLDQ.1A references require checking against the original installation rather than assuming interchangeability. Send CouchGuard photos of the original label, complete actuator, mounts and connector faces for help choosing.

Installation guidance

Disconnect mains and battery power and safely support the mechanism before removing the actuator. Keep cables clear of moving parts. Do not force plugs or modify wiring to make them fit. Use an experienced repairer if safe support or compatibility is uncertain.

Frequently asked questions

What replaces an Okin JLDQ.1.156.307 lift chair motor?

This listing supplies genuine Okin 72070 for matching JLDQ.1.156.307 installations. Check mounts, travel and electrical compatibility before ordering.

Why is JLDQ.1.156.307 still in the title?

It is the original-model reference. The replacement model supplied is 72070.

Is this for a lift chair or standard recliner?

It is listed for matching electric lift chairs, not general-purpose standard recliner applications.

What comes with the actuator-only option?

The replacement actuator only, without the kit power supply or hand control.

What comes with the complete kit?

The actuator, power supply with AU lead and large lift-chair hand control.

How does the hand control connect?

Through the five-pin female socket built into the motor body. Match connector keying and handset wiring.

What power connection does it use?

A two-pin I/O plug on a 500mm lead. Match the supply requirements and polarity.

Can I reuse my existing handset and power supply?

Only if they are compatible with the supplied actuator and serviceable. Similar-looking connectors do not guarantee fit.

Does it automatically fit every JLDQ.1A or JLDQ.1.185.279?

No. Those references need an individual check against the original actuator, wiring and mechanism.

How can I check the correct replacement?

Send CouchGuard clear photos of the original label, complete actuator, mounts and connector faces, plus relevant measurements.
