Buy Complete Metal Clevis Drive Replacement Kit for La-Z-Boy Chairs

Complete metal clevis drive replacement kit for La-Z-Boy chairs

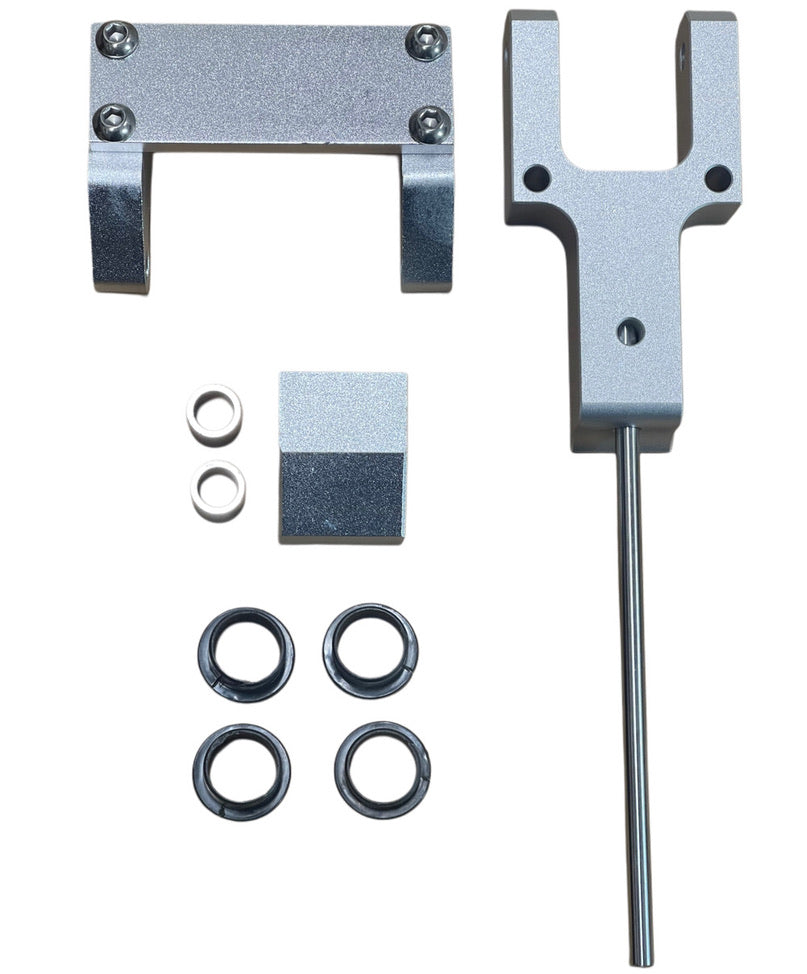

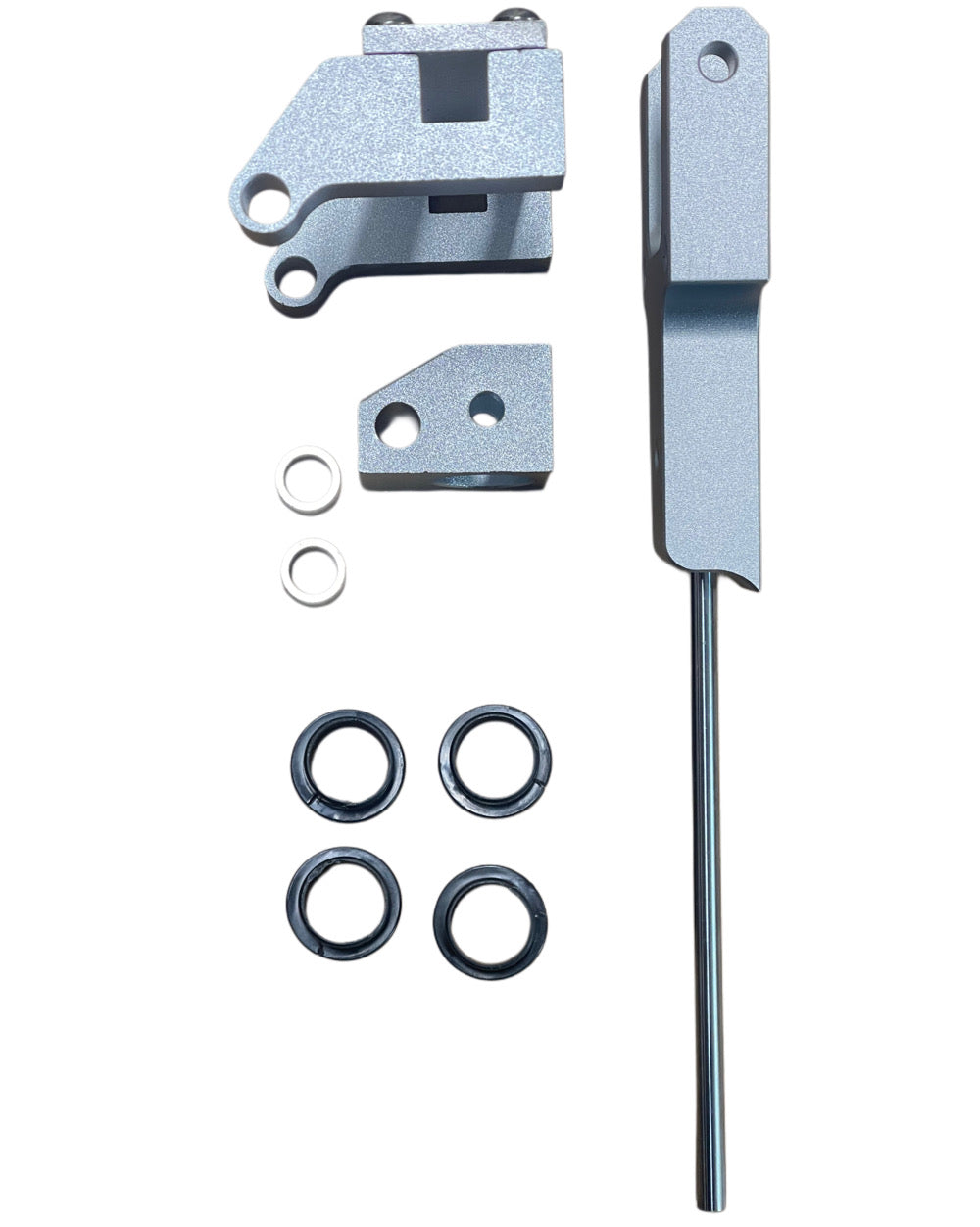

Repair the clevis drive connection in a compatible La-Z-Boy lift chair or recliner with this complete replacement kit. It includes metal top and bottom knuckle joints that are stronger than the original joints, together with six bushes/bearings.

Clevis Drive Replacement Kit Specifications

• Device Type: Clevis Drive and Knuckle Joint Replacement Kit.
• Application: Compatible La-Z-Boy lift chairs and recliners.
• Knuckle Joints: Metal top and bottom joints, stronger than the originals.
• Bushes / Bearings: Six total, comprising two small and four large.
• Supply Scope: Complete clevis drive replacement kit, not a complete chair mechanism or motor kit.

What is included?

• Metal top knuckle joint.
• Metal bottom knuckle joint.
• Updated clevis drive-toggle replacement components.
• Two small bushes/bearings.
• Four large bushes/bearings.

Compatibility checks

This kit replaces the older clevis mount attached to the motor where the original assembly matches. La-Z-Boy chairs use different mechanisms and fittings, so the chair brand alone does not establish compatibility.

Compare the original clevis mount, top and bottom knuckle joints, drive toggles, bush sizes and motor connection with the product photos. Send CouchGuard clear photos of the existing assembly and chair label for help checking suitability before ordering.

Installation guidance

Disconnect mains and backup power before work. Safely support the chair mechanism and keep hands clear of moving linkages and pinch points. Confirm correct alignment and fit before operation. Use an experienced repairer if safe installation or compatibility is uncertain.

Frequently asked questions

What does the complete kit include?

Metal top and bottom knuckle joints, clevis drive-toggle replacement components and six bushes/bearings.

Are both knuckle joints metal?

Yes. Both the top and bottom knuckle joints are metal.

Are the replacement joints stronger than the originals?

Yes. The metal top and bottom knuckle joints are stronger than the original joints.

How many bushes or bearings are supplied?

Six: two small and four large.

Does it replace the older clevis design?

Yes, where the older motor-mounted clevis assembly matches this replacement kit.

Will it fit every La-Z-Boy chair?

No. Match the original assembly, joint dimensions, bush sizes and motor connection before ordering.

Does complete kit mean a complete recliner mechanism?

No. It is the complete clevis drive replacement kit, not a complete chair mechanism or electrical motor kit.

How can I check compatibility?

Send CouchGuard clear photos of the original clevis assembly, joints, motor connection and chair label before ordering.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout
