Buy eMoMo 3ML423-265T Actuator Motor

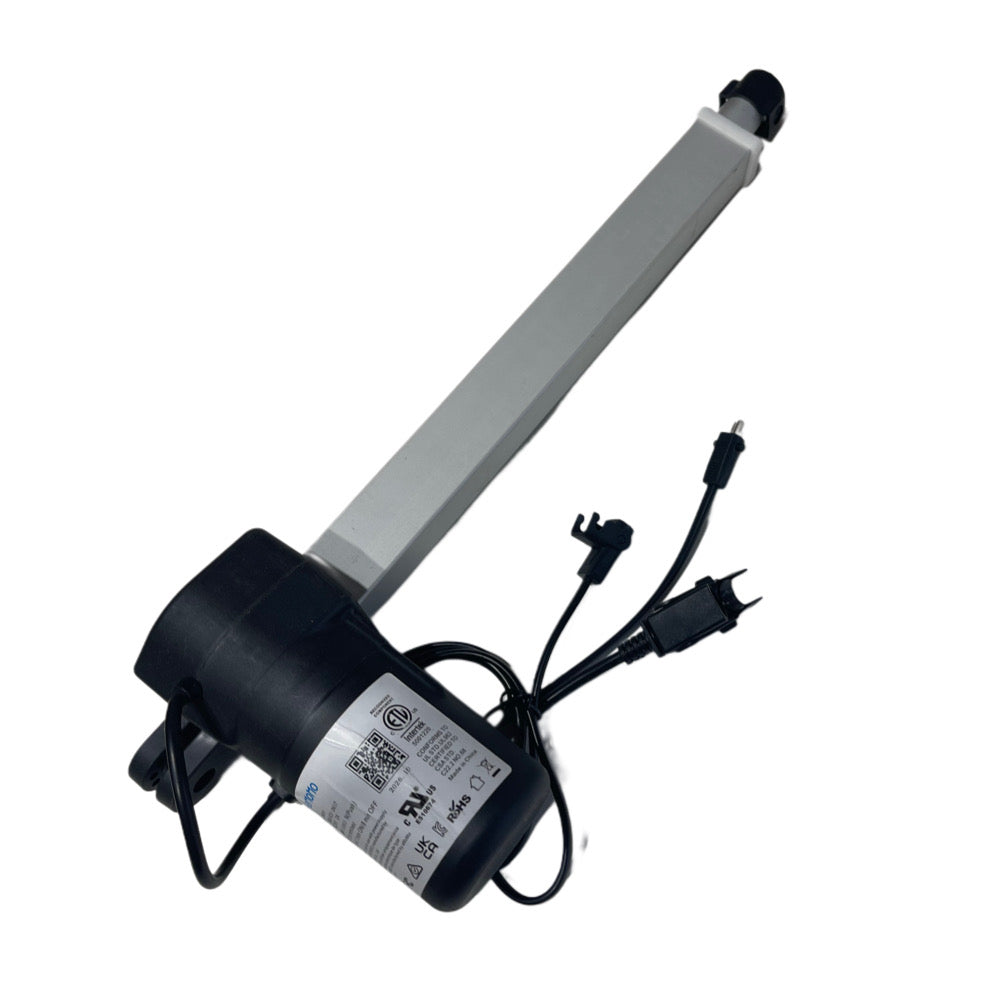

eMoMo 3ML423-265T replacement actuator motor

The genuine eMoMo 3ML423-265T is a linear actuator motor from the 3MTD range. It provides powered linear movement in a matching mechanism, with a rated speed of 25mm/s and a maximum push force of 1000N.

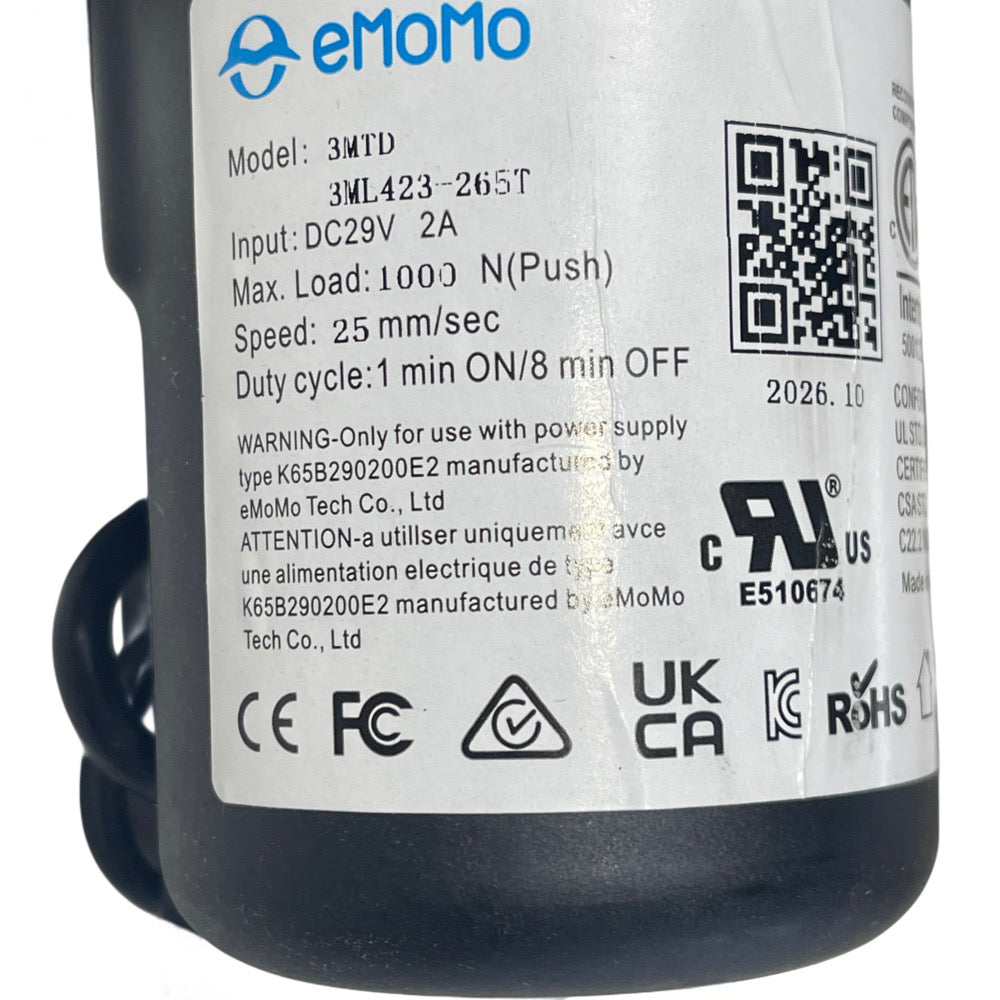

Specifications

• Brand: eMoMo
• Range: 3MTD
• Model / MPN: 3ML423-265T
• Input: 29V DC, 2A
• Maximum push force: 1000N
• Rated speed: 25mm/s
• Duty cycle: 1 minute on / 8 minutes off

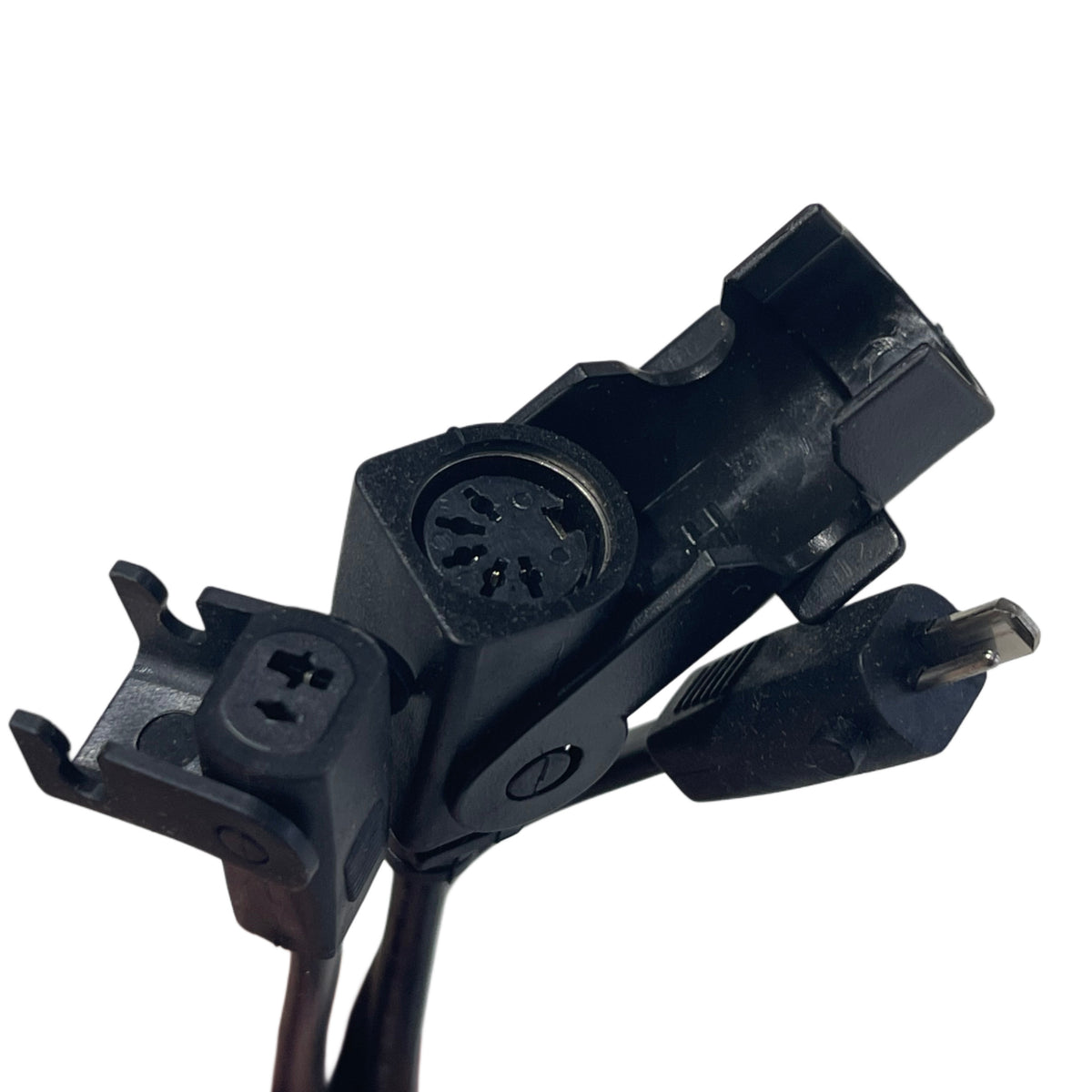

Electrical connections

• Two-pin male plug with one flat pin and one round pin
• Two-pin female socket with retaining clips
• Round five-pin female socket with a retaining housing

Match all three connectors with your original installation, including pin layout, keying, polarity and wiring functions. Similar-looking plugs do not guarantee electrical compatibility. Do not force connectors or change wiring to make an unmatched actuator fit.

Compatibility checks

Match the exact 3ML423-265T reference with your original actuator. Check the retracted mounting length, stroke, fixing points, connector shape, wiring and control-system requirements. Similar-looking housings and matching voltage alone do not establish compatibility.

Contact CouchGuard with clear photos of your original actuator label, electrical connectors and mounting points if you need help identifying the correct replacement. Diagnose the fault before ordering; switches, wiring and control-system faults can also prevent movement.

Frequently asked questions

What model is this motor?

This is the eMoMo 3ML423-265T, part of the 3MTD actuator range.

What connections does it have?

It has a two-pin male plug with one flat and one round pin, a two-pin female socket and a round five-pin female socket. Match the connector layout, keying and wiring functions with your existing installation before connecting.

What voltage and current does it use?

Its input rating is 29V DC, 2A. Match the existing system requirements before connecting it.

What force and speed is it rated for?

Maximum push force is 1000N and rated speed is 25mm/s. The force rating does not state the furniture’s occupant weight capacity.

Can it run continuously?

No. Operate for up to 1 minute, then allow 8 minutes off as specified by the duty cycle.

Will it replace every eMoMo actuator?

No. Match the exact model, mounting dimensions, travel, wiring and connector. The 3MTD range name alone is not sufficient.

How do I check the travel and mounting?

Compare the original actuator’s stroke, retracted mounting length and fixing points. Do not assume that numbers in the model code specify these measurements.

How should the actuator be replaced safely?

Disconnect electricity and any battery backup before working on the mechanism. Support moving sections securely and keep cables away from pinch points. Use a qualified furniture repair technician if unsure about diagnosis or installation.
