Buy eMoMo 3MR135-222EA Recliner Actuator

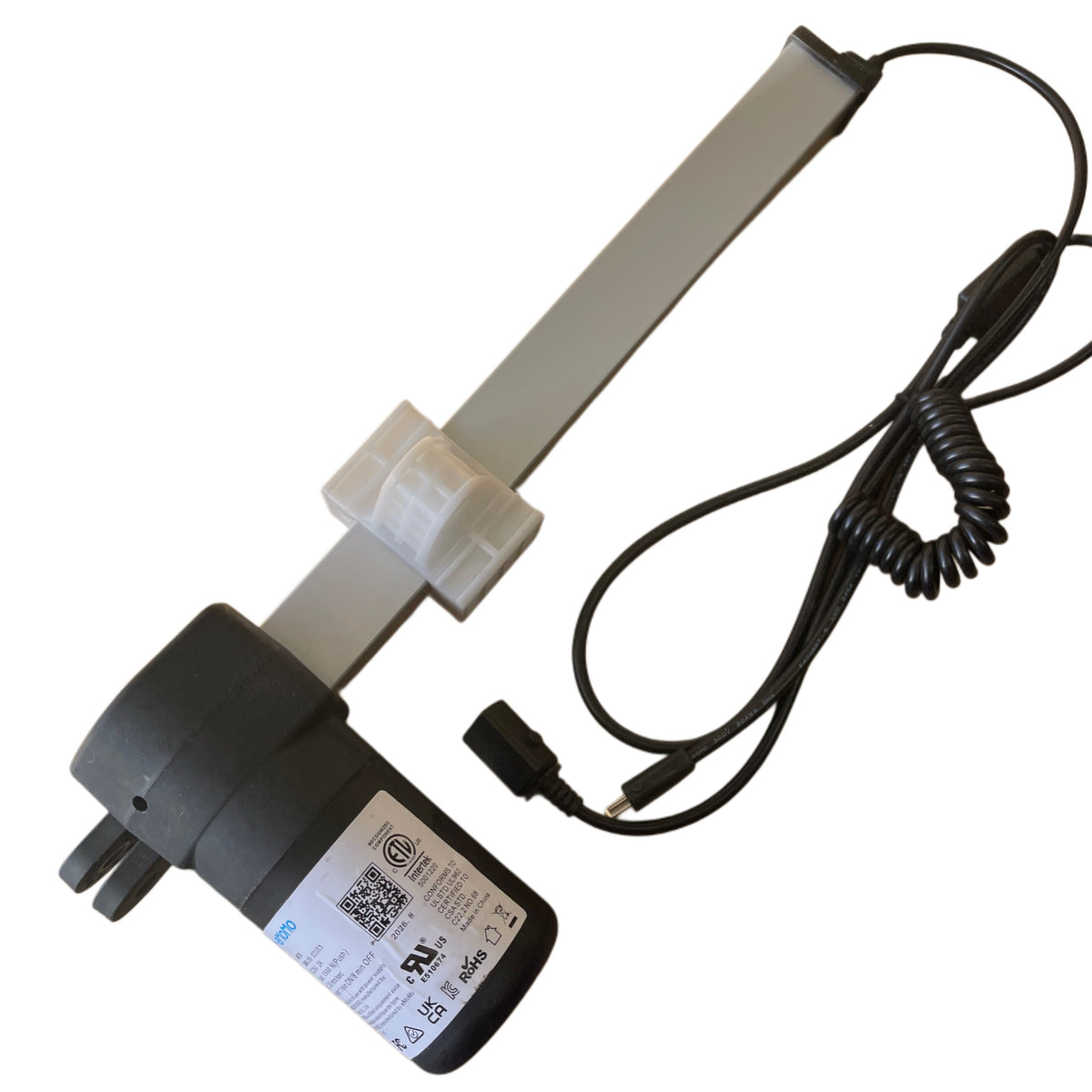

eMoMo 3MR135-222EA Recliner Actuator

Replace a faulty electric recliner motor with the genuine eMoMo 3MR135-222EA linear actuator. The manufacturer sticker identifies it as model family 3MTR and specifies its electrical and operating limits.

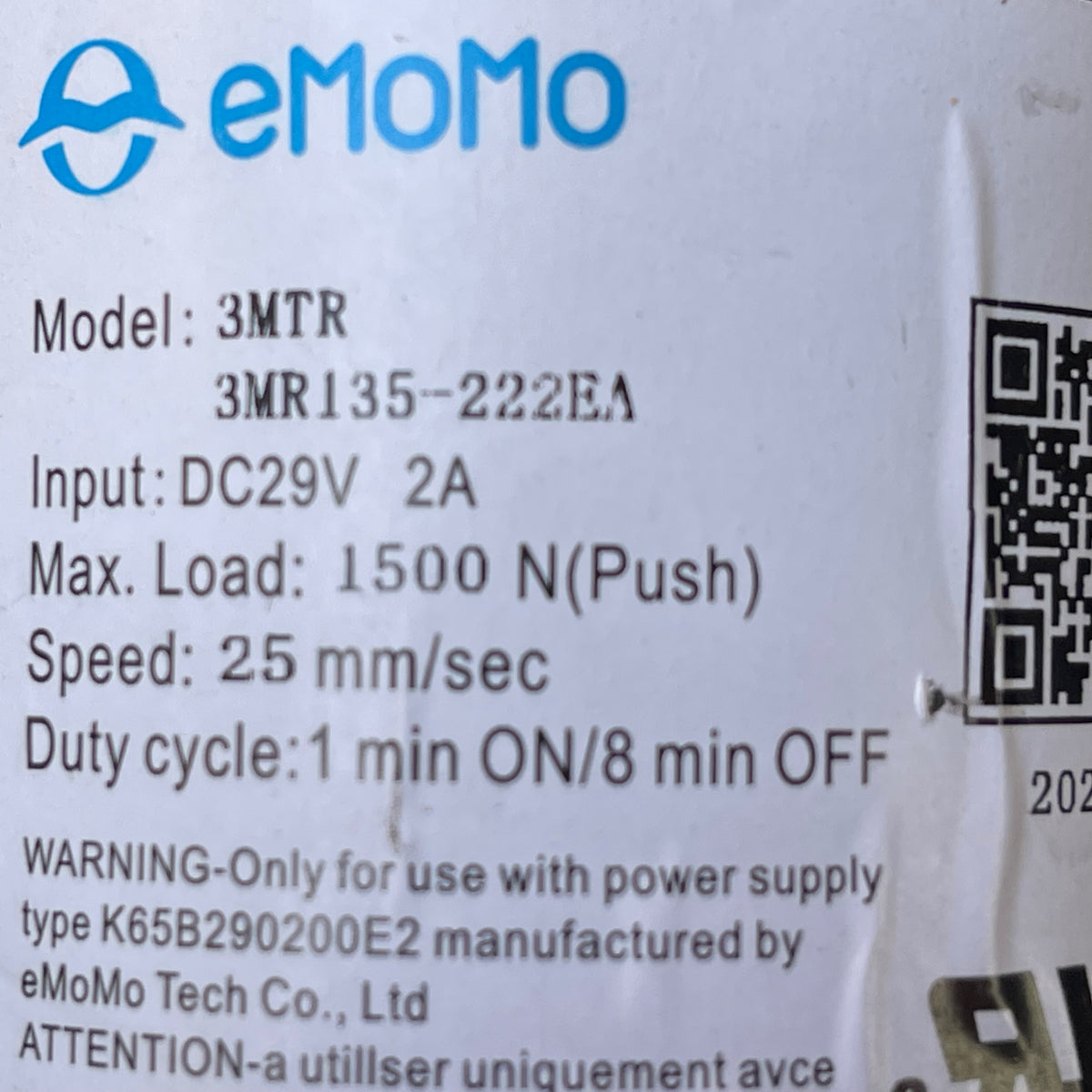

Sticker specifications

• Brand: eMoMo
• Model family: 3MTR
• Model: 3MR135-222EA
• Input: DC 29V, 2A
• Maximum load: 1500 N push
• Speed: 25 mm/sec
• Duty cycle: 1 minute on / 8 minutes off
• Specified power supply: K65B290200E2
• Manufacturer: eMoMo Tech Co., Ltd

Important: Use only with the power-supply type stated on the sticker. The 3MR135-222EA and 3MRE135-222EA are different actuator models, so check the original label carefully.

Compatibility

Confirm the original actuator label shows 3MTR / 3MR135-222EA. Compare the DC 29V 2A rating, 1500 N push load, 25 mm/sec speed, mounting points, retracted and extended lengths, stroke, cable layout and plugs. Do not order by appearance alone.

Frequently asked questions

Is this the same as 3MRE135-222EA?
No. The 3MR135-222EA and 3MRE135-222EA are different models.

What power supply is specified?
The sticker states power-supply type K65B290200E2 and an input of DC 29V 2A.

What is the actuator rating?
The sticker specifies a maximum 1500 N push load, speed of 25 mm/sec and duty cycle of one minute on followed by eight minutes off.

How do I confirm compatibility?
Match the complete 3MTR / 3MR135-222EA sticker details, mounting, stroke, cable layout and plugs to the original actuator.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Electric Parts

Price Match Guarantee

Found the same part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands.

Don’t compare the advertised part price alone. A part that looks cheaper can cost more once delivery is added at checkout. We compare the complete delivered price: the competitor’s part price plus delivery against CouchGuard’s part price plus delivery.

To qualify, the competitor’s item must be the identical part, currently in stock and available to purchase from an Australian supplier.

Please have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244 to discuss it, or contact us by email.

Before You Buy An Actuator or Switch

• Check The Power Supply Green Light Is ON
• Check the leads for damage
• Check the switch isn’t faulty
• Check the actuator in another recliner

All these checks can be done on another recliner and may save you hundreds of dollars doing so.

Product Warranties

We offer the following warranties:

• 24-month warranty on all our compatible actuators.
• 24-month warranty on all genuine Okin and TiMOTION actuators.
• 12-month warranty on all genuine Kaidi, eMoMo and Mulin actuators.
• 24-month manufacturer warranty on 6000mAh and 3950mAh batteries purchased on or after 11 September 2026.
• 12-month manufacturer warranty on the 2550mAh battery pack.

All of the actuators supplied are rigorously tested by the manufacture prior to leaving their facility. If a defect becomes apparent within 6 (six) months after taking delivery of the actuator, it will be refutably assumed that the defect already existed in the actuator, unless such an assumption with the nature of either the object of the delivery or the defect.
