Buy Genuine eMoMo HX90AU Multi-Actuator Recliner Switch

Genuine eMoMo HX90AU Multi-Actuator Recliner Switch

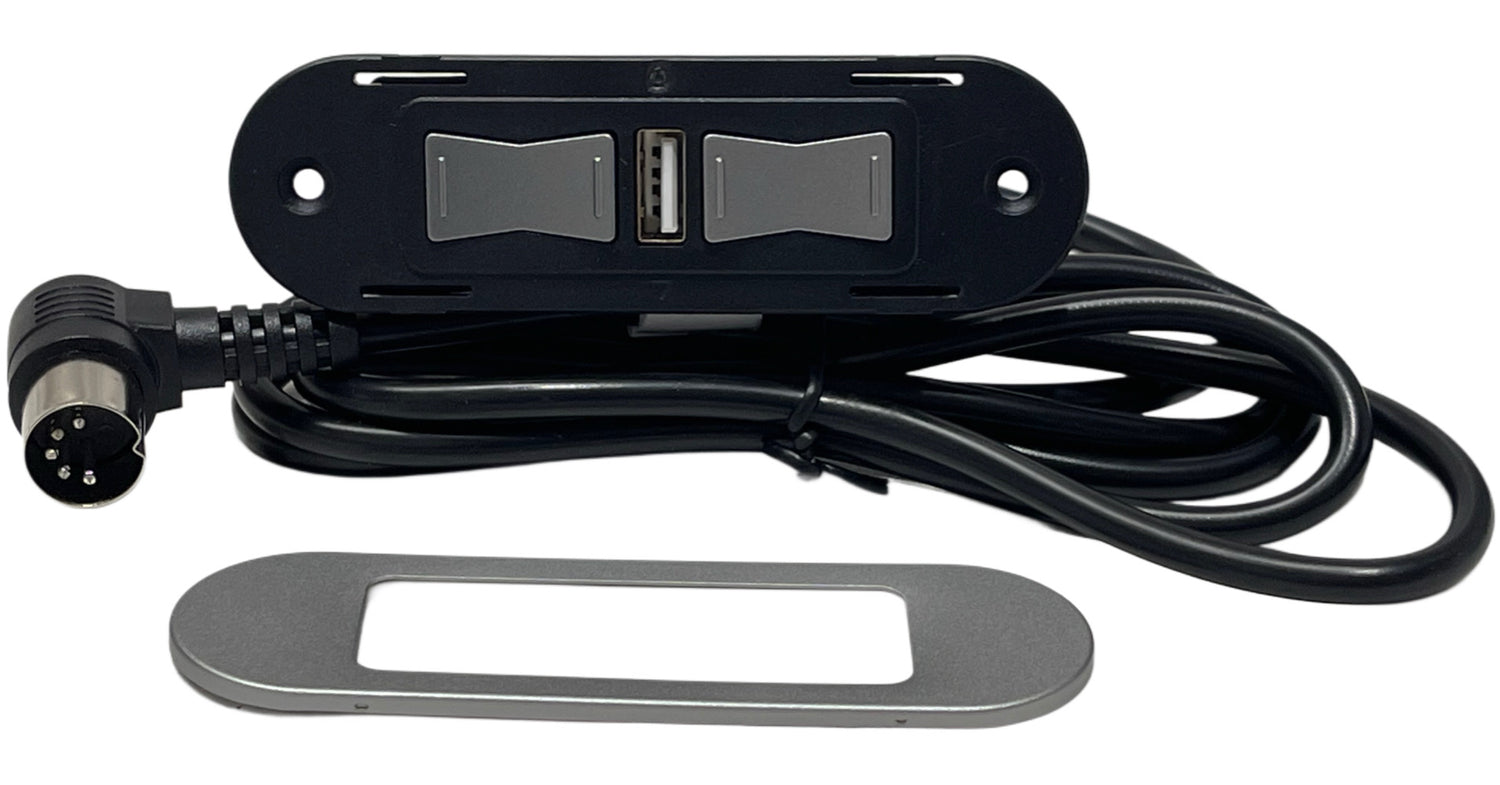

Replace a matching electric recliner control with this genuine eMoMo HX90AU switch. It controls multiple actuators, generally seating and headrest functions, and uses a round 90-degree 5-pin plug.

The similar HX90AFU switch is a different model. Match the complete HX90AU model, button layout, faceplate, mounting and angled plug against the original before ordering.

Product Details

• Brand: eMoMo
• Model / MPN: HX90AU
• Part type: multi-actuator recliner switch
• Controls: generally seating and headrest functions

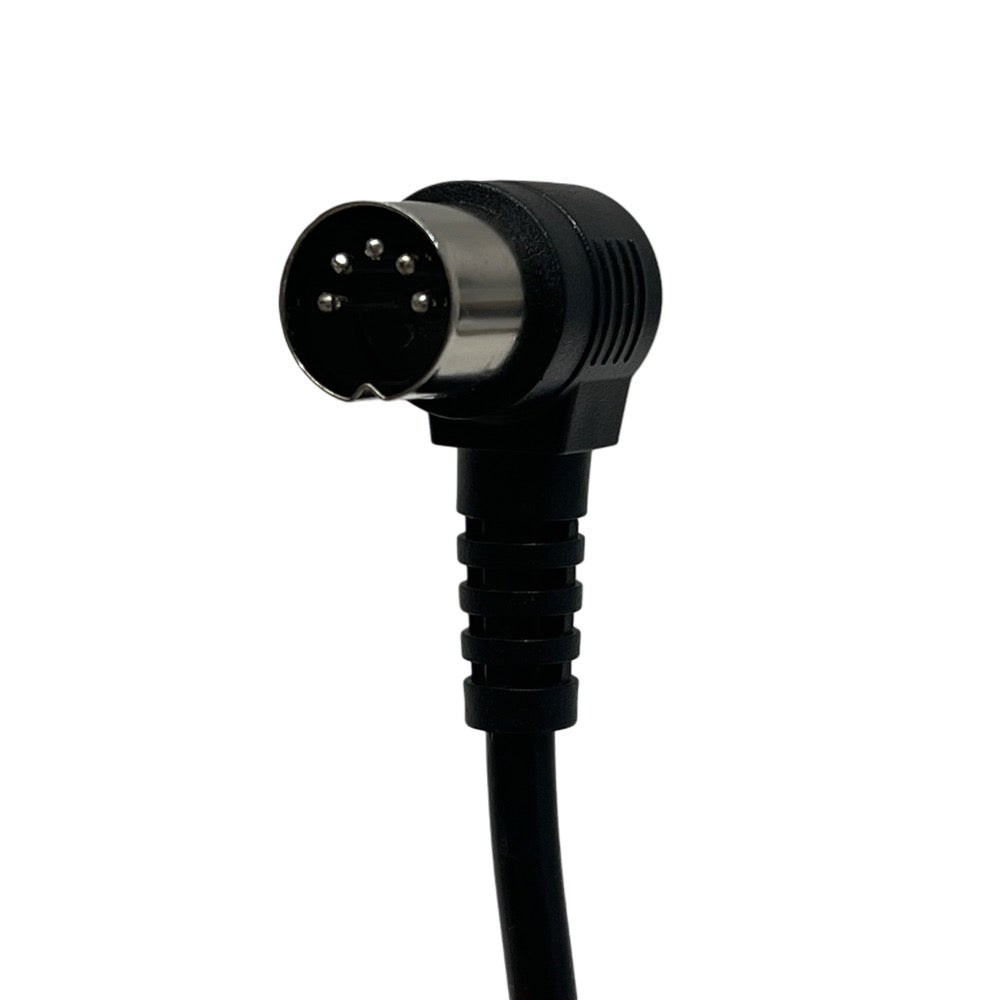

• Connection: round 90-degree 5-pin plug

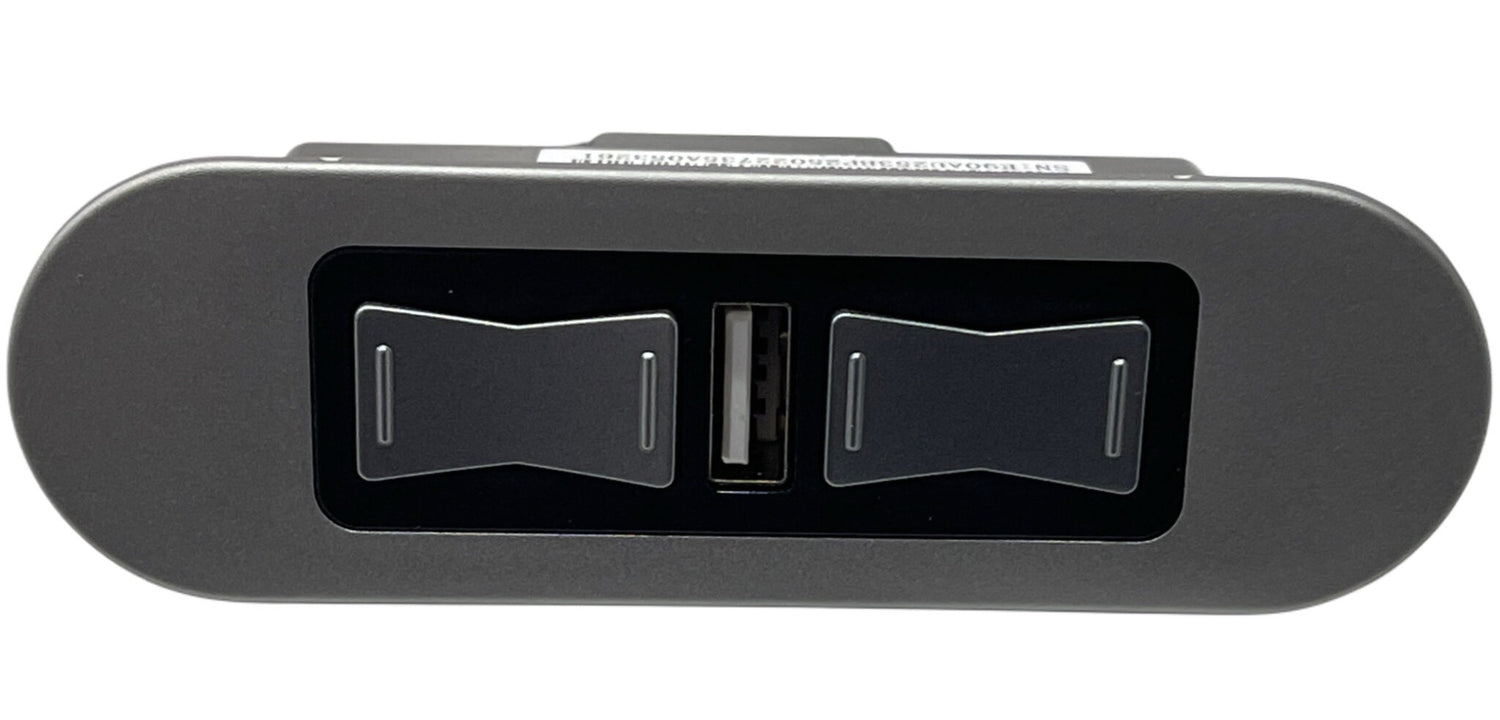

• Faceplate removal: unclip the faceplate and remove two Phillips-head screws
• Comparison model: HX90AFU is different and must be matched separately

Compatibility Checklist

1. Disconnect the recliner from mains power.

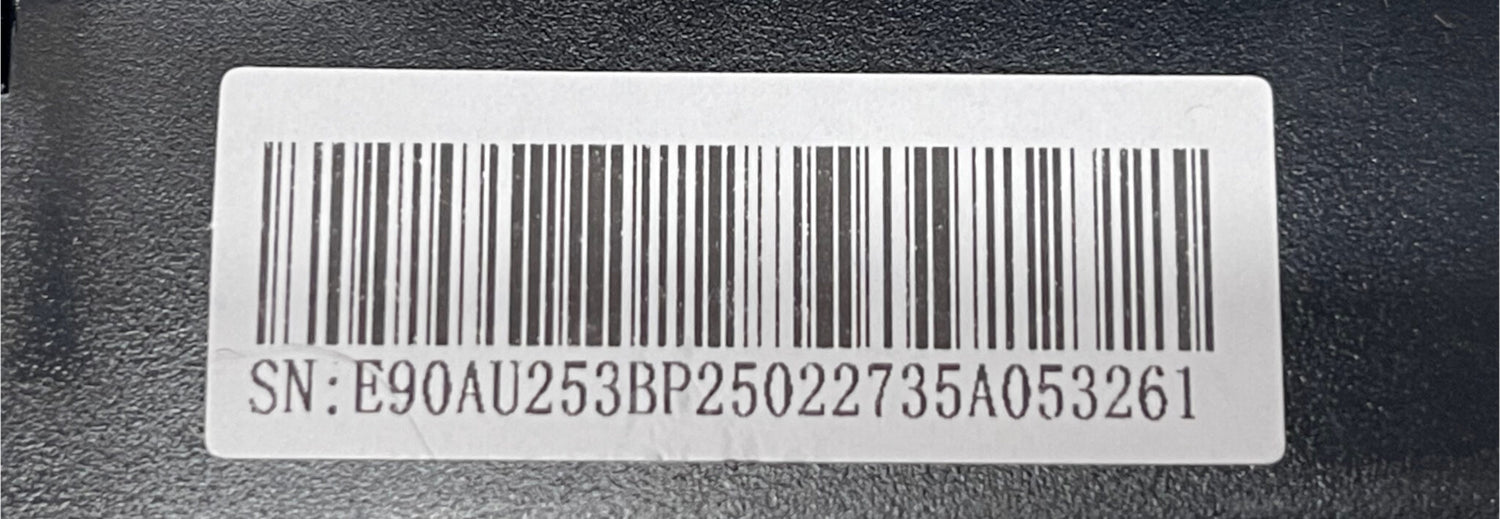

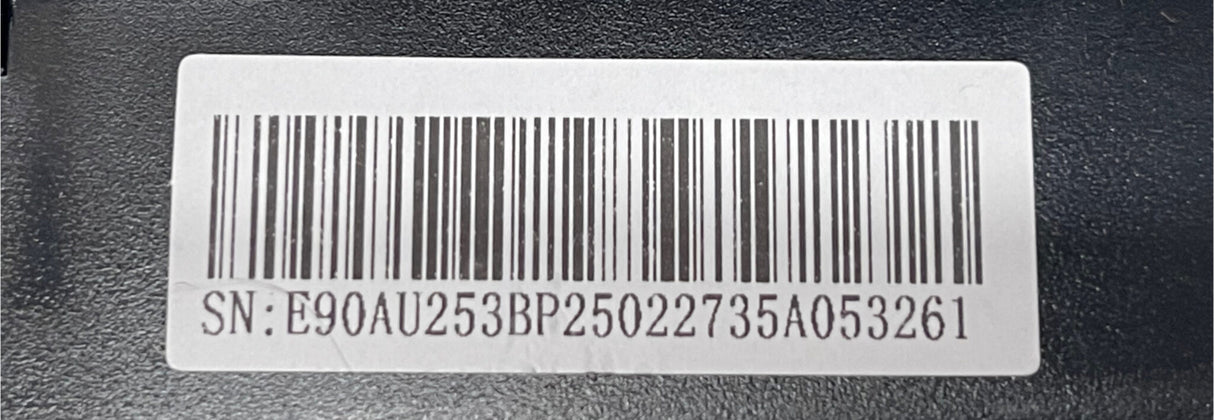

2. Confirm the original switch is labelled HX90AU.
3. Compare the complete button layout, faceplate and mounting.
4. Match the round 90-degree 5-pin plug, including its shape, angle and keying.
5. If anything differs, send CouchGuard clear photos of the original label, switch, faceplate, cable, plug and socket before ordering.

Installation Guidance

Disconnect mains power before work begins. Unclip the faceplate, remove the two Phillips-head screws, disconnect the matching plug and fit the replacement. Route the cable away from moving mechanisms and pinch points. Do not force a similar-looking connector, and use a qualified technician if the fault has not been diagnosed.

Frequently Asked Questions

Is this a genuine eMoMo switch?

Yes. This is a genuine eMoMo replacement switch identified by model HX90AU.

What does HX90AU control?

The saved specifications identify it for multiple actuators, generally seating and headrest functions.

What plug does it use?

It uses a round 90-degree 5-pin plug. It is not the straight plug described in the previous SEO text.

Is HX90AU the same as HX90AFU?

No. HX90AU and HX90AFU are different models. Match the exact label, layout, mounting and connection.

Can I choose a replacement by pin count alone?

No. Similar 5-pin connectors can use different shapes, angles, keying or wiring.

How is the faceplate removed?

Disconnect mains power, unclip the faceplate and remove the two Phillips-head screws.

Is professional fitting required?

A matching plug-connected switch may be straightforward to replace, but use a qualified technician if the fault is not diagnosed or any connection differs.

What photos should I send for a compatibility check?

Send clear photos of the model label, complete switch, button layout, faceplate, mounting, cable, angled 5-pin plug and chair socket.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout
