Genuine eMoMo HX90EU Dual 5-Pin USB Recliner Switch

Replace a matching powered-recliner control with this genuine eMoMo HX90EU switch. It controls multiple actuators for footrest and headrest movement and can be mounted on either the left-hand or right-hand side of a compatible chair.

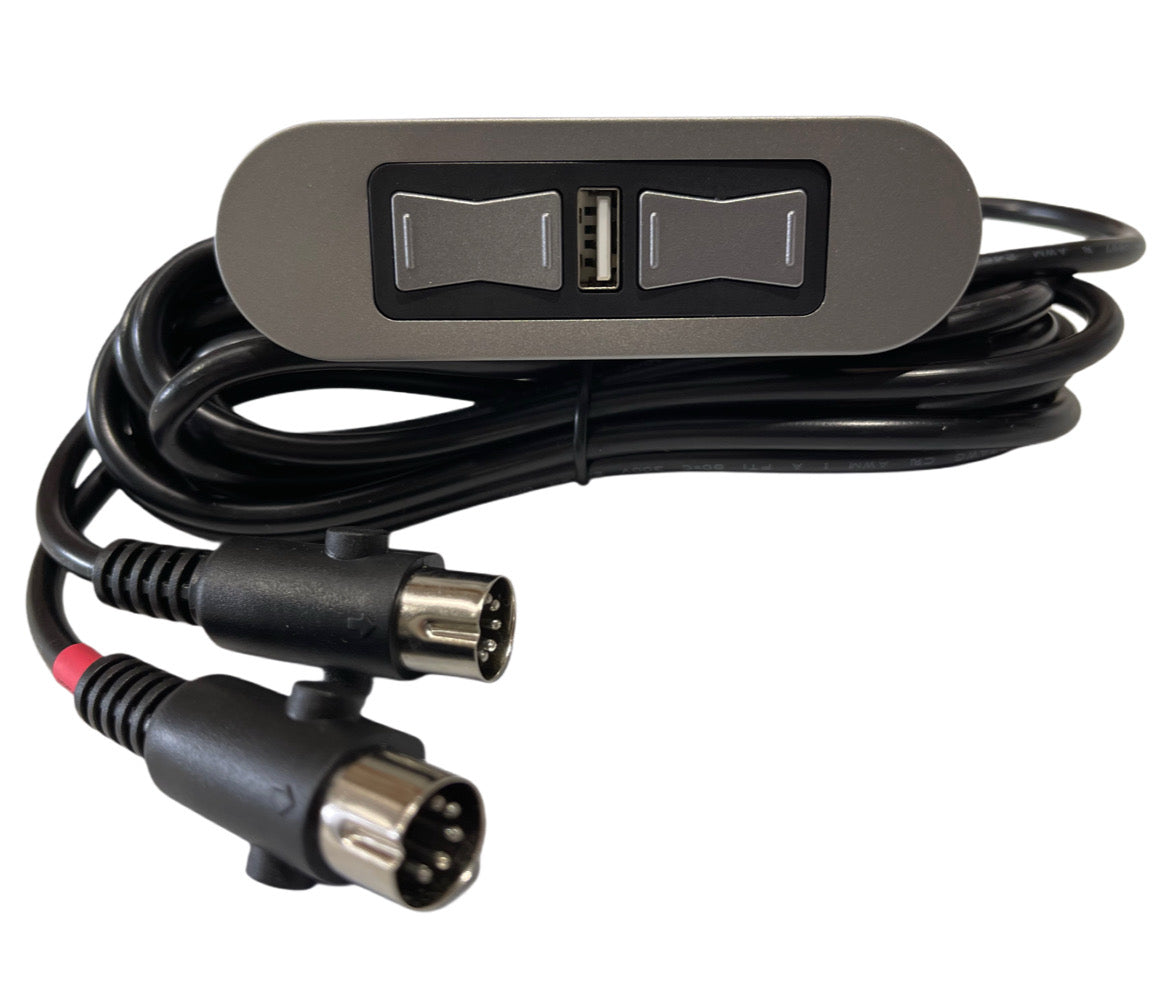

The HX90EU includes built-in USB and two round 5-pin straight plugs, one connecting to the footrest motor and the other to the headrest motor. Match the exact model, control layout, mounting dimensions and both complete connections before ordering.

Product Details

• Brand: eMoMo
• Model / MPN: HX90EU
• Mounting: left-hand or right-hand side on a matching chair
• Application: multiple-actuator powered-recliner control
• Functions: footrest and headrest motor control
• Charging: built-in USB
• Connections: two round 5-pin straight plugs
• Mounting: retained by two Phillips-head screws behind the faceplate

Compatibility Checklist

1. Disconnect the recliner from mains power.

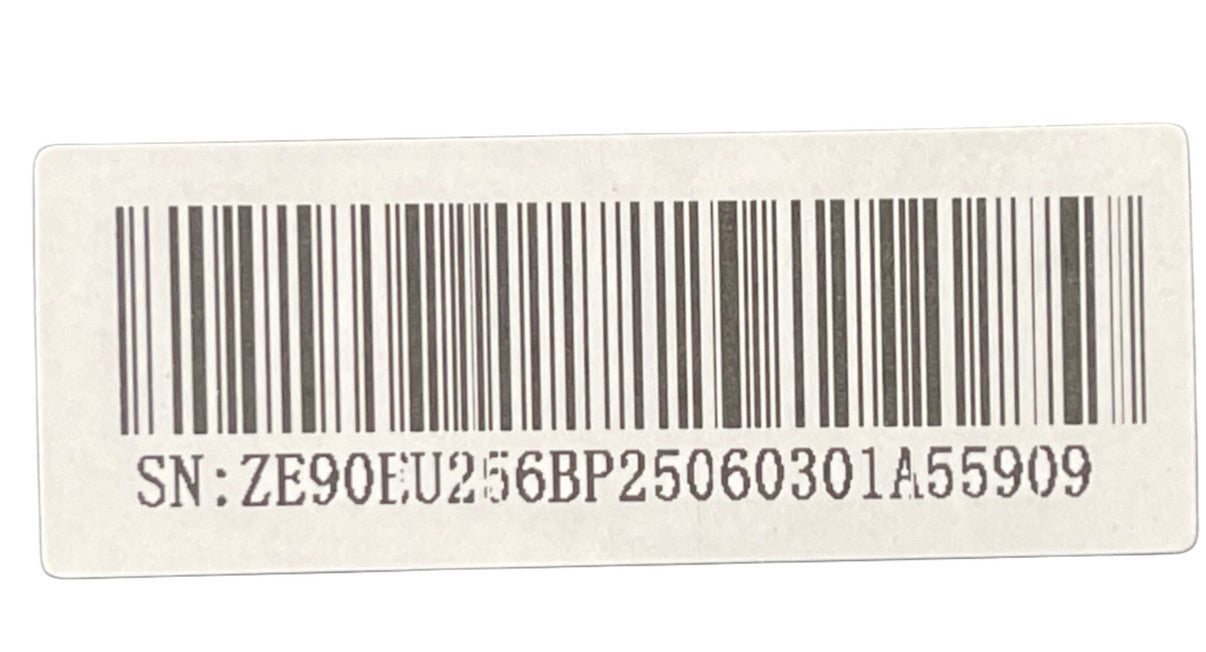

2. Confirm the original switch is marked HX90EU.

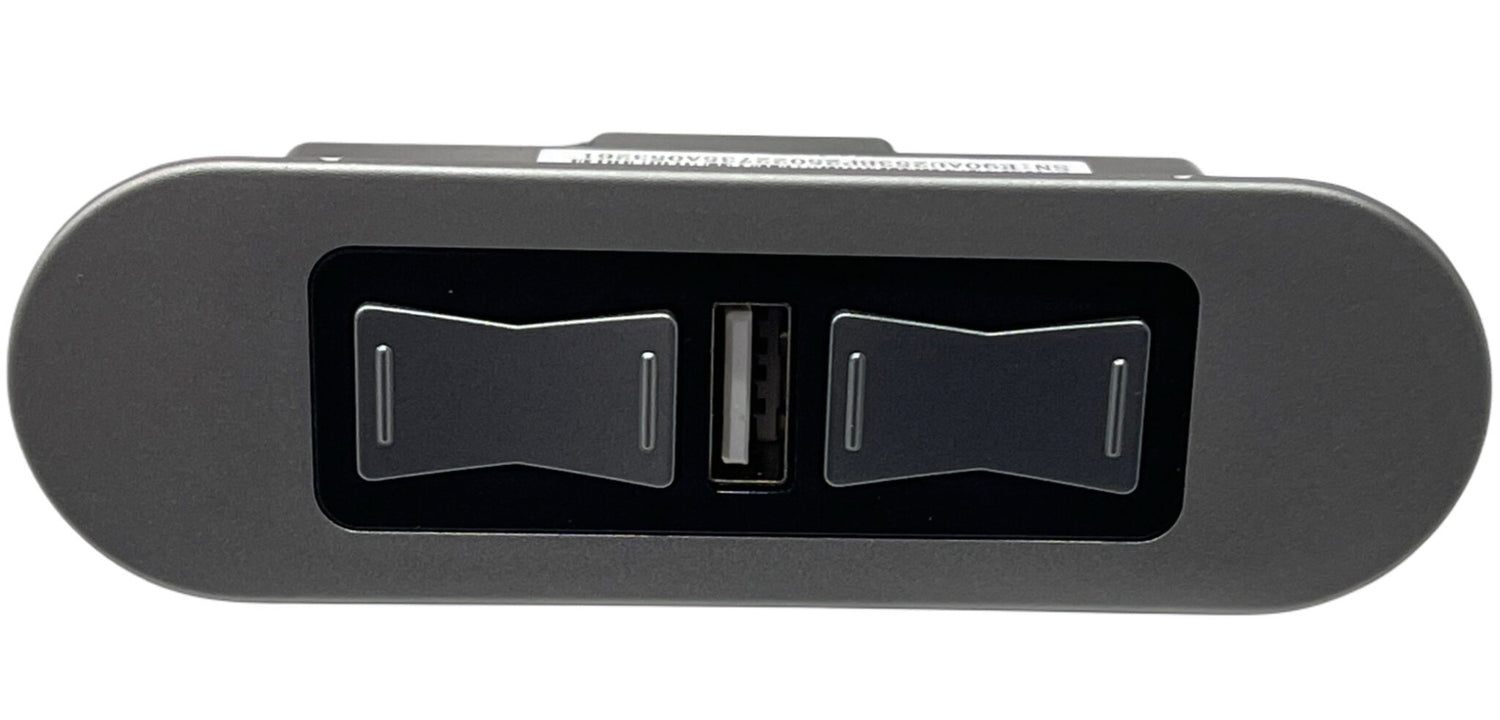

3. Compare the complete button layout and USB position.
4. Check the faceplate shape, mounting dimensions and two-screw fixing arrangement.

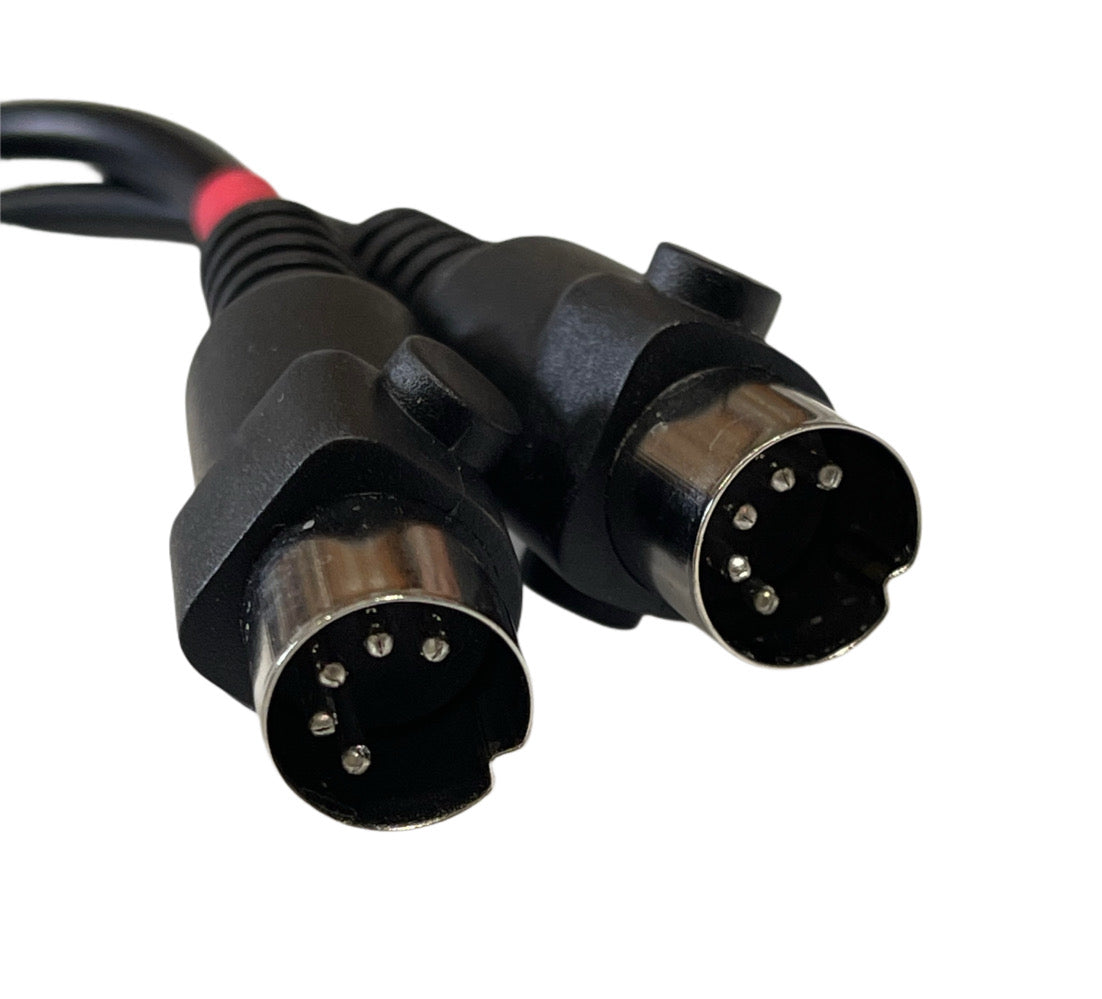

5. Confirm there are two round 5-pin straight plugs.
6. Match each plug's keyway, pin arrangement, wiring and connection to the footrest and headrest motors.
7. If anything differs, send CouchGuard clear photos of the switch, labels, faceplate, controls, both plugs, pins, motors and control box before ordering.

Installation Guidance

Disconnect mains power first. Unclip the faceplate carefully, remove the two Phillips-head screws and label both original connections before unplugging them. Align each keyed connector without forcing it and route the cables away from moving mechanisms and pinch points. Test each function with the chair clear of people and obstructions, or use a qualified technician if the fault or wiring has not been diagnosed.

Frequently Asked Questions

Is this a genuine eMoMo HX90EU switch?

Yes. This is a genuine eMoMo powered-recliner switch identified by model HX90EU.

Can it fit the left or right side?

The saved product details state that HX90EU can be used on either side of a matching chair. The exact model, layout and mounting must still match.

What functions does it control?

It controls multiple actuators used for footrest and headrest movement.

Does it have USB charging?

Yes. The switch includes a built-in USB charging port.

How many plugs does it have?

It has two round 5-pin straight plugs, used for the footrest and headrest motor connections.

Will it replace an HX90AU switch?

Not on that name alone. This listing is model HX90EU. Match the exact model, controls, mounting and both connections.

How is the switch removed?

After disconnecting mains power, carefully unclip the faceplate and remove the two Phillips-head screws.

What photos should I send for a compatibility check?

Send clear photos of the switch front and rear, model label, faceplate, controls, both complete plugs and pins, motor connections and control-box label and sockets.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.
