Buy Genuine eMoMo P20DAN(U) Right-Hand USB Recliner Switch

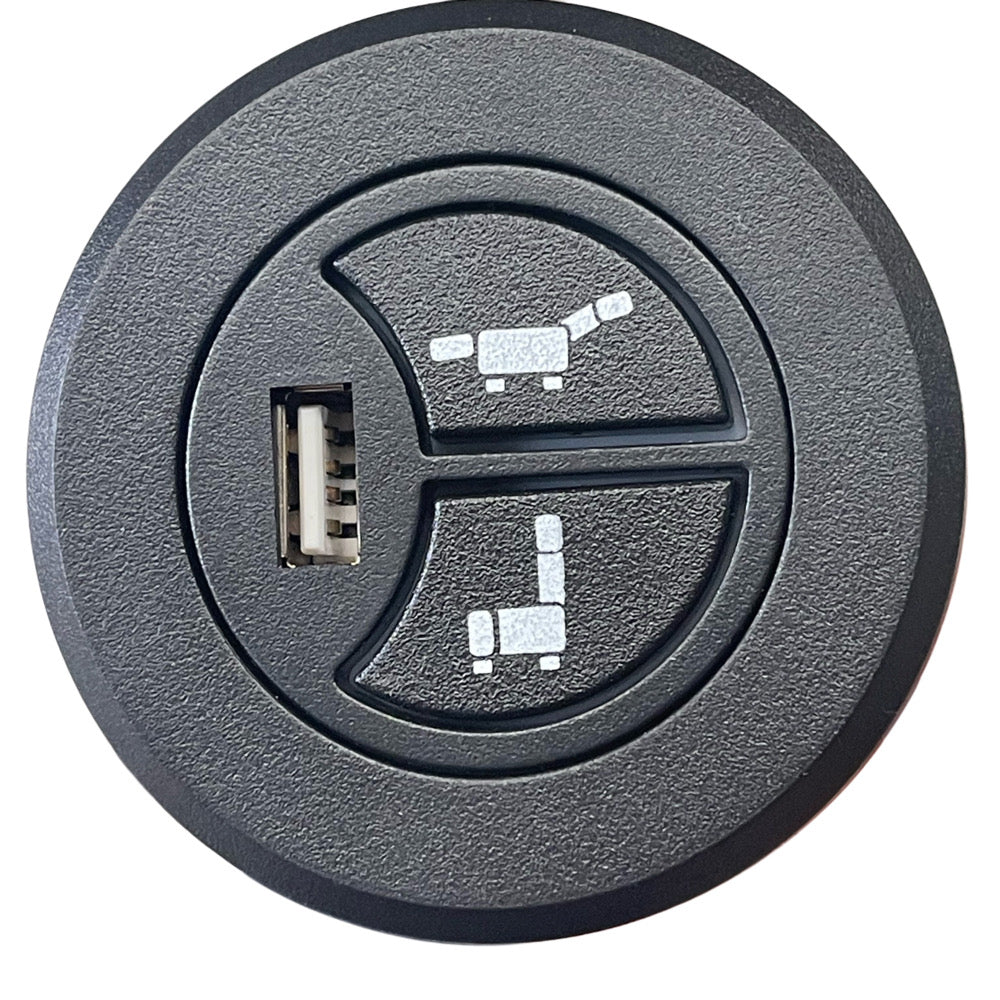

Genuine eMoMo P20DAN(U) Right-Hand USB Recliner Switch

Replace a matching electric recliner control with this genuine eMoMo Remo P20DAN(U) switch. It controls recline and home functions, has a built-in USB port and uses a straight 5-pin plug.

The P20DAN(U) is the right-hand-side switch when sitting in the chair. The similar P20DA(U) is the left-hand-side version. Match the complete model, sitting position, black switch and cover plate, button layout, mounting and plug before ordering.

Product Details

• Brand: eMoMo
• Model / MPN: P20DAN(U)

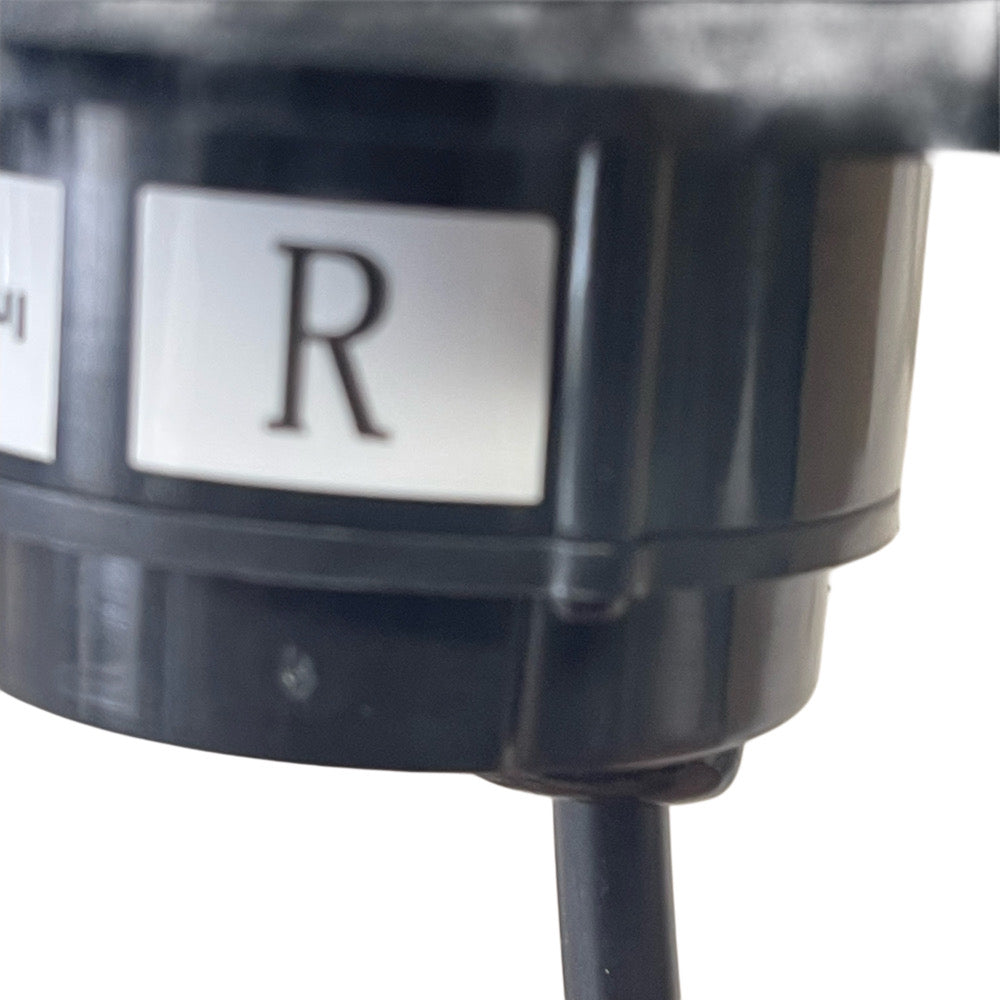

• Position: right-hand side when sitting
• Functions: recline and home
• Feature: built-in USB port
• Colour: black switch with black face and cover plate

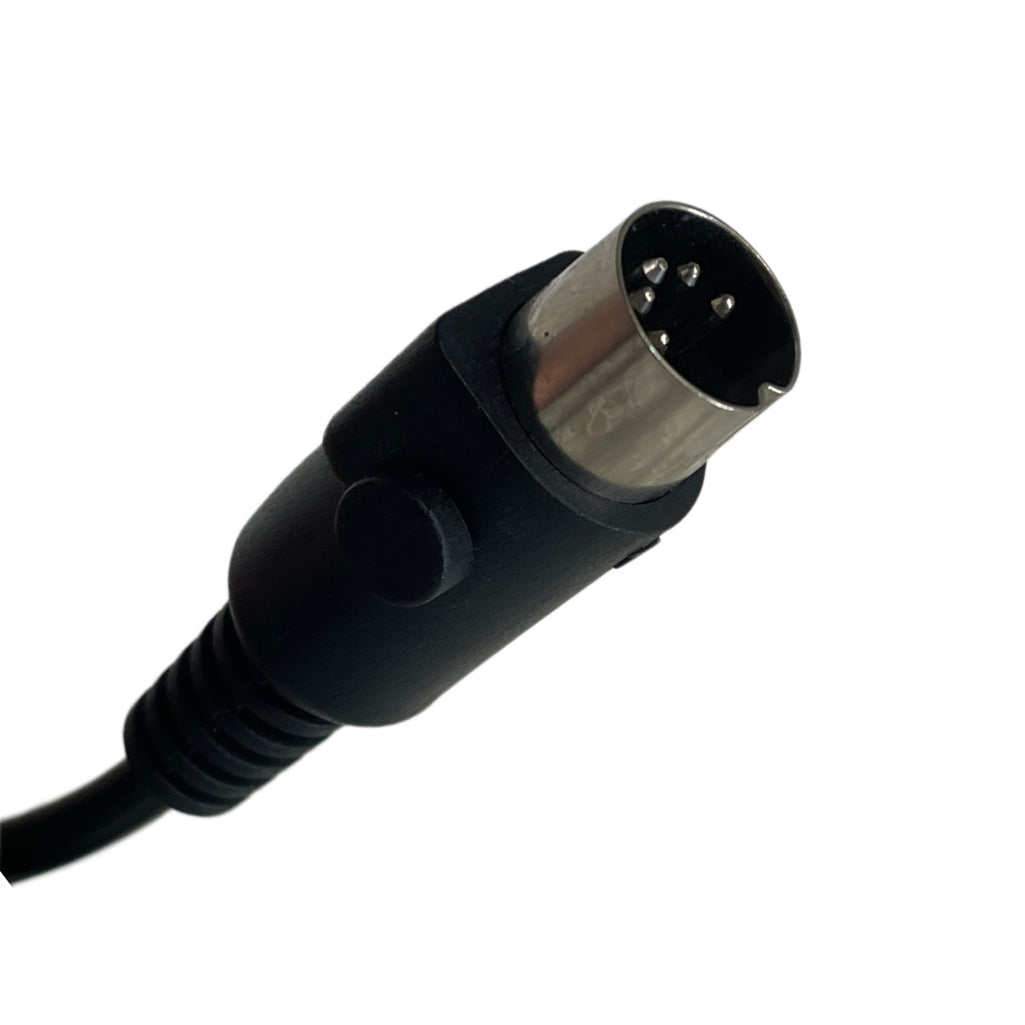

• Connection: straight 5-pin plug
• Face plate removal: unclip or turn, then remove two Phillips-head screws

Compatibility Checklist

1. Disconnect the recliner from mains power.

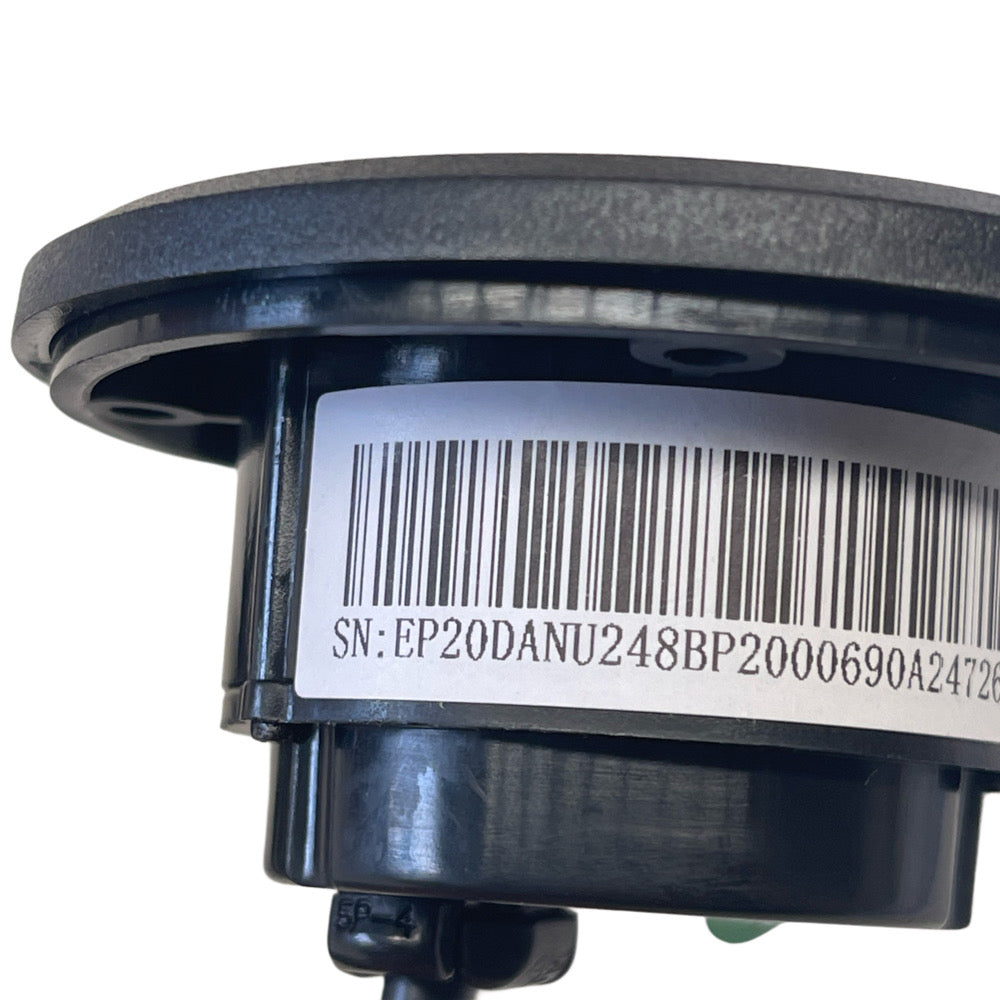

2. Confirm the original label says P20DAN(U).
3. Confirm the switch mounts on the right-hand side when sitting.
4. Compare the black face and cover plate, button layout, mounting dimensions and straight 5-pin plug.
5. If anything differs, send CouchGuard clear photos of the original label, switch, face plate, wiring and plug before ordering.

Installation Guidance

This switch is intended as a plug-connected replacement for a matching P20DAN(U) system. Disconnect mains power before work begins. The saved fitting guidance says to unclip or turn the face plate and remove the two Phillips-head screws. Route the cable away from moving mechanisms and pinch points, and use a qualified technician if the fault is not diagnosed or any detail differs.

Frequently Asked Questions

Is this a genuine eMoMo switch?

Yes. This is a genuine eMoMo Remo replacement switch identified by model P20DAN(U).

Which side of the chair does it fit?

It is the right-hand-side switch when you are sitting in the chair.

What is the left-hand version?

The eMoMo P20DA(U) is the corresponding left-hand-side switch when sitting.

Does it include USB?

Yes. The P20DAN(U) has a built-in USB port.

What functions does it control?

The saved product specifications state recline and home controls.

What plug does it use?

It uses a straight 5-pin plug. Match the complete plug and wiring against the original rather than relying on pin count alone.

How is the face plate removed?

The saved guidance says to unclip or turn the face plate, then remove the two Phillips-head screws. Disconnect mains power first.

What photos should I send for a compatibility check?

Send clear photos of the original model label, full switch, button layout, face and cover plate, mounting, cable, plug and socket.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.
