Buy Genuine eMoMo Mini iTable2 Wireless Charging Cup Holder

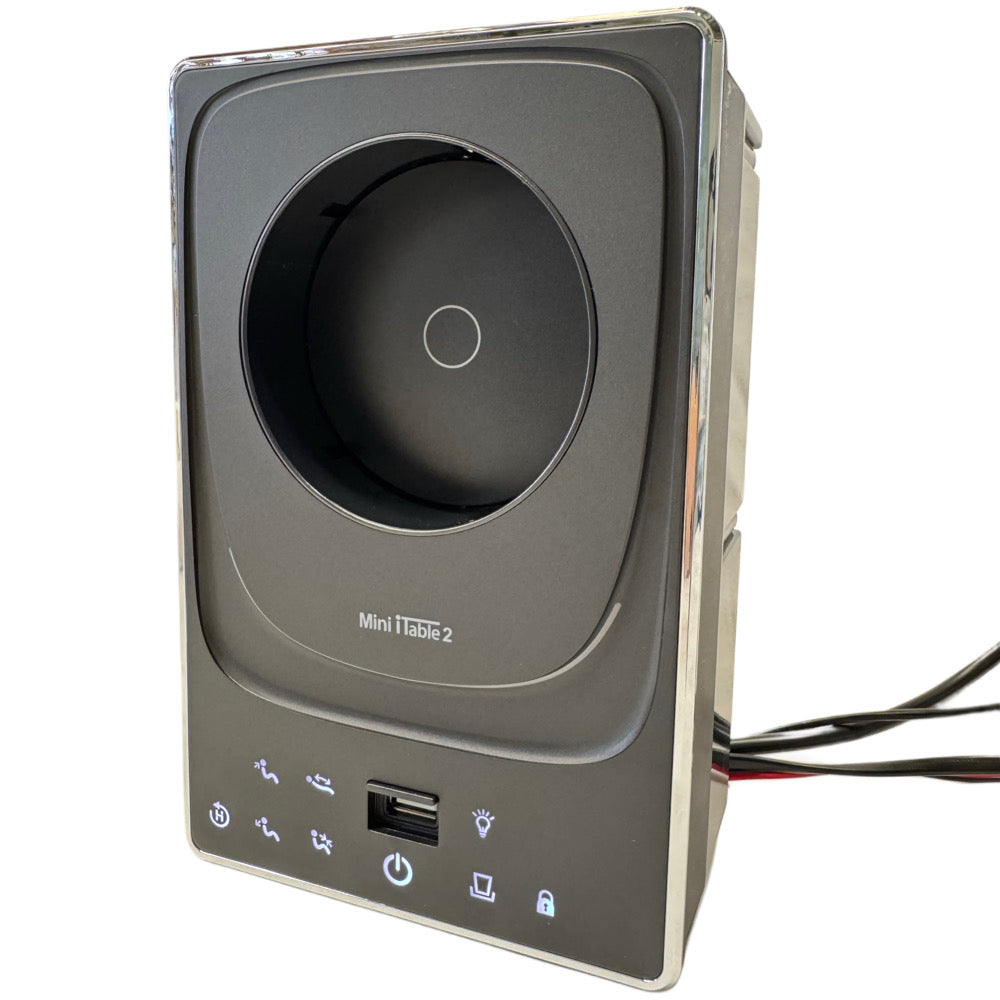

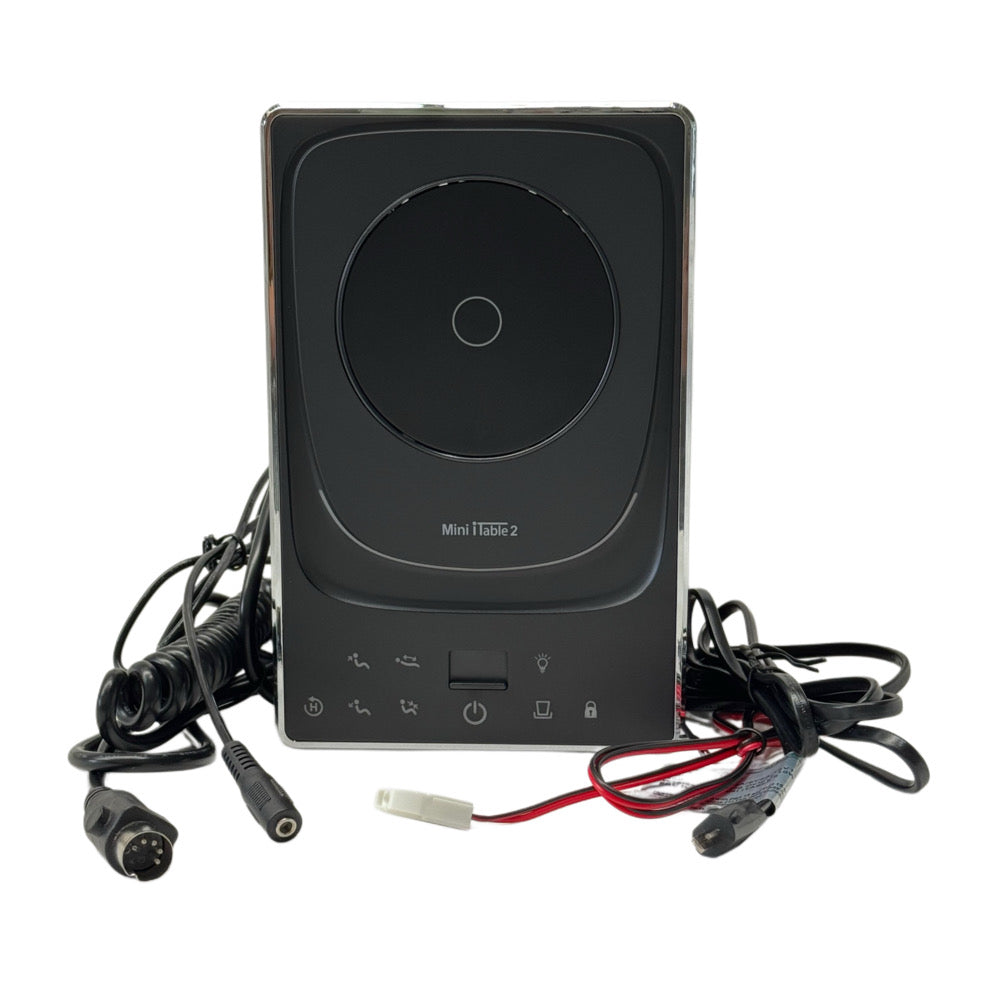

Genuine eMoMo Mini iTable2 Wireless Charging Cup Holder

Upgrade or replace a matching powered-recliner console with the genuine eMoMo Mini iTable2. This integrated cup holder combines wireless charging, USB charging and multiple-actuator chair controls in one compact top-mounted unit.

Touching the control lowers the centre wireless-charging pad into the unit, creating eMoMo’s dynamic cup-holder function. Because powered-recliner electronics can look similar while using different controls and wiring, match the complete original unit and chair system before ordering.

Product Details

• Brand: eMoMo
• Model / MPN: Mini iTable2
• Product: powered-recliner cup holder and control unit
• Charging: wireless charging pad and USB charging port
• Dynamic function: centre charging pad lowers into the unit when activated
• Controls: integrated multiple-actuator controls
• Design: compact, sturdy top-mounted unit

Compatibility Checklist

1. Disconnect the recliner from mains power.
2. Confirm the original unit is identified as Mini iTable2.
3. Compare the complete top layout, cup-holder shape, charging pad, USB-port position and control-button arrangement.
4. Check the mounting dimensions, underside profile and fixing points against the original.
5. Compare every cable, plug, keyway, pin arrangement and control-box socket.
6. Confirm the required chair movements match the integrated actuator controls.
7. If anything differs, send CouchGuard clear photos of the unit, labels, top and underside, wiring, plugs, pins and control-box sockets before ordering.

Installation Guidance

Disconnect mains power first. Photograph and label all original connections before removal. Fit the replacement without forcing plugs or mounting points, route cables clear of reclining mechanisms and pinch points, then test charging and every chair function with the chair clear of people and obstructions. Use a qualified technician if the fault or wiring has not been diagnosed.

Frequently Asked Questions

Is this a genuine eMoMo Mini iTable2?

Yes. This is a genuine eMoMo Mini iTable2 powered-recliner cup holder and control unit.

Does Mini iTable2 support wireless charging?

Yes. It includes a centre wireless-charging pad for a compatible device.

How does the dynamic cup holder work?

When the control is touched, the centre charging pad lowers into the unit to form the dynamic cup-holder space.

Does it have a USB charging port?

Yes. A USB charging port is integrated into the top of the unit.

Can it control chair movement?

Yes. The Mini iTable2 includes integrated controls for multiple actuators in a matching powered-recliner system.

Will it fit every powered recliner?

No. Match the model, complete layout, dimensions, mounting, wiring, plugs, pins, control functions and control-box sockets.

What is the model or MPN?

The saved model and manufacturer part identifier used for this product is Mini iTable2.

What photos should I send for a compatibility check?

Send clear photos of the complete top and underside, all labels, mounting opening, wiring, plugs and pins, plus the chair’s control-box label and sockets.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.
