Buy Genuine eMoMo ZE201LHRCW Q-Cup Recliner Cup Holder

Genuine eMoMo ZE201LHRCW Q-Cup Recliner Cup Holder

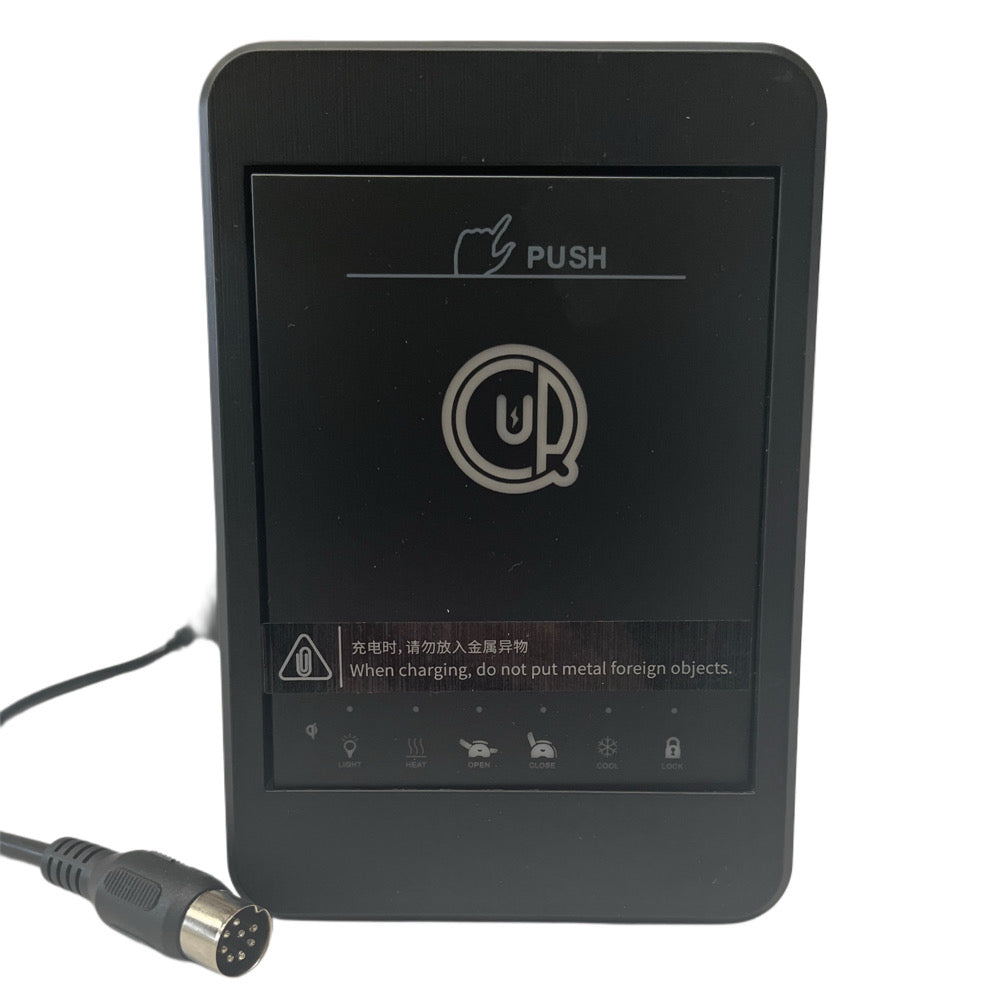

Restore the integrated comfort controls in a matching powered recliner with this genuine eMoMo ZE201LHRCW Q-Cup. Its sturdy assembly combines wireless phone charging, a 90° revolving cover, a refrigerated cup holder and multiple-actuator controls.

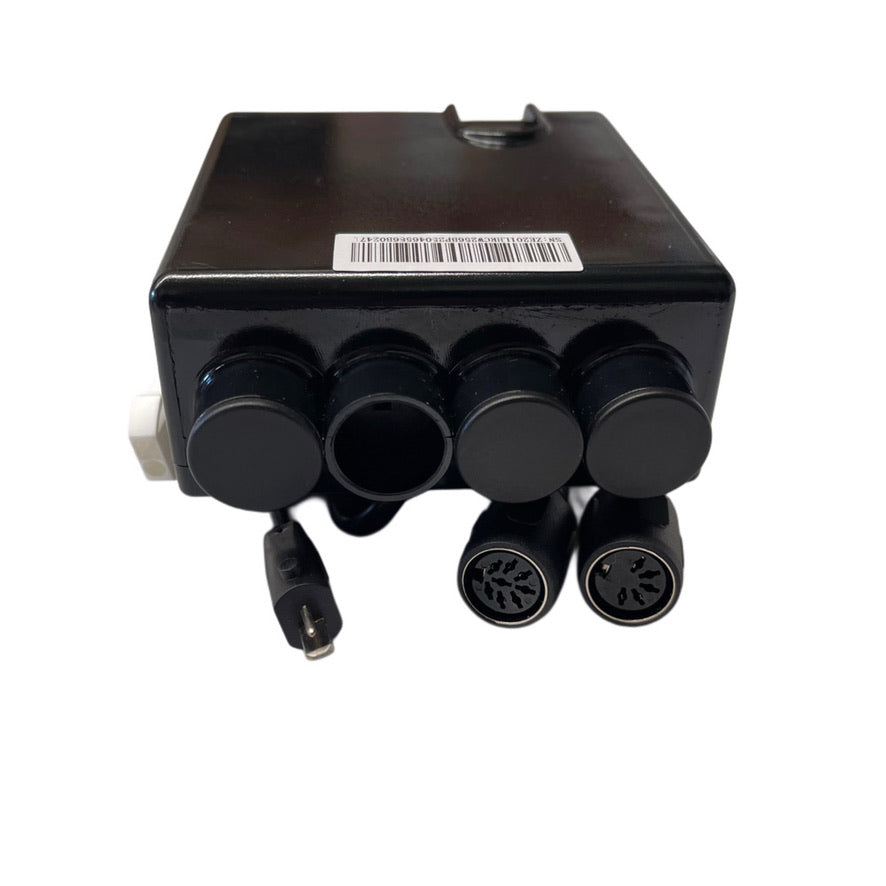

This ZE201LHRCW version does not have head up/down buttons. It is supplied with its control box and is not sold separately from that control box. Match the exact model, control layout, dimensions, wiring and every connection before ordering.

Product Details

• Brand: eMoMo
• Model / MPN: ZE201LHRCW
• Product family: Q-Cup
• Wireless phone-charging surface
• 90° revolving cover
• Refrigerated cup holder
• Integrated multiple-actuator controls
• No head up/down buttons on this version

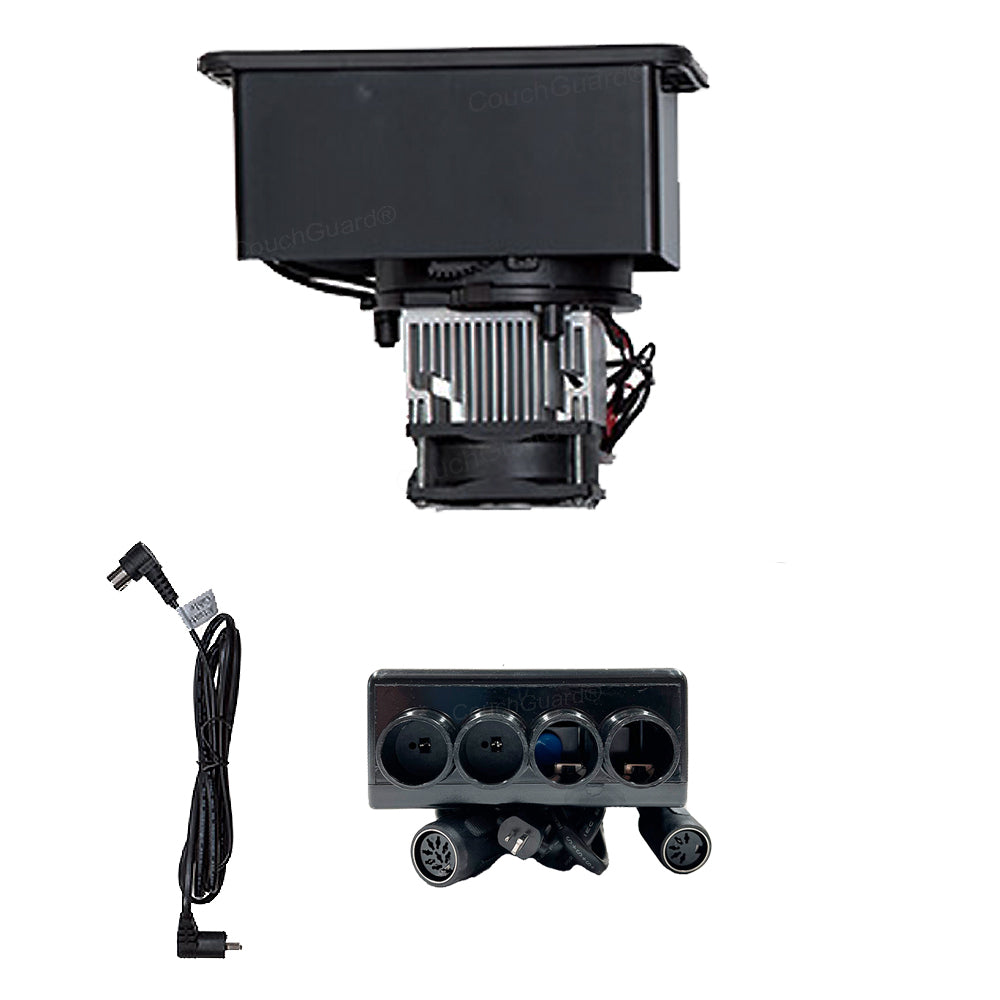

• Control box included

Compatibility Checklist

1. Disconnect the furniture from mains power.

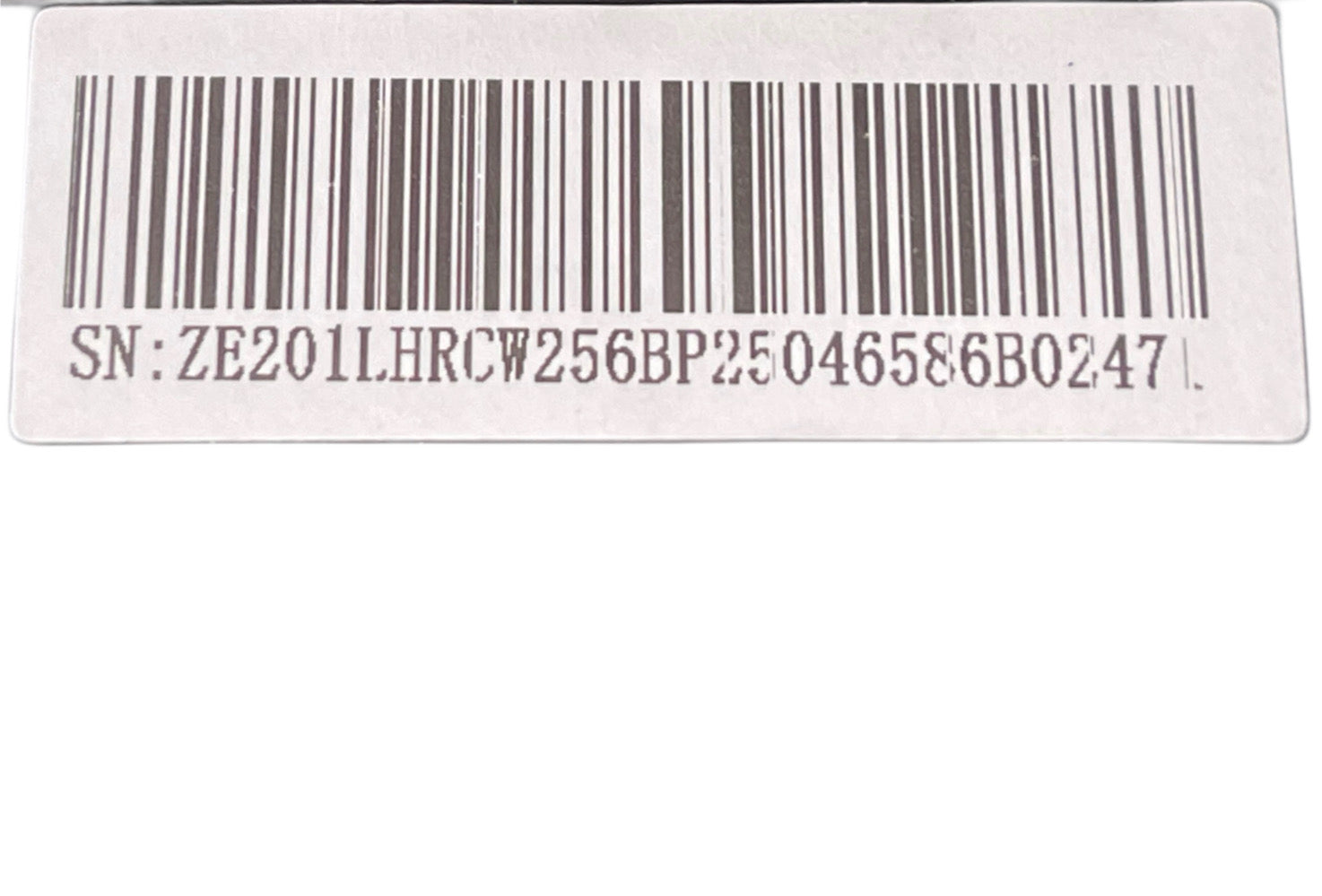

2. Confirm the original cup holder or control system is marked ZE201LHRCW.
3. Compare the complete button layout and confirm no head up/down buttons are required.
4. Match the cup-holder shape, dimensions and mounting arrangement.
5. Compare the control box, wiring loom, plugs, sockets and pin arrangements.
6. If anything differs, send CouchGuard clear photos of the complete assembly, labels, controls, wiring, plugs, sockets and control box before ordering.

Installation Guidance

Disconnect mains power before removing or connecting any component. Label the original connections before disassembly, align each plug carefully and route cables away from mechanisms, sharp edges and pinch points. Do not force similar-looking connectors. Use a qualified technician if the system fault or wiring arrangement has not been diagnosed.

Frequently Asked Questions

Is this a genuine eMoMo Q-Cup?

Yes. This is a genuine eMoMo Q-Cup identified by model ZE201LHRCW.

Does it provide wireless phone charging?

Yes. The ZE201LHRCW includes a wireless phone-charging surface.

Is the cup holder refrigerated?

Yes. The revolving cover opens to reveal the refrigerated cup holder.

How far does the cover rotate?

The saved product specification describes a 90° revolving cover.

Does this version have head up/down buttons?

No. The ZE201LHRCW version listed here does not have head up/down buttons.

Is the control box included?

Yes. This assembly is supplied with its control box and is not sold separately from it.

Will it fit any powered recliner?

No. Match model ZE201LHRCW, the control layout, dimensions, mounting, wiring, plugs, sockets and control box.

What photos should I send for a compatibility check?

Send clear photos of the cup holder and controls, all labels, mounting area, wiring loom, plugs, sockets and control box.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout
