Buy Genuine eMoMo ZE0366HRR 12-Button Lift Chair Handset

Genuine eMoMo ZE0366HRR 12-Button Lift Chair Handset

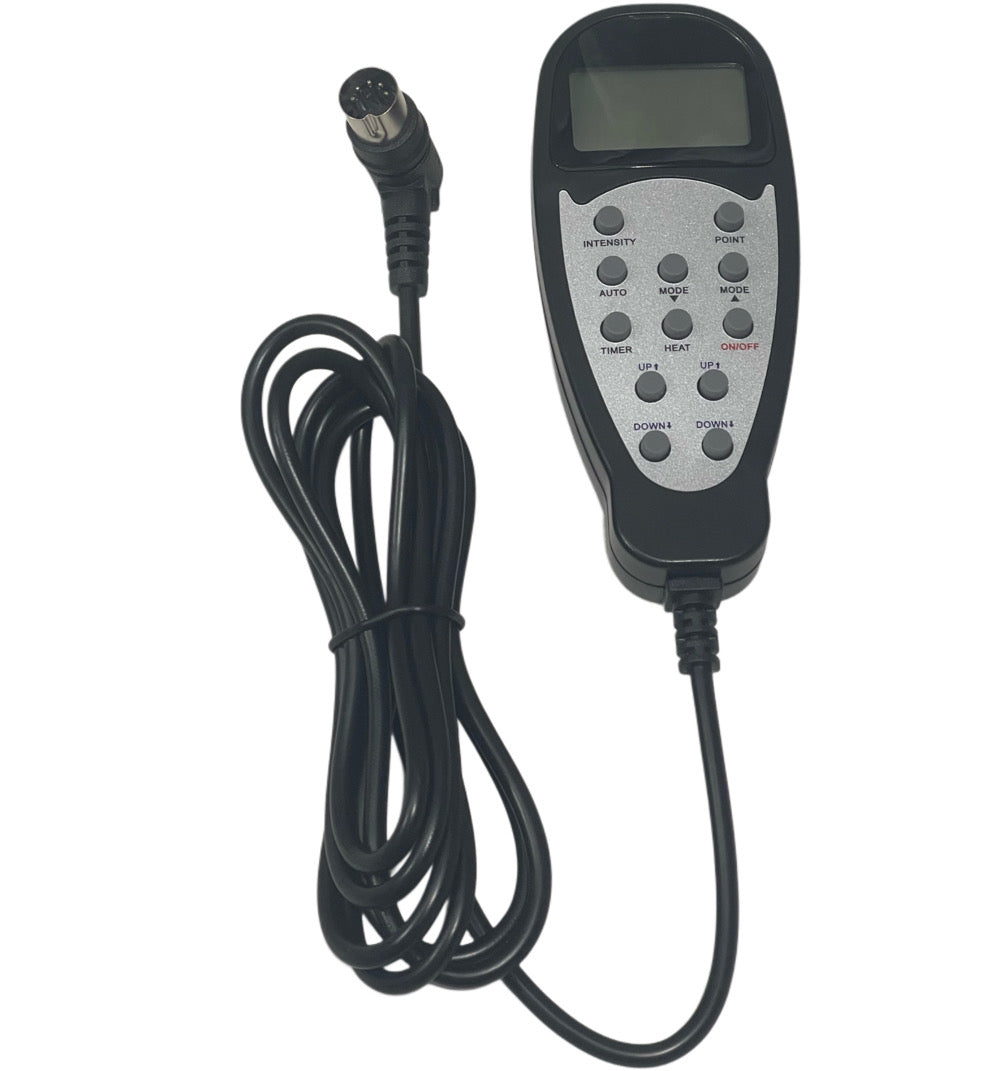

Replace a matching lift-chair control with this genuine eMoMo ZE0366HRR handset. It has 12 buttons and a round 5-pin right-angle plug for compatible multi-function lift-chair systems.

Several eMoMo handsets can look similar while using different internal functions or wiring. Match the exact ZE0366HRR model, button layout, plug shape, pin arrangement and control-box details before ordering.

Product Details

• Brand: eMoMo
• Model / MPN: ZE0366HRR
• Part type: lift-chair handset
• Controls: 12 buttons
• Connection: round 5-pin right-angle plug
• Replacement requirement: exact model and connection match

Compatibility Checklist

1. Disconnect the chair from mains power.

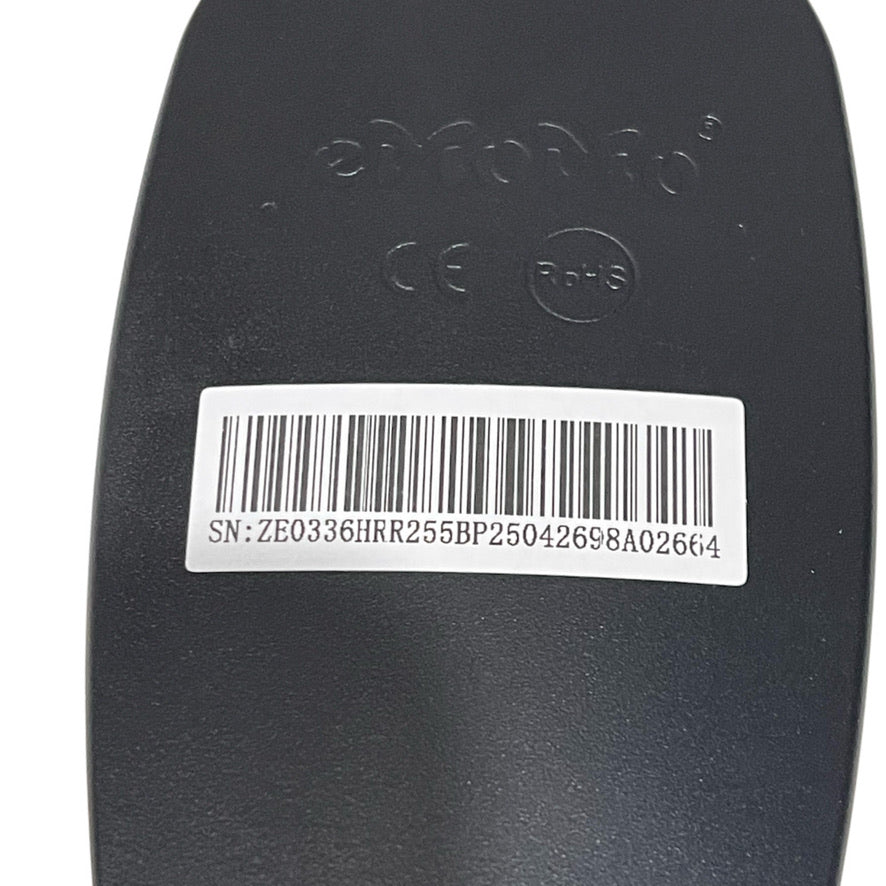

2. Check the rear label of the original handset and the control box for model ZE0366HRR.

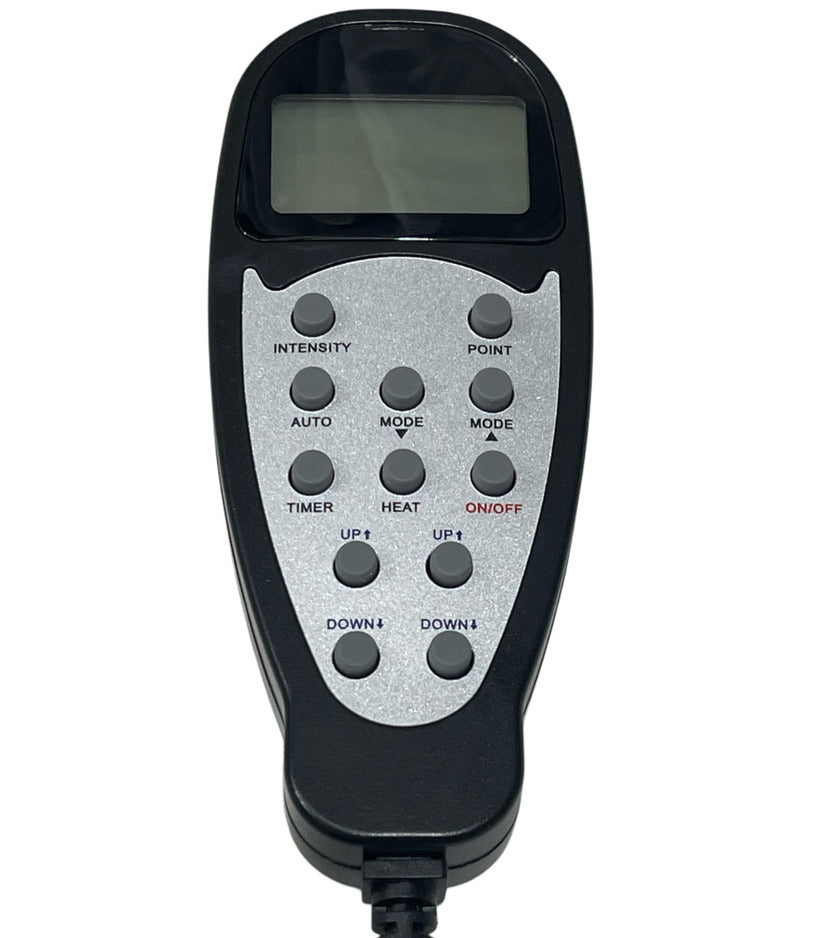

3. Compare all 12 buttons, their symbols and their positions.

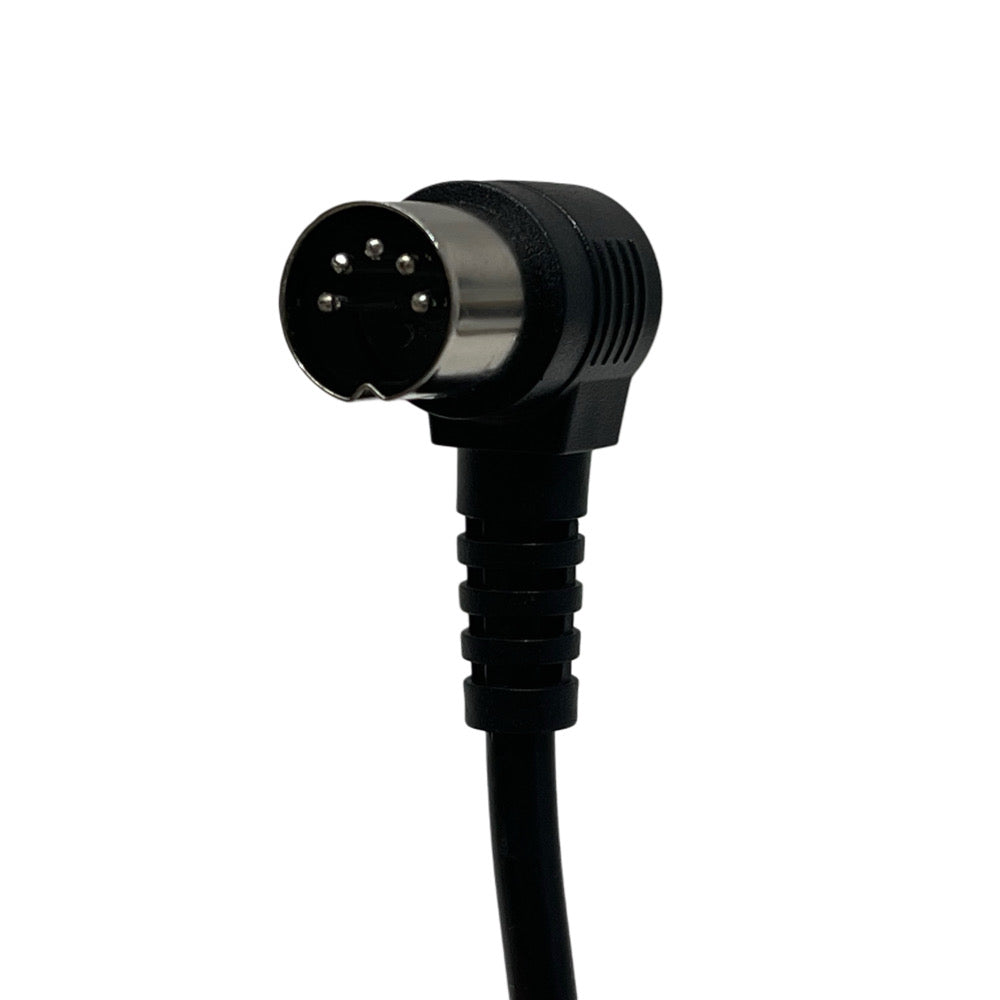

4. Confirm the original uses a round 5-pin right-angle plug.
5. Compare the plug keyway and complete pin arrangement.
6. If anything differs, send CouchGuard clear photos of the handset, rear label, plug, pins and control-box label before ordering.

Installation Guidance

Disconnect mains power before removing or connecting the handset. Route the cable away from moving mechanisms and pinch points, align the keyed connector carefully and never force the plug. Test each function while the chair is clear of people and obstructions. Use a qualified technician if the fault or wiring arrangement has not been diagnosed.

Frequently Asked Questions

Is this a genuine eMoMo handset?

Yes. This is a genuine eMoMo replacement handset identified by model ZE0366HRR.

How many buttons does it have?

It has 12 buttons. Match the complete button layout and symbols against the original handset.

What plug does it use?

It uses a round 5-pin right-angle plug. Check the shape, keyway and pin arrangement before ordering.

Will it replace a similar-looking 12-button handset?

Not necessarily. Similar handsets can use different wiring or functions. The exact model and complete connection must match.

Where can I find the model number?

Check the label on the rear of the original handset and the chair control box for ZE0366HRR.

Can I force the plug if it looks close?

No. A connector that does not align easily may be incompatible and forcing it can damage the pins or chair electronics.

Can I install it myself?

Replacement may be straightforward when the fault and exact match are confirmed. Disconnect power first and use a qualified technician if diagnosis or wiring is uncertain.

What photos should I send for a compatibility check?

Send clear photos of the handset front, rear label, complete plug and pins, plus the control-box label and sockets.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout
