Buy eMoMo ZENHX03512HRR 12-Button Remote Handset

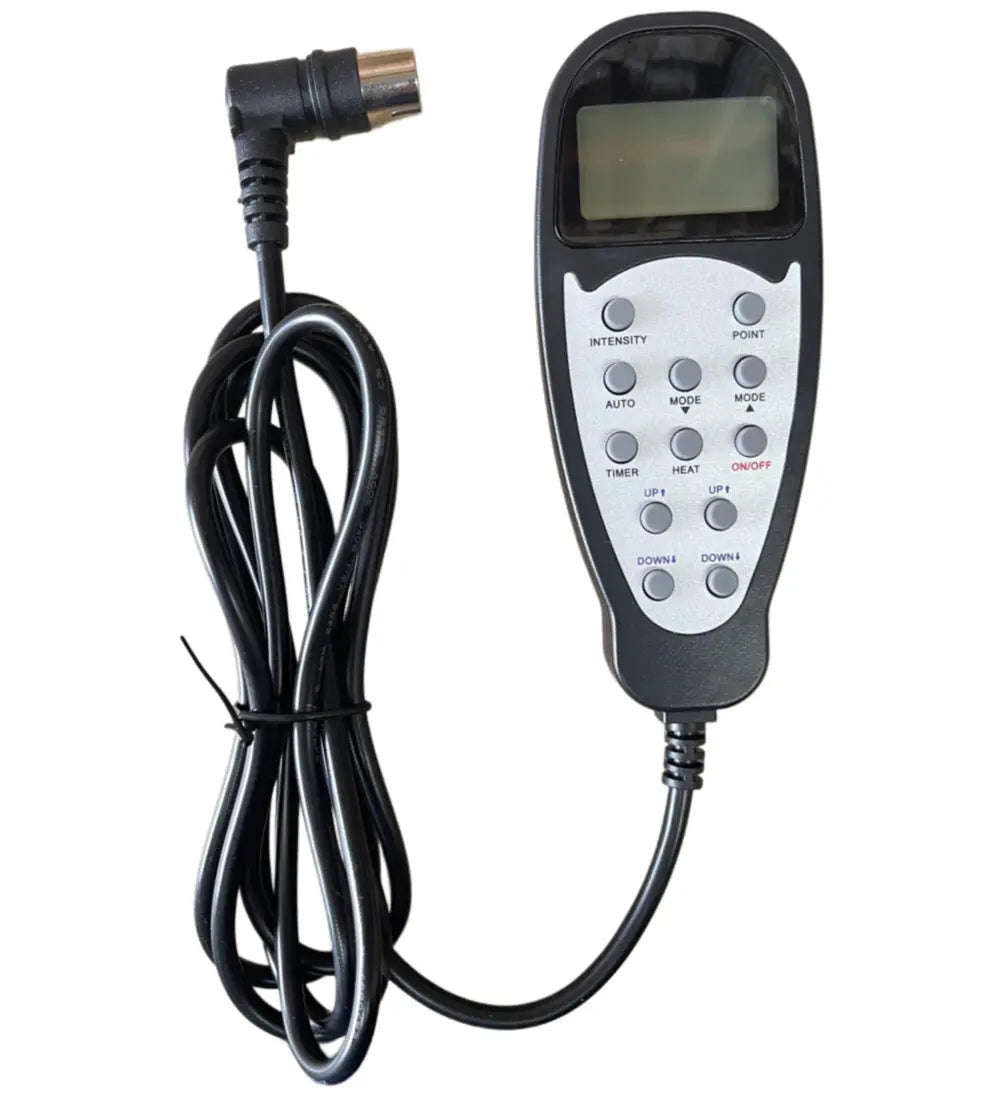

eMoMo ZENHX03512HRR 12-Button Remote Handset

Replace a damaged recliner handset with the genuine eMoMo ZENHX03512HRR. This wired 12-button remote is supplied with its matching control box and massage kit for a compatible powered recliner.

Key features

• Brand: eMoMo
• Model: ZENHX03512HRR
• Part type: Wired recliner remote handset
• Controls: 12 buttons
• Connection: 5-pin right-angle plug
• Included: Control box and massage kit

Compatibility

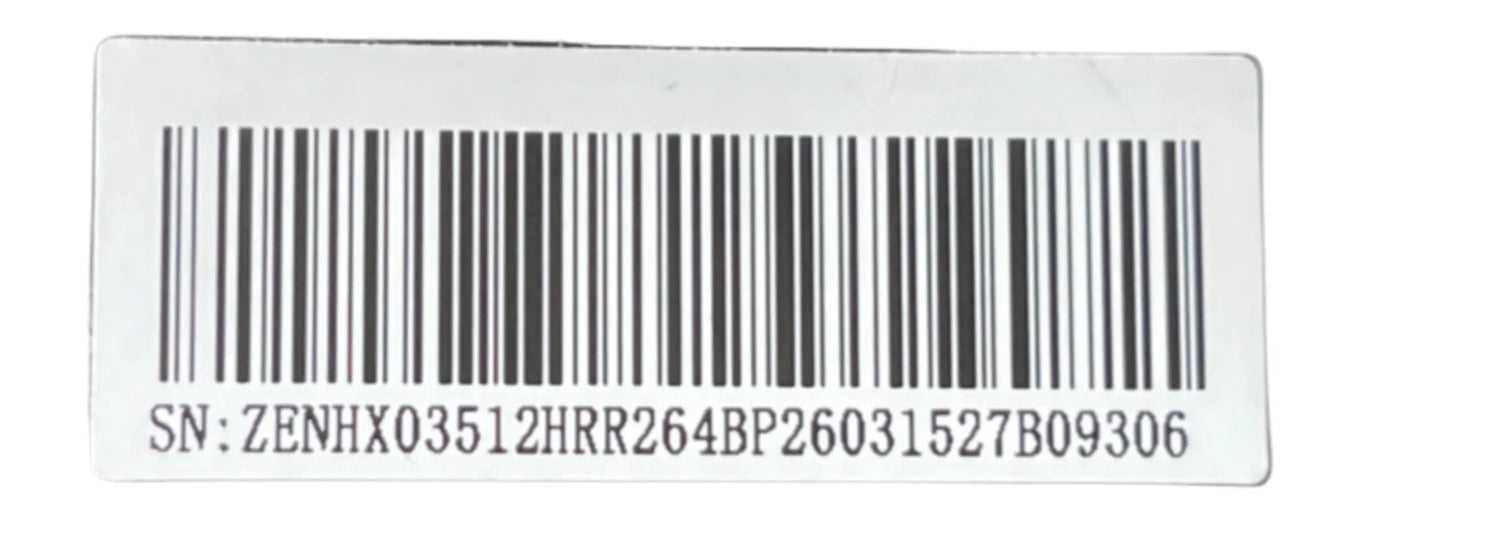

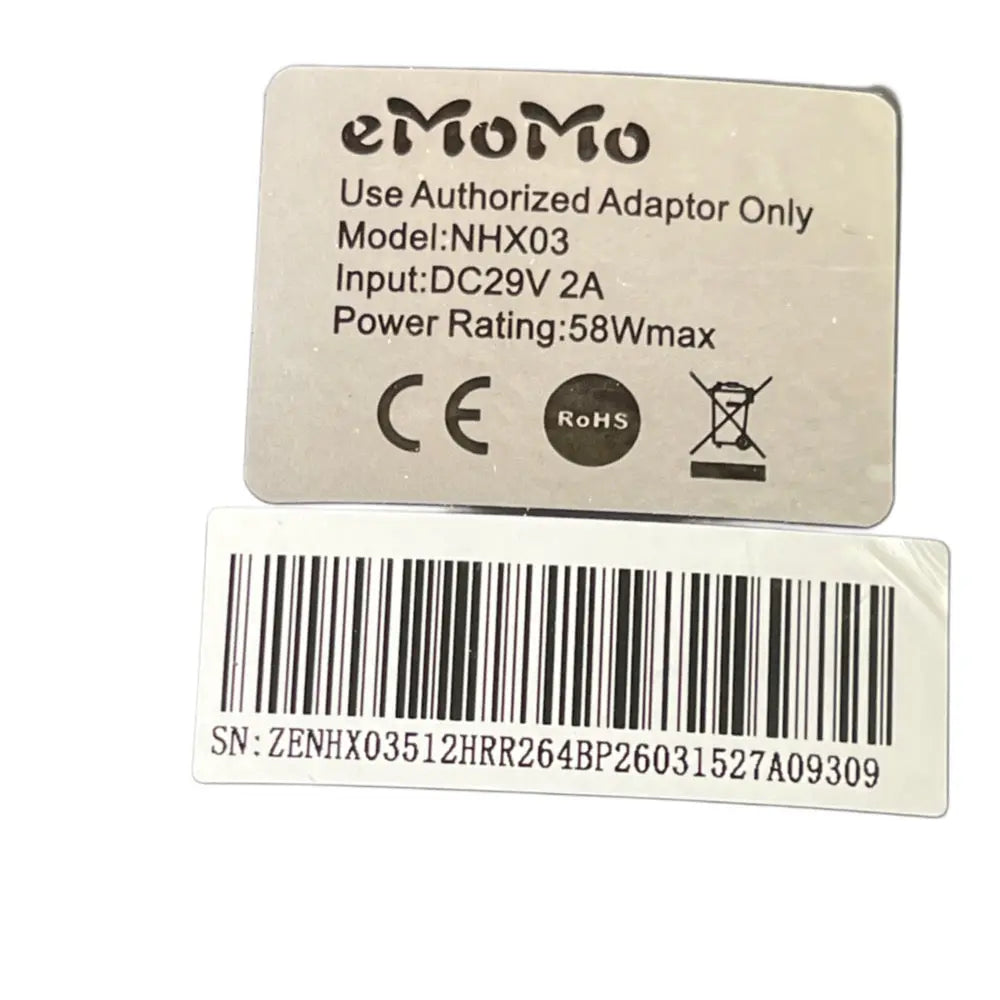

This replacement is intended only for a recliner using the same ZENHX03512HRR handset system. Similar-looking eMoMo remotes can use different button functions, wiring or control boxes. Check the model marking on the rear of the original handset or on its control box, then compare the button layout and 5-pin right-angle plug before ordering.

Frequently asked questions

Will this replace a different eMoMo handset model?
No. Match the exact ZENHX03512HRR model because similar handsets may not be electrically compatible.

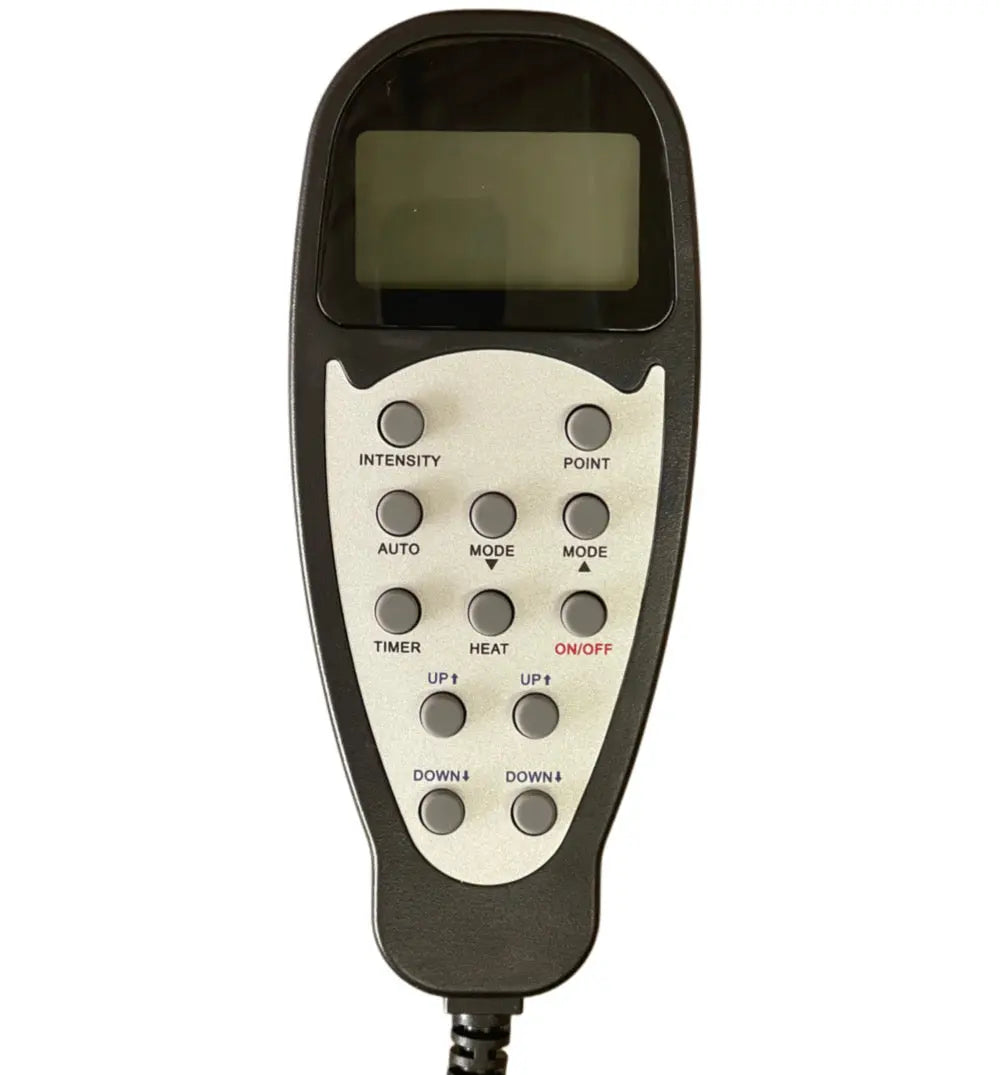

How many buttons does it have?
The handset has 12 buttons.

What plug does it use?
It uses a 5-pin right-angle plug. Compare the pin arrangement and plug shape with the original.

What is included?
The package includes the ZENHX03512HRR handset, matching control box and massage kit.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout
