Buy Raffel CHB R2ULBL 15 Cupholder & JCT Control Box Kit

Raffel cupholder and matching control-box kit

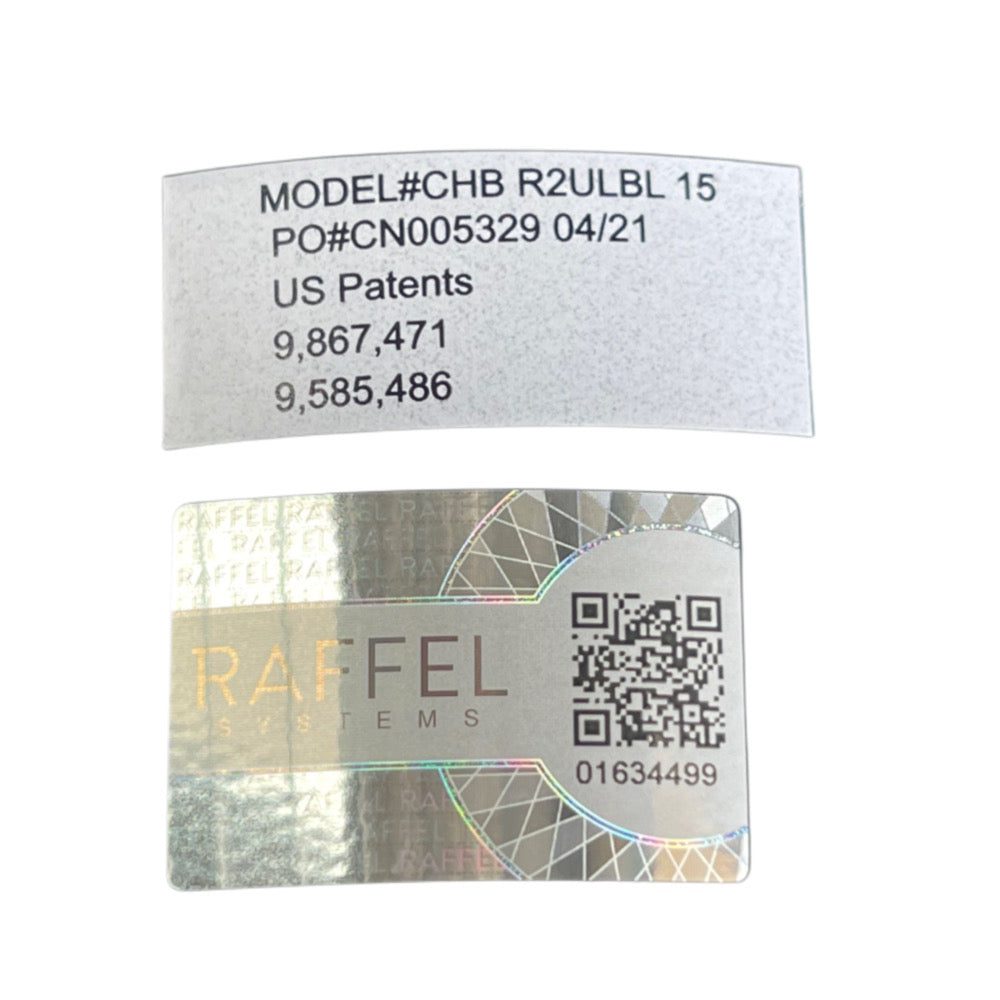

This genuine Raffel Systems kit includes the cupholder and matching control box for compatible electric recliners with power recline and power headrest functions. The two supplied components carry the label references CHB R2ULBL 15 and JCT CHB R2ULBL 15. Compare both references with your original equipment.

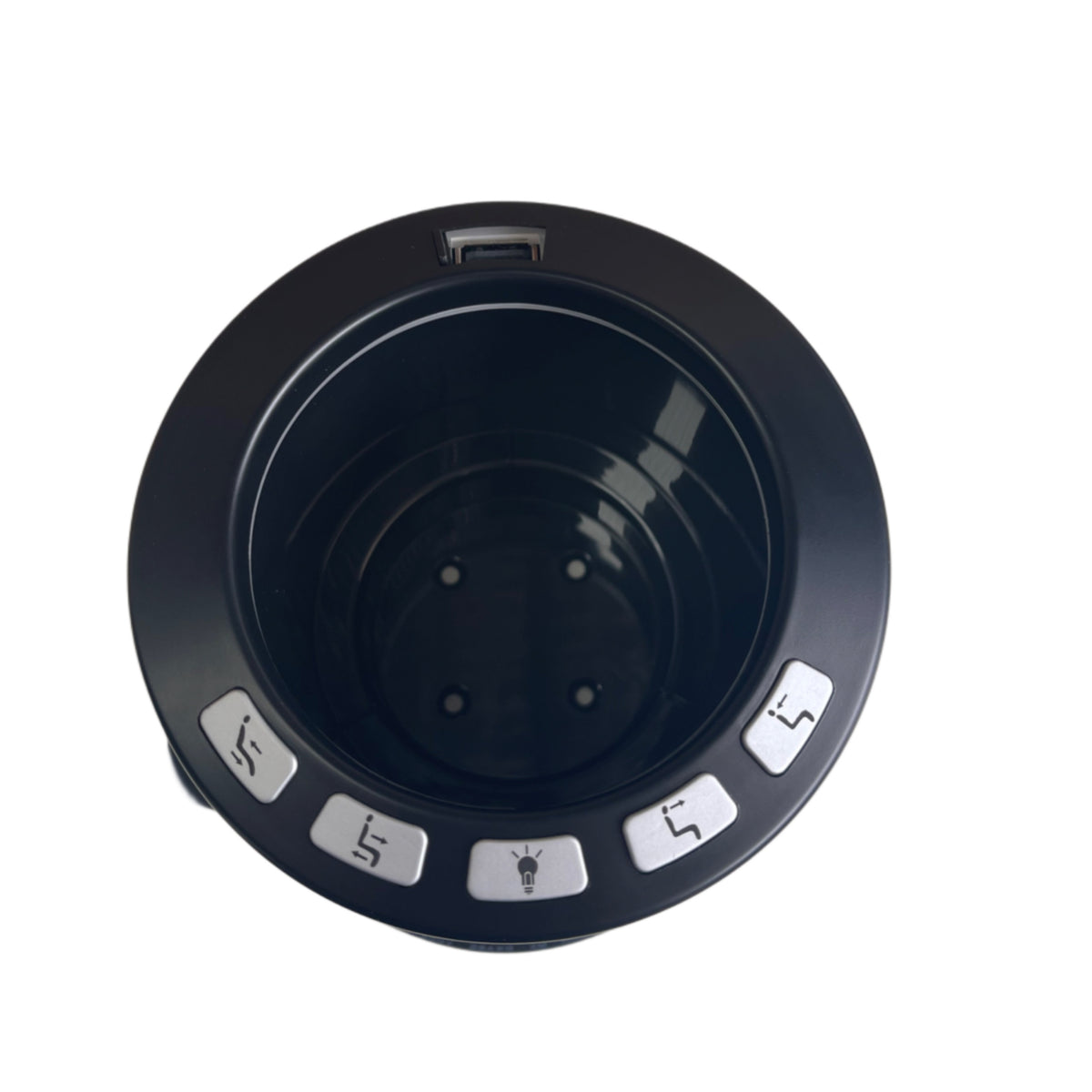

The cupholder combines touch-button controls for recliner functions, USB-A charging and an ambient LED lighting ring inside the cupholder base.

Why we supply both components

We supply the cupholder and control box together because the fault can be in either component. Replacing only the cupholder may leave the problem unresolved if the control box is faulty. Supplying both parts does not guarantee a fix for every fault; the power supply, wiring and motors may also need checking.

Electrical specifications

• Component label references: CHB R2ULBL 15 and JCT CHB R2ULBL 15.
• System power input: 29V DC, 2.0A, from a compatible recliner power supply.
• USB-A charging output: 5.0V DC, 2.1A.
• Control interface: touch-buttons for recliner functions.
• Motor control capacity: two independent motors, configured for power recline and power headrest.
• Specified mounting cut-out range: 87–90mm. Compare the opening and mounting arrangement before ordering.

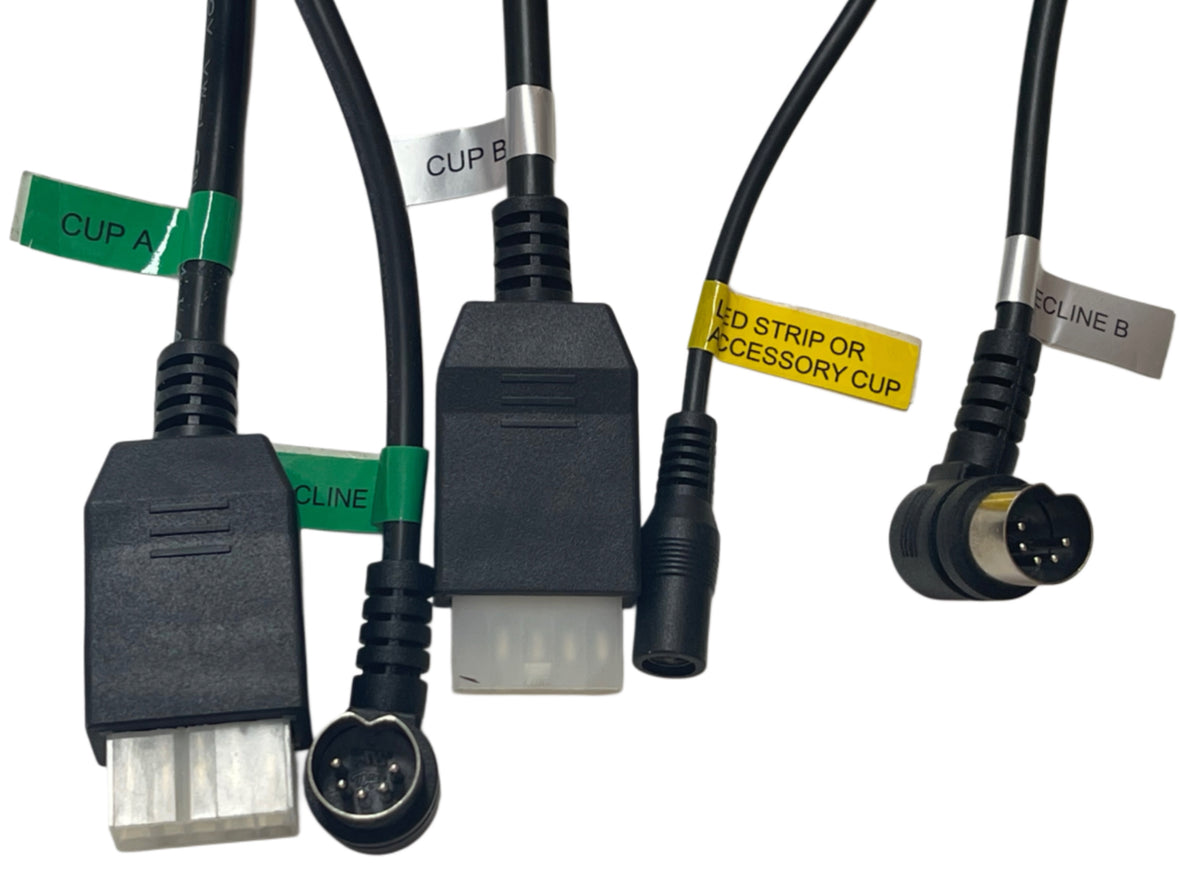

Wiring and connections

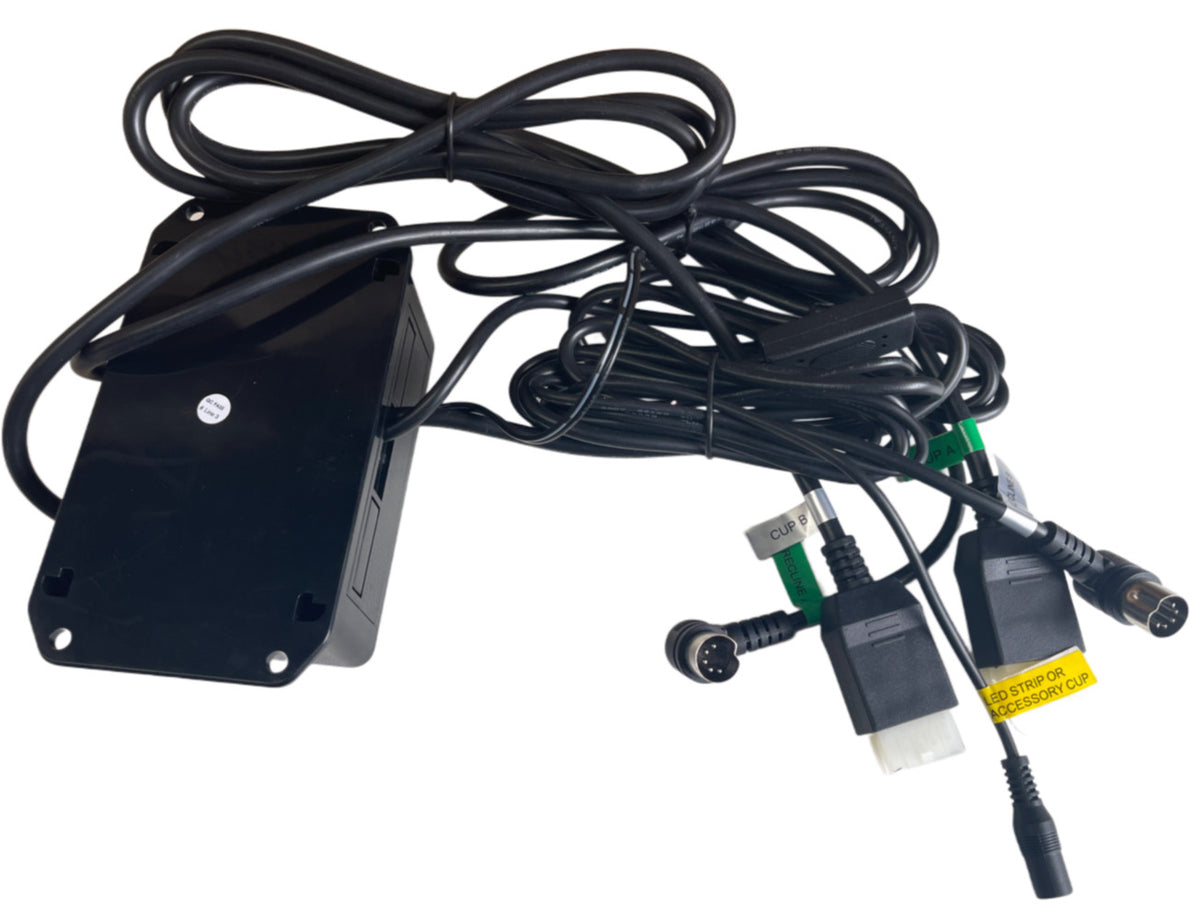

The cupholder controller connects through its dedicated companion JCT-series control box. It does not connect directly to the chair motors.

• Cupholder to control box: one inline communication lead from the cupholder base to the matching control-box port.
• Main power input: two-pin O/I connection on the control box, with one flat blade and one round pin, for connection to the compatible power supply.

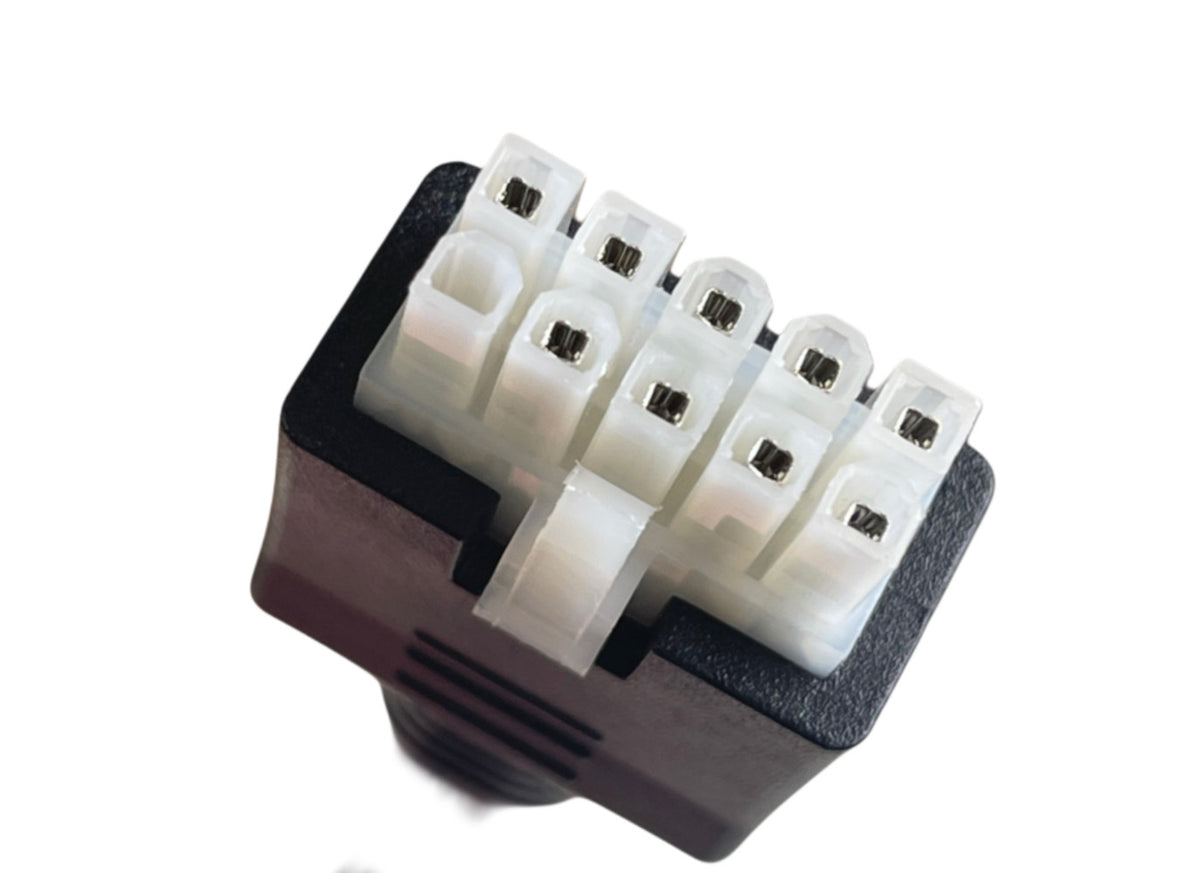

• Motor outputs: dedicated multi-pin actuator connection ports on the control-box housing.

Check compatibility before ordering

Match both component label references, the cupholder mounting opening, control-box details, connector arrangement, motor configuration and electrical requirements against your existing equipment. A 29V supply or similar-looking two-pin connector alone does not establish compatibility; polarity and the complete system must also match. The labels' PO reference is not a model number.

Send CouchGuard clear photos of your cupholder, control box, labels and connectors if you need help matching the parts, or call 1300 268 244. Disconnect power before handling wiring and do not force connectors or modify the system to make parts fit.

Frequently asked questions

Does this Raffel cupholder include the control box?

Yes. This kit includes both the cupholder and matching control box. The two component labels show CHB R2ULBL 15 and JCT CHB R2ULBL 15; they are references for the supplied components, not two alternative cupholder models.

Why are the cupholder and control box sold together?

A fault can be in either component. Replacing only the cupholder may not solve the problem if the control box is faulty, so CouchGuard supplies them together. Other system faults are still possible.

Does the cupholder plug directly into the motors?

No. Its inline communication lead connects to the companion JCT-series control box. The motors connect to the dedicated multi-pin outputs on that box.

Which chair functions does it control?

The system controls two independent motors configured for power recline and power headrest on compatible furniture.

What power supply does it require?

The specified system input is 29V DC, 2.0A through the control box's two-pin O/I input. Confirm voltage, polarity, connections and system compatibility before use; a matching-looking plug alone is not sufficient.

Does it have USB charging and lighting?

Yes. It has an integrated USB-A charging port rated at 5.0V DC, 2.1A and an ambient LED ring inside the cupholder base.

What mounting opening does it need?

The specified cut-out range is 87–90mm. Measure your existing opening and compare the complete mounting arrangement before ordering.

Will it fit any recliner with a Raffel cupholder?

No universal fit is guaranteed. Match component references CHB R2ULBL 15 and JCT CHB R2ULBL 15, the connectors, mounting arrangement and chair functions. Send photos of the original parts if you are unsure.

Reach out to our team today by calling 1300 268 244 or emailing info@couchguard.com.au
