Buy Okin HCEXL-CA-5.00.4V0.012.30 1.2m 5-Pin Handset Extension Lead

Okin HCEXL-CA-5.00.4V0.012.30 Handset Extension Lead

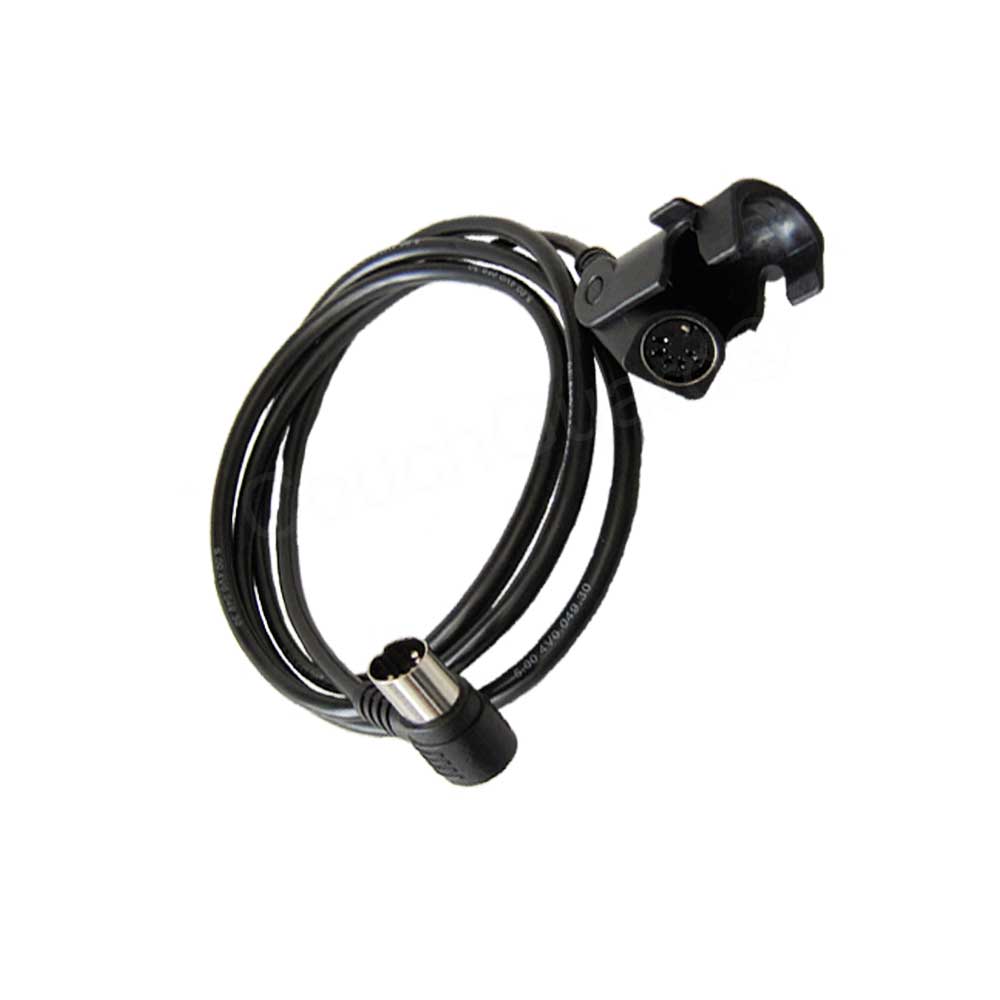

Add 1.2 metres of reach between a compatible recliner or lift-chair hand control and its actuator or control connection. Okin part number HCEXL-CA-5.00.4V0.012.30. As shown in the product photos, the extension lead has a 90° round five-pin connector at one end and a straight round five-pin connector at the other.

Key specifications

• Okin part number: HCEXL-CA-5.00.4V0.012.30
• Length: 1.2 metres
• One end: 90° round five-pin connector
• Other end: straight round five-pin connector
• Application: extends a compatible recliner or lift-chair handset cable
• Installation: plug-in connection with no tools normally required

Compatibility

This extension lead is for recliner and lift-chair systems using matching round five-pin connectors, pin arrangement and keying. It is used with many Okin, Kaidi and Limoss systems, but the brand name or pin count alone does not confirm compatibility. Compare both connector ends with the existing handset and chair connection before ordering.

On compatible La-Z-Boy lift chairs, an extension lead can bridge the distance between the universal replacement handset connection near the chair pocket and the actuator or control connection under the chair.

Frequently asked questions

How much extra reach does this cable provide?

It adds 1.2 metres between compatible five-pin recliner components.

What connectors are fitted?

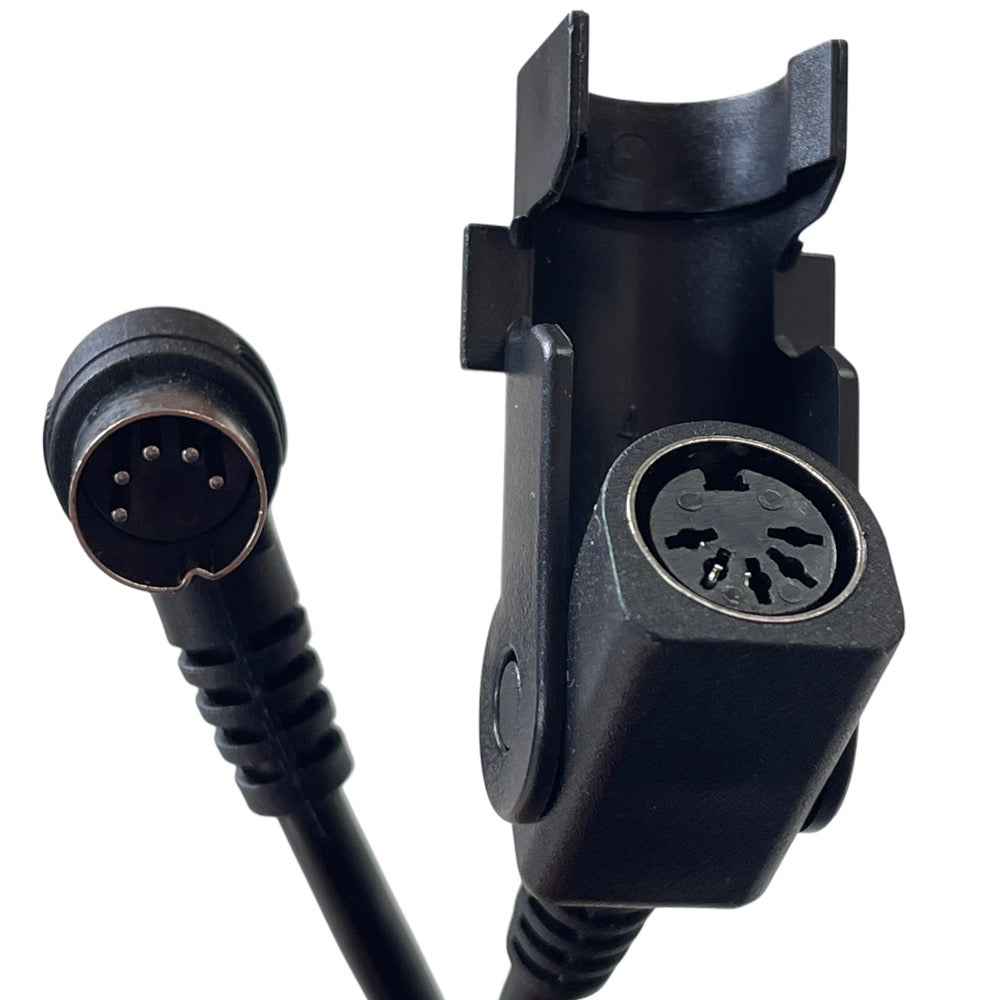

One end has a 90° round five-pin connector and the other has a straight round five-pin connector, as shown in the product photos. Compare both ends with your existing connections.

Will this fit any five-pin recliner handset?

Not necessarily. The connectors, pin arrangement and keying must match. A shared pin count or brand alone does not confirm fit.

Why might I need this lead with a La-Z-Boy chair?

On compatible La-Z-Boy lift chairs, it can bridge the gap between a replacement handset connection near the pocket and the actuator or control connection under the chair.

Can it extend a handset cable that is too short?

Yes, where both ends match the chair and handset connections, it adds 1.2 metres of cable reach.

Is installation tool-free?

Installation is normally plug-and-play. Disconnect chair power first, connect both matching ends securely, route the cable away from moving parts and then test the handset.

What should I send CouchGuard for a compatibility check?

Send clear photos of both connector ends, the handset label and the chair’s existing connection.
