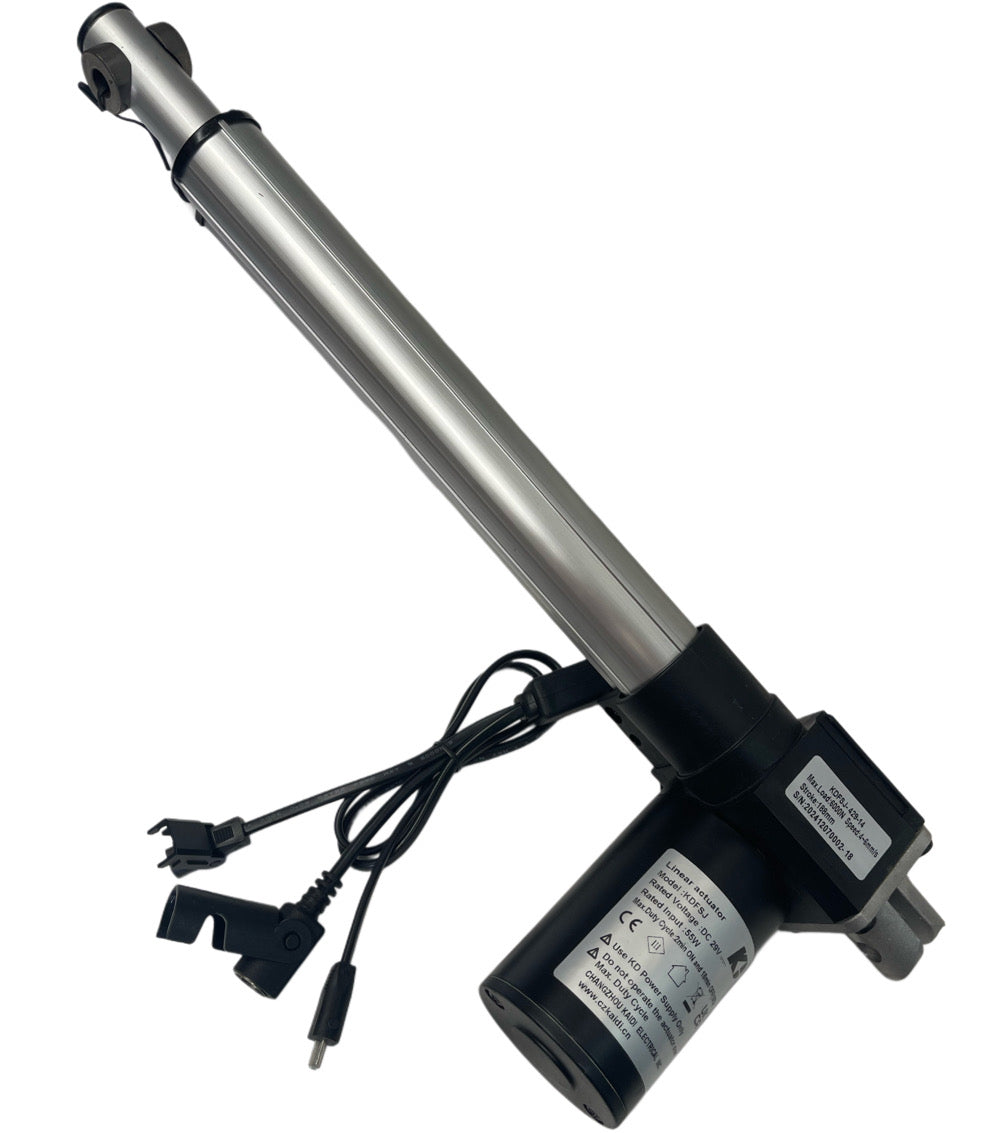

Kaidi KDFSJ-429-14 Lift Chair Actuator Motor

Replace a faulty matching chair motor with the genuine Kaidi KDFSJ-429-14. This actuator has 188mm stroke, 6000N maximum load, 4-6mm/s speed and is intended for a compatible lift chair mechanism, not as a universal motor replacement.

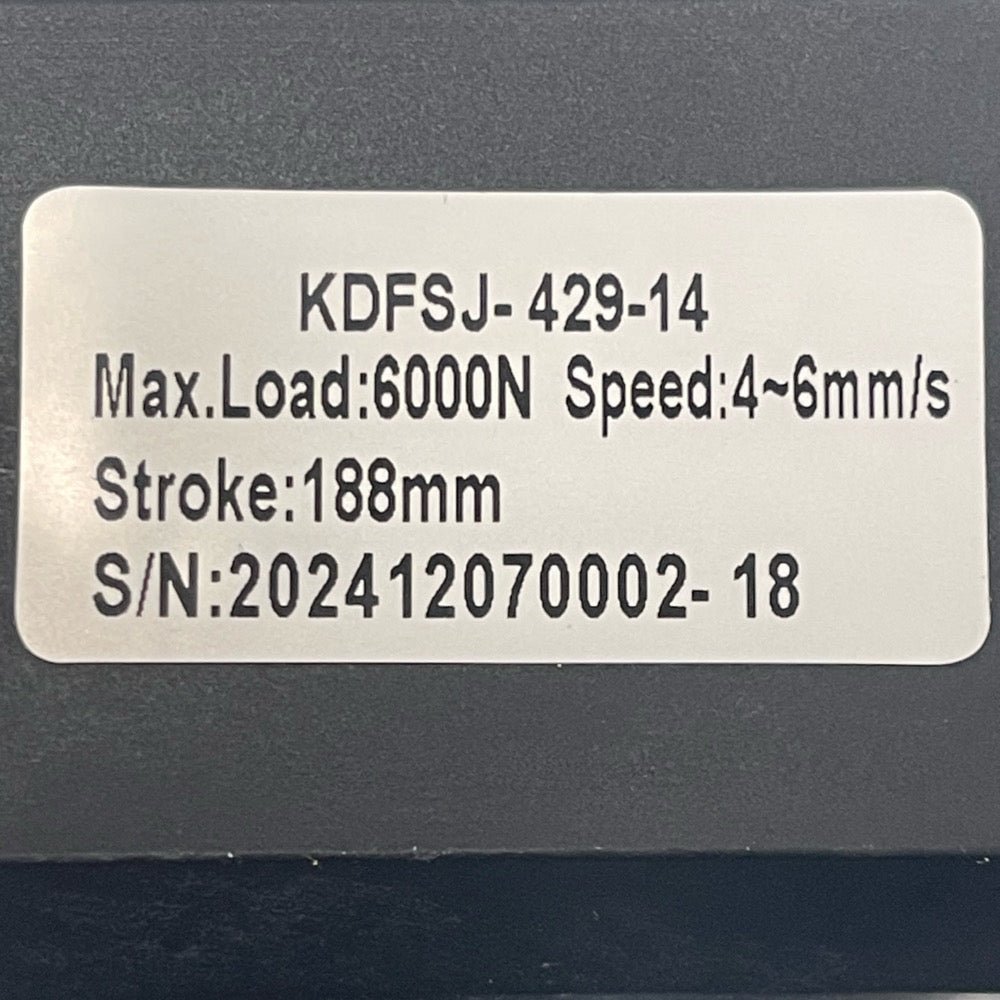

Specifications

• Brand: Kaidi
• Model: KDFSJ-429-14
• Stroke: 188mm
• Maximum load: 6000N
• Speed: 4-6mm/s

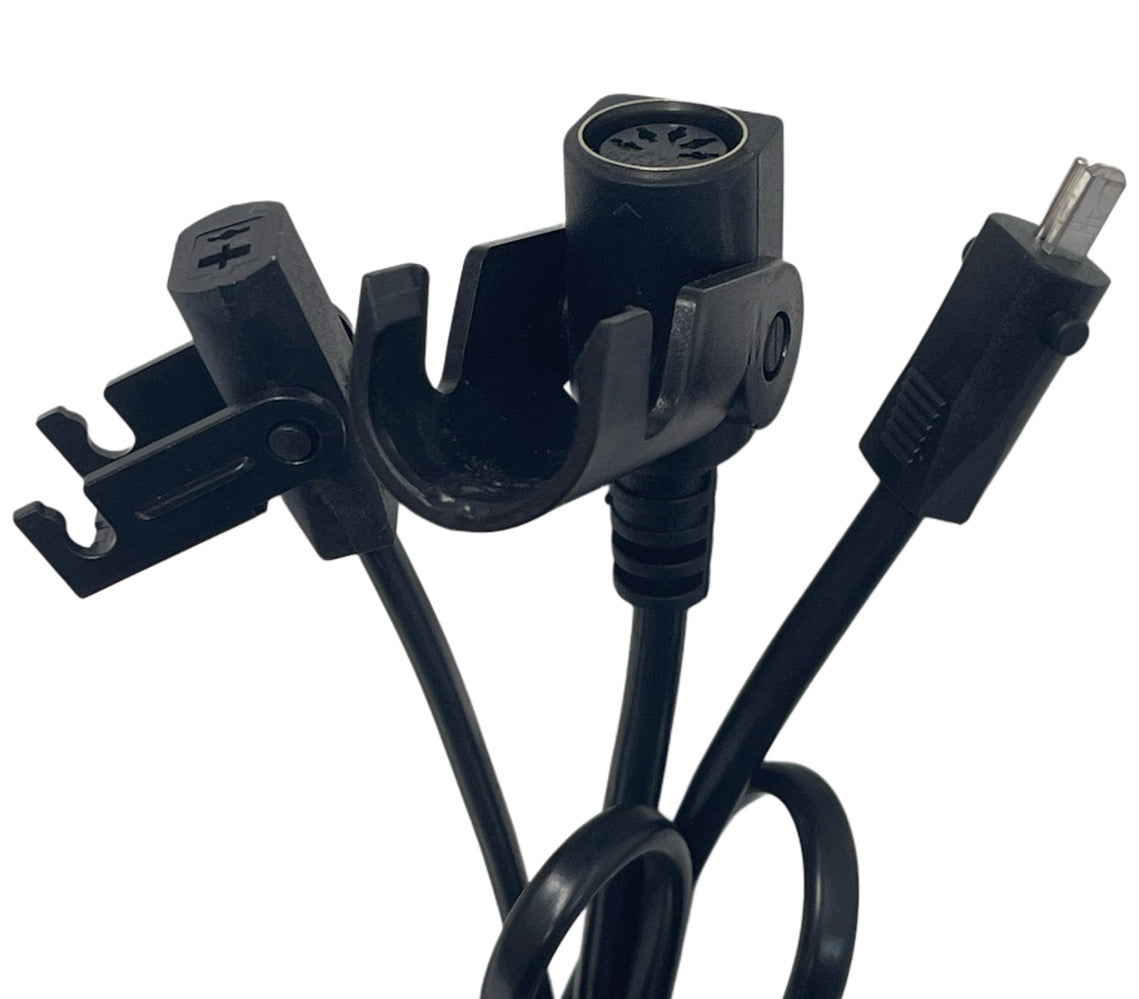

• Connection: W-cable with round five-pin female socket plus two-pin male and female flat-and-round connections

Check compatibility before ordering

Compare the complete model on your original actuator, mounting-end shape, fixing-pin sizes, retracted and extended mounting distances, stroke, wiring and electrical requirements. Do not select a replacement solely by chair brand, appearance or plug shape. Do not assume another Kaidi model is interchangeable.

What is supplied?

The replacement actuator is supplied with its attached cabling. A separate handset, chair mechanism and mains power supply are not included.

Installation and fault diagnosis

Disconnect mains power before inspection. Support the chair mechanism so it cannot move unexpectedly, photograph the original mounting and wiring, and follow the chair manufacturer's service instructions. Keep leads clear of moving parts. Do not force connectors or alter wiring; use a qualified repair technician if unsure.

A replacement motor resolves faults caused by the actuator, not every fault that stops a chair moving. Check the supply, controls and connections before ordering.

Need help matching your part?

Contact CouchGuard with clear photos of the model label, mounting ends and connections, or call 1300 268 244.

Frequently asked questions

What is the Kaidi KDFSJ-429-14 used for?

It is a replacement actuator for a matching lift chair installation. Confirm its role against your original chair assembly before ordering.

What are the KDFSJ-429-14 specifications?

The specified mechanical ratings are 188mm stroke, 6000N maximum load, 4-6mm/s speed. Stroke is the amount of travel, not the overall motor length.

Which connections should I check?

Compare the W-cable with round five-pin female socket plus two-pin male and female flat-and-round connections, connector keying, wiring and cable route with your original assembly. A matching plug shape alone does not prove compatibility.

Will this fit every chair with a Kaidi motor?

No. Match the full KDFSJ-429-14 reference, mounting points, retracted and extended centre-to-centre distances, stroke and electrical requirements.

Is the stroke the same as the mounting length?

No. The 188mm stroke is actuator travel. Measure the mounting-pin centres separately in the retracted and extended positions.

Does a higher force rating make an actuator interchangeable?

No. The 6000N load figure is only one specification. Geometry, travel, speed, electrical requirements and wiring must also match.

Will a new actuator fix a chair that will not move?

Only if the actuator is causing the fault. Power-supply, controller, handset and cable faults can produce similar symptoms. Diagnose the fault before ordering.

Can CouchGuard help check the replacement?

Yes. Send photos of your original KDFSJ-429-14 label, mounting ends and connectors, together with chair details and measurements, before ordering.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.

Selected Product Warranties

The following warranties apply to the listed products:

• 24-month warranty on all compatible actuators.
• 24-month warranty on all genuine Okin and TiMOTION actuators.
• 12-month warranty on all genuine Kaidi, eMoMo and Mulin actuators.
• 24-month manufacturer warranty on 6000mAh and 3950mAh batteries purchased on or after 11 September 2026.
• 12-month manufacturer warranty on the 2550mAh battery pack.

All actuators supplied by CouchGuard are tested by the manufacturer before leaving its facility. If a defect becomes apparent, contact us promptly with your order details so we can assess the product under the applicable warranty.
