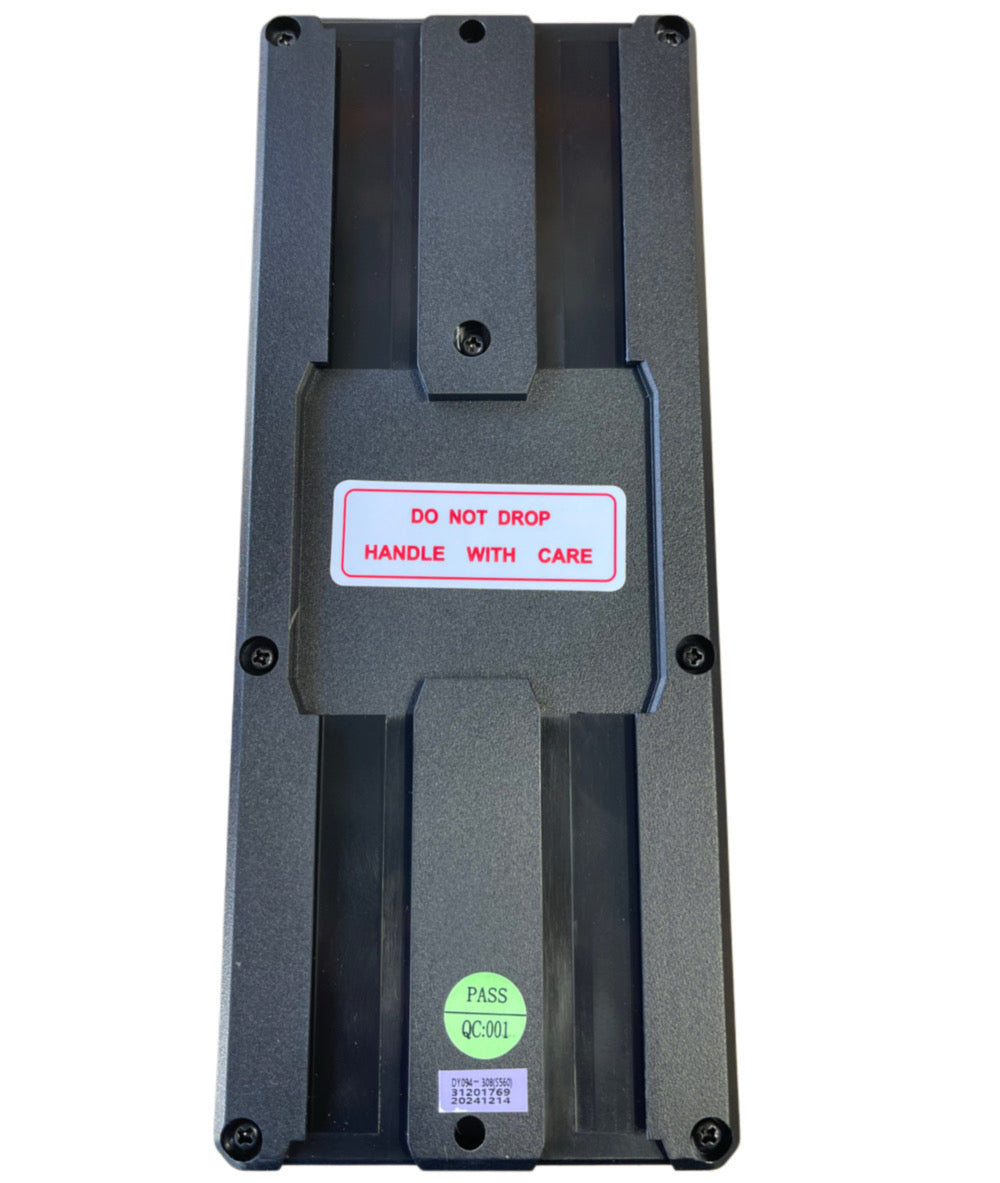

Kaidi KDDY094-308 Replacement Control Box

Genuine Kaidi KDDY094-308 replacement control box for a matching powered leg system. This S560 configuration is restricted to legs with a 560mm stroke. Compare the complete configuration, electrical ratings and connections with your original control box before ordering.

Specifications

• Brand: Kaidi
• Listing model: KDDY094-308, also written KDDY 094-308
• Label family: KDDY094

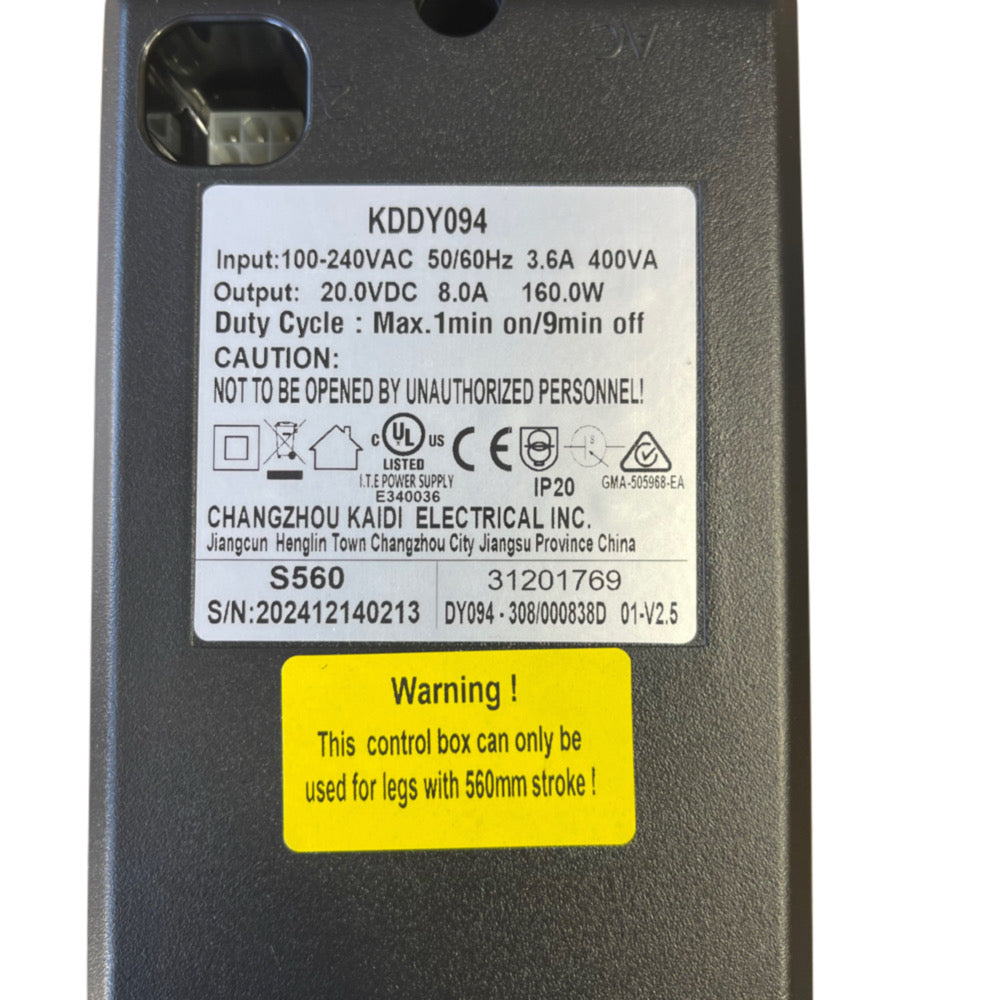

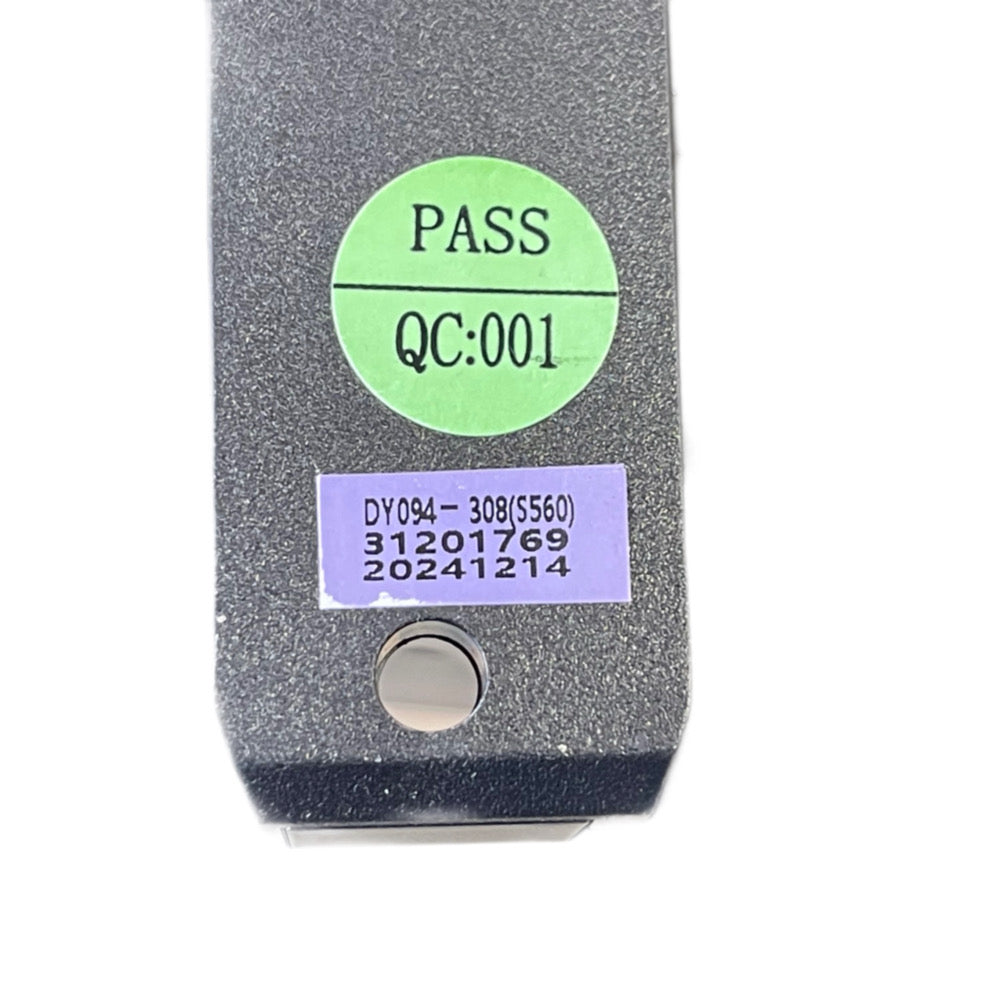

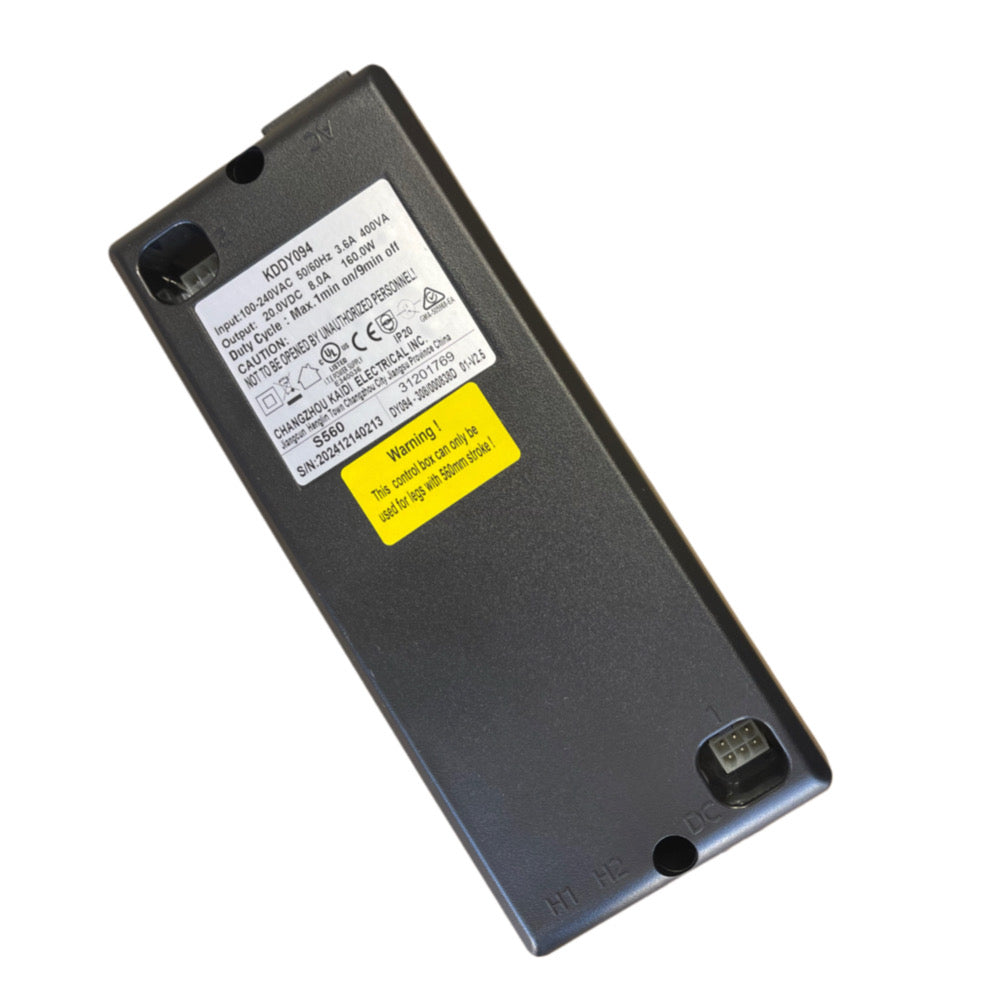

• Configuration marking: DY094-308(S560)
• Label reference: 31201769
• Input: 100-240V AC, 50/60Hz, 3.6A, 400VA
• Output: 20.0V DC, 8.0A, 160.0W
• Duty cycle: maximum 1 minute ON followed by 9 minutes OFF
• Ingress rating: IP20; indoor use
• Leg stroke restriction: 560mm only

Check compatibility before ordering

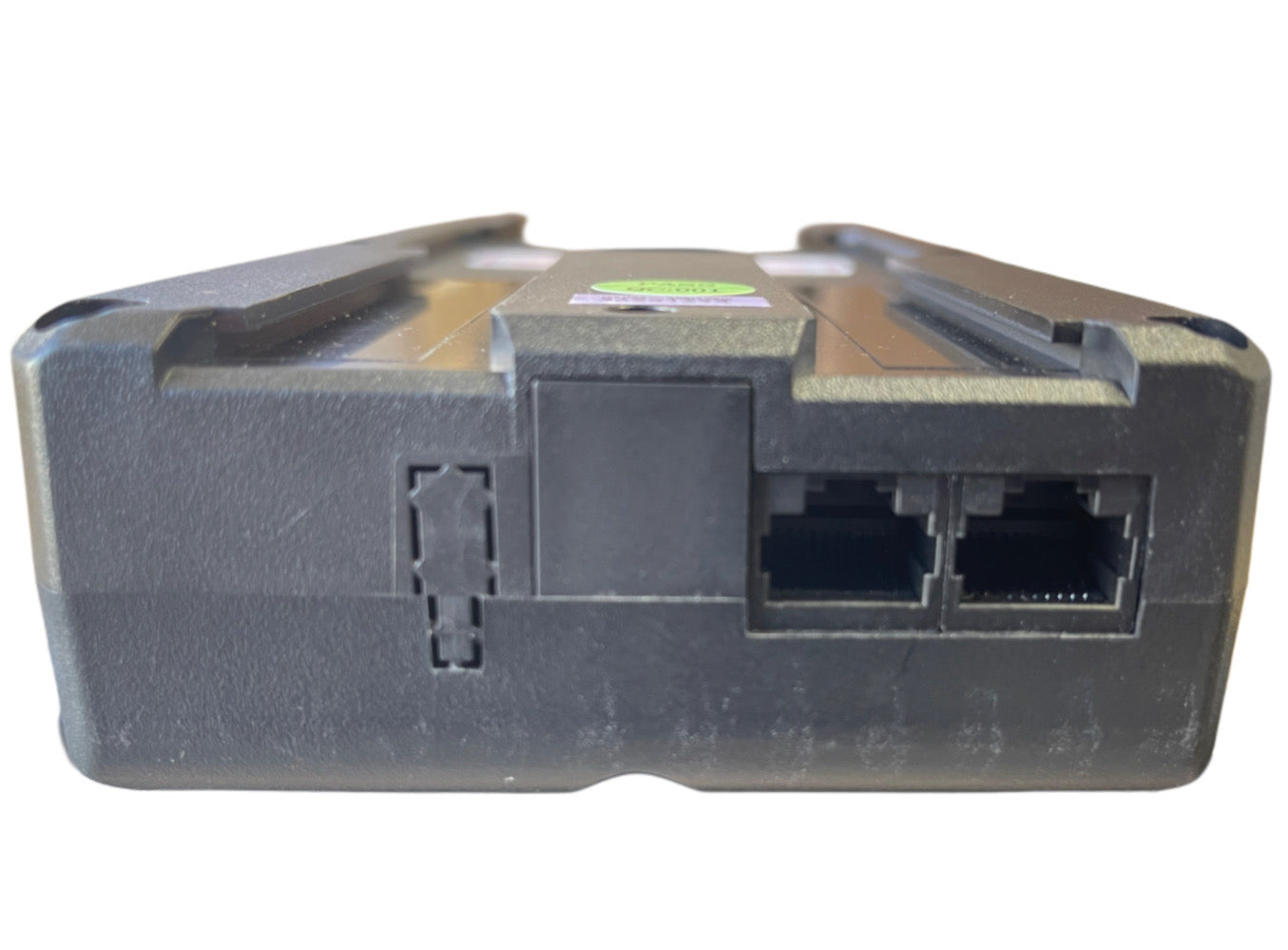

The 560mm measurement is the compatible leg stroke, not the control-box length. Match the original model and S560 configuration, leg stroke, connectors, controller and system wiring. Similar housings or sockets do not establish interchangeability. Do not substitute this for KDDY024-308 or another Kaidi control box without confirmed system compatibility.

What is included?

This listing is for the control box only. Legs, handset and connecting cables are not included.

Installation and fault diagnosis

Disconnect mains power before inspecting connections. Follow the equipment manufacturer's service instructions and use a qualified repair technician if unsure. Do not open the housing or modify wiring. Keep the unit dry and observe its maximum operating cycle. A new control box will only resolve faults caused by the control box; check the supply, controller, cables and powered legs as part of diagnosis.

Need help identifying your replacement?

Send clear photos of your original label, configuration sticker, sockets and equipment details to CouchGuard, or call 1300 268 244 before ordering.

Frequently asked questions

Which Kaidi model is this?

This listing covers KDDY094-308. The unit carries KDDY094, configuration DY094-308(S560) and reference 31201769.

What does S560 mean for compatibility?

This configuration is for legs with a 560mm stroke only. Check your original leg specifications before ordering.

Is 560mm the size of the control box?

No. It refers to the compatible leg stroke, not the housing dimensions.

What input and output ratings apply?

The input is 100-240V AC, 50/60Hz, 3.6A, 400VA. The output is 20.0V DC, 8.0A, 160.0W.

How long can it operate continuously?

The maximum duty cycle is 1 minute ON followed by 9 minutes OFF.

Will it replace any Kaidi control box?

No. Match the model, S560 configuration, leg stroke, controller, connections and wiring. Kaidi branding alone is not a compatibility check.

Are legs or a handset included?

No. This listing is for the control box only, without legs, handset or connecting cables.

Can CouchGuard help check the replacement?

Yes. Send photos of the original control-box label, configuration, sockets and equipment details before ordering.
