Buy Kaidi KDH120-005 Recliner Switch with USB & Single Five-Pin Plug

Kaidi KDH120-005 Recliner Switch with USB & Single Five-Pin Plug

A genuine Kaidi four-function replacement recliner switch with USB port and silver-finish-look faceplate, for a matching recliner and headrest control system. Supplied with wiring and one round five-pin plug.

Features and inclusions

• Four-function recliner and headrest control
• USB-A charging port
• Silver-finish-look faceplate
• Wiring with one round five-pin plug

Model and identification

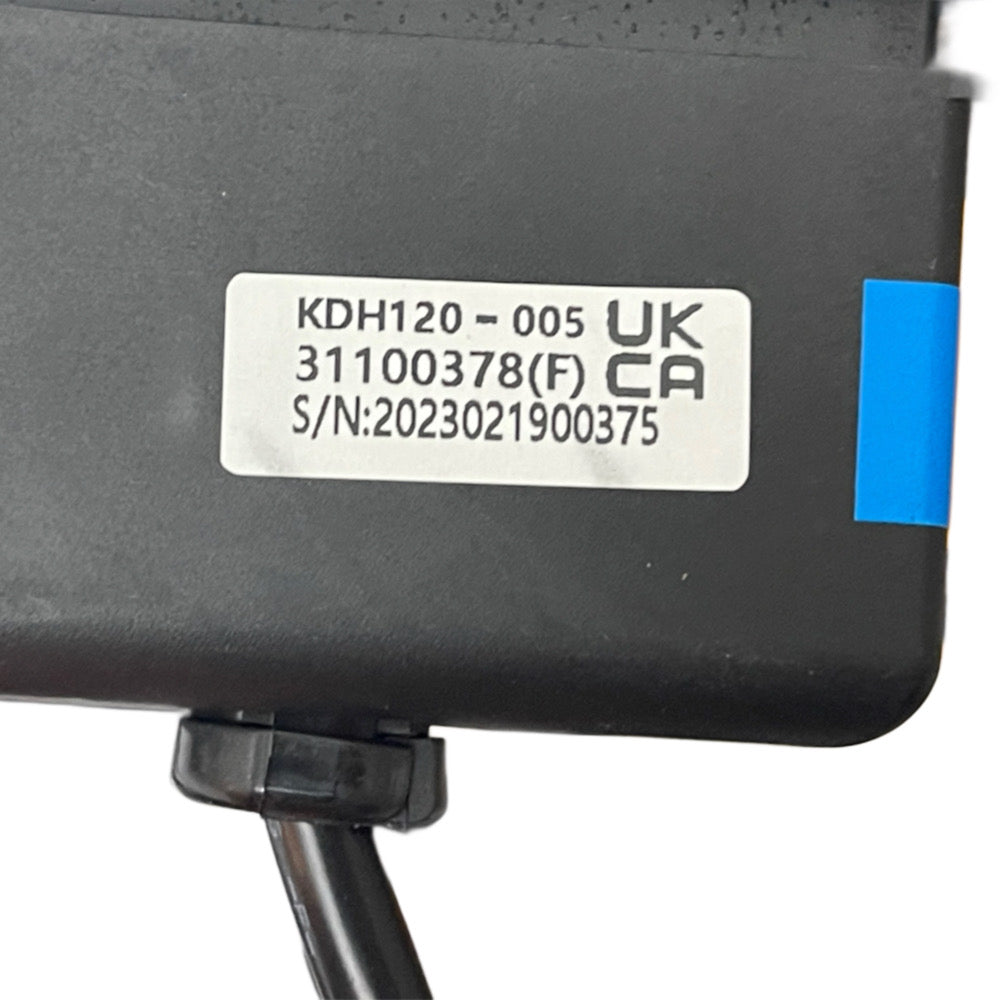

Manufacturer model KDH120-005; reference 31100378(F).

Will this fit my recliner?

Match KDH120-005 and its single round five-pin plug. KDH120-001 has two round five-pin plugs and is not an automatic substitute. Compare the original functions, mounting and wiring before ordering.

Compare the complete model reference, faceplate dimensions, fixing positions, button functions, wiring and connector keying before ordering. A matching brand, pin count or appearance alone does not establish compatibility.

The KDH120-001 USB switch is the separately listed dual-five-pin version. Check the original connections carefully.

Fitting your replacement switch

Disconnect the chair from mains power before removal. Photograph the original connections and mounting position. Use only matching connections without forcing plugs, splicing cables or changing wiring. Keep cables clear of moving mechanisms and pinch points. Use a qualified repair technician if unsure.

Check the fault before ordering

A power-supply, motor, control-box or wiring fault can produce similar symptoms to a faulty switch. A replacement switch resolves the problem only when the switch is the cause. Tell us which functions still work and describe the symptoms if you need help.

Need help matching your part?

Send clear photos of the original switch front, model sticker, plugs and mounting area, together with chair details and fault symptoms. Contact CouchGuard or call 1300 268 244 before ordering if unsure.

Frequently asked questions

What is included?

A genuine Kaidi four-function replacement recliner switch with USB port and silver-finish-look faceplate, for a matching recliner and headrest control system. Supplied with wiring and one round five-pin plug.

How do I check compatibility?

Match KDH120-005 and its single round five-pin plug. KDH120-001 has two round five-pin plugs and is not an automatic substitute. Compare the original functions, mounting and wiring before ordering.

Does a matching pin count guarantee compatibility?

No. The complete model, connector keying, original wiring, button functions and mounting must match. Brand, pin count and appearance alone are not enough.

How is KDH120-005 different from KDH120-001?

KDH120-005 has one round five-pin plug. KDH120-001 has two round five-pin plugs. Match the complete original model, number of connections, functions and wiring; the two models are not automatically interchangeable.

How do I fit the replacement switch?

Disconnect mains power first and photograph the original wiring and mounting. Use matching connections without altering wires or forcing plugs. Route cables clear of moving mechanisms and use a qualified repair technician if unsure.

Will this fix a recliner that will not move?

Only if the switch is the cause. A power-supply, motor, control-box or wiring fault can cause similar symptoms. Check accessible connections with the chair unplugged and tell us which functions still work before ordering.

Can CouchGuard help me match the part?

Yes. Send photos of the original switch front, model sticker, plugs and mounting area, plus the chair details and fault symptoms. Call 1300 268 244 or use our contact page.
