Buy Kaidi KDH127M-023 Recliner Switch with USB & Headrest Connection
Kaidi KDH127M-023 Recliner Switch with USB & Headrest Connection is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

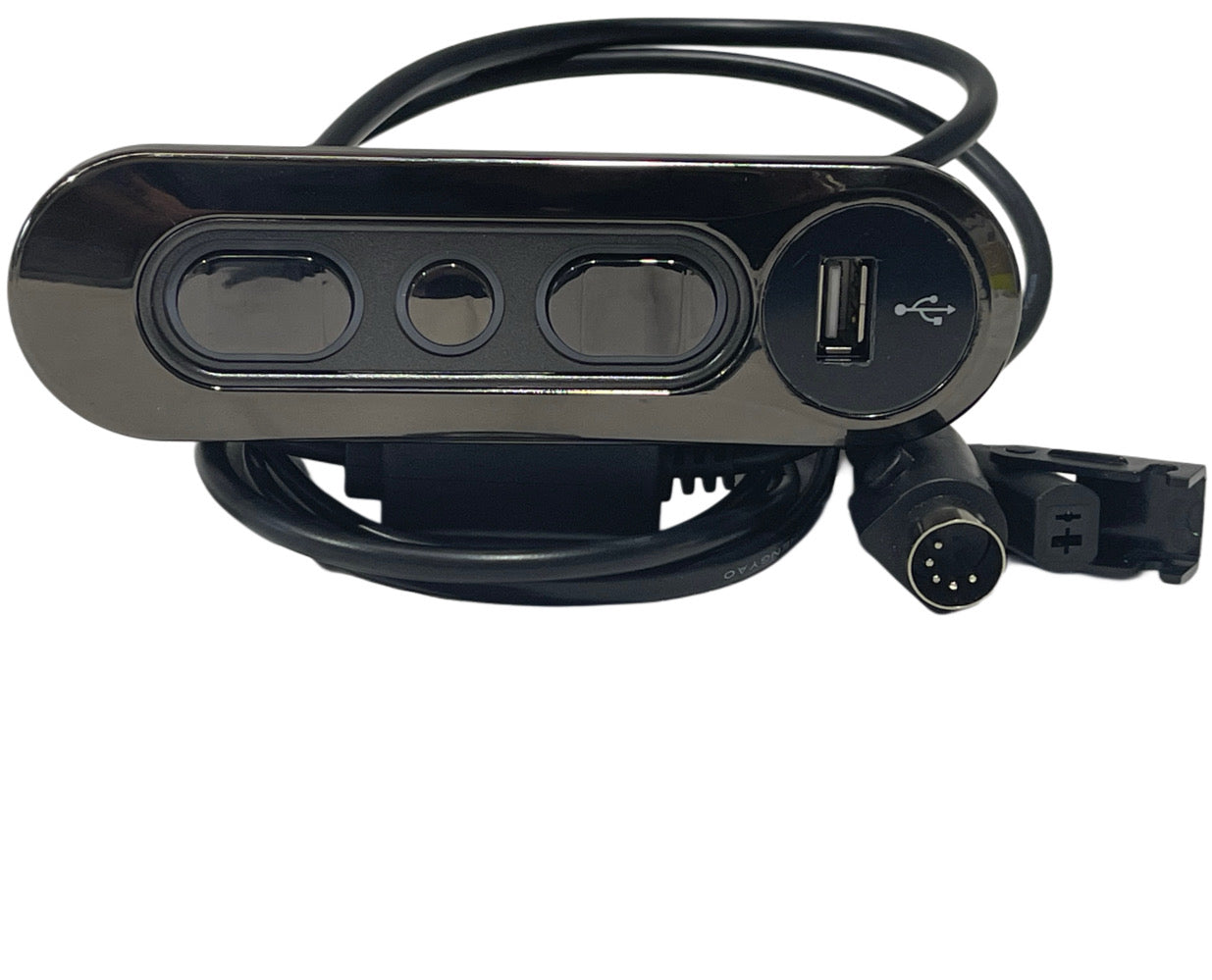

Kaidi KDH127M-023 Recliner Switch with USB & Headrest Connection
A genuine Kaidi replacement recliner switch with USB port, footrest, headrest and home controls. Supplied with wiring, round five-pin plug and a separate two-pin headrest connection.
Features and inclusions
- Footrest and headrest controls with home button
- USB-A charging port
- Round five-pin plug

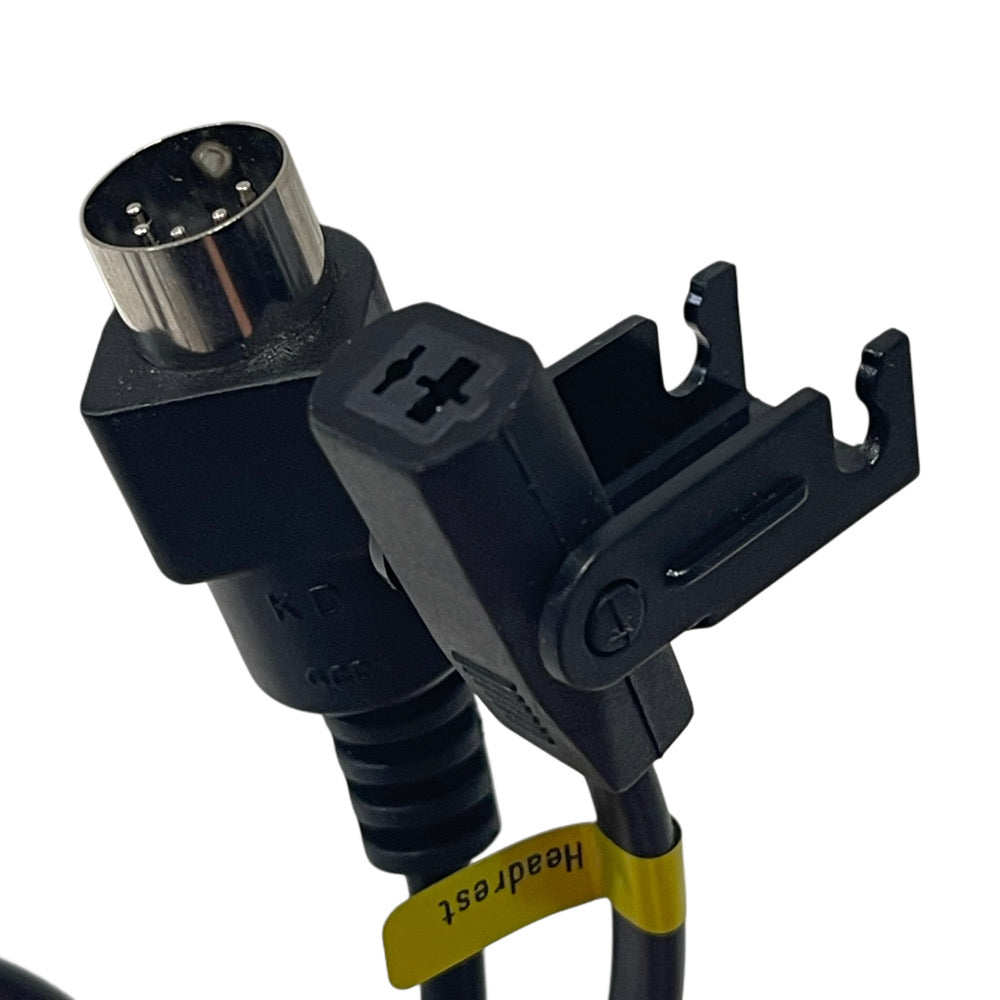

- Separate two-pin female headrest connection with retaining clip
Model and identification

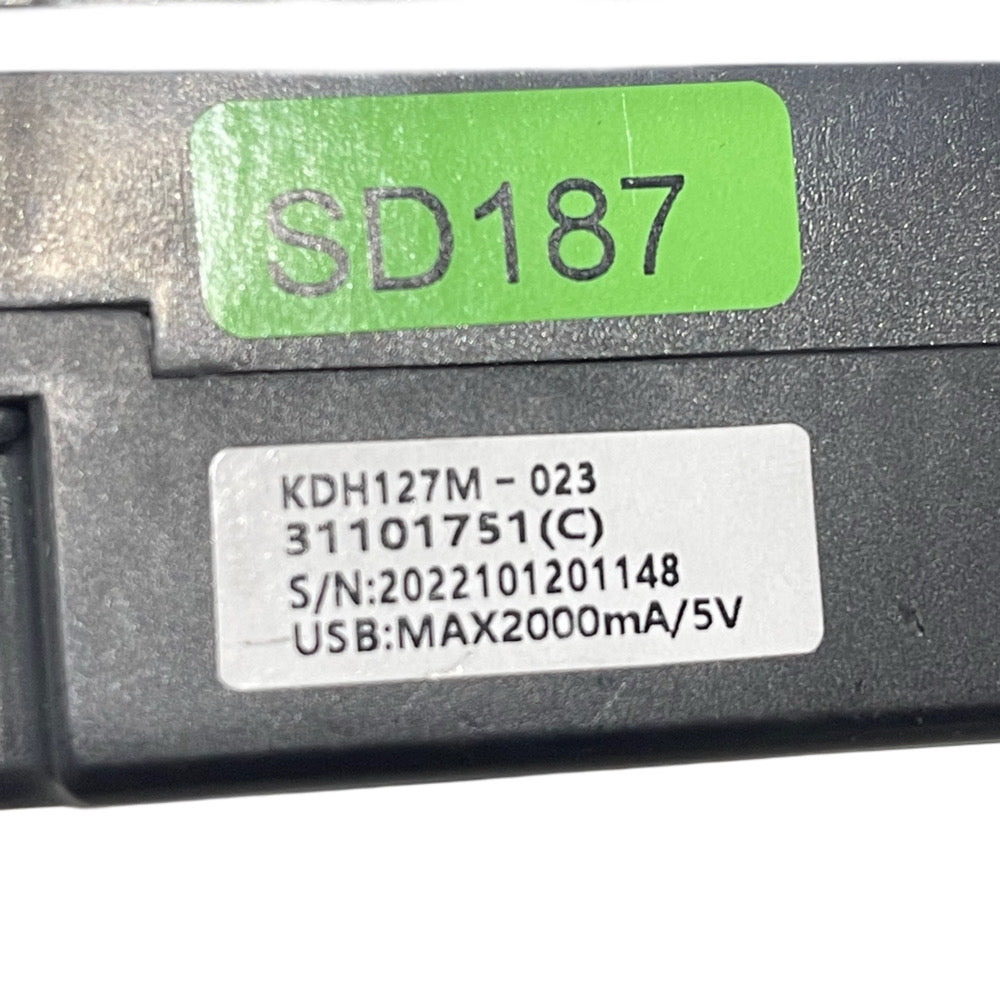

Manufacturer model KDH127M-023; reference 31101751(C). USB output: 5V, maximum 2000mA (2A).
The USB rating is the charging-port output, not the recliner supply voltage. It does not establish USB-C Power Delivery or fast-charge support.
Will this fit my recliner?
Match KDH127M-023 and both original connectors, including the headrest connection and retaining clip. Compare the original functions, mounting and wiring; a five-pin plug alone does not establish a fit.
Compare the complete model reference, faceplate dimensions, fixing positions, button functions, wiring and connector keying before ordering. A matching brand, pin count or appearance alone does not establish compatibility.
Fitting your replacement switch
Disconnect the chair from mains power before removal. Photograph the original connections and mounting position. Use only matching connections without forcing plugs, splicing cables or changing wiring. Keep cables clear of moving mechanisms and pinch points. Use a qualified repair technician if unsure.
Check the fault before ordering
A power-supply, motor, control-box or wiring fault can produce similar symptoms to a faulty switch. A replacement switch resolves the problem only when the switch is the cause. Tell us which functions still work and describe the symptoms if you need help.
Need help matching your part?
Send clear photos of the original switch front, model sticker, plugs and mounting area, together with chair details and fault symptoms. Contact CouchGuard or call 1300 268 244 before ordering if unsure.
Frequently asked questions
What is included?
A genuine Kaidi replacement recliner switch with USB port, footrest, headrest and home controls. Supplied with wiring, round five-pin plug and a separate two-pin headrest connection.
How do I check compatibility?
Match KDH127M-023 and both original connectors, including the headrest connection and retaining clip. Compare the original functions, mounting and wiring; a five-pin plug alone does not establish a fit.
Does a matching pin count guarantee compatibility?
No. The complete model, connector keying, original wiring, button functions and mounting must match. Brand, pin count and appearance alone are not enough.
Does this include a headrest connection?
Yes. It has a separate two-pin female headrest connection with retaining clip, as well as the round five-pin plug. Match both original connections and control functions before ordering.
How do I fit the replacement switch?
Disconnect mains power first and photograph the original wiring and mounting. Use matching connections without altering wires or forcing plugs. Route cables clear of moving mechanisms and use a qualified repair technician if unsure.
Will this fix a recliner that will not move?
Only if the switch is the cause. A power-supply, motor, control-box or wiring fault can cause similar symptoms. Check accessible connections with the chair unplugged and tell us which functions still work before ordering.
Can CouchGuard help me match the part?
Yes. Send photos of the original switch front, model sticker, plugs and mounting area, plus the chair details and fault symptoms. Call 1300 268 244 or use our contact page.
Is the USB rating the recliner supply voltage?
No. The USB output is 5V, maximum 2000mA (2A). This is not the recliner supply voltage and does not establish USB-C Power Delivery or fast-charge support.
