Buy Kaidi KDPT007-54 Recliner Actuator

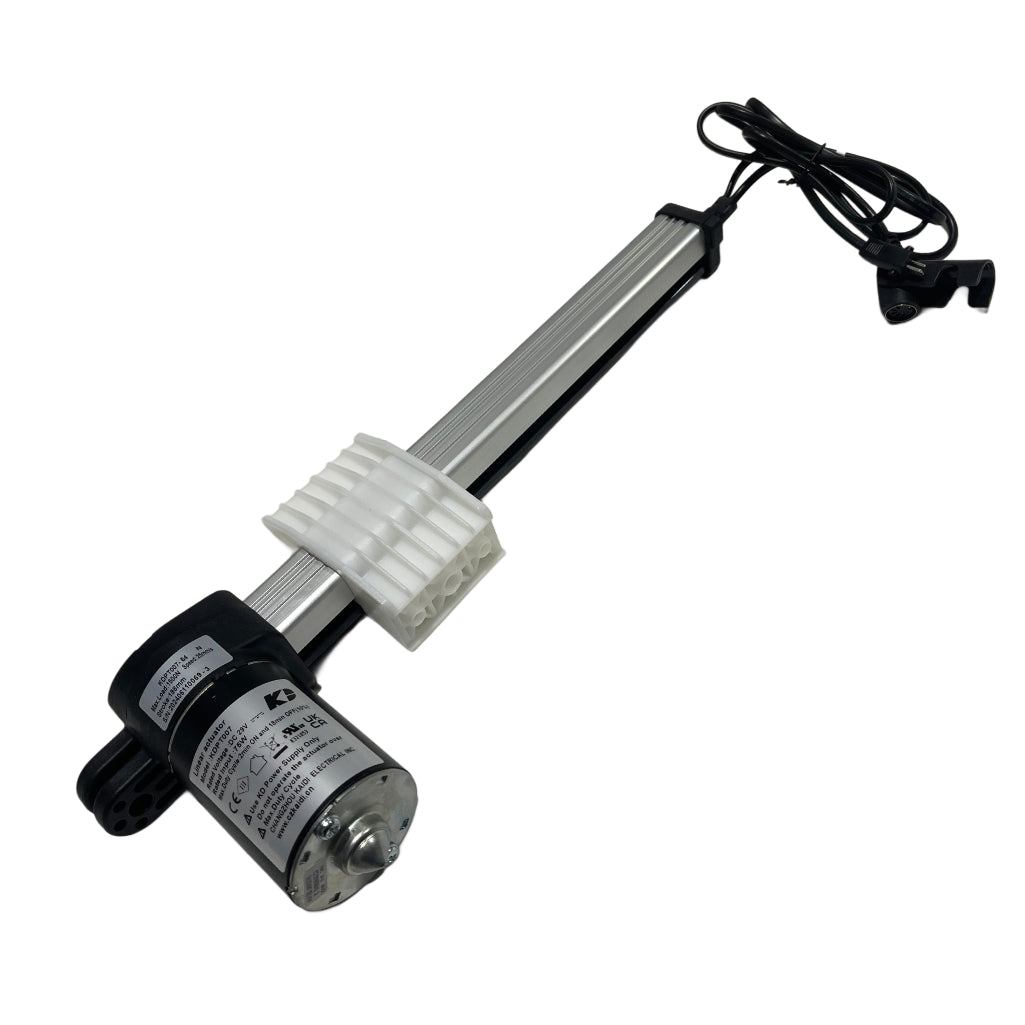

Kaidi KDPT007-54 recliner actuator

Replace a matching recliner actuator with the genuine Kaidi KDPT007-54. The current listing specifies a 198 mm stroke and 25 mm/s speed and says the unit includes its cabling and plugs. Match the full model and all mechanical and electrical details of your original actuator before ordering.

Listed specifications

• Manufacturer and model: Kaidi KDPT007-54.
• Stroke: 198 mm.
• Max Load 1500N
• Speed: 25 mm/s, as stated on the existing listing.

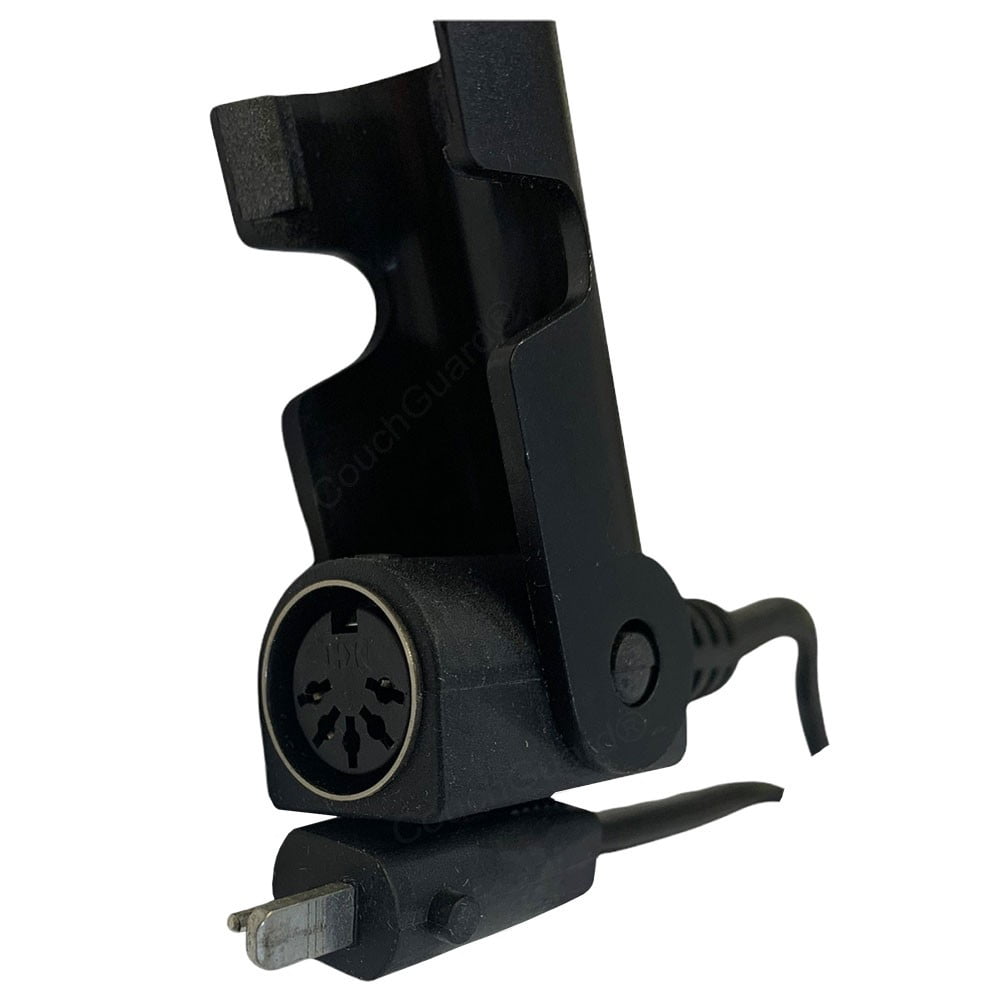

• Includes cabling and plugs, 2 pin I0 and round 5 pin connections as shown.

Check compatibility before ordering

Compare the original manufacturer's model number, stroke, fully retracted and extended installation lengths, mounting points, cable routing, connector shape, pin arrangement, voltage and any additional leads or sensors. These details are not all specified on this listing, so do not assume the actuator fits based on chair brand or a similar-looking plug. Send CouchGuard clear photos of your old motor label, full actuator, mounts and plug ends if you need help checking the match.

Replacement guidance

For an exact matching replacement, the supplied cabling and plugs may allow a plug-and-play connection. That does not mean different Kaidi models or similar connectors are interchangeable. Disconnect the chair from mains power, support moving parts and follow the chair manufacturer's instructions before removing the old actuator. Do not force a plug or operate a mechanism with damaged wiring or an obstruction; ask a qualified repairer if you are uncertain.

How to replace a matching actuator

1. Confirm the part first. Compare the original KDPT007-54 label, stroke, installation length, mounting points and both connector ends with this replacement. Do not proceed if the labels, wiring or mounting geometry differ.
2. Isolate and support the chair. Unplug the chair from mains power and disconnect any battery pack. Keep hands clear of moving links and securely support the recliner mechanism so it cannot drop or shift when the actuator is released. If you cannot support it safely, use a qualified repairer.
3. Record the original installation. Photograph the actuator orientation, mounting hardware, cable route and every plug before disconnecting anything. Follow the chair manufacturer's instructions for access and removal.
4. Remove the old unit carefully. Disconnect plugs by their housings, not the wires. With the mechanism supported, release the original mounting hardware as specified for your chair and remove the old actuator. Keep track of the hardware and its original positions.
5. Fit the matching replacement. Position the KDPT007-54 in the same orientation, use the correct original mounting hardware if suitable, and secure it according to the chair manufacturer's instructions. Do not force mounting holes into alignment or substitute unverified hardware.
6. Reconnect and route cables. Match each connection to the original photographs and plug arrangement. Ensure connectors seat without force, and keep cables clear of hinges, moving parts and pinch points.
7. Test cautiously. Clear tools and hands from the mechanism, restore power, and test a short movement while watching for binding, unusual noise or cable contact. Stop immediately if movement is uneven or any connection heats, sparks or behaves unexpectedly. Recheck the installation or seek qualified help.

This is general guidance, not a chair-specific service manual. The mounting hardware, exact pinout and electrical ratings for your installation have not been verified here. Never work on the mechanism while it is powered or unsupported.

Frequently asked questions

What is the stroke of the KDPT007-54? The existing product specification lists a 198 mm stroke.

What speed is listed? The existing product specification lists 25 mm/s. Check the original label and system requirements for an exact match.

Does it come with cables and plugs? Yes, the existing listing says cabling and plugs are included. Check both connector ends against your original part.

Will it fit any Kaidi recliner? No. Match the KDPT007-54 model and the stroke, mounting geometry, electrical ratings, connectors and wiring of your original actuator.

What should I send for a fit check? Photos of the motor label, the entire actuator, its mounting points and every connector, plus your chair's model details if available.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.
