Buy Kaidi KDPT010-101 Headrest Actuator | 110mm Stroke | 800N

Kaidi KDPT010-101 replacement headrest actuator

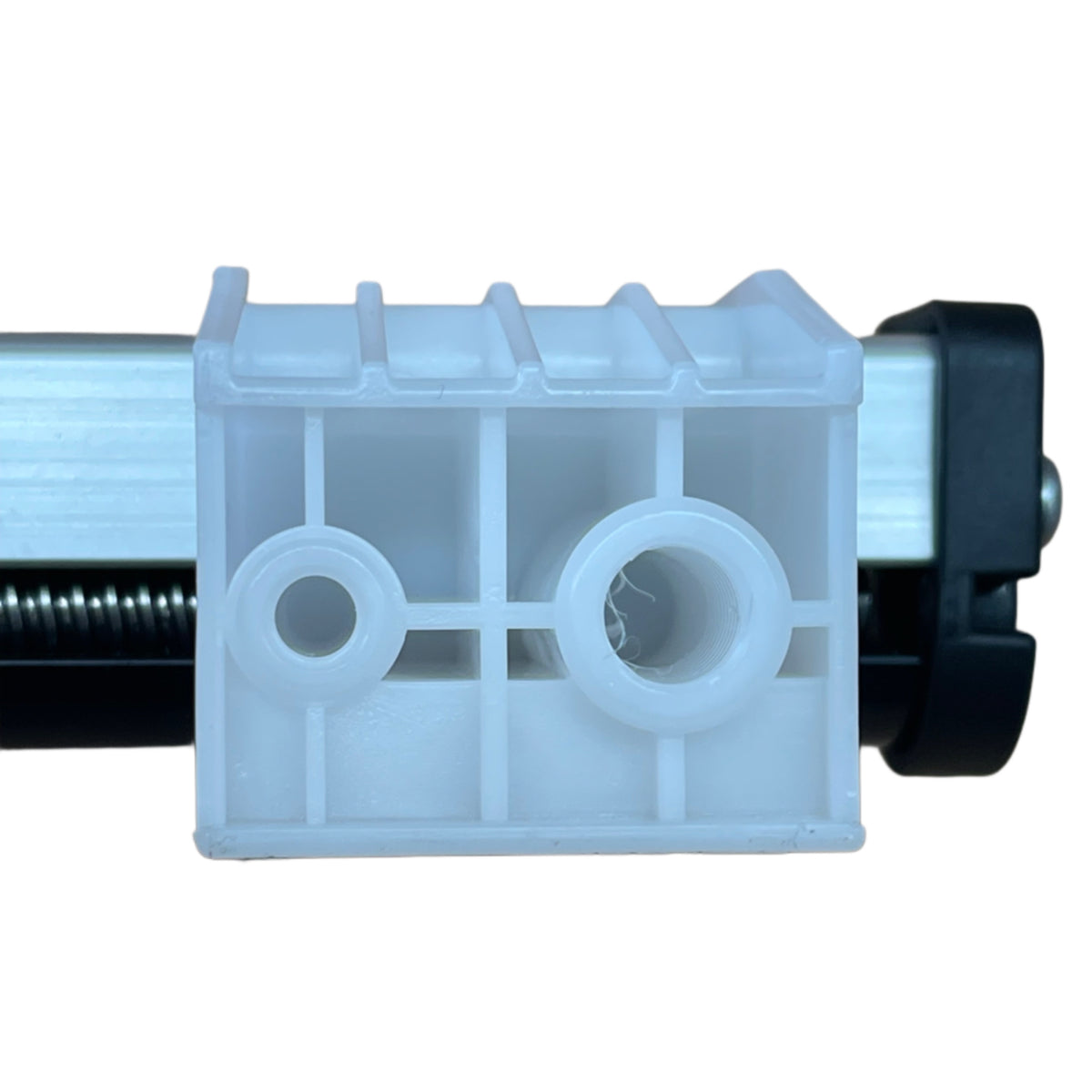

The genuine Kaidi KDPT010-101 is a replacement actuator commonly used as a powered headrest motor in compatible recliners. It has a 110mm stroke, 800N maximum load and 12mm/s speed, with a white sliding carriage and a male two-pin connection.

Replace a correctly diagnosed faulty headrest motor with the matching actuator for your chair. Match the full model number, travel, mounting arrangement and electrical connection before ordering. Similar appearance or the same plug alone does not establish compatibility.

Specifications

• Brand: Kaidi
• Model / manufacturer part number: KDPT010-101
• Common application: powered recliner headrest adjustment

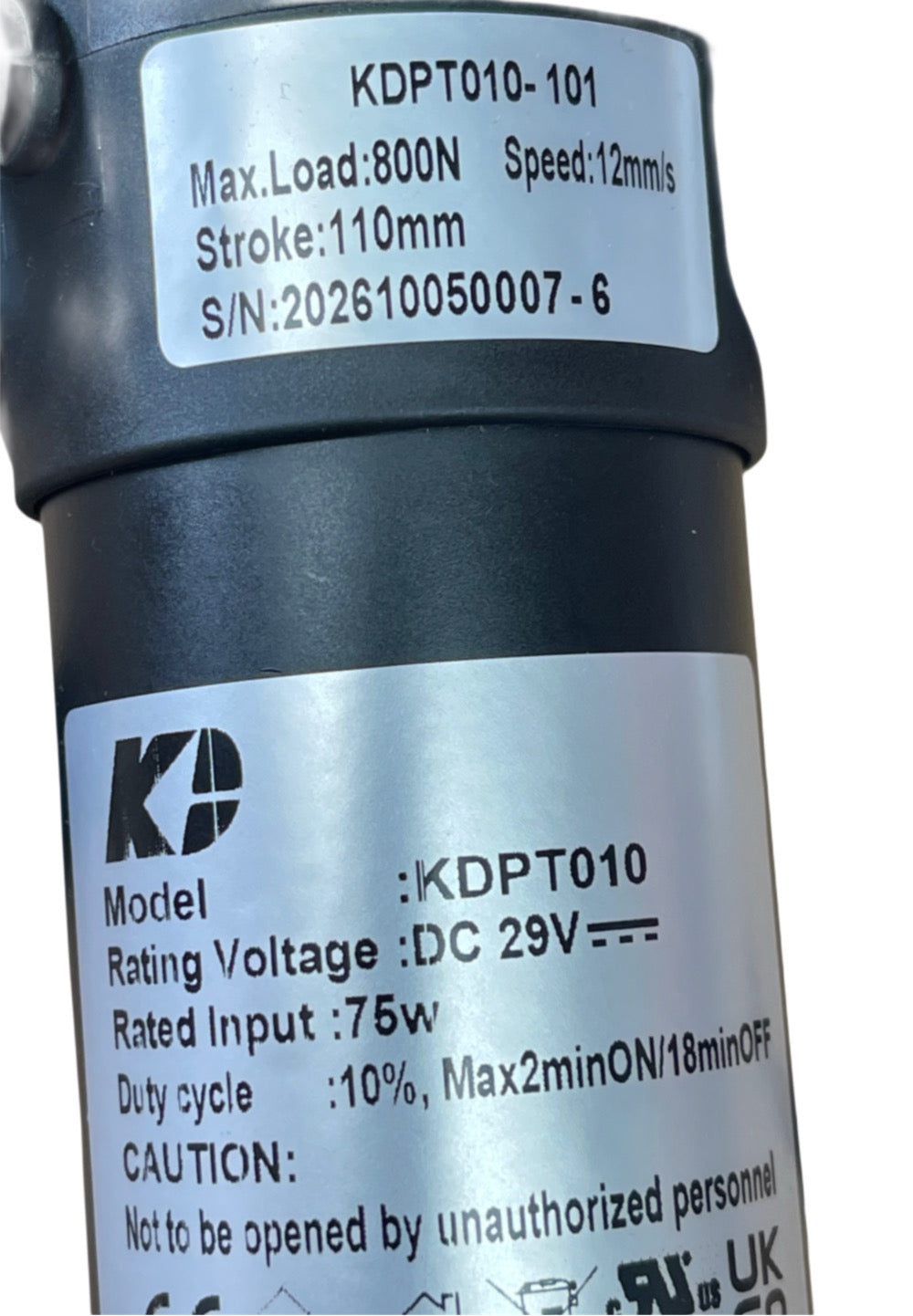

• Rated voltage: DC 29V
• Rated input power: 75W
• Duty cycle: 10%, maximum 2 minutes on / 18 minutes off

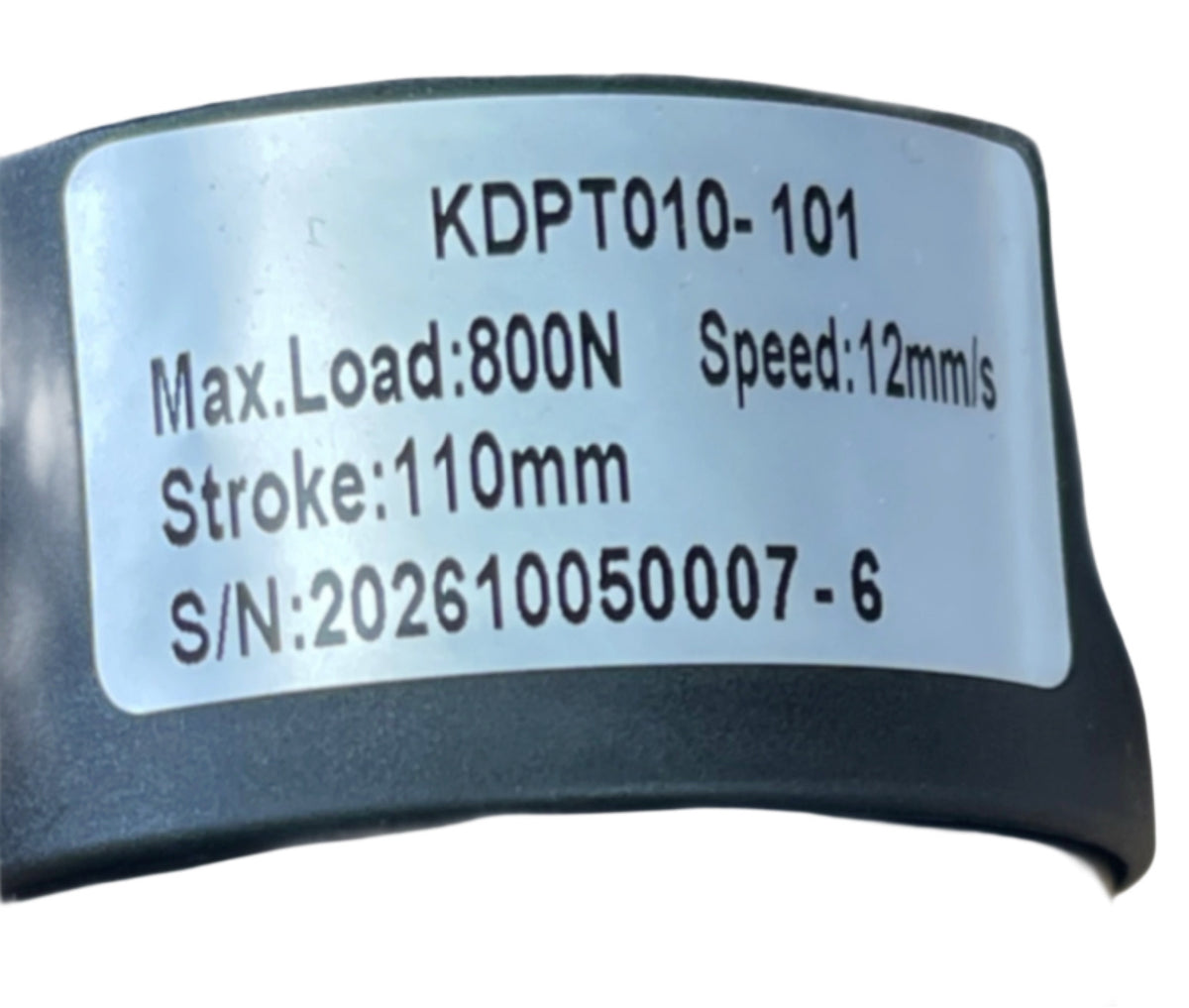

• Stroke: 110mm
• Maximum load: 800N
• Speed: 12mm/s

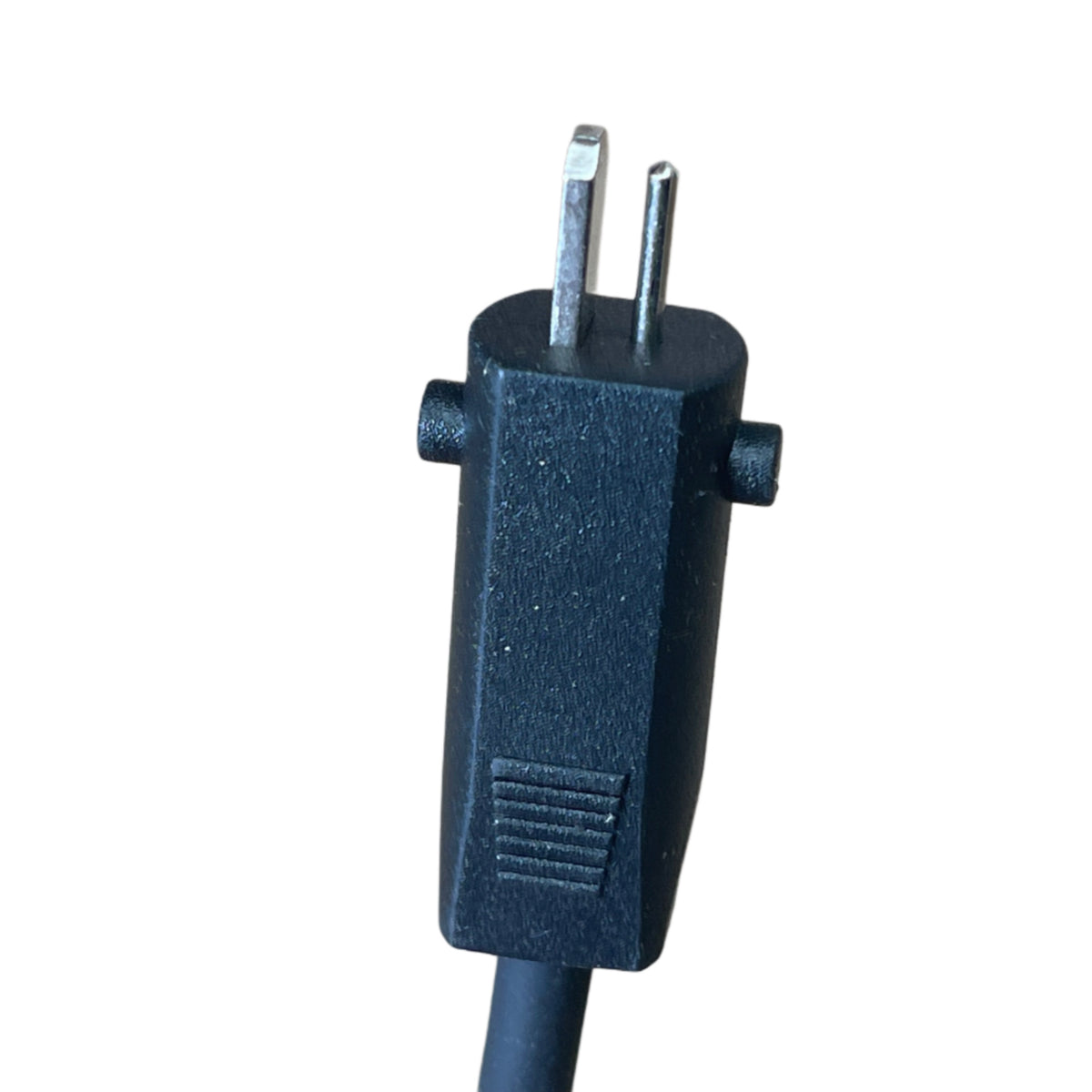

• Connection: male two-pin I/O plug with one flat pin and one round pin

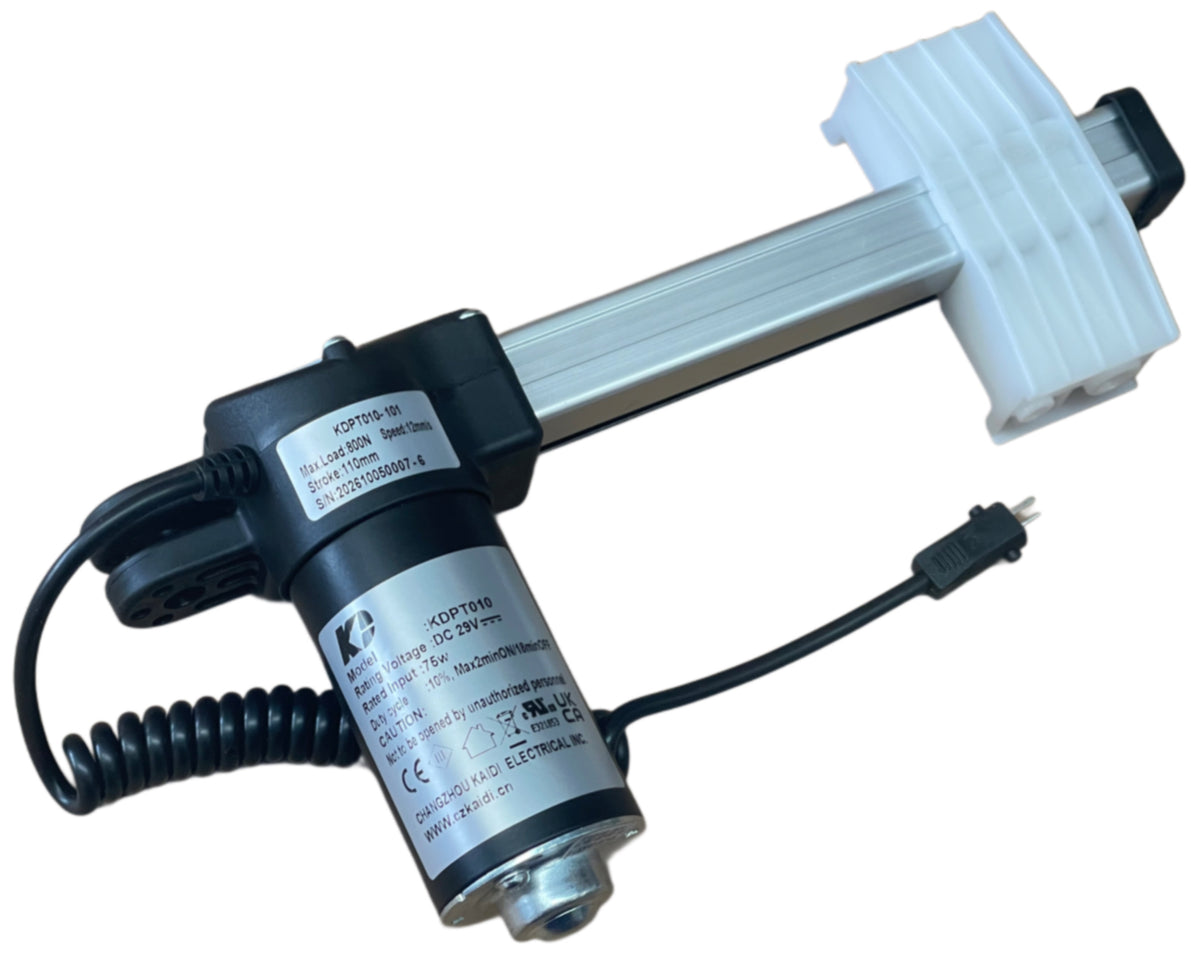

• Design: sliding carriage on a metal rail, with a coiled section in the cable

This actuator is designed for intermittent operation. Observe the maximum two-minute operating period followed by 18 minutes off; it is not a continuous-duty motor.

Check compatibility before ordering

Compare KDPT010-101 with the complete model on your original actuator. Check the mounting points, carriage fixing holes, rail dimensions, stroke, plug arrangement and chair control system. Do not assume another KDPT010 model is interchangeable.

The 800N figure is the actuator's maximum load rating, not a chair occupant-weight rating. Headrest suitability depends on the original chair installation and mechanism. Match the original power and control system as well as the DC 29V rating; voltage alone does not confirm compatibility.

If uncertain, contact CouchGuard on 1300 268 244 with clear photos of your original actuator label, complete motor, mounting points and plug. Include the chair model and describe which movements still work.

Replacement and fault checks

A headrest that stops moving can have an actuator, wiring, handset or control-box fault. Diagnose the fault before purchasing a replacement motor. Disconnect mains power and any battery backup before servicing. Follow the chair manufacturer's instructions, avoid forcing plugs or altering wiring, and keep cables clear of moving mechanisms. Use a qualified repair technician if access or fitting is uncertain.

Frequently asked questions

What is the Kaidi KDPT010-101 used for?

It is commonly used as a powered headrest actuator in matching recliner installations.

What is the stroke?

The stroke is 110mm. Compare this with the original actuator and the headrest mechanism's required travel.

What are its load and speed ratings?

The maximum load is 800N and the speed is 12mm/s. The load rating is not a chair occupant-weight limit.

What voltage and power is it rated for?

The rated voltage is DC 29V and the rated input power is 75W. Match the original actuator and chair control system rather than choosing by voltage alone.

Can it run continuously?

No. The duty cycle is 10%, with a maximum of two minutes on followed by 18 minutes off.

What connector does it have?

It has a male two-pin I/O plug with one flat pin and one round pin. Match the complete connection and chair system, not just the number of pins.

Will it fit every Kaidi-powered recliner?

No. Match the full KDPT010-101 model, stroke, mounting arrangement and control-system requirements before ordering.

Can I substitute another KDPT010 actuator?

Do not assume interchangeability. Different model suffixes can identify different travel, mountings or electrical arrangements.

Will a replacement motor fix a headrest that does not move?

Not necessarily. Handset, cable and control-box faults can produce similar symptoms. Identify the fault before replacing parts.

What should I send for a compatibility check?

Send clear photos of the original model label, complete actuator, mounting points, carriage and connector, along with the chair model if available.

Reach out to our team today by calling 1300 268 244 or emailing info@couchguard.com.au
