Buy Kaidi KDYJT013-120 Recliner Actuator | 287mm | 1500N

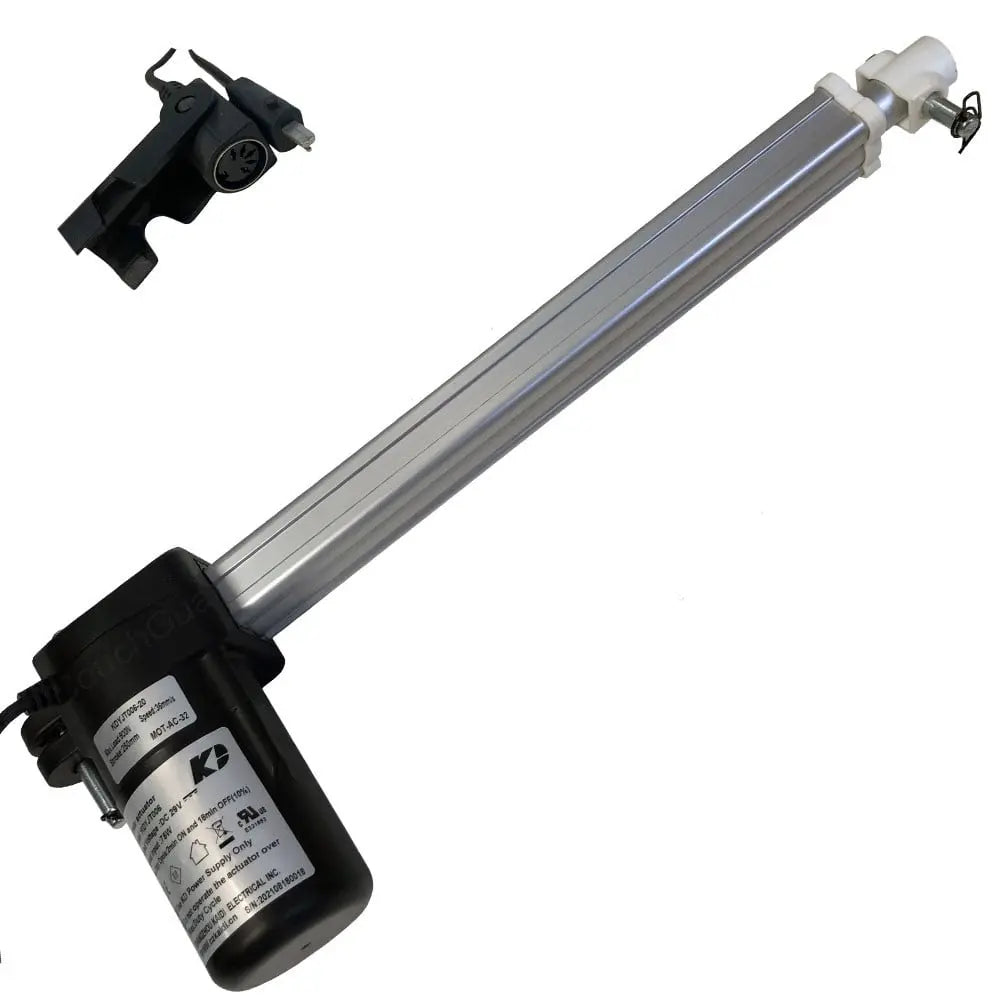

Kaidi KDYJT013-120 replacement recliner actuator

The genuine Kaidi KDYJT013-120 is a replacement electric recliner actuator with a 287mm stroke, 1500N maximum load and 25mm/s speed. It is rated for DC 29V with 76W input power.

Restore movement in a compatible recliner after identifying an actuator fault. Match the complete KDYJT013-120 model, mounting arrangement, travel and electrical connections with your original part before ordering. This is not a universal replacement for every Kaidi-powered chair.

Specifications

• Brand: Kaidi
• Manufacturer: Changzhou Kaidi Electrical Inc.

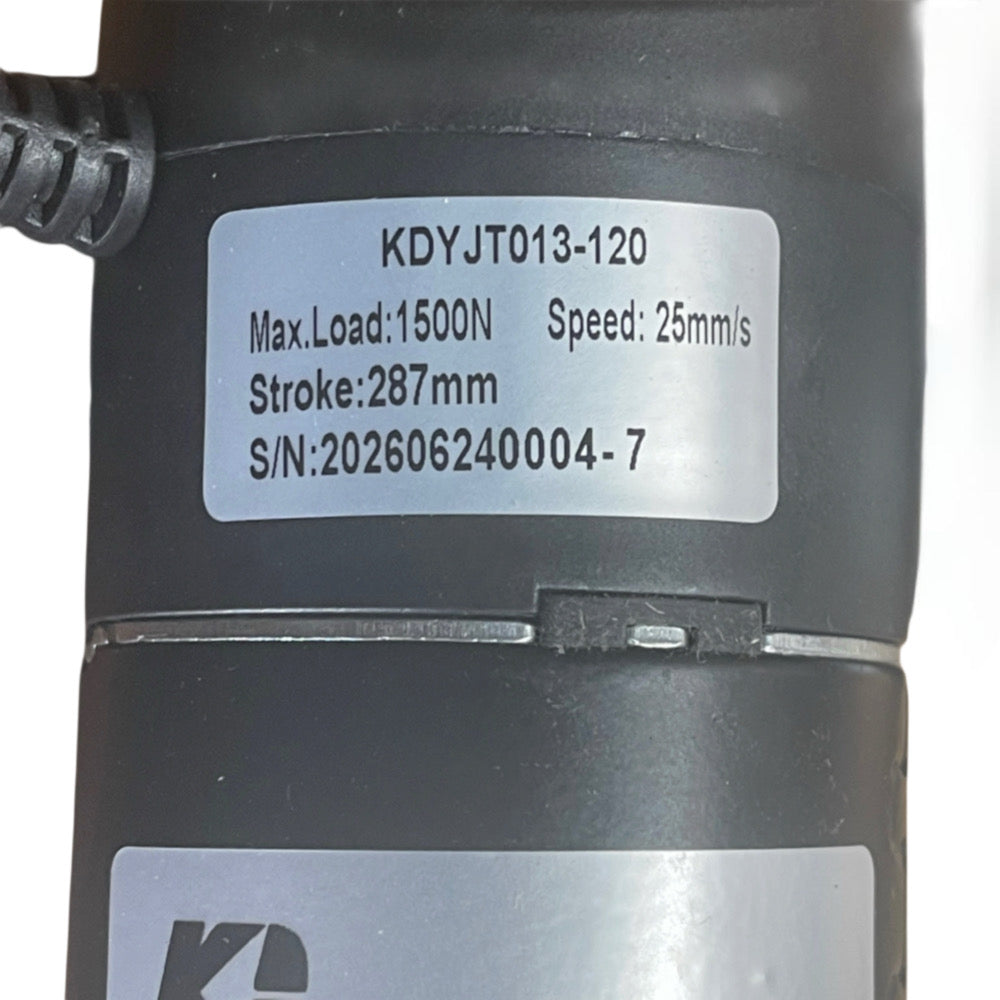

• Model / manufacturer part number: KDYJT013-120
• Model family: KDYJT013
• Stroke: 287mm
• Maximum load: 1500N
• Speed: 25mm/s

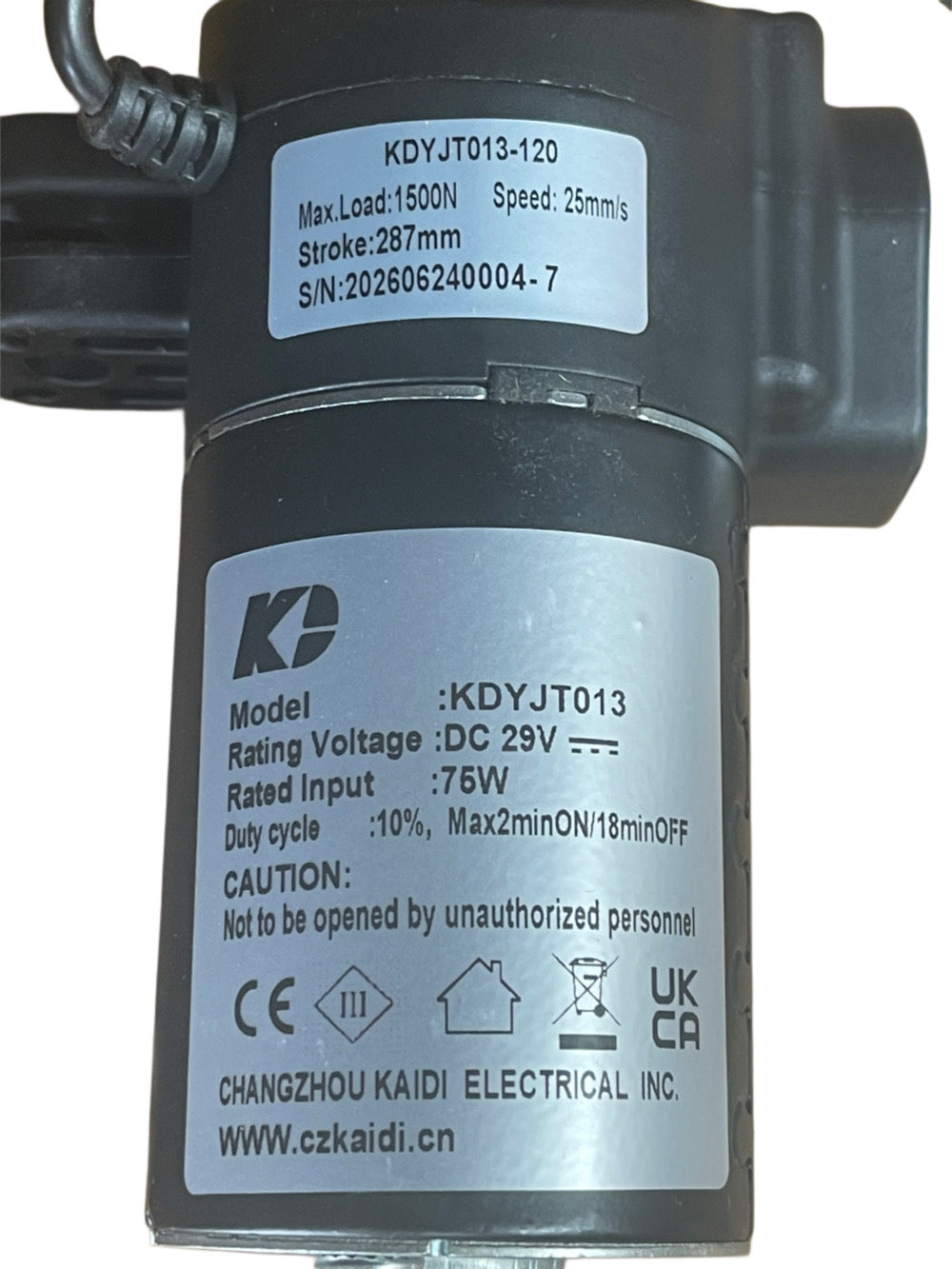

• Rated voltage: DC 29V
• Rated input power: 76W
• Duty cycle: 10%, maximum 2 minutes on / 18 minutes off

The 1500N rating describes the actuator's maximum load, not the chair's occupant-weight capacity. This is an intermittent-duty motor and must not be operated continuously.

Check compatibility before ordering

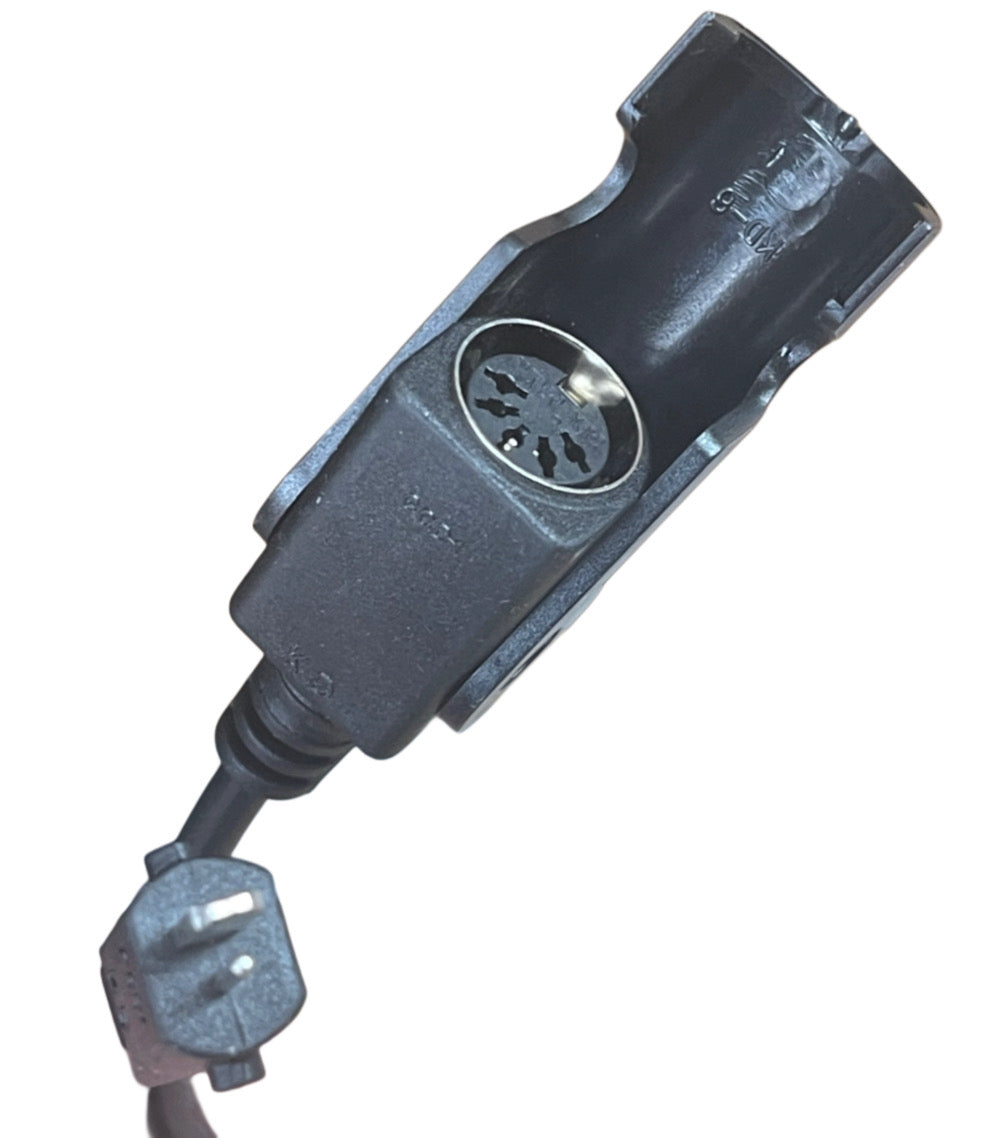

Compare the full model and suffix on your original actuator with KDYJT013-120. Check stroke, retracted and extended mounting dimensions, fixing points, cable routing and every connector. Match the original chair power supply, handset and control-system requirements as well as the voltage.

A similar housing, matching voltage or similar plug does not establish interchangeability. Do not substitute another KDYJT013 suffix or a KDYJT006 model without confirming the complete installation matches.

For help, contact CouchGuard on 1300 268 244 with clear photos of the original actuator label, complete assembly, mounting points and all electrical connections. Include the chair model and describe the fault and which movements still work.

Fault checks and fitting

A recliner that will not move can have a motor, handset, cable, power-supply or control-box fault. Diagnose the cause before replacing the actuator. Disconnect mains power and any battery backup before servicing, follow the chair manufacturer's fitting instructions and keep cables clear of moving mechanisms. Do not alter plugs or wiring to force a fit. Use a qualified repair technician if fitting or fault diagnosis is uncertain.

Frequently asked questions

What is the Kaidi KDYJT013-120?

It is a replacement electric recliner actuator for installations matching the complete KDYJT013-120 model and specifications.

What is its stroke?

The actuator stroke is 287mm. Stroke is the travel distance, not the actuator's overall length or mounting length.

What are the load and speed ratings?

The maximum load is 1500N and the speed is 25mm/s. The load rating is not an occupant-weight limit.

What voltage and input power does it use?

It is rated for DC 29V and 76W input. Match the original chair power and control system; voltage alone does not confirm compatibility.

Can this actuator run continuously?

No. Its duty cycle is 10%, with a maximum of two minutes on followed by 18 minutes off.

Will it replace any Kaidi KDYJT013 motor?

No. Match the full KDYJT013-120 model, travel, mounting arrangement and electrical connections. Different suffixes must not be assumed interchangeable.

Will replacing the motor fix a recliner that does not move?

Not necessarily. Handset, cable, power-supply and control-box faults can cause similar symptoms. Confirm the fault before ordering.

What information helps CouchGuard check the replacement?

Send clear photos of the full model label, complete actuator, mountings and all plugs, together with the chair model and a description of the fault.
