Buy LINAK HB8545V3103+61 9-Button Medical Bed Handset

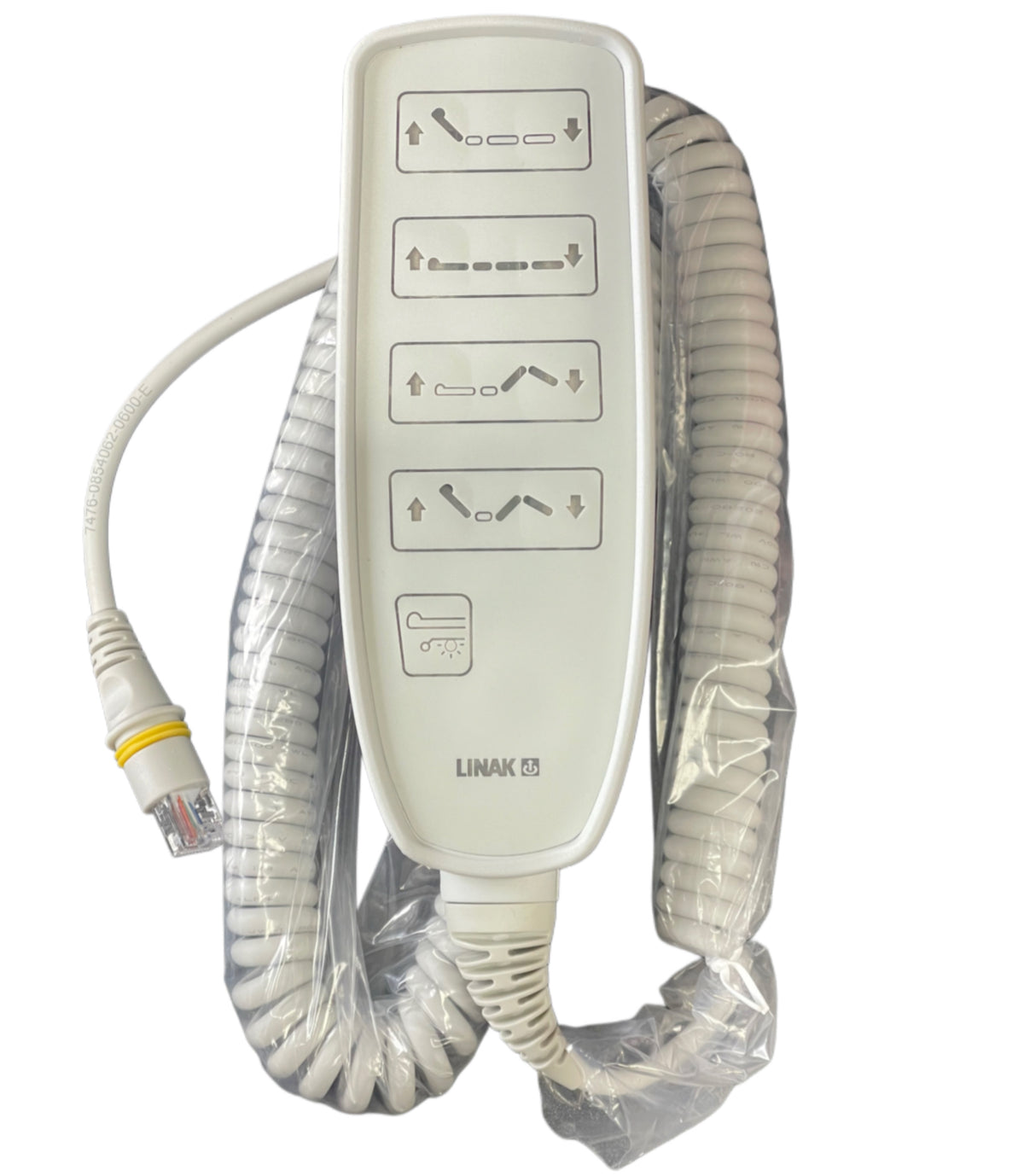

LINAK HB8545V3103+61 Medical Bed Hand Control

The LINAK HB8545V3103+61 nine-button handset is a replacement hand control for a matching medical bed system. It is designed and made in Denmark and carries an IPX4 label marking.

When replacing an existing hand control, start with the complete item number rather than appearance alone. Match the original handset, button symbols, connector and control box to select the correct control for your bed.

LINAK HB8545V3103+61 Specifications

• Brand: LINAK.
• Manufacturer item: HB8545V3103+61.
• Product: medical bed handset / hand control.
• Button count: nine.
• Protection marking: IPX4.
• Design origin: Denmark.
• Manufacturing origin: Denmark.
• Label warning: not to be opened by unauthorised personnel.

Compatibility and Ordering

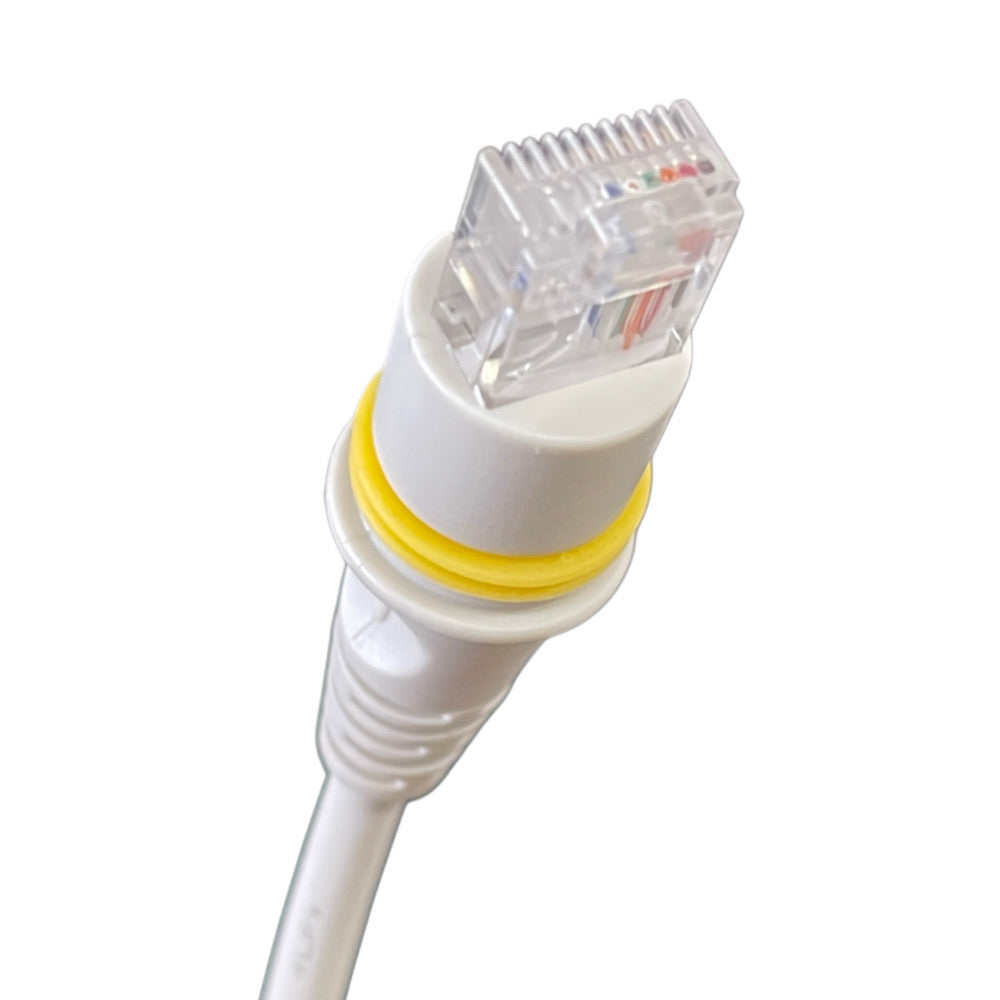

This is not a universal medical bed handset. Match the full HB8545V3103+61 item number, button layout and symbols, complete plug shape and keying, and control-box model. A matching pin count alone does not establish compatibility. The available movements depend on the original bed system.

Contact CouchGuard with clear photos of your original handset front, rear label, connector and control-box label if you need replacement matching help. Do not assume interchangeability with J14430, J11769 or another LINAK control without confirmation.

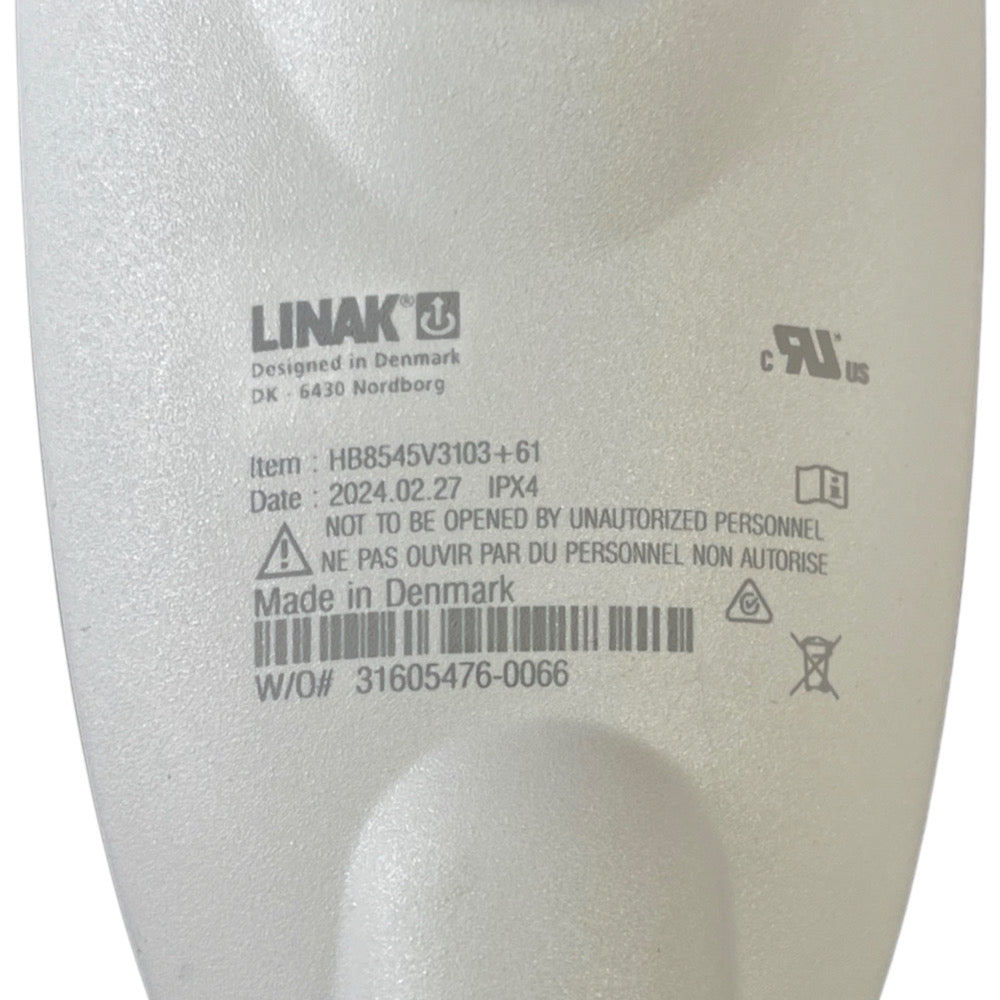

Label Identification

The photographed label shows date 2024.02.27 and work-order reference 31605476-0066. These identify the pictured unit, not a guaranteed production date or work-order number for every supplied handset. Use the manufacturer item number and system details for compatibility checks.

Replacement and Care

Disconnect power and follow the equipment maker's service instructions. Photograph the original connection, never force a plug and check intended movements from a safe position after fitting a confirmed match. Use a qualified service technician where required for medical equipment. Do not open the handset unless authorised, and follow the equipment maker's cleaning and care instructions.

Frequently Asked Questions

What is the exact model?

The manufacturer item printed on the label is HB8545V3103+61.

What is this handset used for?

It is a nine-button hand control for a matching medical bed system. Confirm the original item and control-box compatibility before ordering.

Will it fit every LINAK medical bed?

No. LINAK systems can use different handsets, connections and control configurations. Match the exact item and system.

Does the same plug or pin count guarantee compatibility?

No. Compare the full connector shape and keying as well as the item number, button layout and control box.

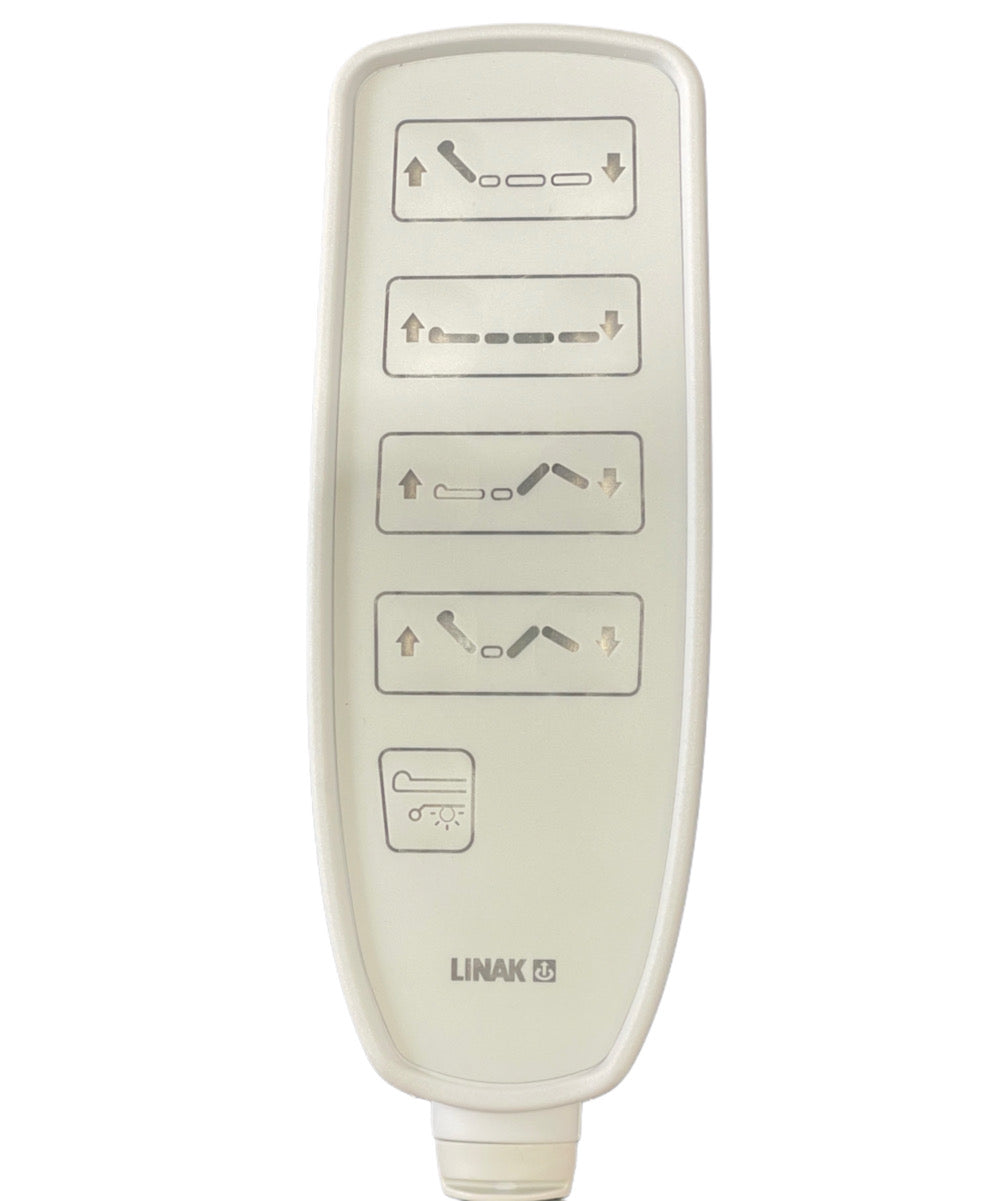

Which bed movements do the buttons control?

Button functions depend on the original bed system. Compare the button symbols and equipment instructions rather than assuming a universal layout.

Can it replace J14430 or J11769?

Do not assume so. This listing identifies HB8545V3103+61; any alternative replacement needs confirmation of the complete system match.

Where is it made?

The label states designed in Denmark and made in Denmark.

What protection marking is on the label?

The label is marked IPX4. Follow the equipment maker's instructions for use, cleaning and care.

What do the label date and work order mean for ordering?

They identify the photographed unit. They are not a general compatibility guarantee or a promise that every supplied unit has those same markings.

Can I open the handset to repair it?

The label warns against opening by unauthorised personnel. Follow the equipment maker's service requirements.

What photos help identify a replacement?

Send the handset front, rear label, complete plug and control-box label, together with the bed model where available.

How should a replacement be fitted?

Disconnect power, follow the equipment maker's instructions and never force a connector. Use a qualified service technician where required.
