Buy Moto Motion CM310 4-Motor Lift Chair Control Box

Moto Motion CM310 four-motor lift chair control box

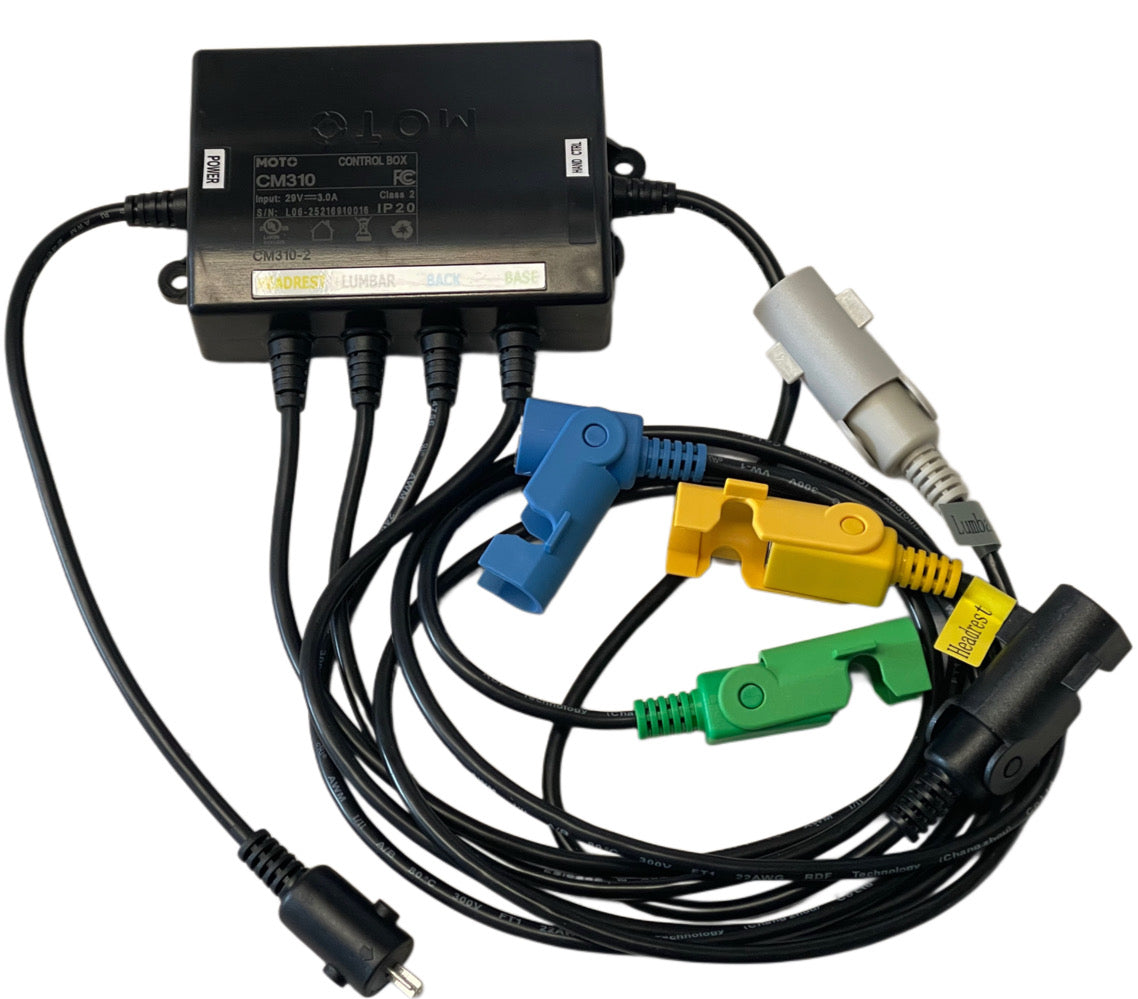

The Moto Motion CM310 operates a compatible four-motor lift-chair system. The supplied photo shows the CM310 model label, a 29V DC / 3.0A input, Class 2 and IP20 markings, and four output positions labelled Headrest, Lumbar, Back and Base. Use those labels to compare your original box; they identify connection positions, not a universal wiring standard.

Model and connection details

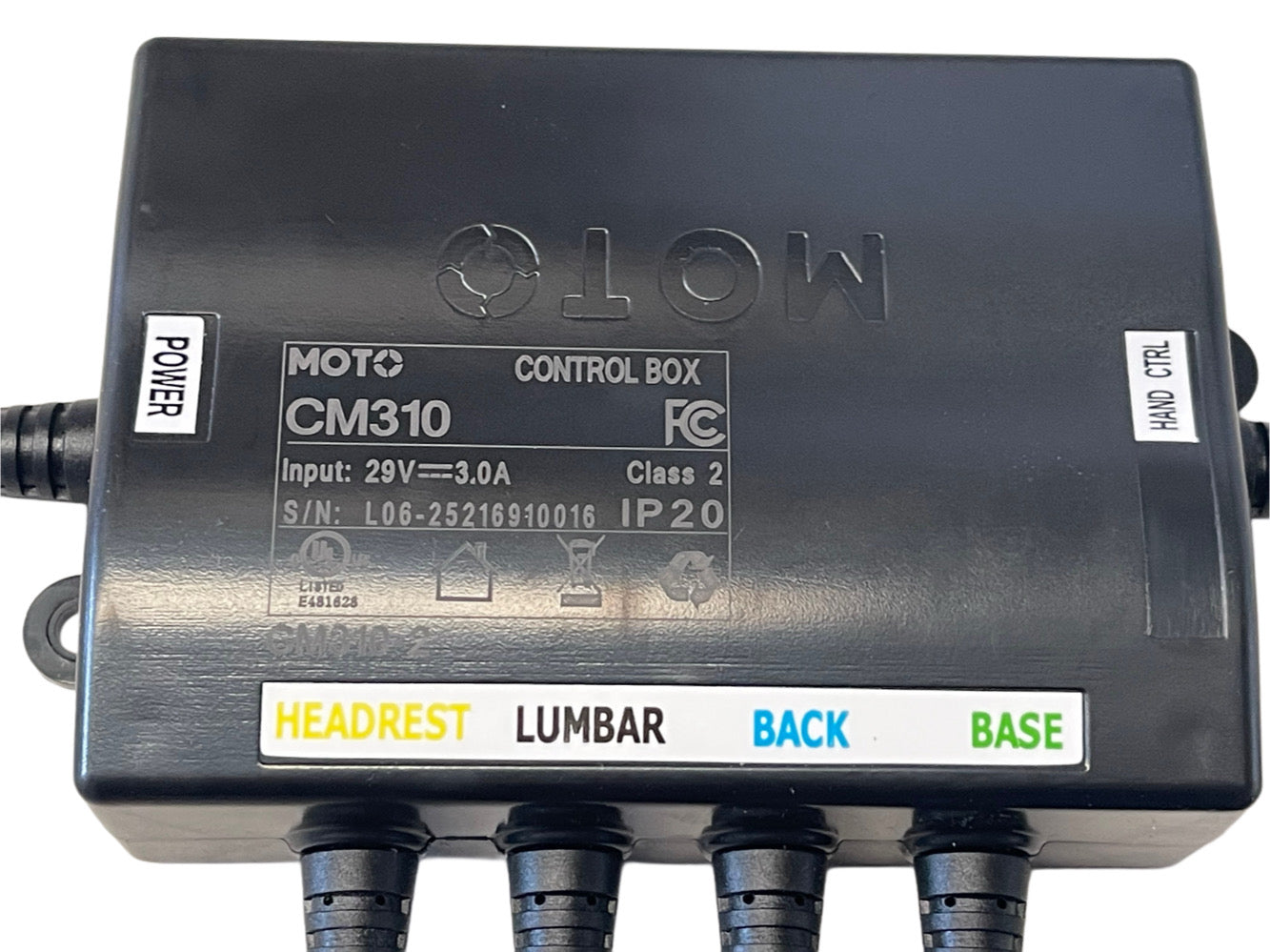

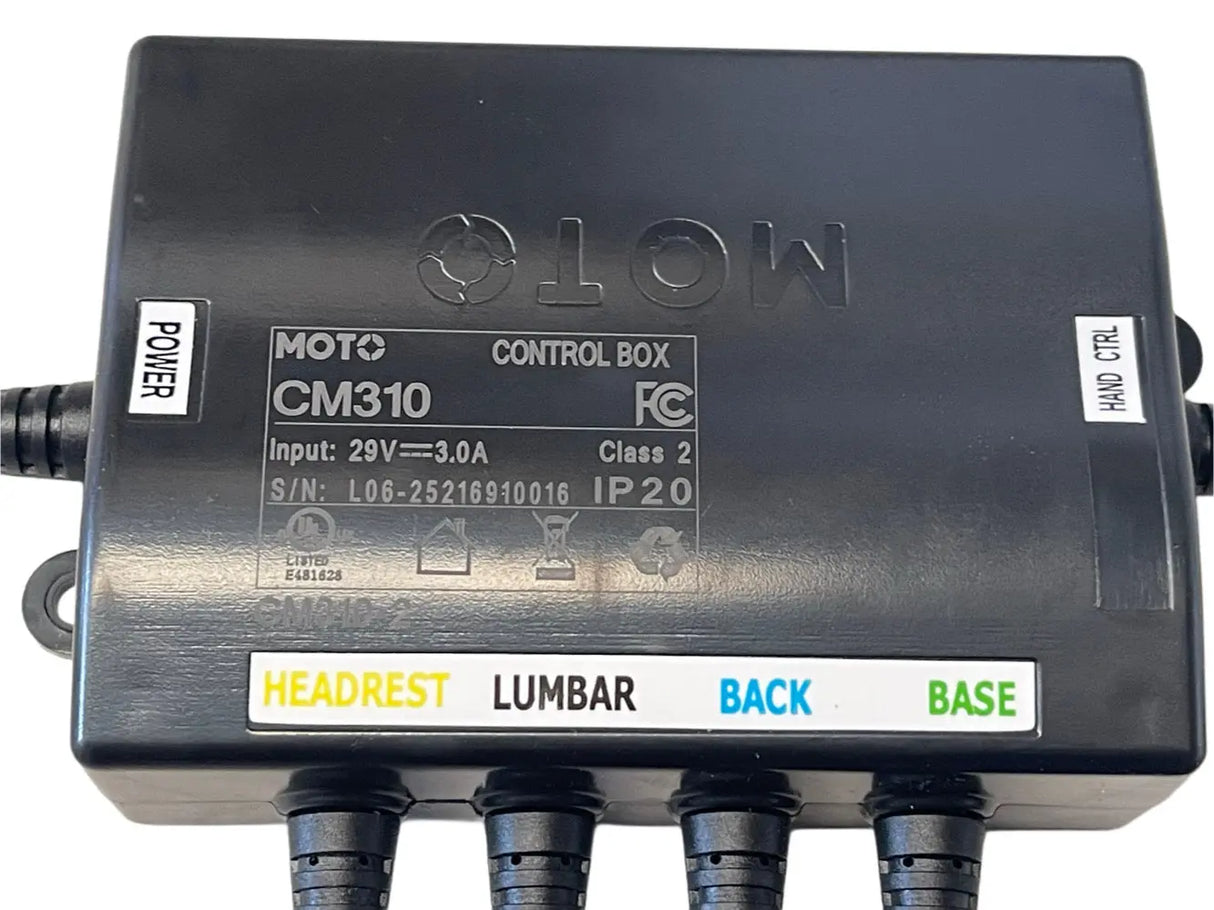

• Control-box reference: CM310, shown on the Moto Motion label.

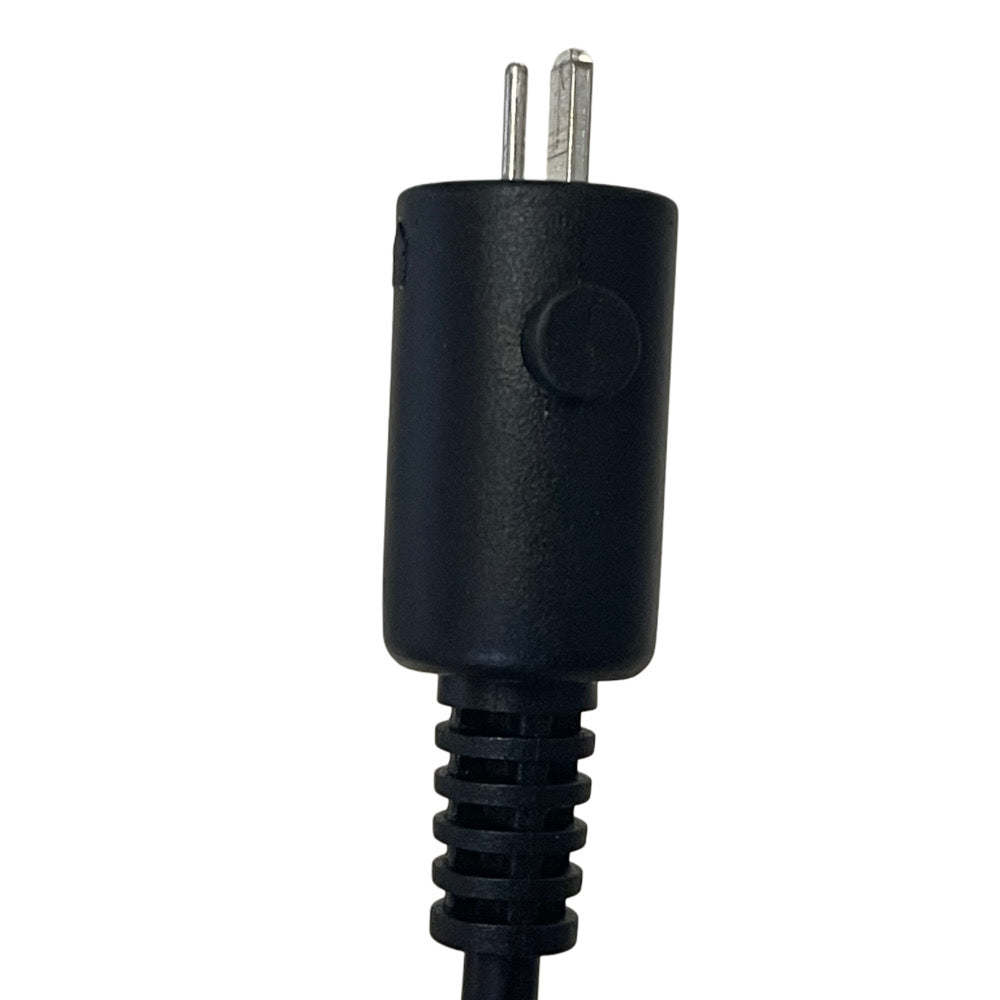

• Input marked on the photographed box: 29V DC, 3.0A. Match the original supply and polarity; do not assume any two-pin supply will work.

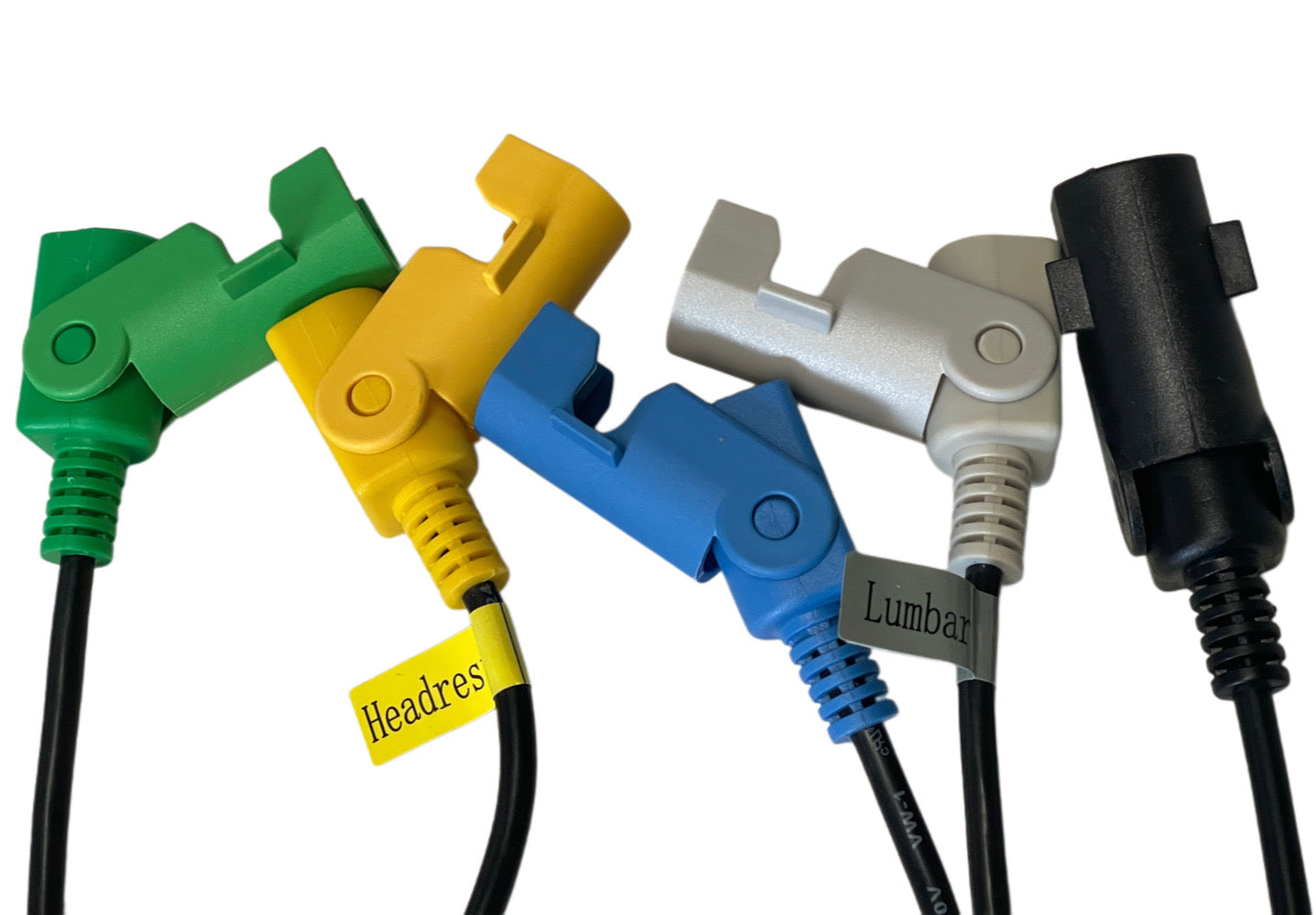

• Motor-position labels: Headrest, Lumbar, Back and Base. Check all four against your original chair and cable positions.
• Additional markings: Class 2 and IP20. Do not expose the box to moisture or use it outside the chair maker's specified environment.

Compatibility before ordering

This CM310 control box operates a matching four-motor lift-chair system and is compatible with the HSW310-B-PT handset and its successor HSW310-BB-PT, as confirmed by CouchGuard. It is not a universal Theorem control box: compare the complete original CM310 reference, 29V DC / 3.0A power input, all motor and handset connections, chair wiring and layout before ordering. If your original references differ, send clear photos of the control-box label, handset and plugs for a fit check.

Replacing a matching control box

1. Switch off and unplug the lift chair from the wall. Ensure the chair is stable before reaching its electrical components.
2. Photograph the original CM310 label, the four labelled motor positions and each cable connection before disconnecting anything.
3. Follow the chair maker's service instructions to remove the old box. Do not pull cables by their wires or force plugs.
4. Fit only a confirmed matching control box, reconnect each lead to its corresponding labelled position as documented, and route cables clear of moving parts and pinch points.
5. Restore power and test the headrest, lumbar, back and base movements from a safe position. Stop and seek a qualified repairer if any function acts differently or a connection is uncertain.

Frequently asked questions

How many motors does the CM310 operate? It is listed for a four-motor lift chair, with outputs labelled Headrest, Lumbar, Back and Base on the supplied photo.

What input is marked on the label? 29V DC, 3.0A. Match the original power system and connection before ordering.

Which handsets are compatible? CouchGuard confirms HSW310-B-PT and its successor HSW310-BB-PT for a matching CM310 system. Still check the original box, handset connection and chair wiring.

Can I install it in any Theorem chair? No universal fit is confirmed. Check the original CM310 reference and the chair's full four-motor wiring layout.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.

Selected Product Warranties

The following warranties apply to the listed products:

• 24-month warranty on all compatible actuators.
• 24-month warranty on all genuine Okin and TiMOTION actuators.
• 12-month warranty on all genuine Kaidi, eMoMo and Mulin actuators.
• 24-month manufacturer warranty on 6000mAh and 3950mAh batteries purchased on or after 11 September 2026.
• 12-month manufacturer warranty on the 2550mAh battery pack.

All actuators supplied by CouchGuard are tested by the manufacturer before leaving its facility. If a defect becomes apparent, contact us promptly with your order details so we can assess the product under the applicable warranty.
