Buy Mulin ML12-038 Recliner Headrest Actuator, 95mm Stroke

Genuine Mulin ML12-038 recliner headrest actuator

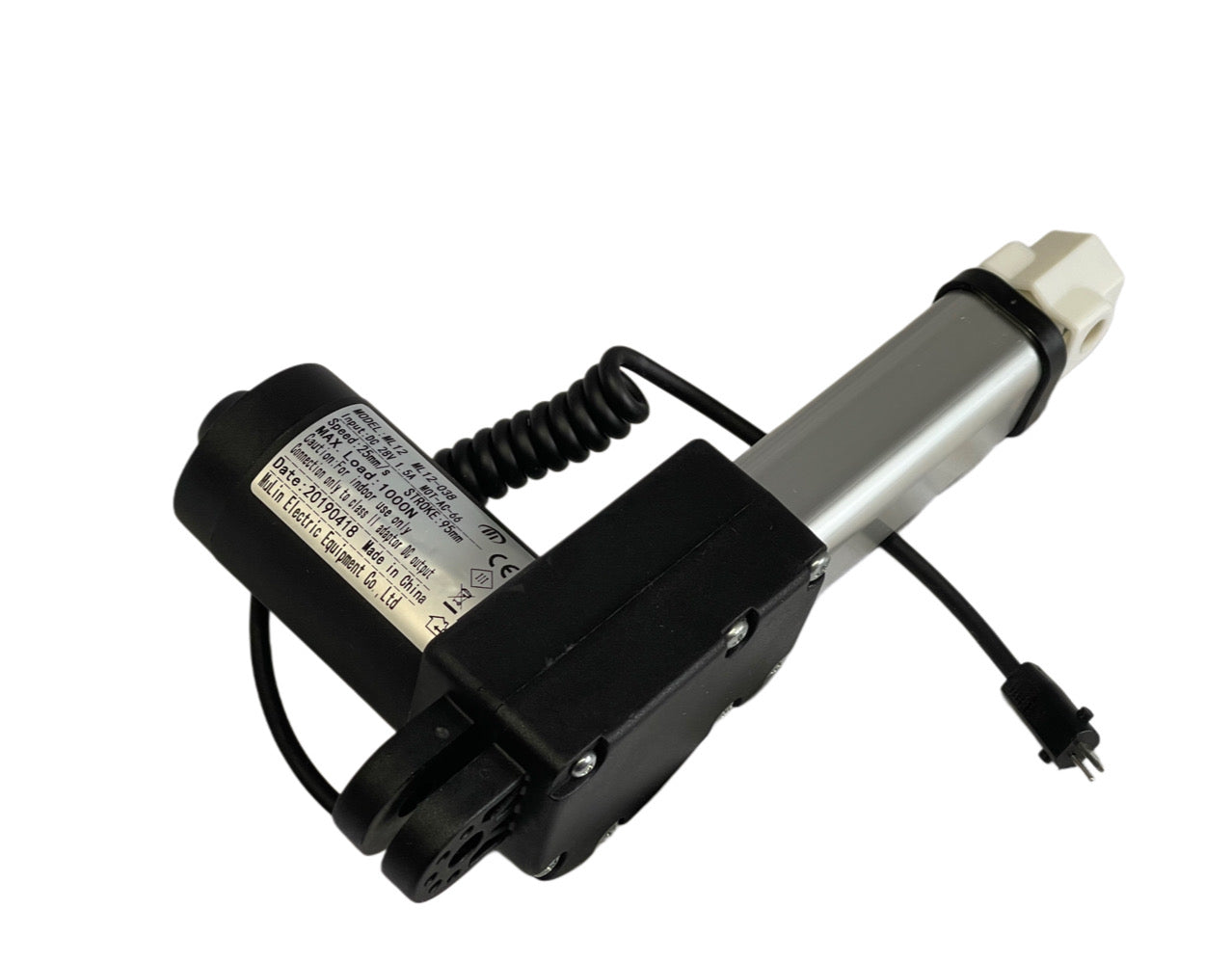

The Mulin ML12-038 is a replacement electric actuator motor for matching recliner headrest installations. Its 95 mm stroke provides linear movement in a compatible mechanism. Supplied with a male power lead and one two-pin I0 connection, it requires matching mounts, dimensions and wiring; it is not a universal-fit motor.

Electrical specifications

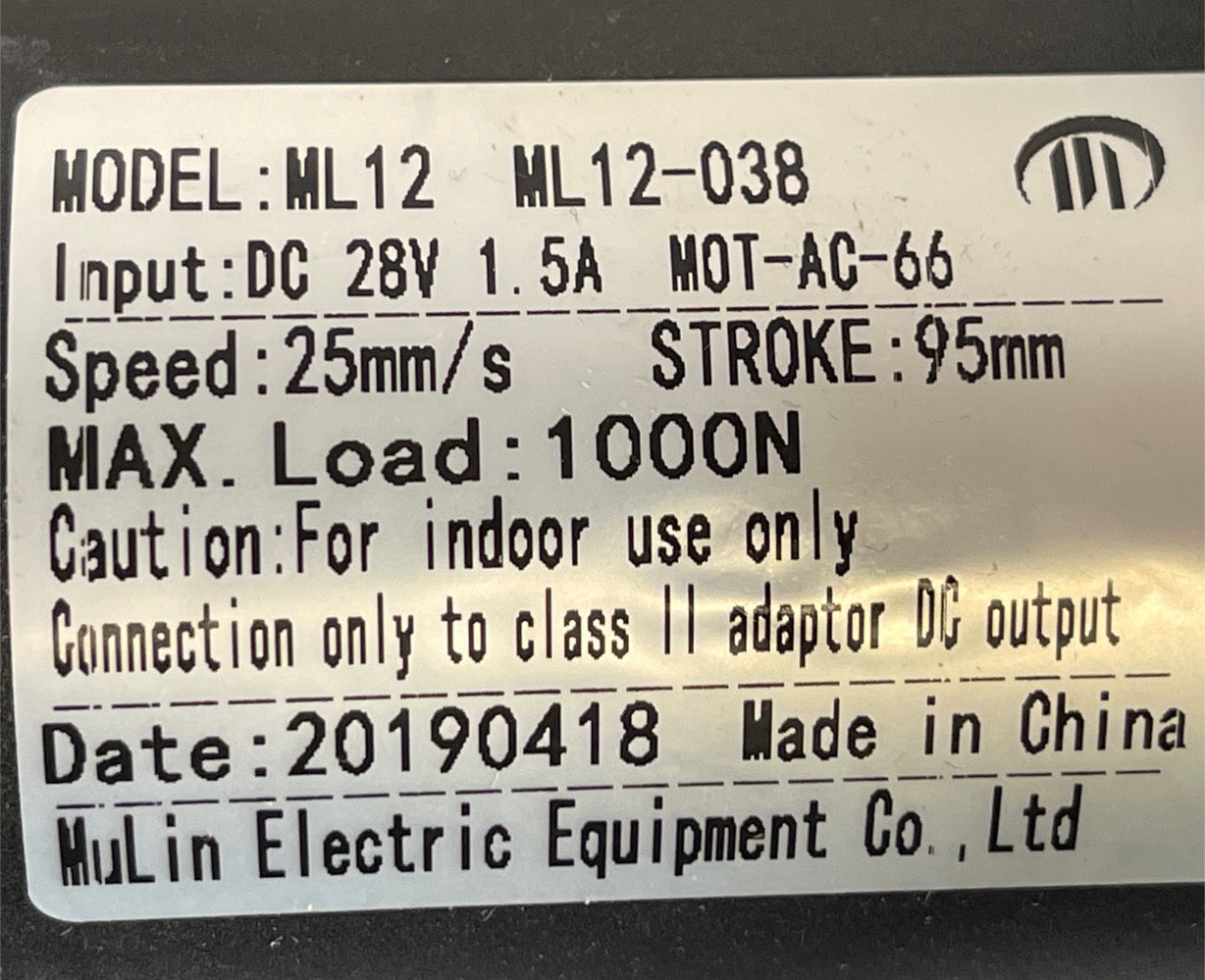

• Model: ML12-038.
• Label input: DC 28V.
• Label current: 1.5A.
• Indoor use only.
• Connect only to a matching Class II adapter DC output, as specified on the label.

Performance

• Label stroke: 95 mm.
• Label speed: 25 mm/s.
• Label maximum actuator load: 1000 N. This is not a chair occupant-weight rating.

Dimensions and fit

• Minimum installation length when retracted/closed: 225 mm, measured centre to centre of pin.
• Overall length when retracted/closed: 260 mm.

These closed dimensions are supplied by CouchGuard and are separate from the label-backed 95 mm stroke. The 260 mm overall length is not the mounting distance. Compare your original using the same reference points, along with fixing ends, extended clearance and connector layout. Match the complete ML12-038 reference, not just the ML12 family or a similar-looking motor.

Connection

The connector photo shows a male two-pin I0 power plug with one flat and one round pin. Compare the connector face, polarity and cable routing with the original. Plug-and-play replacement applies only when the electrical system and mechanical installation match.

If unsure, send CouchGuard clear photos of the original label, full actuator, mounting points and connector face, together with your measurements, for help identifying a suitable replacement.

Fault checks and safe replacement

A non-moving headrest does not by itself confirm actuator failure. The switch, power supply, cables or mechanism may also need checking. Disconnect mains power and any battery supply before replacement. Keep clear of moving mechanisms and use a qualified repairer if the chair cannot be safely supported. Do not modify wiring, force plugs or connect the actuator directly to mains power.

Frequently asked questions

What is the ML12-038 used for?
It is a replacement actuator for matching electric recliner headrest installations.

What electrical rating is printed on the label?
DC 28V 1.5A. Match the original electrical system and a suitable Class II adapter DC output.

What are its stroke and speed?
The label specifies a 95 mm stroke and 25 mm/s speed.

What is the minimum installation length?
225 mm when closed, measured centre to centre of pin. The separate closed overall length is 260 mm; do not use overall length as the mounting distance.

What does 1000 N mean?
It is the printed maximum actuator load, not the chair's occupant-weight capacity.

Which connector is supplied?
One male two-pin I0 power connection with one flat and one round pin. Match the connector and polarity with the original motor.

Will any ML12 motor fit?
No. Match the full model, stroke, mounting dimensions, fixing ends and electrical connection.

Does a non-moving headrest always need a new motor?
No. Switch, power-supply, cable and mechanism faults may also stop movement. Establish the fault before ordering.

Can it be used outdoors?
No. The manufacturer label specifies indoor use only.
