Buy Mulin ML18-017B Recliner Actuator, 333mm Stroke

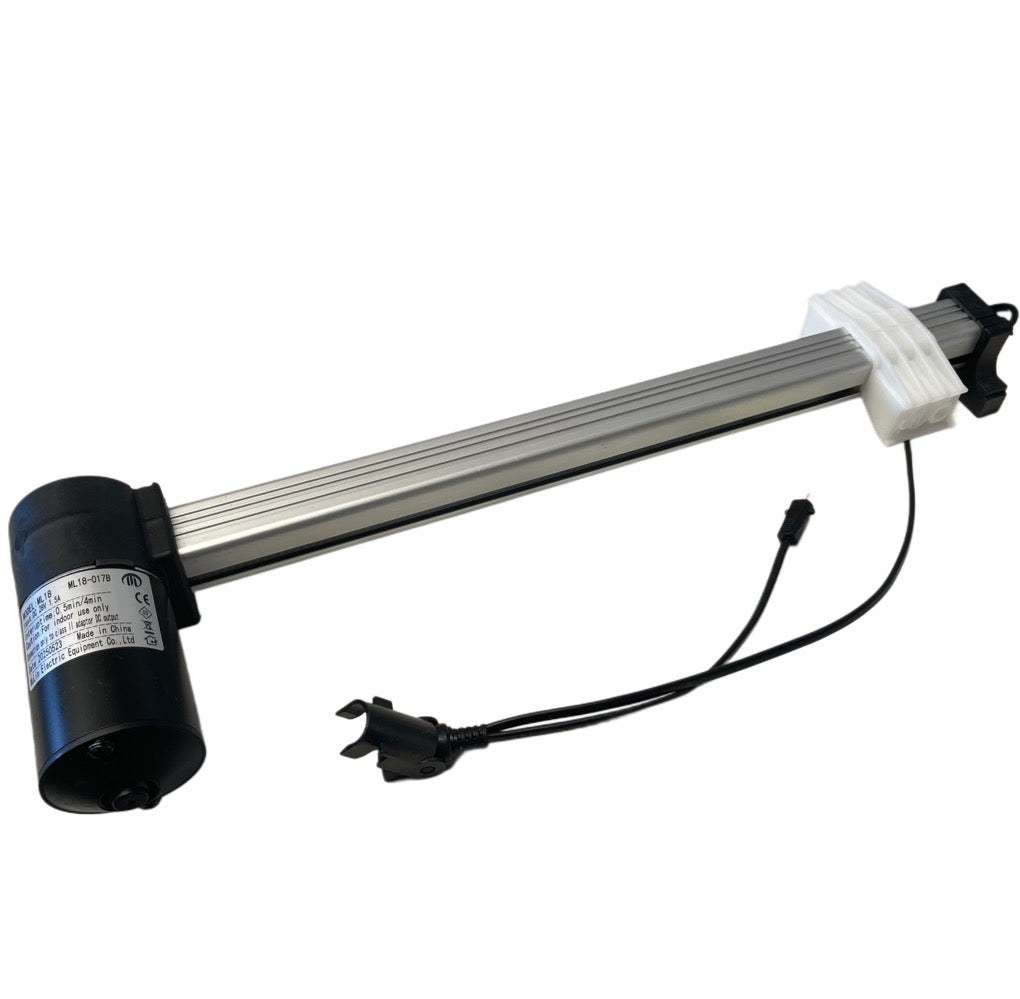

Genuine Mulin ML18-017B recliner actuator

The Mulin ML18-017B is a replacement electric actuator motor for matching recliner installations. Match the full model, stroke, mounting dimensions and electrical connections before ordering; it is not a universal-fit motor.

Electrical specifications

• Model: ML18-017B.
• Label input: DC 28V 1.5A.
• Label duty cycle: 0.5 minute ON / 4 minutes OFF.
• Indoor use only.
• Connect only to a matching Class II adapter DC output.

Performance

• Stroke length: 333 mm.
• Load capacity: 800 N, not a chair occupant-weight rating.
• Speed: 36 mm/s.

Dimensions and build

• Retracted mounting length: 139 mm minimum, measured centre to centre of pin.
• Extended mounting length: 472 mm maximum, measured centre to centre of pin.
• Material: aluminium alloy tube and plastic housing.

The mechanical dimensions, performance and material details are supplied by CouchGuard; they are not printed on the photographed electrical label. Compare measurements using the same pin-centre reference points.

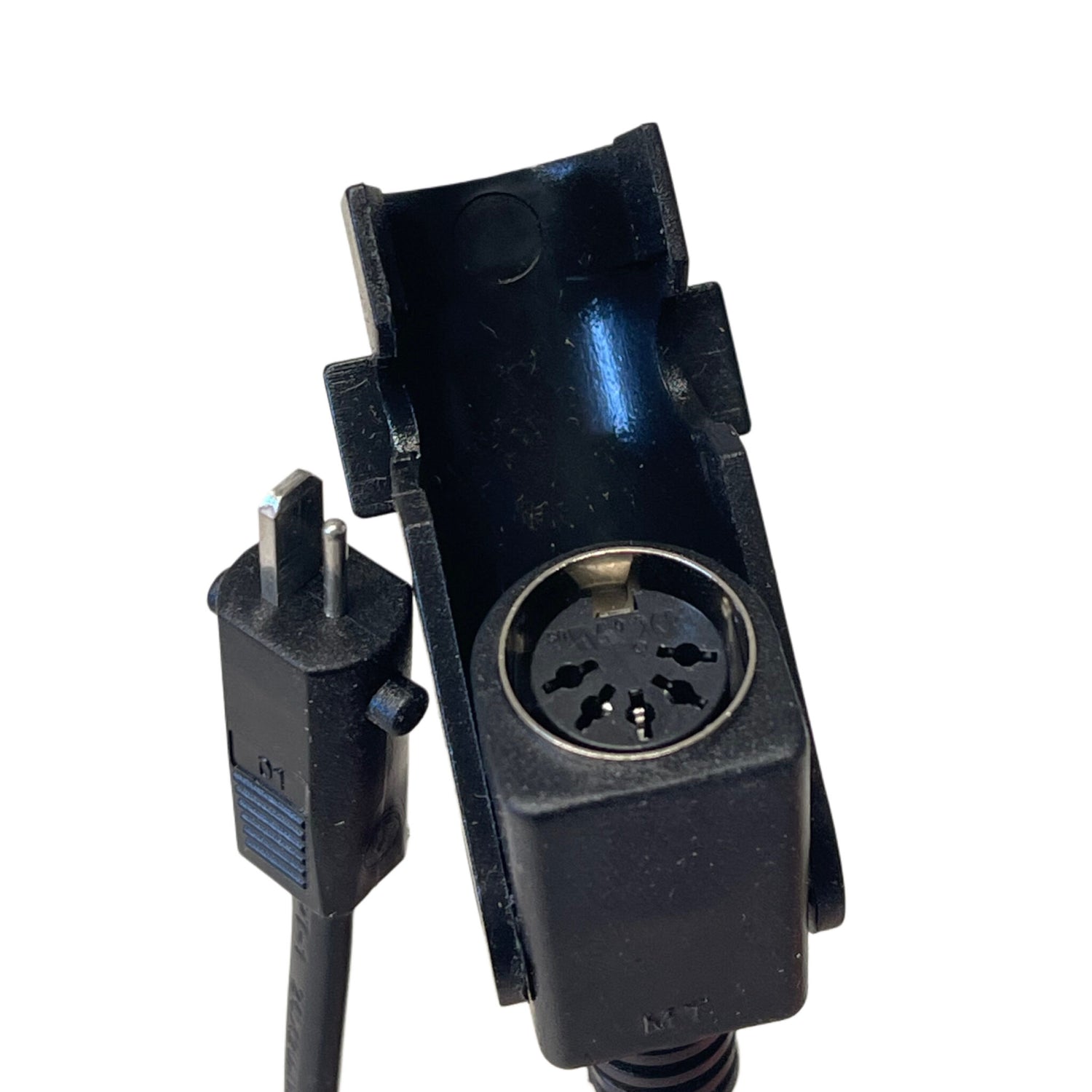

Connections

• Power: male two-pin flat/round I0 connector for the matching transformer line.
• Hand control: female round five-pin socket with a 90-degree connection arrangement for the matching switch/remote.

Compare connector faces, polarity, pin arrangement and cable routing. Plug-and-play replacement applies only when the electrical system and mechanical installation match.

Compatibility and replacement guidance

Match the exact ML18-017B reference, including the B suffix, 333 mm stroke, 139 mm closed and 472 mm extended mounting lengths, fixing ends and available clearance. Other ML18 motors are not automatically interchangeable. If unsure, send CouchGuard clear photos of the original label, full motor, mounting points and plugs, together with your measurements.

A non-moving chair does not by itself confirm motor failure; the switch, power supply, cables or mechanism may also need checking. Disconnect mains power and any battery supply before replacement. Keep clear of moving mechanisms and use a qualified repairer if the chair cannot be safely supported. Do not modify plugs or connect directly to mains power. Follow the label duty cycle of 0.5 minute running followed by 4 minutes off.

Frequently asked questions

What model is supplied?
Genuine Mulin ML18-017B. Match the full reference, including the B suffix.

What electrical rating and duty cycle apply?

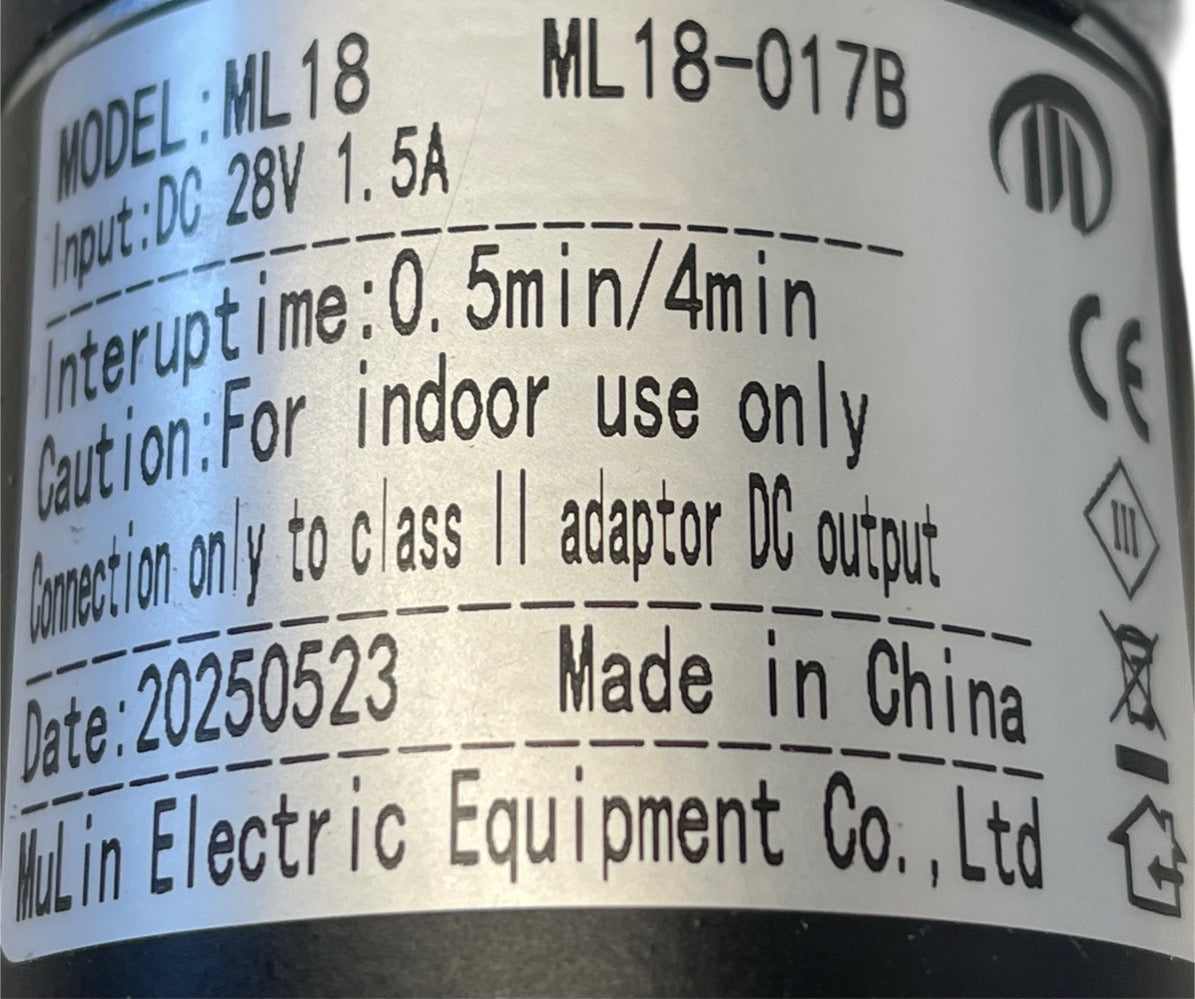

The photographed label specifies DC 28V 1.5A and 0.5 minute ON / 4 minutes OFF.

What is the stroke?
CouchGuard supplies a 333 mm stroke specification for this listing.

What are the mounting dimensions?
139 mm retracted and 472 mm extended, measured centre to centre of pin. Match your original using the same measurement points.

What are the speed and load?
The supplied specifications are 36 mm/s and 800 N load capacity. The load figure is not a chair occupant-weight limit.

Which connectors are included?
A male two-pin I0 power plug and a female round five-pin 90-degree hand-control socket. Match the original wiring and polarity.

Will any ML18 actuator fit?
No. Match the exact model, stroke, mounting dimensions, fixing ends and electrical connections.

Can it be used outdoors?
No. The manufacturer label specifies indoor use only.

How To Install Electrical Components

Removing & Fitting General Electrical Components

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Recliner Replacement Parts Manual - FAQ’s

Do you stock Pegar recline parts?

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.

How do you measure a recliner spring?

Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.

Can I get a different shade brown?

No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.

My recliner handle measures 113mm x 70mm. Will your handles still fit?

Yes. There can be a couple mm tolerances in the measurements given.

My recliner handle measures 11cm x 7cm. Will your handles still fit?

Yes. Converted to millimetres is 110mm x 70mm.

How do you measure a recliner cable? You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.

How do I measure a recliner cable?

Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Can I pick up from your Coolum Beach Warehouse?

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout

Replacement Parts

CouchGuard supplies replacement parts for recliners, lift chairs and lounges, including electrical and mechanical components. Use the guidance below to help identify the correct part before ordering.

Price Match Guarantee

Found the same replacement part for a lower price from another Australian supplier? CouchGuard’s Price Match Guarantee applies to all part brands and types.

We compare the complete delivered price, not just the advertised part price. This means we compare the competitor’s part price plus delivery with CouchGuard’s part price plus delivery.

What qualifies?

• The competitor’s item must be the identical replacement part.
• The part must be currently in stock and available to purchase.
• The competitor must be an Australian supplier.
• The comparison must use the complete delivered price, including delivery charges.

How to request a price match

Have a link to the competitor’s product page ready so we can verify the part, availability, price and delivery charge. Call us on 1300 268 244, or contact us by email.

Before You Buy a Replacement Part

Replacement parts can look similar while having different model numbers, dimensions, connectors or mounting points. Before ordering:

• Check the original part for a manufacturer label, model number or part number.
• Compare the connector type, dimensions and mounting points with the product listing.
• Check the product description and compatibility guidance carefully.
• Contact CouchGuard with clear photos if you are unsure which part you need.

Additional Checks for Electrical Parts

• Check that the green light on the power supply is on.
• Check the leads and connections for visible damage.
• Check whether the switch is faulty.
• If possible, test the actuator in another compatible recliner.

These checks may help identify the fault, avoid replacing a working part and save you hundreds of dollars.

Selected Product Warranties

The following warranties apply to the listed products:

• 24-month warranty on all compatible actuators.
• 24-month warranty on all genuine Okin and TiMOTION actuators.
• 12-month warranty on all genuine Kaidi, eMoMo and Mulin actuators.
• 24-month manufacturer warranty on 6000mAh and 3950mAh batteries purchased on or after 11 September 2026.
• 12-month manufacturer warranty on the 2550mAh battery pack.

All actuators supplied by CouchGuard are tested by the manufacturer before leaving its facility. If a defect becomes apparent, contact us promptly with your order details so we can assess the product under the applicable warranty.

Warranty coverage is subject to our Purchase Terms and your rights under Australian Consumer Law.
