Buy Mulin ML18-076 Recliner Actuator – 333mm Stroke

Mulin ML18-076 replacement recliner motor

Looking for a replacement ML18-076 motor? Our Mulin actuator has a 333mm stroke and approximately 515mm retracted mounting length, measured centre to centre of pin. Compare your original model, mounting points and wiring before ordering. If you're unsure, send us photos and measurements and we'll help you check the match.

Electrical Specs

• Input: DC 28V
• Current: 1.5A
• Duty cycle: maximum 0.5 minute ON / 4 minutes OFF

Performance

• Stroke length: 333mm
• Speed: 36mm/s

Dimensions & Build

• Mulin actuator model: ML18-076
• Retracted mounting length: approximately 515mm, centre to centre of pin
• Wiring: W-cable wiring connections cables round five-pin connection, a male two-pin I0 connection and a female two-pin I0 connection.

These are our supplied specifications for the Mulin configuration. Check the alternative actuator's ratings separately. Stroke is the distance travelled by the moving block, not overall motor length or mounting length.

Wiring and connections

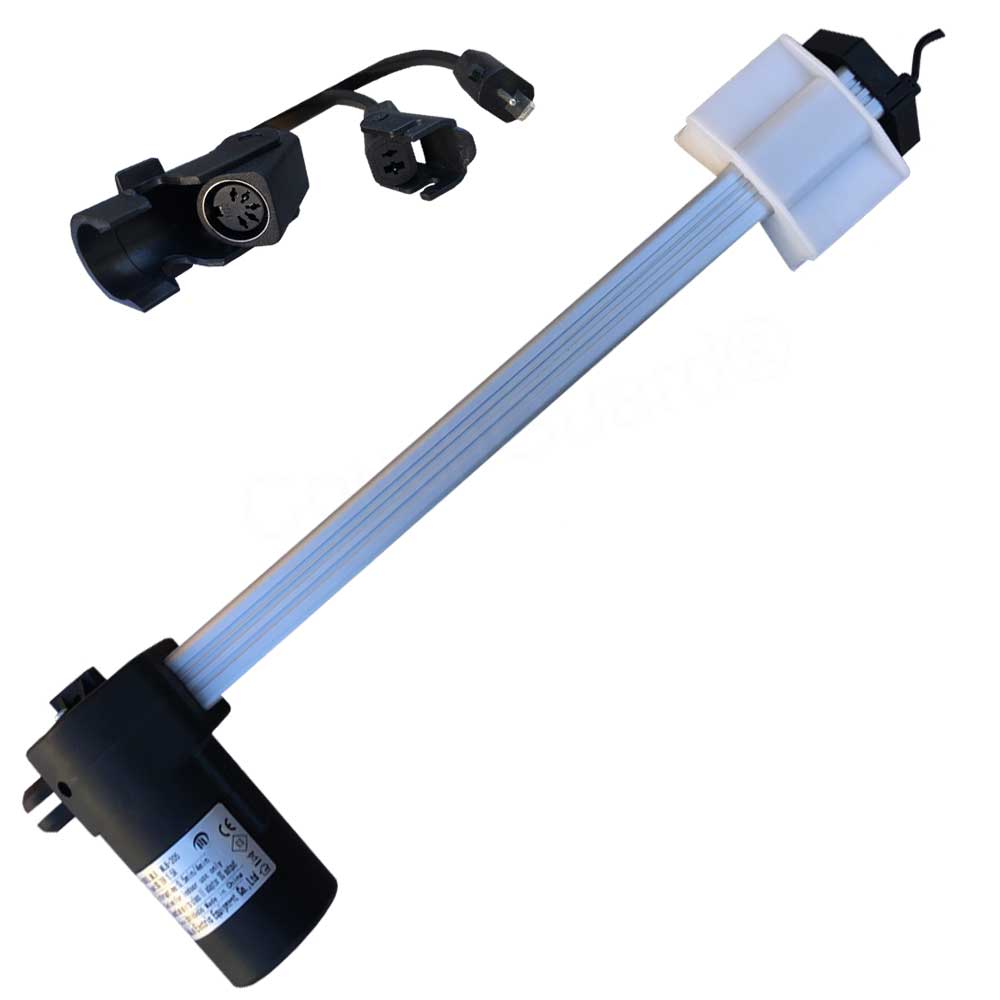

Comes with a W-cable wiring connection cables featuring a round five-pin connection, a male two-pin I0 connection and a female two-pin I0 connection. Compare all three connectors and the wiring arrangement with your original actuator before ordering, including connector gender, keying, polarity and cable routing. Matching pin counts alone do not establish compatibility.

The five-pin connection can be used with a matching LED cup-holder control system. It does not mean every five-pin switch or LED cup-holder control will work.

Choose your option

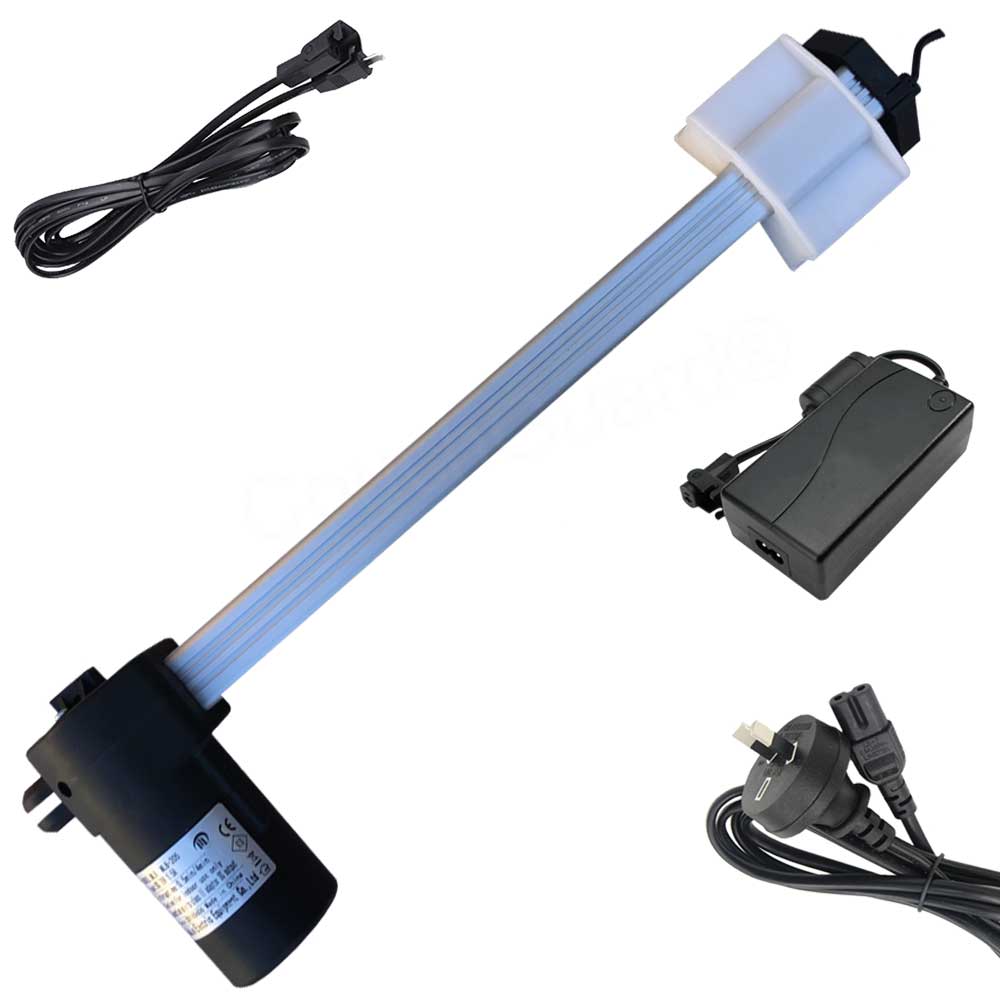

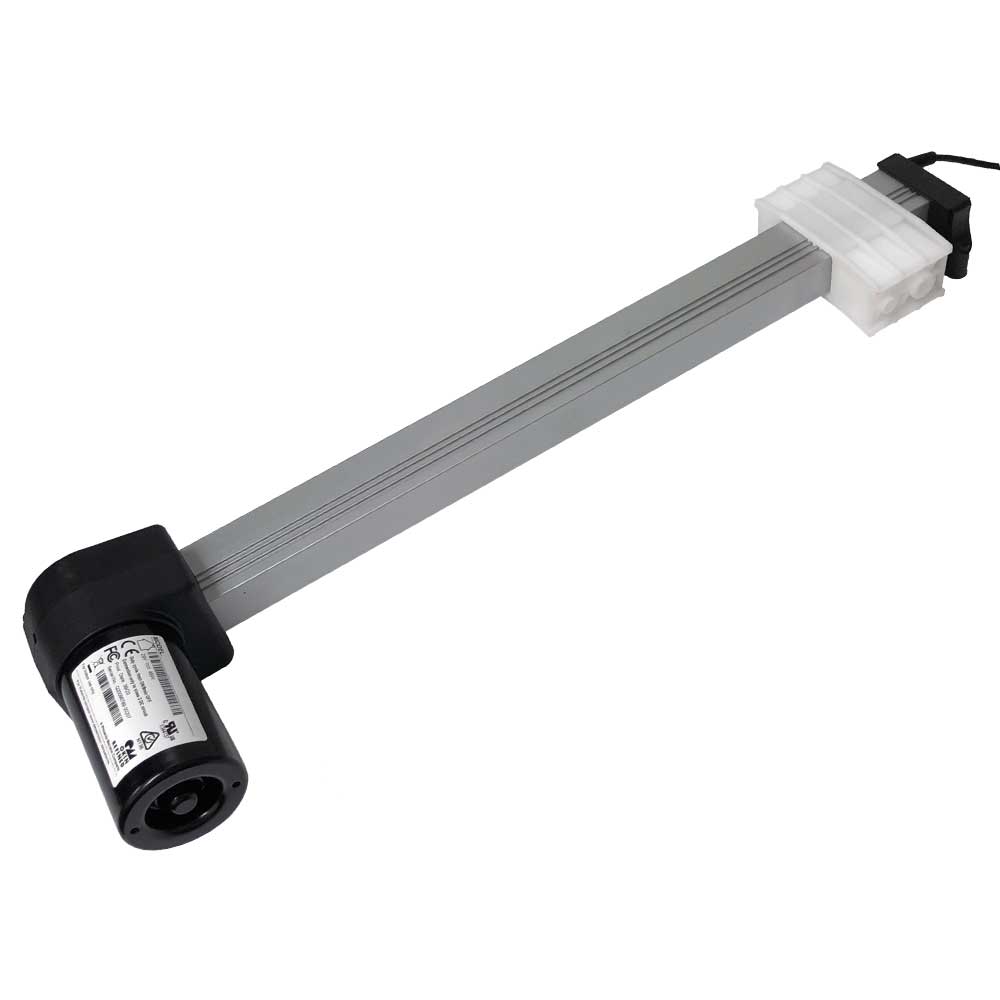

The available options are Actuator Only, Actuator - Kit Form and None Genuine Actuator. These are purchasing configurations, not different stroke selections. The alternative option is not a genuine Mulin actuator. Contact us to confirm its manufacturer, ratings, connections and the kit contents if you're unsure. Don't apply the Mulin specifications automatically to the alternative.

Check the match before ordering

Match the complete model, explicit stroke marking, retracted mounting length, required travel, mounting block and wiring. This long-stroke configuration is commonly used for main footrest or deeper backrest movement in matching installations, but chair function alone can't confirm the right motor.

Our identification notes also describe a separate 157mm-stroke configuration with a 338mm retracted mounting length, centre to centre of pin, commonly associated with headrest or lumbar movement. Those figures are comparison guidance only. There is no selectable 157mm-stroke option on this listing, and the configurations aren't interchangeable simply because their electrical ratings match. Don't rely on 157 or 333 appearing inside a serial number as proof of stroke.

Need a hand? Call us on 1300 268 244 or email clear photos of the original label, complete actuator, mounting points and all plug faces, along with your measurements.

Fault checks and safe fitting

A recliner that won't move or only partly extends may have a switch, cable, power-supply or mechanism fault. Check the fault before buying a replacement motor. Disconnect mains power and any battery, securely support the mechanism and keep clear of moving links. Don't force plugs or modify wiring to fit a mismatched motor. Use a qualified repairer if you're unsure about supporting or fitting it safely.

Frequently asked questions

What stroke is listed for ML18-076?

The Mulin configuration on this listing has a 333mm stroke.

What is the retracted mounting length?

Approximately 515mm, measured centre to centre of pin. Compare the same mounting points on your original actuator.

What input and speed does it use?

Our Mulin specifications are DC 28V 1.5A and 36mm/s. Check alternative-option ratings separately.

Can it run continuously?

No. Allow a maximum 0.5 minute ON followed by 4 minutes OFF.

Can I select a 157mm-stroke version here?

No. The options are actuator, kit and alternative actuator configurations. The 157mm figures are identification guidance only.

Can I choose by chair function?

No. Headrest, lumbar, backrest and footrest setups vary. Match the model, stroke, mounting dimensions and wiring.

Do serial-number digits confirm the stroke?

Not by themselves. Use an explicit stroke marking and measurements instead.

Will the five-pin connection work with any LED cup-holder control?

No. Match the connector layout, wiring and original control system.

Are all options genuine Mulin?

No. None Genuine Actuator is an alternative option. Check its manufacturer and specifications with us before ordering.

What should I send for a fit check?

Clear photos of your original label, complete actuator, mounting points and plug faces, plus mounting measurements and chair model details if available.

Which connections come with the Mulin actuator?

The W-cable harness has a round five-pin connection, a male two-pin I0 connection and a female two-pin I0 connection. Compare all three and their wiring arrangement with your original motor.
