Buy Mulin ML18-112A Recliner Footrest Actuator – 200mm Stroke

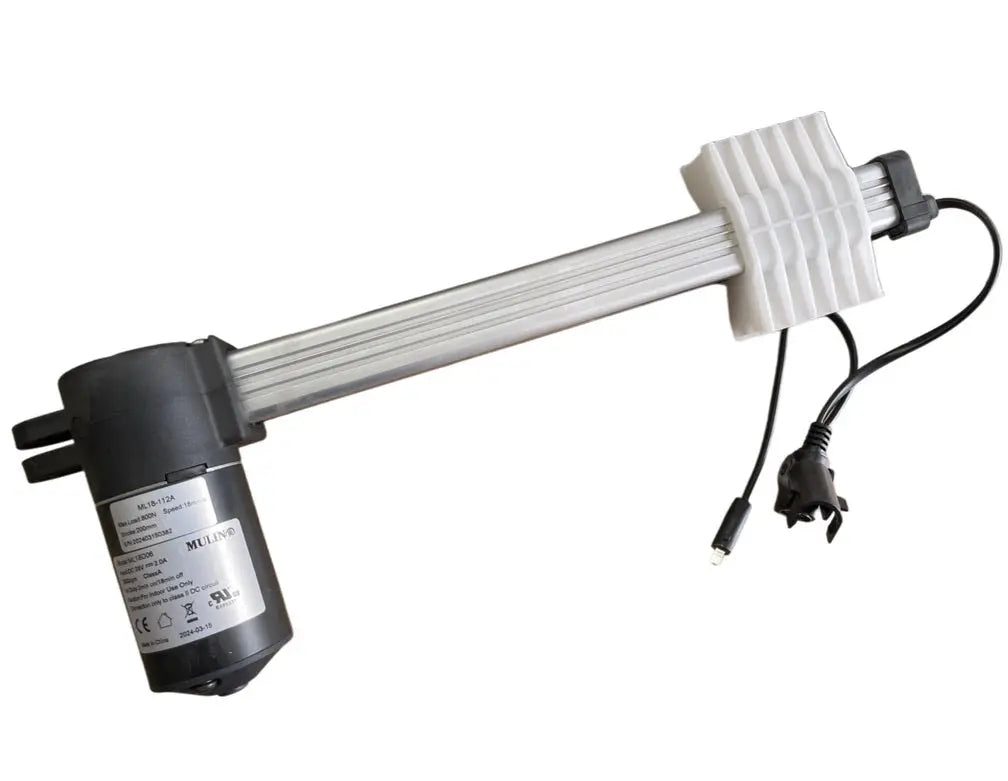

Genuine Mulin ML18-112A recliner footrest motor

Replacing your recliner footrest motor? The Mulin ML18-112A is a genuine slider-block actuator with a label-confirmed 200mm stroke, 18mm/s speed and 800N maximum force. Compare the complete model, mounting block and connections with your original before ordering. If you're not sure, send us photos and we'll help you check the match.

Electrical Specs

• Input: DC 28V
• Current: 2A
• Duty cycle: 2 minutes ON / 18 minutes OFF
• Indoor use only
• Connect only to a suitable Class II DC circuit, as stated on the label

Performance

• Stroke length: 200mm
• Linear speed: 18mm/s
• Maximum actuator force: 800N

The 800N figure is actuator force, not torque in Nm or chair occupant capacity. Follow your chair manufacturer's weight limit.

Dimensions & Build

• Complete actuator model: ML18-112A

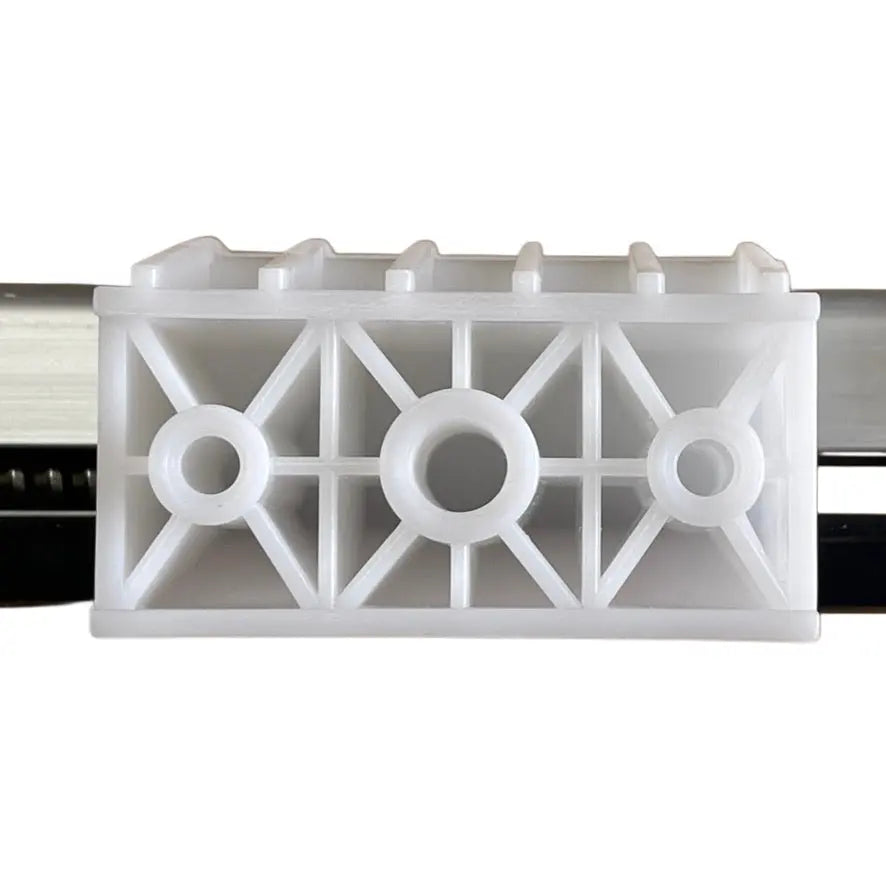

• Style: sliding mounting block
• Fitted motor reference: ML18D06

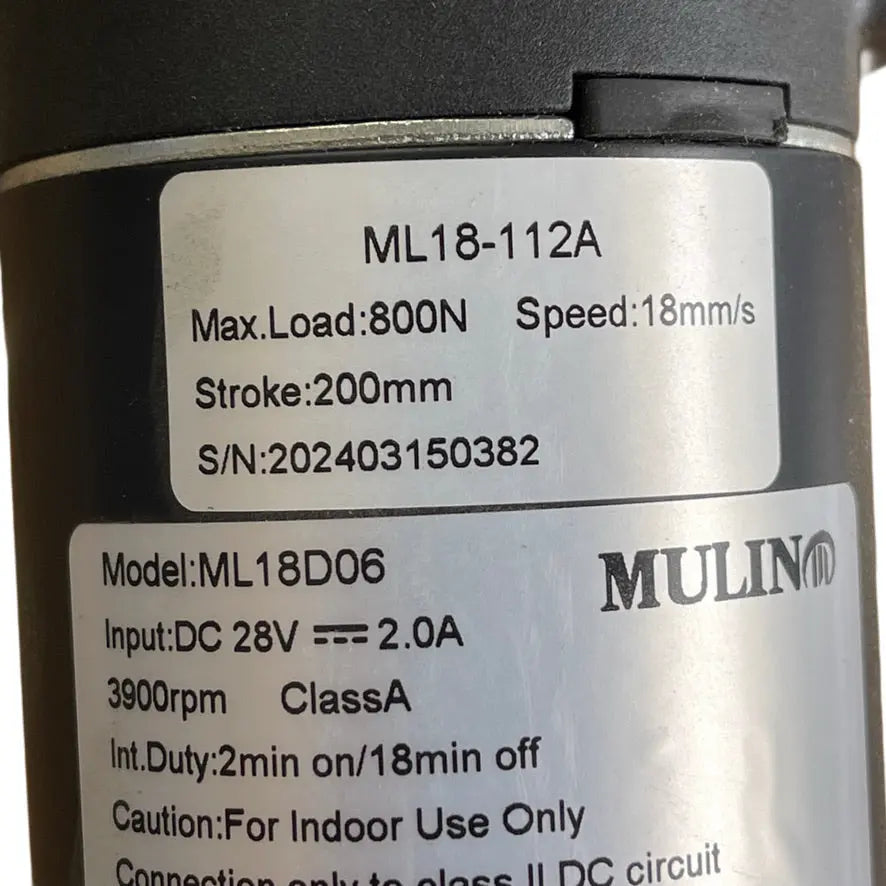

• Motor label: 3900rpm, Class A

ML18D06 identifies the fitted motor, not an interchangeable complete actuator. Its rpm is motor rotation speed, not linear travel speed. Mounting lengths aren't given on the photographed label. Compare fixing points, block pattern, clearances and retracted and extended mounting lengths, centre to centre of pin where applicable. Keep the 200mm stroke separate from mounting and overall length.

Connections

Our listing identifies a two-pin power connection and a round five-pin connection. Compare both connector faces, gender, keying, polarity, pin layout and cable routes with your original. The same number of pins doesn't guarantee the same wiring.

Choose your option

Select Actuator Only or Actuator - Kit Form. If you're unsure what you need in the kit, contact us to confirm its contents before ordering.

Check the match and fit safely

Match ML18-112A, its stroke, mounting block, fixing dimensions, electrical ratings and wiring. Don't assume it replaces ML18-076, another Mulin motor or an Okin actuator simply because it looks similar. Plug-in replacement is suitable only when the full mechanical and electrical setup matches.

Need a hand? Call us on 1300 268 244 or email photos of your original label, complete actuator, mounting block and plug faces, together with measurements. Check switch, cable, power-supply and mechanism faults before assuming the motor has failed.

Disconnect mains power and any battery before replacement. Securely support the chair mechanism, keep clear of moving links and use a qualified repairer if unsure. Don't force plugs, modify wiring or connect the actuator directly to mains power.

Frequently asked questions

What is ML18-112A used for?

It's a replacement actuator for matching electric recliner footrest installations.

What is the stroke?

The actuator label specifies 200mm stroke.

What is its speed?

The label specifies 18mm/s linear speed.

What does 800N mean?

It's the maximum actuator force, not torque or occupant weight capacity.

What power does it require?

The motor label specifies DC 28V 2A and a suitable Class II DC circuit.

Can it run continuously?

No. Allow 2 minutes ON followed by 18 minutes OFF.

Which connections should I check?

Check the two-pin power and round five-pin connections against your original, including connector gender, polarity and wiring.

Will it replace an ML18-076 or similar motor?

Not automatically. Match the complete model, stroke, block, fixing dimensions and electrical installation.

Which options are available?

Actuator Only and Actuator - Kit Form. Ask us to confirm kit contents if you're unsure.

Can it be used outdoors?

No. The label specifies indoor use only.
