Buy Mulin ML18-204 Slider Recliner Actuator, 204mm Stroke

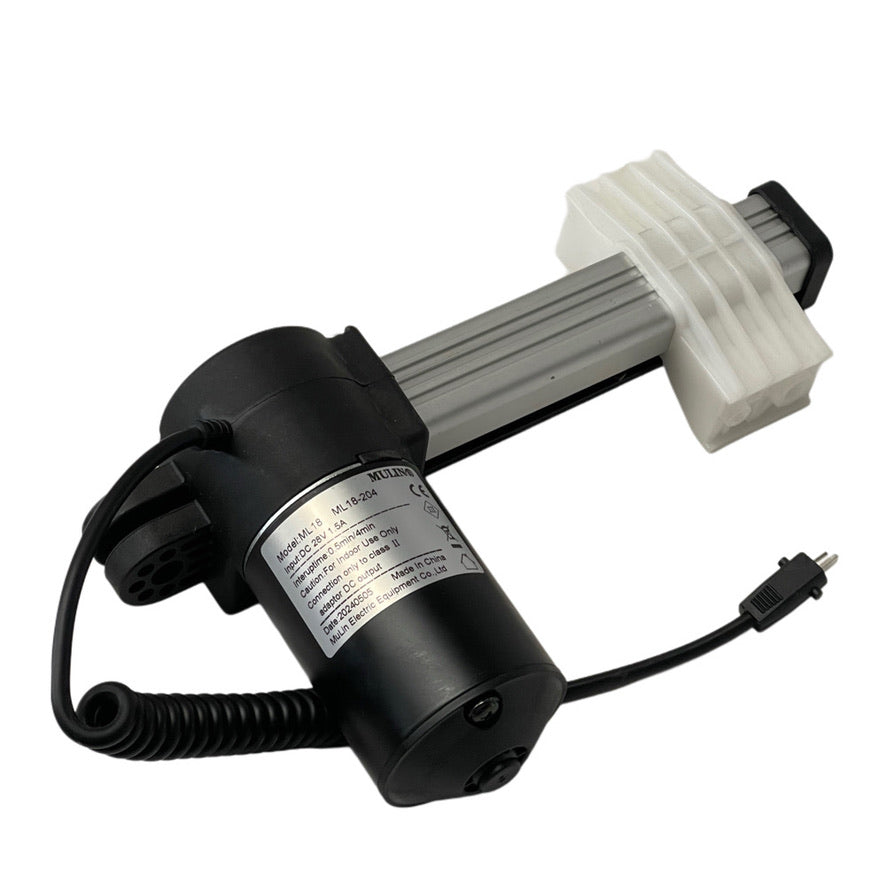

Genuine Mulin ML18-204 slider recliner actuator

The Mulin ML18-204 is a slider-block style actuator commonly found in recliners, lift chairs and backrest mechanisms. Match the exact original model, stroke, mounting dimensions and electrical system before replacement; it is not a universal-fit motor.

Electrical specifications

• Model: ML18-204.
• Input: DC 28V.
• Current: 1.5A.
• Maximum duty cycle: 0.5 minute ON / 4 minutes OFF.
• Indoor use only.
• Connect only to a matching Class II adapter DC output, as specified on the label.

Performance

• Stroke length: 204 mm.
• Load capacity: 2000 N. This is not a chair occupant-weight rating.
• Speed: 25 mm/s.

Dimensions and build

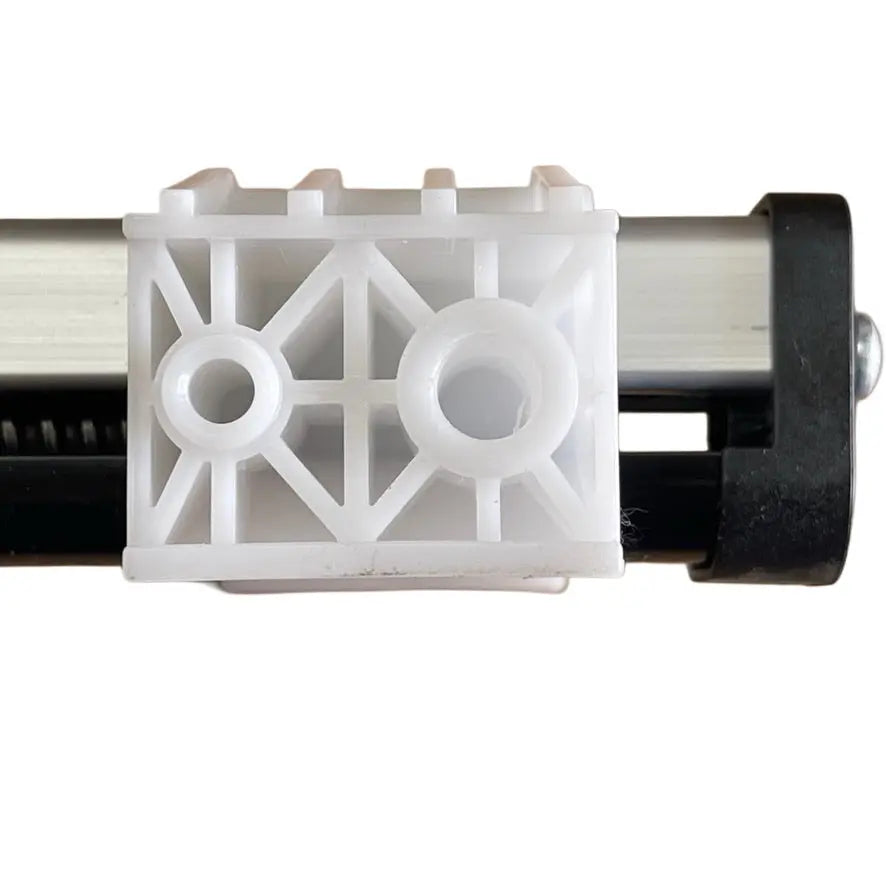

• Style: slider-block actuator.
• Application: matching recliner, lift chair and backrest mechanisms.

The mechanical performance and slider-block details are supplied by CouchGuard; they are not printed on the photographed electrical label. Compare the original mounting dimensions using the same reference points. No retracted or extended mounting length is specified here.

Connections

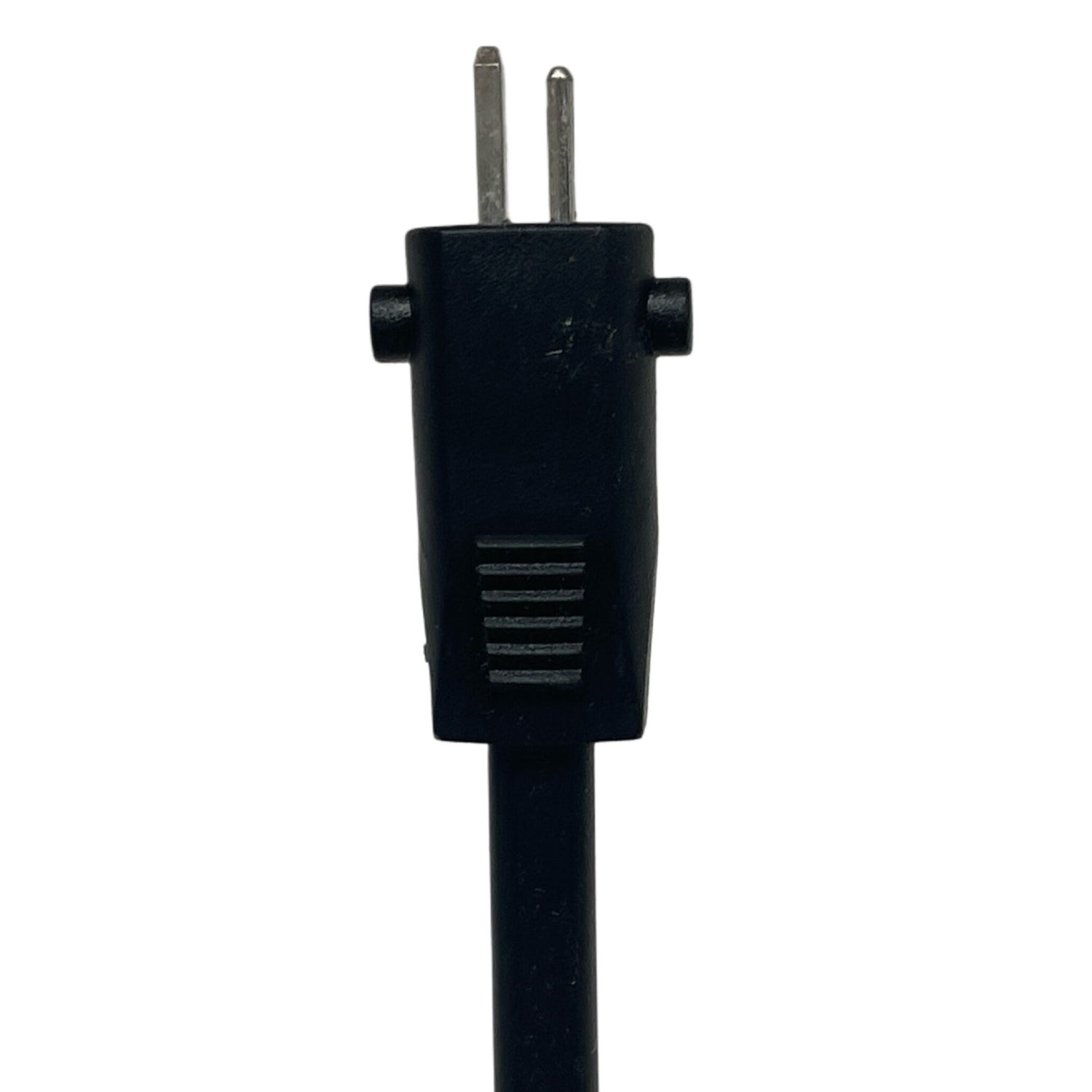

• Power: male two-pin OI plug with one flat and one round pin.
• Hand control: five-pin switch connector.

Compare both connector faces, pin arrangement, polarity and cable routing with the original installation. Plug-and-play replacement applies only when the electrical system and mechanical installation match.

Compatibility and safe replacement

Match the complete ML18-204 reference, 204 mm stroke, fixing ends, slider arrangement, mounting dimensions and clearance. Other ML18 motors are not automatically interchangeable. If unsure, send CouchGuard clear photos of the original label, full actuator, mounting points and both connections, together with your measurements.

A non-moving chair does not by itself confirm motor failure. Power-supply, switch, cable or mechanism faults can also stop movement. Disconnect mains power and any battery supply before replacement. Keep clear of moving mechanisms and use a qualified repairer if the chair cannot be safely supported. Do not modify wiring or connect directly to mains power. Observe 0.5 minute running followed by 4 minutes off.

Frequently asked questions

What is the ML18-204 used for?
It is a slider-block actuator commonly found in matching recliner, lift chair and backrest mechanisms.

What input and duty cycle apply?

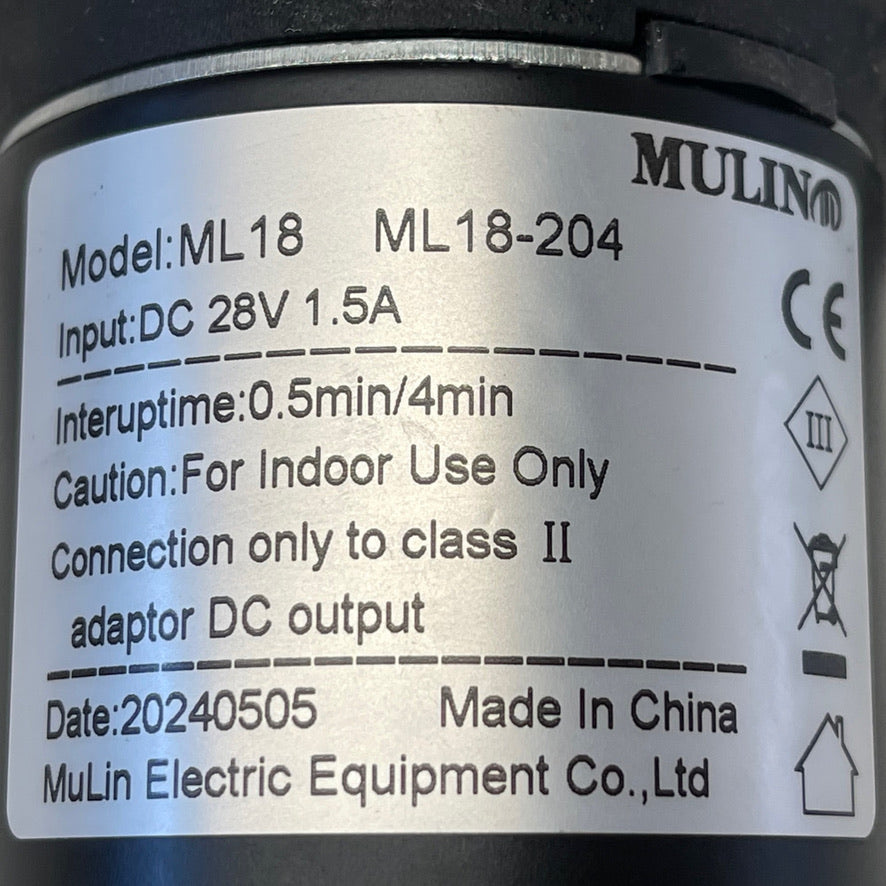

The label specifies DC 28V 1.5A and 0.5 minute ON / 4 minutes OFF.

What is the stroke?
The supplied stroke specification is 204 mm.

What are the speed and load?
The supplied specifications are 25 mm/s and 2000 N load capacity. This is not a chair occupant-weight limit.

Which connections does it have?
A male two-pin OI power plug and a five-pin hand-control/switch connector. Match the original pin layout, polarity and wiring.

What mounting length should I check?
No mounting length is specified here. Compare your original mounting dimensions using the same reference points and contact CouchGuard if unsure.

Will any ML18 motor fit?
No. Match the exact model, stroke, slider arrangement, mounting dimensions and electrical connections.

Can it be used outdoors?
No. The manufacturer label specifies indoor use only.
