Buy Mulin ML18-026 Recliner Actuator Motor – 220mm Stroke

Genuine Mulin ML18-026 replacement recliner motor

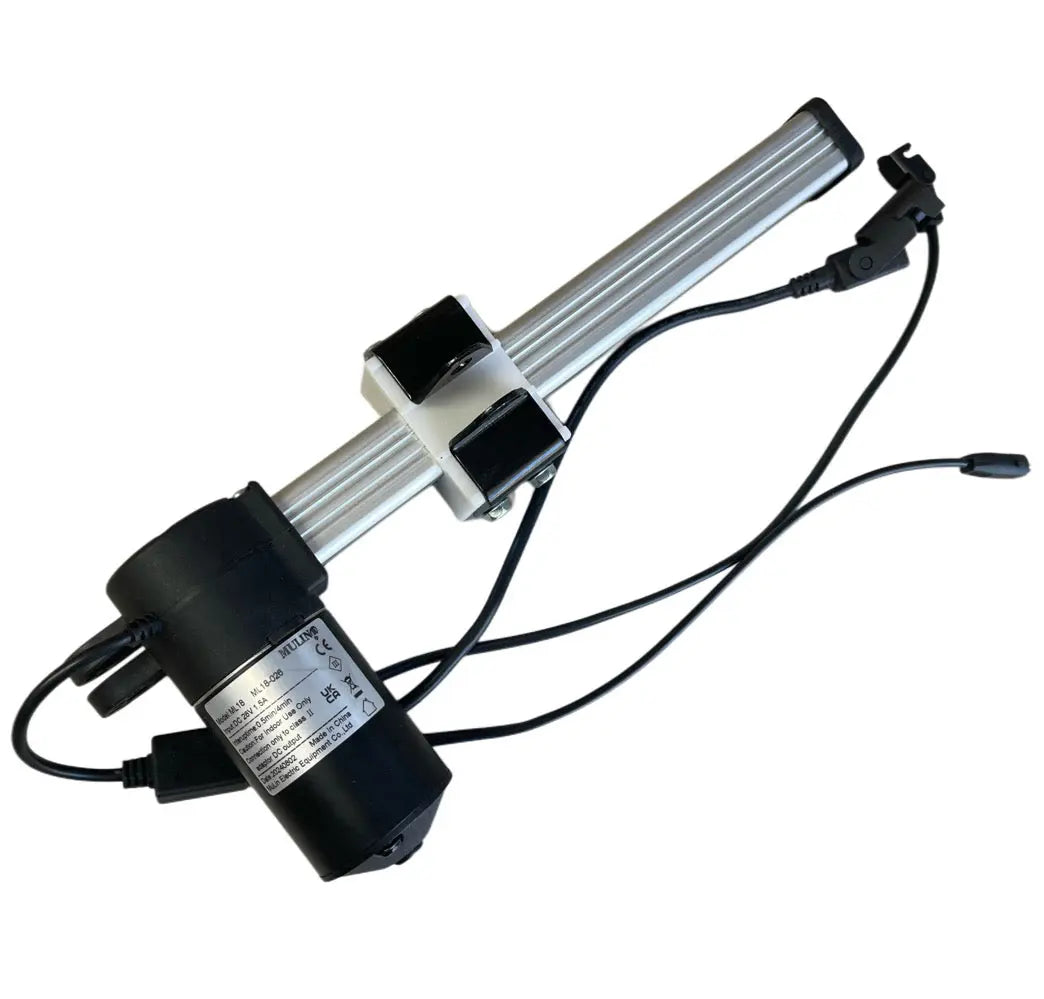

The Mulin ML18-026 is an electric recliner actuator with a 220mm stroke, 800N actuator load rating and 30mm/s speed, supplied with a three-connection wiring harness. It is a replacement option for installations matching the complete model, mounting dimensions, travel limits and electrical arrangement, not a universal recliner motor.

Electrical specifications

• Manufacturer: Mulin
• Complete actuator model and MPN: ML18-026; series: ML18
• Input: DC 28V
• Current: 1.5A
• Duty cycle: maximum 0.5 minute ON followed by 4 minutes OFF
• For indoor use only

Performance

• Stroke length: 220mm
• Actuator load rating: 800N
• Speed: 30mm/s

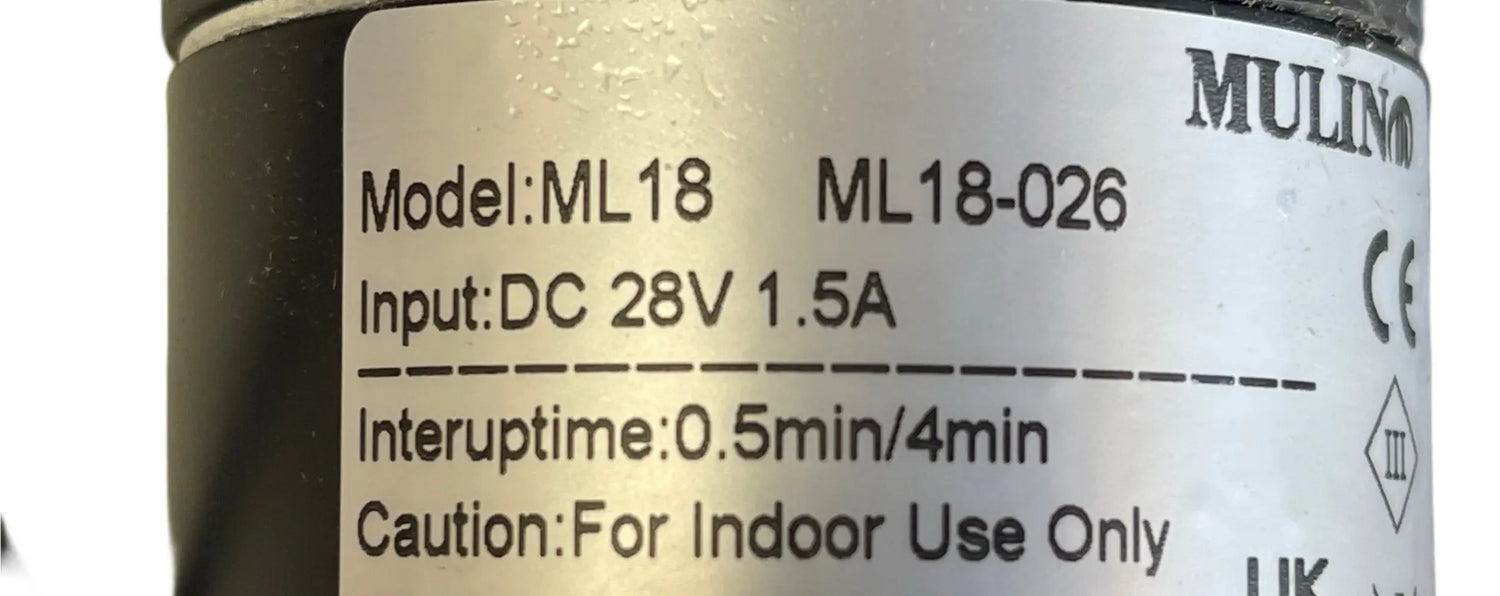

These mechanical specifications were supplied by CouchGuard. The photographed label confirms the electrical input and duty cycle. The 800N rating is actuator force, not chair occupant capacity or torque.

Dimensions and build

Minimum retracted mounting length: 128mm, measured centre to centre of pin. This is a mounting measurement, not overall actuator length. Keep stroke, mounting length and overall length separate when comparing parts. Check bracket arrangement, clearances and the chair's travel limits.

Wiring connections

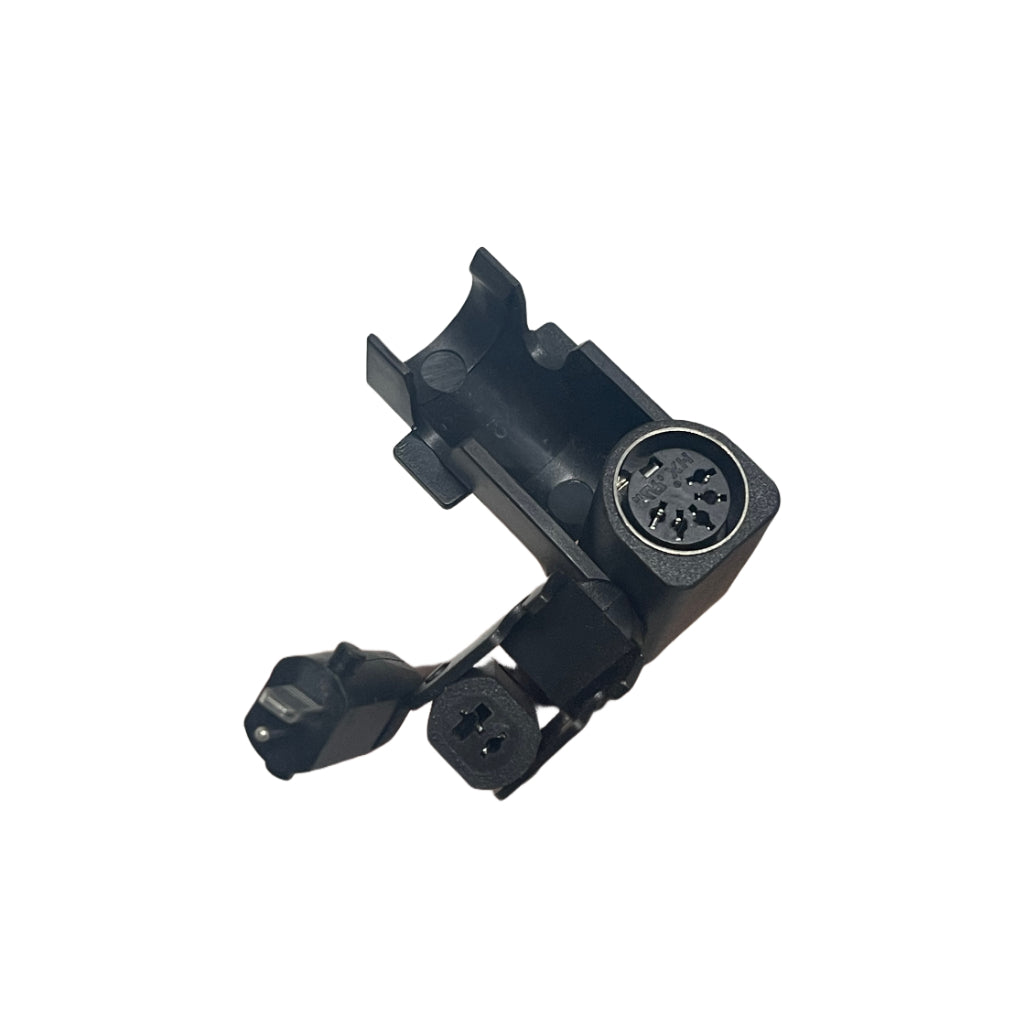

The harness has one female round five-pin connection, one male two-pin I0 connection and one female two-pin I0 connection. Compare connector shape, gender, keying, polarity and wiring arrangement with your existing installation. Matching pin counts alone do not establish compatibility.

Compatibility and safe installation

Plug-in replacement is appropriate only when the complete actuator model, mechanical fit and electrical arrangement match. Disconnect mains power and any battery before installation. Support the chair mechanism, keep clear of moving parts and use a qualified repairer if unsure. Follow the stated intermittent-duty limits.

If you need help identifying your part, contact CouchGuard on 1300 268 244 or email clear photos of the original label, plugs and mounting points.

Frequently asked questions

What is the replacement model?

The complete actuator model is Mulin ML18-026. ML18 is the series reference, not sufficient identification by itself.

What electrical input does it require?

The photographed label states DC 28V 1.5A. Match the original installation's electrical requirements, connector polarity and wiring.

Which connections are supplied?

One female round five-pin connection, one male two-pin I0 connection and one female two-pin I0 connection are included on the harness.

Is it a universal or guaranteed plug-and-play motor?

No. Plug-in replacement depends on matching the model, stroke, mounting dimensions, travel limits and electrical connections.

What are its stroke, speed and force ratings?

CouchGuard's supplied specifications are 220mm stroke, 30mm/s speed and an 800N actuator load rating. These are not chair occupant-weight ratings.

What is its minimum retracted mounting length?

The supplied minimum retracted mounting length is 128mm centre to centre of pin. This is separate from the 220mm stroke and from overall actuator length.

How long can the motor run?

The label specifies a maximum of 0.5 minute ON followed by 4 minutes OFF. It is not intended for continuous operation.

Does a chair that will not move prove the actuator has failed?

No. The power supply, switch, cables and connections can also cause loss of movement. Have the fault checked before replacing the actuator.

What should I compare before buying a replacement?

Compare the original ML18-026 label, 220mm stroke, retracted mounting length centre to centre of pin, brackets, travel limits and all three wiring connections. Send photos to CouchGuard if any detail differs.
