Buy Mulin ML19-017A Recliner Actuator, 255mm Stroke

Genuine Mulin ML19-017A recliner actuator

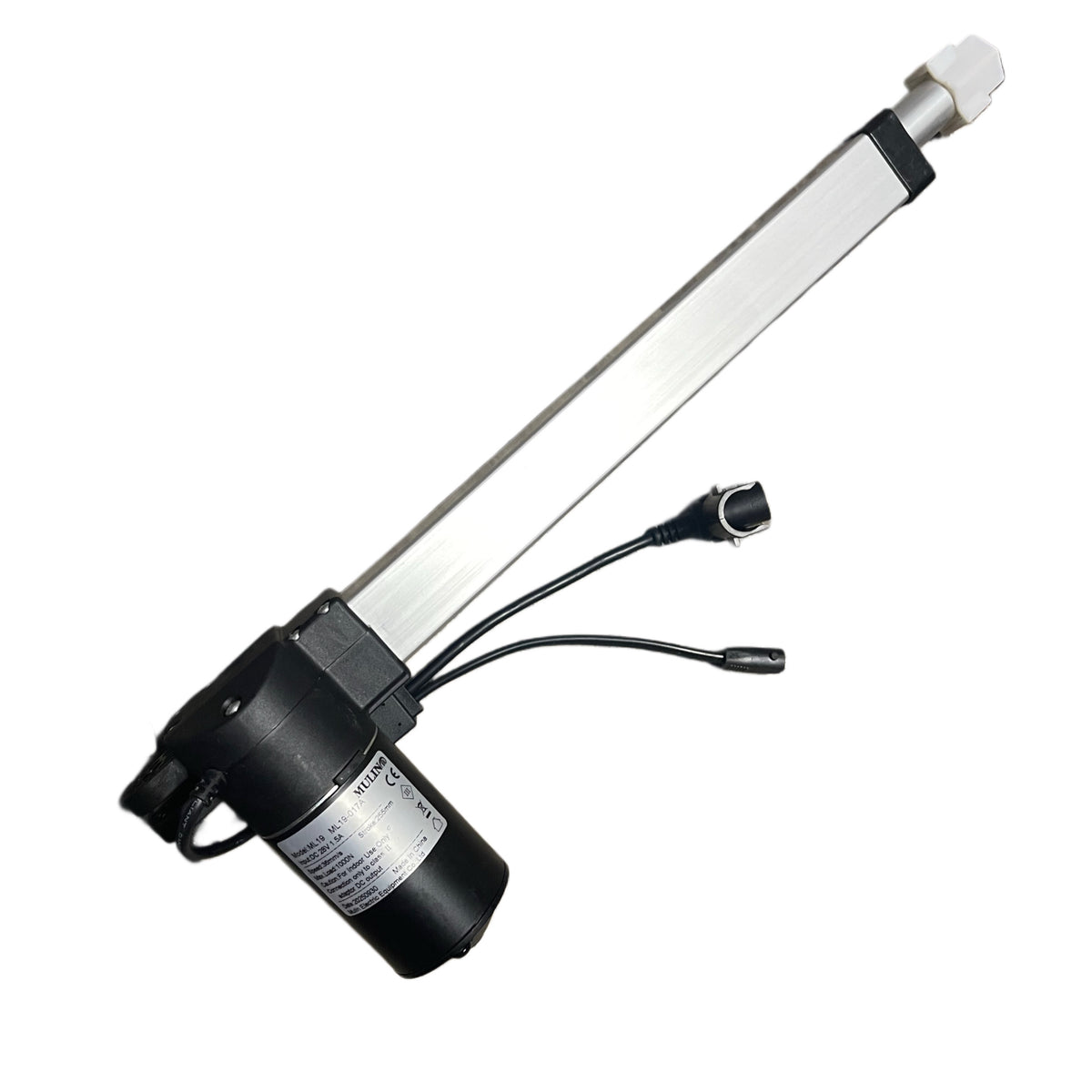

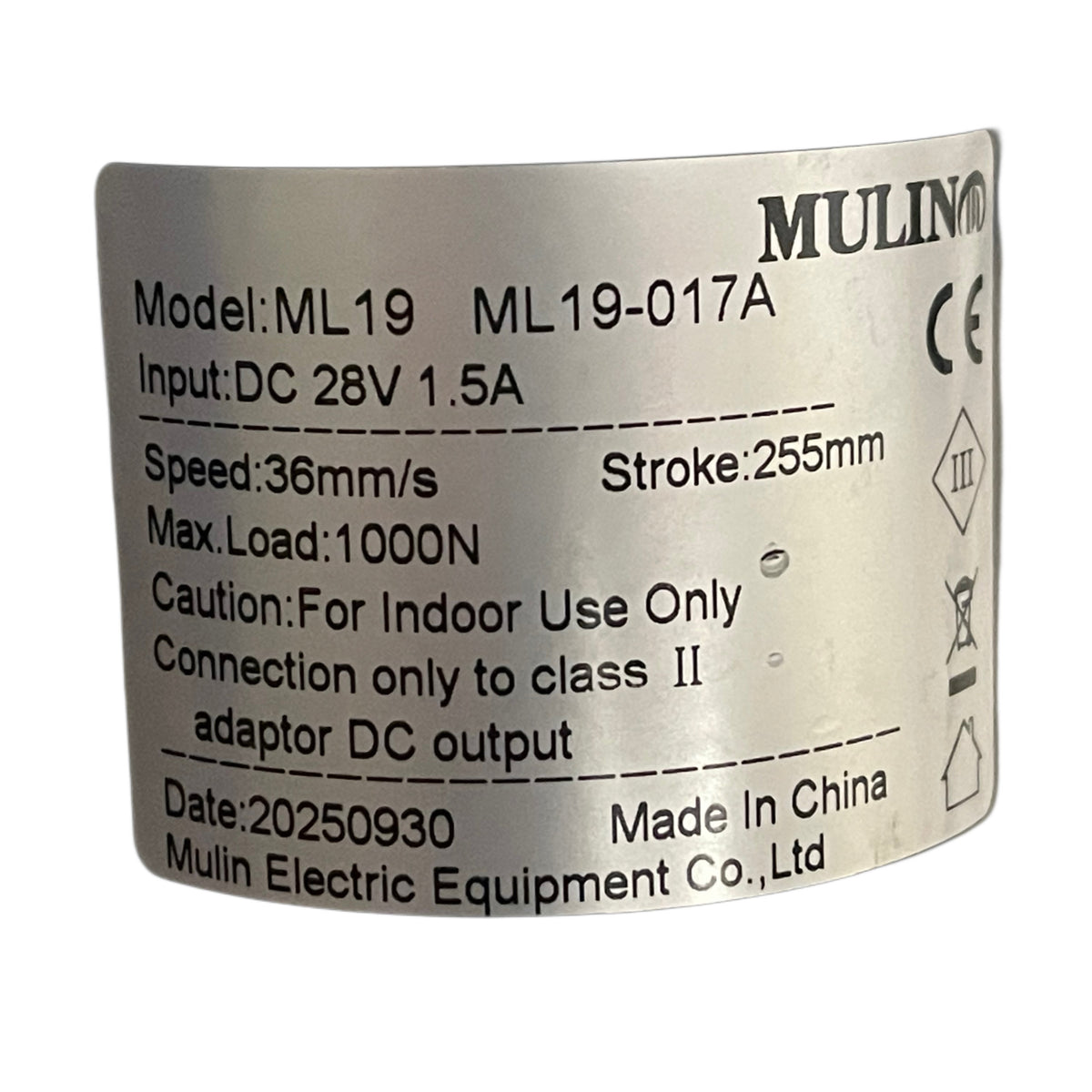

The Mulin ML19-017A is a replacement electric linear actuator for matching recliner installations. Its manufacturer label specifies 255 mm stroke, 36 mm/s speed and 1000 N maximum load. Match the complete model and installation before ordering; it is not a universal-fit replacement.

Electrical specifications

• Manufacturer: Mulin Electric Equipment Co., Ltd.
• Exact model: ML19-017A, within the ML19 family.
• Label input: DC 28V 1.5A.
• Indoor use only.
• Connect only to a suitable Class II adapter DC output, as specified on the label.

Performance

• Stroke: 255 mm.
• Linear speed: 36 mm/s.
• Maximum actuator load: 1000 N. This is force, not torque in Nm or a chair occupant-weight capacity.

No duty cycle is printed on the photographed label. Follow the applicable manufacturer operating instructions; do not substitute another model's duty cycle.

Dimensions and mounting

Compare the original retracted and extended mounting dimensions, measured centre to centre of pin where applicable, fixing points and available clearance. The 255 mm stroke is travel, not overall length or mounting length. Mounting-length specifications are not supplied on the photographed label.

Connections

The connector photo shows a male two-pin I0 power plug with one flat and one round pin, plus a female round five-pin socket on the harness. Compare connector faces, keying, pin arrangement, polarity, cable routing and the original control system. Matching voltage or pin count alone does not establish compatibility.

Compatibility and safe replacement

Match the full ML19-017A reference, electrical and performance ratings, stroke, mounting dimensions and connections. Other ML19 actuators can differ in wiring, load, stroke or mounting arrangement. Plug-and-play replacement applies only when the complete mechanical and electrical installation matches.

Send CouchGuard clear photos of your original label, full actuator, mounting points and connector faces, together with measurements, if you need help identifying the replacement.

A non-moving or partly extending recliner may have a switch, cable, power-supply or mechanism fault rather than a failed actuator. Establish the cause before replacement. Disconnect mains and any battery supply before installation. Keep clear of moving mechanisms and use a qualified repairer if the chair cannot be safely supported. Do not force connectors, modify wiring or connect directly to mains.

Frequently asked questions

What stroke does ML19-017A have?
The manufacturer label specifies 255 mm stroke, meaning actuator travel rather than overall or mounting length.

What input does it require?
DC 28V 1.5A, connected only to a suitable Class II adapter DC output.

What is its speed?
The label specifies 36 mm/s linear speed.

What does the 1000 N load mean?
It is maximum actuator force, not torque in Nm or a chair occupant-weight rating.

Which connections are shown?
A male two-pin I0 power plug and female round five-pin socket. Match wiring, polarity and connector layout.

Is every ML19 actuator interchangeable?
No. Match the complete ML19-017A model, ratings, stroke, mounting dimensions and connections.

What duty cycle is specified?
The photographed label does not state a duty cycle. Use the applicable manufacturer instructions rather than borrowing another actuator's rating.

Does a non-moving recliner prove the actuator is faulty?
No. Switch, cable, power-supply and mechanism faults can also cause the problem.

What should I send for compatibility help?
Clear photos of the original label, complete actuator, mounting points and connector faces, plus mounting measurements and required travel.

Can it be used outdoors?
No. The label specifies indoor use only.
